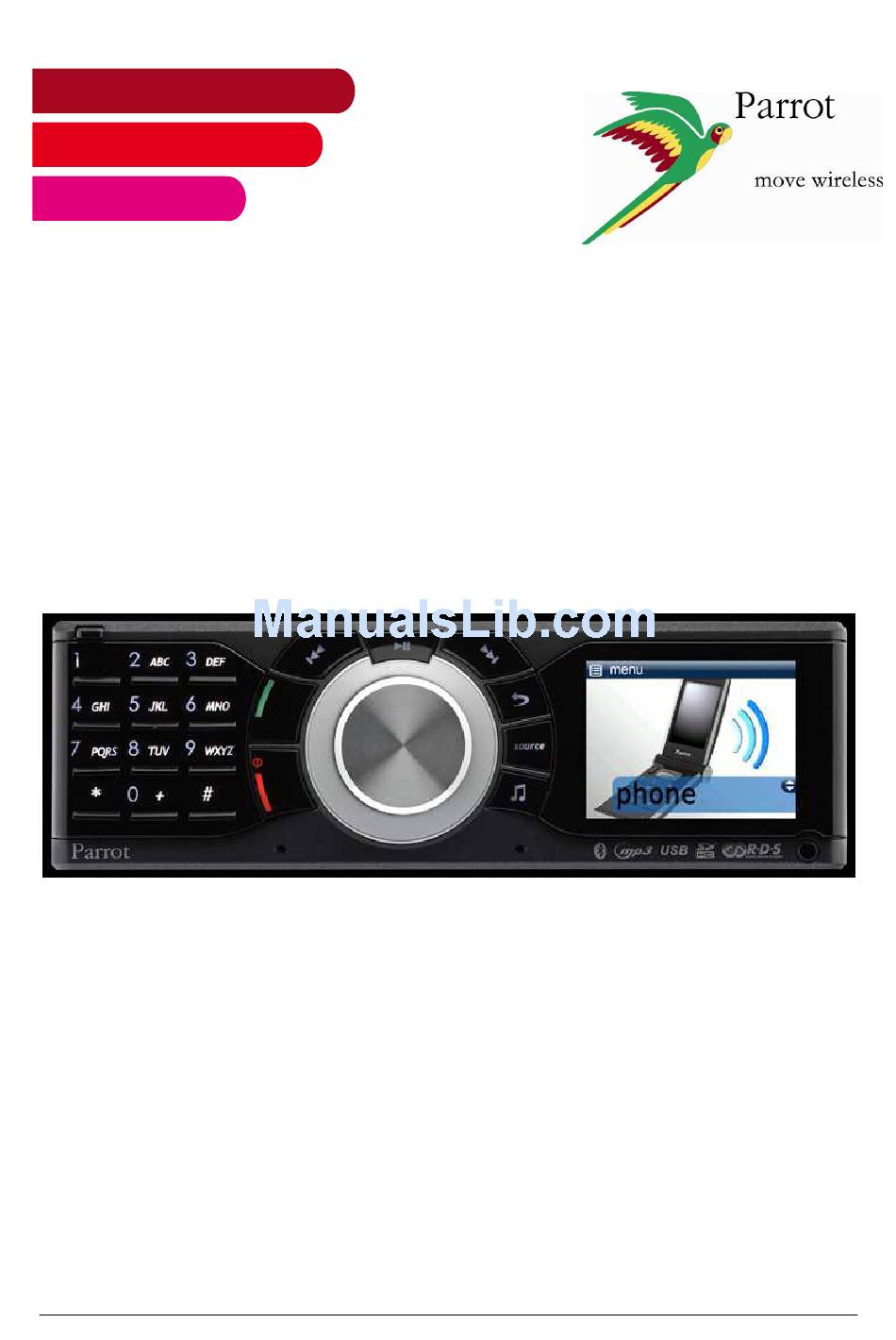

- Page 1 User Guide Parrot RK8200 English Parrot RK8200 - User Guide...
-
Page 2: Table Of Contents
• Select the display mode of the cover ................10 Connecting a phone via Bluetooth® ..................12 Pairing your phone with the Parrot RK8200 ..............12 Connecting your phone to the PARROT RK8200 ..............12 Disconnecting your phone from the Parrot RK8200............13 Using the Telephony function ....................14 Synchronization of the phonebook ...................14... - Page 3 Recording voice tags ......................17 Using the Music Function ....................18 Using the Audio Streaming function .................18 Using the internal memory of the Parrot RK8200 ..............18 Using the Parrot RK8200 with an external source.............19 Using the Parrot RK8200 with an audio cable ..............21 Using the Radio Function ....................21...
-
Page 4: Introduction
The Parrot RK8200 is an FM/AM RDS car stereo, featuring all the connections required for digital and analogue music. It is also a Bluetooth hands-free kit boasting sophisticated telephony functions. -
Page 5: Using The Parrot Rk8200 For The 1
To avoid any risk of theft, do not forget to remove the faceplate of Using the antitheft system your Parrot RK8200 when you leave your vehicle. Without this front, the Parrot RK8200 cannot be used. • To remove the faceplate, press the eject button in the top left. -
Page 6: Installing The Parrot Rk8200
4. Connect the audio and power connectors to the connectors of your Parrot RK8200. ► If this connection is impossible, you have to obtain an ISO cable to adapt your car radio to the ISO connectors of the Parrot RK8200. Consult our website www.parrotshopping.com for more information. - Page 7 The microphone located on the lower edge of the faceplate may be obstructed because of the design of your dashboard. In that case, you may need an external microphone. Parrot RK8200 - User Guide...
-
Page 8: Navigating Through The Menus
Bluetooth Audio: this menu allows you to access the list of the A2DP compatible devices previously paired with the Parrot RK8200. It also allows you to search for new devices to use the Audio Streaming function. Audio effects: this menu allows you to adjust the audio settings (Virtual Bass, Equalizer, Balance…). -
Page 9: Customizing Your Parrot Rk8200
Short press: Exit the menu Long press: Turn the Parrot RK8200 in standby mode The Parrot RK8200 allows you to customize the display of the screen Customizing your Parrot by changing some parameters. RK8200 Changing the brightness 1. -
Page 10: Changing The Display Color
Customizing the wallpaper It is possible to send a photo to the Parrot RK8200 and use it as wallpaper. To do so : 1. Ensure that the Parrot RK8200 is visible to all Bluetooth® devices. - Page 11 If no picture is included in the tags of your audio files, you can add a picture in .jpg format in the corresponding folder If various pictures are in this folder, the Parrot RK8200 displays primarily the cover.jpg one. 1. From the main menu, select Settings >...
-
Page 12: Connecting A Phone Via Bluetooth
Connecting a phone via Bluetooth® If it is the first time you use this phone with the Parrot RK8200, you have to pair both devices. The pairing process is only required once. You will then only have to connect the Parrot RK8200 with your phone before using the telephony function. -
Page 13: Disconnecting Your Phone From The Parrot Rk8200
2. Select the device you want to use and press the jog wheel. > Both devices are connected. > You can now use the telephony function of the Parrot RK8200 or send music files via Bluetooth. ► Refer to the Using the telephony function section for more information. -
Page 14: Using The Telephony Function
Using the Telephony function Before using your Parrot RK8200 telephony function, you first have to connect both devices. If you are using this device for the first time, you will have to pair both devices before connecting them. ►Refer to the Connecting a phone via Bluetooth section for more information. -
Page 15: Using The Parrot Rk8200 During A Call
2. Select the contact and press the jog wheel or the key to make the call. You can also use the numerical pad of the Parrot RK8200 to browse your agenda more rapidly. • If the contact you want to call is not in the phonebook of the... -
Page 16: Using The Redial Function
To call the last number dialed via the Parrot RK8200, hold down the Using the redial function key for 2 seconds. > The call is automatically initiated. The Parrot RK8200 allows you to assign a key of the numerical pad... -
Page 17: Recording Voice Tags
- Record the keywords with a monotonous voice to improve the voice recognition feature efficiency. Recording voice tags The Parrot RK8200 also allows you to add a voice tag to a contact. To do so: First, you have to connect your phone to the Parrot RK8200 to record voice tags for your contacts. -
Page 18: Using The Music Function
Depending on the model of your phone, the connection with the Parrot RK8200 may only be possible from your phone menu. The Parrot RK8200 has an internal memory of 1GB. You can use this Using the internal memory of the internal memory to store music files. -
Page 19: Using The Parrot Rk8200 With An External Source
2. Copy your music files in MP3 or WMA formats as if it was an USB flash drive. To get to the music files stored in the internal memory of the Parrot RK8200 : 1. Press the key repeatedly to select the Internal Memory contents. - Page 20 Press the jog wheel to play the selected music file. If your Parrot is connected to an iPod and an USB flash drive, the iPod is priority: you only can browse your iPod content. Parrot RK8200 - User Guide...
-
Page 21: Using The Parrot Rk8200 With An Audio Cable
The Parrot RK8200 allows you to listen to music files from another Using the Parrot type of audio player such as a CD player. To do so: RK8200 with an audio cable 1. Connect your audio player using a Jack/Jack cable (not provided) into the jack socket on the front of the faceplate. -
Page 22: Saving A Radio Station
2. Select a place and press the jog wheel to confirm. You also can press the key then hold down a number from the numerical pad of the Parrot RK8200 to save a radio station. Changing the radio settings The Parrot RK8200 allows you to change the following settings. -
Page 23: Using The Equalizer
Activate the Repetition / Random options To launch the random playback of the music files or activate the repetition, press the key then select Settings then Repetition or Random. The iPod settings are priority to those of the Parrot RK8200. Parrot RK8200 - User Guide... -
Page 24: Technical Specification
Transmission through the vehicle's speakers Bluetooth v1.2 Bluetooth Profiles supported: HSP 1.0 (Headset Profile) HFP 0.96 / 1.0 / 1.5 (Hands Free Profile) A2DP (Advanced Audio Distribution Profile) AVRCP (Audio Video Remote Control Profile) OPP (Object Push Profile) Parrot RK8200 - User Guide... - Page 25 Weight = 132 g Unit Height = 58 mm Width = 180 mm Depth = 174 mm Weight = 1038 g Parrot P5+ (32 bits) @ 208 MHz Processor Memory: Flash = 1 GB RAM = 128 Mbits Parrot RK8200 - User Guide...
-
