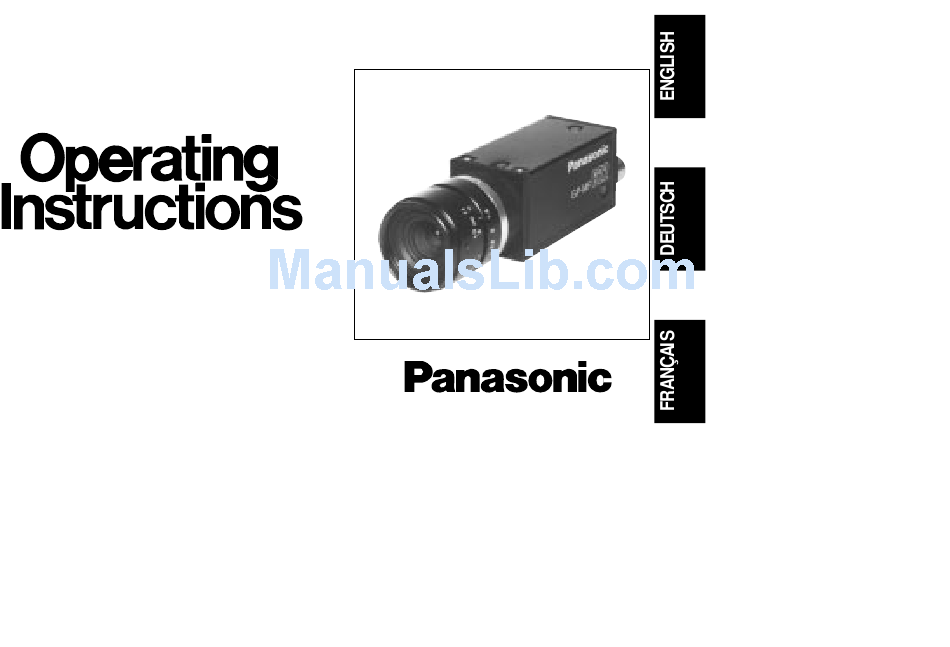

  • Page 1 Machine Vision Camera GP-MF622E Before attempting to connect or operate this product, please read these instructions completely.
  • Page 2 ENGLISH VERSION The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and mainte- CAUTION nance (servicing) instructions in the literature accompanying the RISK OF ELECTRIC SHOCK DO NOT OPEN appliance. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK).
  • Page 3: Table Of Contents

    CONTENTS We declare under our sole responsibility that the product to which this declaration relates is in conformity with the stan- dards or other normative documents following the provi- sions of Directive EEC/89/336. PREFACE ............2 FEATURES ............. 2 Nosotros declaramos bajo nuestra única responsabilidad que el producto a que hace referencia esta declaración està...
  • Page 4: Preface

    PREFACE Panasonic GP-MF622 Machine Vision Camera has a 1/2” Interline Transfer CCD image sensor which features 440 000 pixels, a horizon- tal resolution of 560 lines, and minimum smear. FEATURES 1. Newly developed multi-function solid state 3. External synchronization : image sensor 1/2”...
  • Page 5: Precautions

    PRECAUTIONS 1. Do not attempt to dissemble the camera. 4. Do not use the strong or abrasive To prevent electric shock, do not remove detergents when cleaning the camera screws or covers. body. There are no serviceable parts inside. Ask a Use a dry cloth to clean the camera when qualified service person for servicing.
  • Page 6 7. Do not drop anything inside the camera. Dropping metal for example inside the cam- era could permanently damage the unit. If anything is dropped inside the camera, turn the power off immediately and ask a quali- fied service person for servicing. 8.
  • Page 7: Major Operating Controls And Their Functions

    MAJOR OPERATING CONTROLS AND THEIR FUNCTIONS VIDEO 1. 1/2” Manual Iris Lens (Sold Separately) 2. Camera Connector (12-pin) This is connected with the optional Camera Cable GP-CA34 , GP-CA33, GP-CA59 or GP-CA60. - 5 -...
  • Page 8 CAUTION: CONNECT 5. Video Output Connector THIS TO A DC 12V This connector is used to connect with the CLASS 2 POWER VIDEO IN connector of the monitor. w ! 0 i SUPPLY ONLY. e ! 1 6. Switch 1 No.1 (1/ON) r t y This switch selects the Field or Frame Accumulation.
  • Page 9 The shutter speed can be set as below: 11. Switch 1 No.6 (6/ON) This switch is not available for this model. Switch 1 Mode 12. Switch 2 No.1 (1/ON) No. 2 No. 3 No. 4 No. 5 OFF OFF OFF OFF Normal 1/2 000 1/2 000 13.
  • Page 10 15. Switch 2 No.4 (4/ON) When V cont is selected (Switch 2 No.1 is OFF and No.2 is ON), set this switch to ON and Switch 2 No.6 to OFF. 16. Switch 2 No.5 (5/ON) This switch turns on or off the termination for HD signal with 75 .
  • Page 11: Preparations

    PREPARATIONS 1. Power Supply for Camera 3. Switch Covers Removal Prepare a regulated DC power supply Caution: The following preparation should which can supply DC 12 V ±10 % DC 170 be made by qualified service person- mA or more current and rated CLASS 2. nel or system installers.
  • Page 12: System Connections

    SYSTEM CONNECTIONS Caution: Keep the power switches of all units to OFF before connections. 1. Connect the optional camera cable GP-CA34 between the connector of this camera and the 12V DC Class 2 power supply(not provided as an accessory). 2. Connect the video connector of the GP-CA34 to the Video Monitor. Coaxial Cable Video Monitor Camera...
  • Page 13: External Synchronization

    EXTERNAL SYNCHRONIZATION 2 : 1 Interlace Note: If the picture appears disturbed, be sure The GP-MF622 works in 2 : 1 interlace mode to match the phases of falling edges of the when external 2 : 1 interlaced HD/VD signal is external HD/VD.
  • Page 14: Specifications

    SPECIFICATIONS Pick-up Device : Inter Line Transfer type CCD with 752 (H) x 582 (V) pixels. Image Size : 1/2” (7.95 (H) x 6.45 (V) mm) 2 : 1 interlace 1-line interlace (Frame accumulation) 2 : 1 interlace 2-line interlace (Field accumulation) Synchronization : Internal or External (Selectable Automatically) Internal : Built-in sync generator...
  • Page 15: Optional Accessories

    Vibration Resistance : 10 G (10 Hz - 150 Hz) (2 hours each for three axes) Shock Resistance : 80 G (IEC 68) *IEC=International Electronical Technical Commission Power Source : DC + 12 V, 170 mA Ambient Temperature : 10˚C - +50˚C (14˚F - 122˚F) Dimensions : 29(W) x 29(H) x 65(D) mm [1-1/8”(W) x 1-1/8”(H) x 2-13/16”(D)] Weight :...
