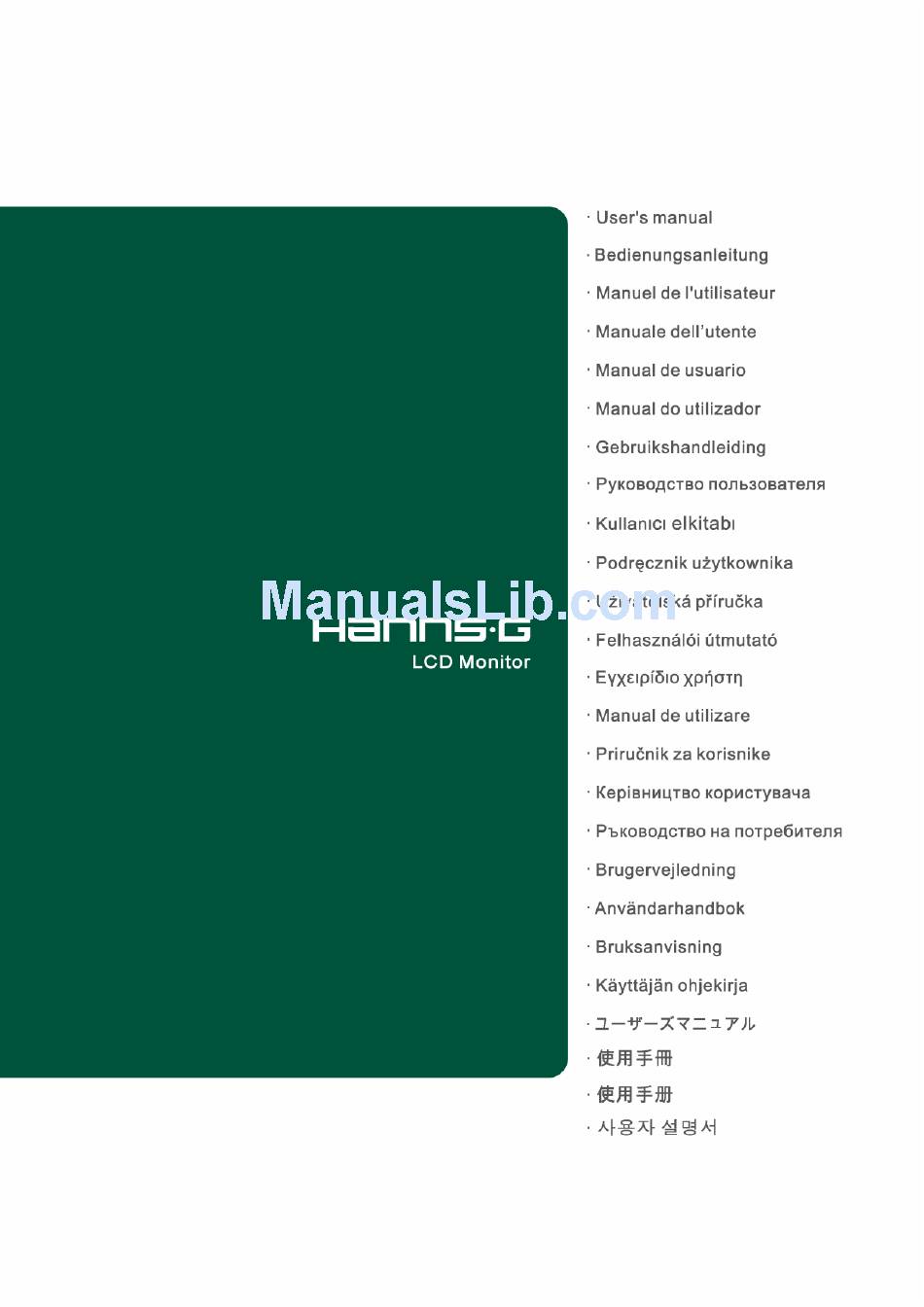

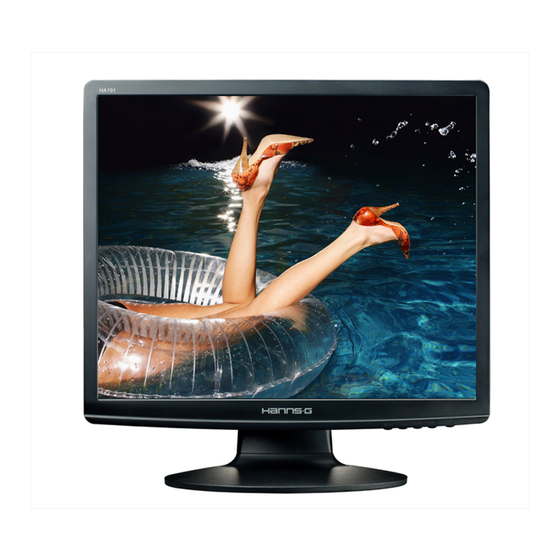

- Page 1 HH191 HSG 1070 HSG XXXX...
- Page 2 User’s Manual Before operating the monitor, please read this manual thoroughly. This manual should be retained for future reference. FCC Class B Radio Frequency Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
-
Page 3: Recycling Information
User’s Manual RECYCLING INFORMATION We, the Hanns.G care very much about our environment protection strategy and firmly believe that it helps us have healthier earth via appropriate treatment and recycling of industrial technology devices at the end-of-life. These devices contain recyclable materials, which can be re-decomposed and re-integrated into brand-new marvels. -
Page 4: Table Of Contents
User’s Manual SAFETY NOTICE ... 5 PRECAUTIONS... 5 SPECIAL NOTES ON LCD MONITORS ... 6 BEFORE YOU OPERATE THE MONITOR ... 7 FEATURES... 7 CHECKING THE CONTENTS OF THE PACKAGE ... 7 INSTALLATION INSTRUCTIONS ... 8 POWER... 8 MAKING CONNECTIONS... 9 ADJUSTING THE VIEWING ANGLE... -
Page 5: Safety Notice
SAFETY NOTICE 1. The changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 2. Shielded interface cables and AC power cord, if any, must be used in order to comply with the emission limits. -
Page 6: Special Notes On Lcd Monitors
User’s Manual SPECIAL NOTES ON LCD MONITORS The following symptoms are normal with LCD monitor and do not indicate a problem. Due to the nature of the fluorescent light, the screen may flicker during initial use. Turn off the • Power Switch and then turn it on again to make sure the flicker disappears. -
Page 7: Before You Operate The Monitor
BEFORE YOU OPERATE THE MONITOR FEATURES 19” TFT Color LCD Monitor • Crisp, Clear Display for Windows • Recommended Resolutions: 1280 X 1024 @75Hz • ® EPA ENERGY STAR • GP Green Product • Ergonomic Design • Space Saving, Compact Case Design •... -
Page 8: Installation Instructions
User’s Manual INSTALLATION INSTRUCTIONS INSTALL INSTALLATION: 1. Align the monitor with the opening in the base. 2. Note that the longer section of the base points forward. 3. Snap the monitor into its base. A clear click sound will affirm that the base is connected correctly. -
Page 9: Making Connections
MAKING CONNECTIONS CONNECTING TO A PC Turn off your computer before performing the procedure below. 1. Connect one end of the VGA cable to the back of the monitor and connect the other end to the computer’s D-Sub port. 2. Connect one end of the DVI cable (Dual input mode optional) to the back of the monitor and connect the other end to the computer’s DVI-D port. -
Page 10: Adjusting The Viewing Angle
User’s Manual ADJUSTING THE VIEWING ANGLE For optimal viewing it is recommended to look at the full face of the monitor, then adjust the • monitor’s angle to your own preference. Hold the stand so you do not topple the monitor when you change the monitor’s angle. •... -
Page 11: Operating Instructions
OPERATING INSTRUCTIONS GENERAL INSTRUCTIONS Press the power button to turn the monitor on or off. The other control buttons are located on the front panel of the monitor (See Figure 4). By changing these settings, the picture can be adjusted to your personal preferences. -
Page 12: Front Panel Control
User’s Manual FRONT PANEL CONTROL Power Button: • Press this button to switch ON/OFF of monitor’s power. Power Indicator: • Green — Power On mode. Orange — Power Saving mode. MENU / RETURN: • 1. Turn the OSD menu on/off or return to the previous menu. 2. - Page 13 1400x1050@RB 60Hz ↔ 1680x1050@RB 60Hz ** The screen resolutions available will depend on the purchased model. NOTES: Do not install the monitor in a location near heat sources such as radiators or air dusts, or in a • place subject to direct sunlight, or excessive dust or mechanical vibration or shock. Save the original shipping box and packing materials, as they will come in handy if you ever have •...
-
Page 14: How To Adjust A Settings
User’s Manual HOW TO ADJUST A SETTINGS BRIGHTNESS/ CONTRAST BRIGHTNESS CONTRAST X-CONTRAST INPUT SETTING INPUT SETTING AUTO SEARCH COLOR SETTING WARM NATURE (6500K) COOL USER IMAGE SETTING AUTO ADJUST ASPECT RATIO Adjust the brightness value of the display according to your preference. - Page 15 H-POSITION V-POSITION CLOCK PHASE SHARPNESS VIDEO MODE RESPONSE TIME OSD SETTING LANGUAGE H-POSITION V-POSITION TRANSPARENCY OSD TIME-OUT Select the 「H-POSITION」 option to shift the screen image to the left or right. Enter the option and adjust the level. only] Select the 「V-POSITION」 option to shift the screen image up or down.
- Page 16 User’s Manual OSD COLOR SYSTEM AUDIO INPUT VOLUME MUTE DDC/CI FACTORY RESET INFORMATION To choose the color combination of the OSD window, select 「OSD COLOR」 option under 「OSD SETTING」 menu, choose modes 1/2/3. While transferring via the HDMI port, it is recommended to set AUDIO INPUT to HDMI;...
-
Page 17: Plug And Play
User’s Manual PLUG AND PLAY Plug & Play DDC2B Feature This monitor is equipped with VESA DDC2B capabilities according to the VESA DDC STANDARD. It allows the monitor to inform the host system of its identity and, depending on the level of DDC used, communicate additional information about its display capabilities. -
Page 18: Technical Support (Faq)
User’s Manual TECHNICAL SUPPORT (FAQ) Q & A FOR GENERAL PROBLEMS PROBLEM & QUESTION Power LED is not on No Plug & Play The display is too dark or too bright. Picture bounces or a wave pattern is present in the picture The power LED is ON (orange) but there’s no video or no picture. - Page 19 User’s Manual INPUT as a PC option, and make sure PC audio output cable is connected to monitor’s LINE IN port(or AUDIO IN port). [For HDMI Input only]...
-
Page 20: Error Message & Possible Solutions
User’s Manual ERROR MESSAGE & POSSIBLE SOLUTIONS CABLE NOT CONNECTED : 1. Check that the signal-cable is properly connected, If the connector is loose, tighten the connector’s screws. 2. Check the signal-cable’s connection pins for damage. INPUT NOT SUPPORT : Your computer has been set to unsuitable display mode, set the computer to display mode given in the following table. - Page 21 1280×1024 @72Hz SXGA 1280×1024 @60Hz 1280×1024 @75Hz ** We ensure that the monitor can be lighted under interlace signal mode, but we can not guarantee the image quality. 76.02 63.98 79.98 User’s Manual 71.448...
-
Page 22: Appendix
User’s Manual APPENDIX SPECIFICATIONS Driving system LCD Panel Size Pixel pitch H-Frequency Video V-Frequency Display Colors Max. Resolution Plug & Play ON Mode Power consumption Power Saving Mode OFF Mode Audio output Input Terminal Maximum Screen Size Power Source Environmental Considerations Dimensions Weight (NW)
