Summary of Contents for Hanns.G HH251HPB

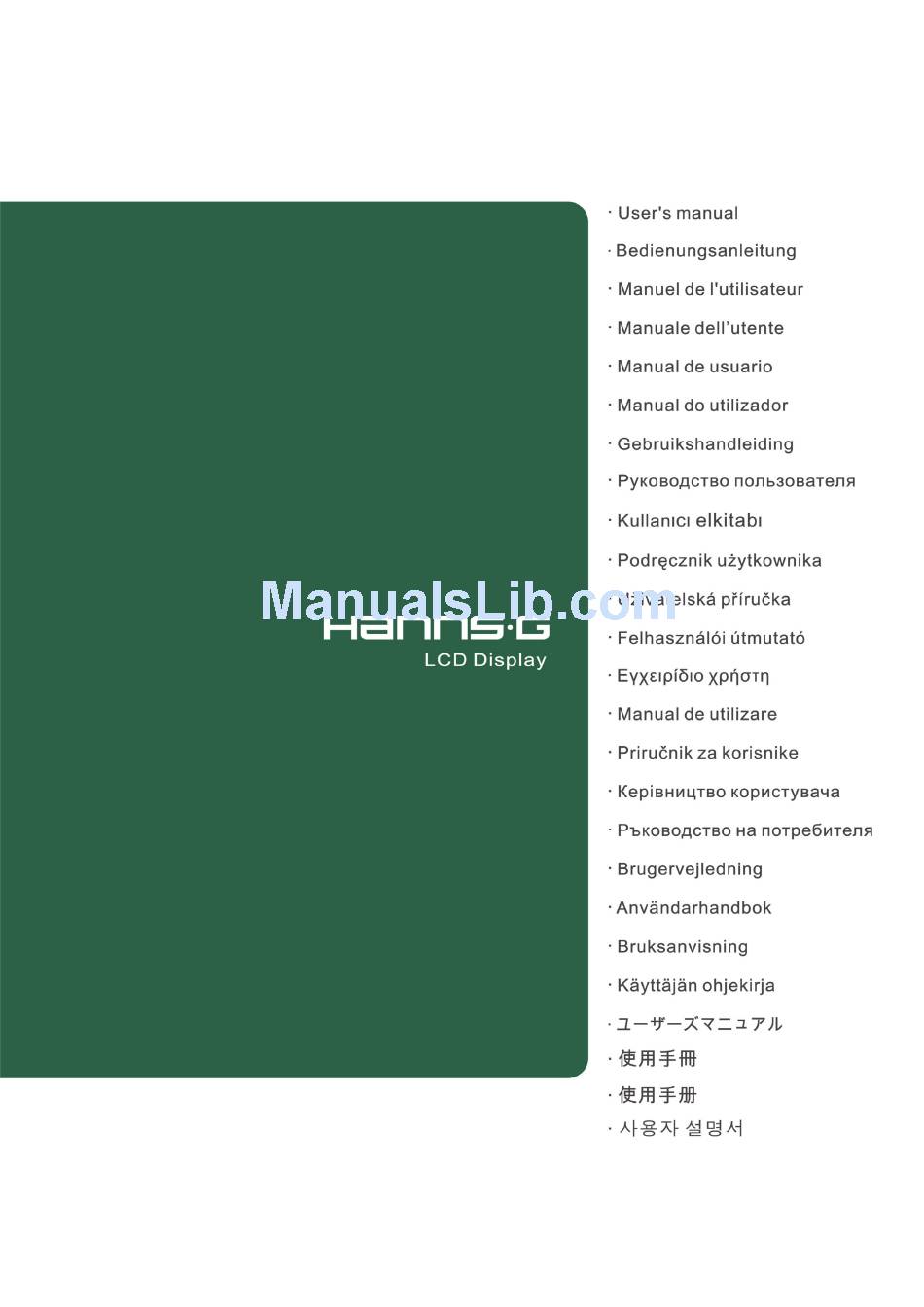

- Page 1 HH251 HSG 1064...
- Page 2 User’s Manual Before operating the monitor, please read this manual thoroughly. This manual should be retained for future reference. FCC Class B Radio Frequency Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
-
Page 3: Recycling Information
These devices contain recyclable materials, which can be re-decomposed and re-integrated into brand-new marvels. On the contrary, other material can be classified to hazardous and poisoned substances. We strongly encourage you to contact the provided information to recycle this product. For more information, please visit www.hannsg.com... -
Page 4: Table Of Contents
User’s Manual TABLE OF CONTENTS SAFETY NOTICE ....................5 PRECAUTIONS....................5 SPECIAL NOTES ON LCD MONITORS ............6 BEFORE YOU OPERATE THE MONITOR ............7 FEATURES......................7 CHECKING THE CONTENTS OF THE PACKAGE ........7 POWER....................... 7 MAKING CONNECTIONS................8 ADJUSTING THE VIEWING ANGLE............ -
Page 5: Safety Notice
User’s Manual SAFETY NOTICE 1. The changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 2. Shielded interface cables and AC power cord, if any, must be used in order to comply with the emission limits. -
Page 6: Special Notes On Lcd Monitors
User’s Manual SPECIAL NOTES ON LCD MONITORS The following symptoms are normal with LCD monitor and do not indicate a problem. Due to the nature of the fluorescent light, the screen may flicker during initial use. Turn off the • Power Switch and then turn it on again to make sure the flicker disappears. -
Page 7: Before You Operate The Monitor
User’s Manual BEFORE YOU OPERATE THE MONITOR FEATURES 25” Wide screen TFT Color LCD Monitor • Crisp, Clear Display for Windows • Recommended Resolutions: 1920 X 1080 @60Hz • ® EPA ENERGY STAR • GP Green Product • Ergonomic Design •... -
Page 8: Making Connections
User’s Manual MAKING CONNECTIONS CONNECTING TO A PC Turn off your computer before performing the procedure below. 1. Connect one end of the VGA cable to the back of the monitor and connect the other end to the computer’s D-Sub port. 2. -
Page 9: Adjusting The Viewing Angle
User’s Manual ADJUSTING THE VIEWING ANGLE For optimal viewing it is recommended to look at the full face of the monitor, then adjust the • monitor’s angle to your own preference. Hold the stand so you do not topple the monitor when you change the monitor’s angle. •... -
Page 10: Operating Instructions
User’s Manual OPERATING INSTRUCTIONS GENERAL INSTRUCTIONS Press the power button to turn the monitor on or off. The other control buttons are located on the front panel of the monitor (See Figure 3). By changing these settings, the picture can be adjusted to your personal preferences. -
Page 11: Front Panel Control
User’s Manual FRONT PANEL CONTROL Power Button: • Press this button to switch ON/OFF of monitor’s power. Power Indicator: • Green — Power On mode. Orange — Power Saving mode. MENU / RETURN: • 1. Turn the OSD menu on/off or return to the previous menu. 2. - Page 12 User’s Manual Resolution 640x400@70Hz ↔ 720x400@70Hz 640x480@60Hz ↔ 720x480@60Hz 1024x768@70Hz ↔ 1280x768@70Hz 1280x768@60Hz ↔1360x768@60Hz 1400x1050@60Hz ↔ 1680x1050@60Hz 1400x1050@RB 60Hz ↔ 1680x1050@RB 60Hz 1400x1050@75Hz ↔ 1680x1050@75Hz ** The screen resolutions available will depend on the purchased model. NOTES: Do not install the monitor in a location near heat sources such as radiators or air dusts, or in a •...
-
Page 13: How To Adjust A Settings
User’s Manual HOW TO ADJUST A SETTINGS BRIGHTNESS/ CONTRAST Adjust the brightness value of the display according to your preference. Select「BRIGHTNESS」option to adjust the BRIGHTNESS brightness value. Adjust the contrast value of the display according to your preference. Select「CONTRAST」option to adjust the contrast CONTRAST value. - Page 14 User’s Manual Select the 「H-POSITION」 option to shift the screen image to the H-POSITION left or right. Enter the option and adjust the level. [For VGA only] Select the 「V-POSITION」 option to shift the screen image up or V-POSITION down. Enter the option and adjust the level. [For VGA only] Select the 「CLOCK」option to reduce the vertical flicker of CLOCK...
- Page 15 User’s Manual To choose the color combination of the OSD window, select 「OSD COLOR」 option under 「OSD SETTING」 menu, choose OSD COLOR modes 1/2/3. SYSTEM While transferring via the HDMI port, it is recommended to set AUDIO INPUT to HDMI; if no sound is outputted, it is AUDIO INPUT recommended to select AUDIO INPUT as PC, and make sure the PC audio output cable is connected to monitor’s LINE IN (or...
-
Page 16: Plug And Play
User’s Manual PLUG AND PLAY Plug & Play DDC2B Feature This monitor is equipped with VESA DDC2B capabilities according to the VESA DDC STANDARD. It allows the monitor to inform the host system of its identity and, depending on the level of DDC used, communicate additional information about its display capabilities. -
Page 17: Technical Support (Faq)
User’s Manual TECHNICAL SUPPORT (FAQ) Q & A FOR GENERAL PROBLEMS PROBLEM & QUESTION POSSIBLE SOLUTION *Check if the Power Switch is in the ON position. Power LED is not on *Power Cord should be connected. *Check if the PC system is Plug & Play compatible. *Check if the Video Card is Plug &... - Page 18 User’s Manual INPUT as a PC option, and make sure PC audio output cable is connected to monitor’s LINE IN port(or AUDIO IN port). [For HDMI Input only]...
-
Page 19: Error Message & Possible Solutions
User’s Manual ERROR MESSAGE & POSSIBLE SOLUTIONS CABLE NOT CONNECTED : 1. Check that the signal-cable is properly connected, If the connector is loose, tighten the connector’s screws. 2. Check the signal-cable’s connection pins for damage. INPUT NOT SUPPORT : Your computer has been set to unsuitable display mode, set the computer to display mode given in the following table. - Page 20 User’s Manual 1280×1024 @75Hz SXGA 1360×768 @60Hz WXGA 1400×1050@60Hz WXGA + 1440×900 @60Hz WXGA + 1440×900 @75Hz WXGA + 1600×1200 @60Hz UXGA 1680×1050 @60Hz WSXGA + 1920×1080 @60Hz (Video mode) MODE RESOLUTION 720x480i@60 Hz 720x480p@60Hz 720x576i@50Hz 720x576p@50Hz 1280x720p@50Hz 1280x720p@60Hz 1920x1080i @50Hz 1920x1080i @60Hz 1920x1080p @50Hz 1920x1080p @60Hz...
-
Page 21: Appendix
Weight (NW) 5.7 kg *** The above specification is subject to actual product specification and is subject to change without prior notice. NOTES: The Maximum Resolution will depends on the display card supporting. Related issue can refer to www.hannsg.com FAQ section.
