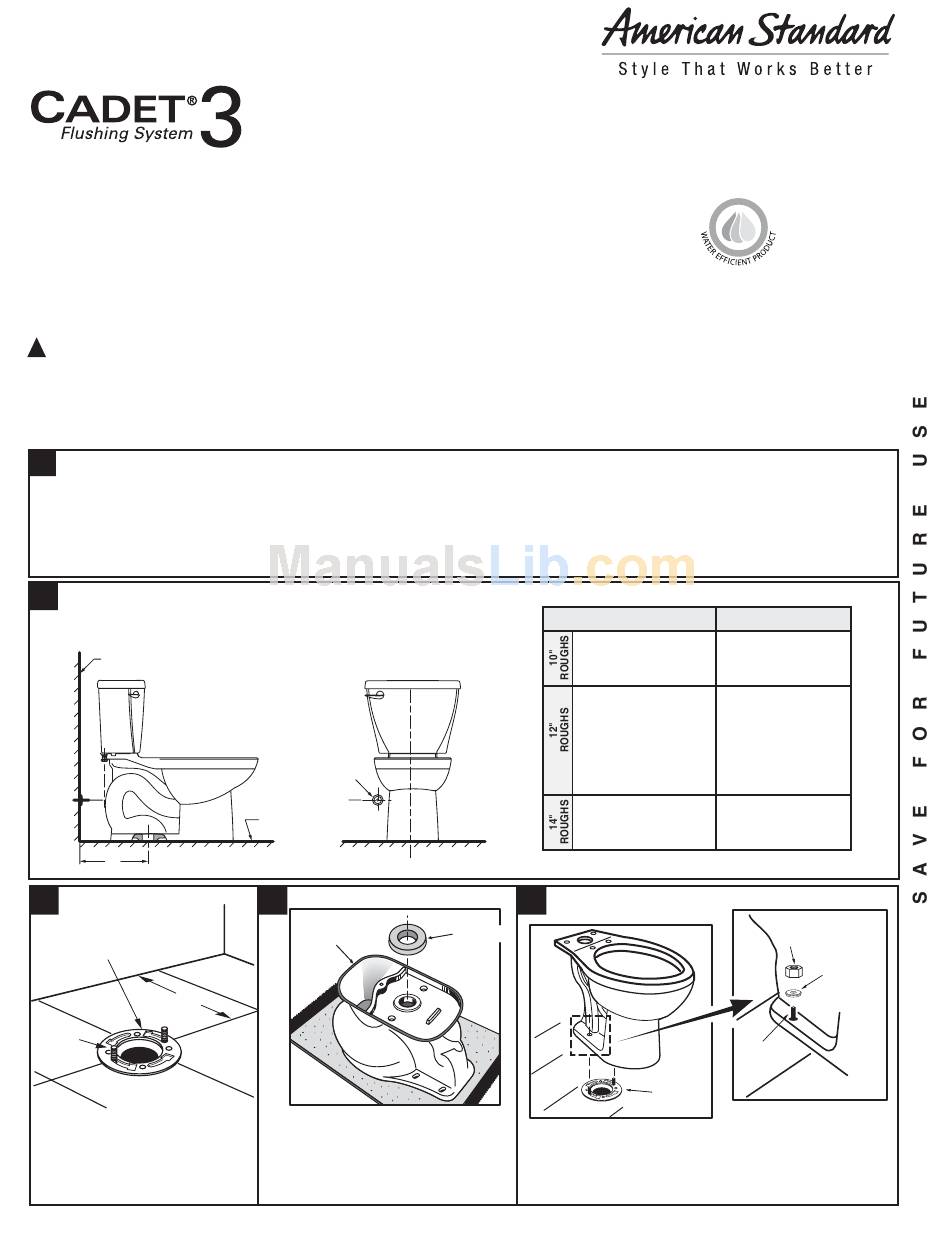

INSTALLATION INSTRUCTIONS
CARE AND MAINTENANCE
®
CADET 3 - 1.6 GPF TWO-PIECE TOILET
Models 2383 / 2384 / 2386 / 2447 / 2431 / 2880 / 3305
®
CADET 3 FloWise™ - 1.28 GPF TWO-PIECE TOILET
Models 2829 / 2832 / 2835 / 2838 / 2880 / 3305
Thank you for selecting American Standard - the benchmark of fine quality for over 100 years. To ensure this product is
installed properly, please read these instructions carefully before you begin. (Certain installations may require professional
help.) Also be sure your installation conforms to local codes.
!
CAUTION: PRODUCT IS FRAGILE. TO AVOID BREAKAGE AND POSSIBLE INJURY HANDLE WITH CARE!
NOTE: Pictures may not exactly define contour of china and components.
RECOMMENDED TOOLS AND MATERIALS
Putty Knife Regular Screwdriver
Hacksaw Wax Ring/Gasket
1 REMOVE OLD TOILET
a. Close toilet supply valve and flush tank completely. Towel or sponge remaining water from tank and bowl.
b. Disconnect and remove supply line. NOTE: If replacing valve, first shut off main water supply!
c. Remove old mounting hardware, remove toilet and plug floor waste opening to prevent escaping sewer gases.
d. Remove closet bolts from flange and clean away old wax, putty, etc. from base area.
NOTE: Mounting surface must be clean and level before new toilet is installed!
2
ROUGHING-IN DIMENSIONS:
NOTE: Distance from wall to closet flange centerline must be as listed on chart:
FINISHED WALL
A
3
CLOSET
FLANGE
A
CLOSET
BOLTS
INSTALL CLOSET BOLTS
Install closet bolts in flange
channel, turn 90 ° , and slide
into place 6" (152mm) apart
and parallel to wall.
P r o d u c t n a m e s l i s t e d h e r e i n a r e t r a d e m a r k s o f A S A m e r i c a , I n c .
© A S A m e r i c a , I n c . 2 0 0 8
Adjustable Wrench
Flexible Supply Tube
SUPPLY
AS
REQ'D.
FINISHED
FLOOR
4
SEALANT
INSTALL WAX SEAL
Invert toilet on floor (cushion to prevent
damage), and install wax ring evenly
around waste flange (horn), with tapered
end of ring facing toilet. Apply a thin bead
of sealant around toilet base.
Sealant
Closet Bolts
MODELS
2383.010 2384.010
2386.010
2383.012
2386.012
2384.012
3305.000
2431.012
2447.000
2880.000
2383.014 2384.014
2386.014
5
WAX RING
POSITION TOILET ON FLANGE
a. Unplug floor waste opening and install toilet on closet flange
so bolts project through mounting holes.
b. Loosely install retainer washers and nuts. Side of washers
marked "THIS SIDE UP" must face up!
Tape Measure
Carpenters Level
DIMENSION "A"
254mm (10)
2829.128
2832.128
2835.128
305mm (12)
2838.128
2447.128
2880.128
356mm (14)
NUT
TAPERED
WASHER
CLOSET
BOLT
FLANGE
7 30 9 28 - 1 0 0 R e v. F
