American Standard CADET 3 2755 Installation Instructions Care And Maintenance

INSTALLATION INSTRUCTIONS
CARE AND MAINTENANCE
®

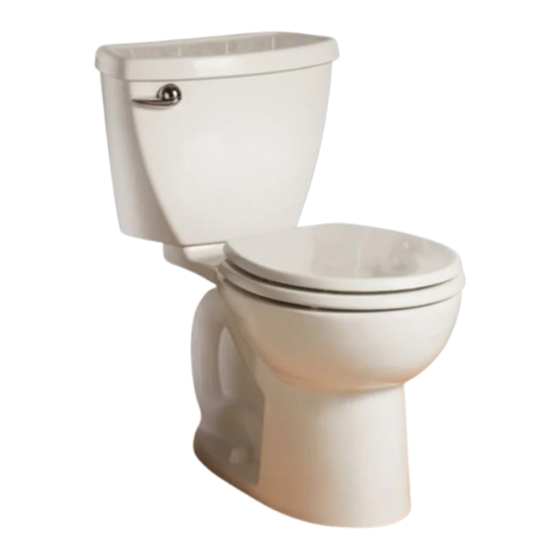

CADET 3 - 1.6 GPF TWO-PIECE TOILET
Models 2383 / 2384 / 2386 / 2431 / 2755 / 2756 / 2757
®
CADET 3 FloWise
Models 2232 / 2235 / 2758 / 2829 / 2830 / 2832 / 2833 /
2835 / 2836 / 2849 / 2431
Thank you for selecting American Standard - the benchmark of fine quality for over 100 years. To ensure this product is
installed properly, please read these instructions carefully before you begin. (Certain installations may require professional
help.) Also be sure your installation conforms to local codes.
CAUTION: PRODUCT IS FRAGILE. TO AVOID BREAKAGE AND POSSIBLE INJURY HANDLE WITH CARE!
!
NOTE: Pictures may not exactly define contour of china and components.
RECOMMENDED TOOLS AND MATERIALS
Putty Knife Regular Screwdriver
Hacksaw Wax Ring/Gasket
1 REMOVE OLD TOILET
a. Close toilet supply valve and flush tank completely. Towel or sponge remaining water from tank and bowl.
b. Disconnect and remove supply line. NOTE: If replacing valve, first shut off main water supply!
c. Remove old mounting hardware, remove toilet and plug floor waste opening to prevent escaping sewer gases.
d. Remove closet bolts from flange and clean away old wax, putty, etc. from base area.
NOTE: Mounting surface must be clean and level before new toilet is installed!
2
ROUGHING-IN DIMENSIONS:
NOTE: Distance from wall to closet flange centerline must be as listed on chart:
FINISHED WALL
A
3
CLOSET
FLANGE
A
CLOSET
BOLTS
INSTALL CLOSET BOLTS
Install closet bolts in flange
channel, turn 90 ° , and slide
into place 6" (152mm) apart
and parallel to wall.
P r o d u c t n a m e s l i s t e d h e r e i n a r e t r a d e m a r k s o f A S A m e r i c a , I n c .
© A S A m e r i c a , I n c . 2 0 11
®
- 1.28 GPF TWO-PIECE TOILET
Adjustable Wrench
Flexible Supply Tube
SUPPLY
AS
REQ'D.
FINISHED
FLOOR
4
SEALANT
INSTALL WAX SEAL
Invert toilet on floor (cushion to prevent
damage), and install wax ring evenly
around waste flange (horn), with tapered
end of ring facing toilet. Apply a thin bead
of sealant around toilet base.
Sealant
Closet Bolts
MODELS
2383.010
2384.010
2386.010
2756.016
2383.012
2384.012
2386.012
2386.800
2431.010
2431.101
2755.016
2758.128
2758.800
2383.014
2384.014
5
WAX RING
POSITION TOILET ON FLANGE
a. Unplug floor waste opening and install toilet on closet flange
so bolts project through mounting holes.
b. Loosely install retainer washers and nuts. Side of washers
marked "THIS SIDE UP" must face up!
Tape Measure
Carpenters Level
DIMENSION "A"
2830.128
2833.128
254mm (10)
2836.128
2849.128
2758.813
2829.128
2832.128
2835.128
305mm (12)
2835.813
2232.128
2235.128
2235.813
2386.014
356mm (14)
2757.016
NUT
TAPERED
WASHER
CLOSET
BOLT
FLANGE
7 30 9 28 - 10 0 Rev. Q
