Page 1 INS_810_4415-1.qxd 2/7/05 5:17 PM Page 2 Gas Outdoor Grill OWNER’S MANUAL ASSEMBLY AND OPERATING INSTRUCTIONS SAVE THIS MANUAL FOR FUTURE REFERENCE WARNING NOTICE TO INSTALLER: HAZARDOUS EXPLOSION MAY RESULT IF THESE WARNINGS AND LEAVE THESE INSTRUCTIONS INSTRUCTIONS ARE IGNORED. READ AND FOLLOW ALL WARNINGS AND WITH THE GRILL OWNER FOR INSTRUCTIONS IN THIS MANUAL TO AVOID PERSONAL INJURY, INCLUDING FUTURE REFERENCE.
Page 2 INS_810_4415-1.qxd 2/7/05 5:17 PM Page 3 IMPORTANT SAFETY WARNINGS WE WANT YOU TO ASSEMBLE AND USE YOUR GRILL AS SAFELY AS POSSIBLE. THE PURPOSE OF THIS SAFETY ALERT SYMBOL IS TO ATTRACT YOUR ATTENTION TO POSSIBLE HAZARDS AS YOU ASSEMBLE AND USE YOUR GRILL. WHEN YOU SEE THE SAFETY ALERT SYMBOL PAY CLOSE ATTENTION TO THE INFORMATION WHICH FOLLOWS! READ ALL SAFETY WARNINGS AND INSTRUCTIONS CAREFULLY...
Page 3: Table Of Contents
INS_810_4415-1.qxd 2/7/05 5:17 PM Page 4 TABLE OF CONTENTS General Warnings ..........3 Installation and LP Cylinder Specifications and Safe Use.
Page 4: General Warnings
INS_810_4415-1.qxd 2/7/05 5:17 PM Page 5 GENERAL WARNINGS WARNING • Never use natural gas in a unit designed for liquid propane gas. • Never use charcoal briquets or lighter fluid in a gas grill. • Leak test all connections before first use, even if grill was purchased fully assembled and after each tank refill.
Page 5: Installation And Lp Cylinder Specifications And Safe Use
INS_810_4415-1.qxd 2/7/05 5:17 PM Page 6 WARNING • FOR OUTDOOR USE ONLY. DO NOT operate indoors or in an enclosed area such as a garage, shed or breezeway. • Use your grill OUTDOORS in a well ventilated space away from dwellings or other buildings to prevent dangers associated with gas accumulation and toxic vapors.
Page 6 INS_810_4415-1.qxd 2/7/05 5:17 PM Page 7 CYLINDER SPECIFICATIONS: When purchasing or exchanging a cylinder for your gas grill, it must be constructed and marked in accordance with the specifications for LP gas cylinders of the U.S. Department of Transportation (DOT) or the National Standard of Canada, CAN/CSA-B339 Cylinders, Spheres and Tubes for Transportation of Dangerous Goods;...
Page 7: Connecting Lp Cylinder And Hose / Regulator To Grill
INS_810_4415-1.qxd 2/7/05 5:17 PM Page 8 WARNING FILLING THE LP GAS CYLINDER: • Allow only qualified LP gas dealers to properly fill or repair your LP gas cylinder. • New tanks should be purged prior to filling; inform LP gas dealer if you are using a new tank. •...
Page 8 INS_810_4415-1.qxd 2/7/05 5:17 PM Page 9 WARNING • Never use your grill without leak testing all gas connections and hoses. See the section on "Leak Testing" in this manual for proper procedures. WARNING The pressure regulator and hose assembly supplied with your gas grill must be used. •...
Page 9: Leak Testing
INS_810_4415-1.qxd 2/7/05 5:17 PM Page 10 DANGER LEAK TESTING: To prevent fire or explosion hazard: • DO NOT smoke or permit ignition sources in the area while conducting a leak test. • Perform test OUTDOORS only in a well ventilated area. •...
Page 10: Pre-Start Check List
INS_810_4415-1.qxd 2/7/05 5:17 PM Page 11 6. Check each place listed (A–K) for growing bubbles which indicates a leak. 7. Turn off gas supply at cylinder valve. 8. Turn on control knobs to release gas pressure in hose. 9. Turn control knobs to "OFF" position. 10.
Page 11: Connecting Lp Cylinder And Hose / Regulator To Grill
INS_810_4415-1.qxd 2/7/05 5:17 PM Page 12 WARNING Read, understand and follow all warnings and instructions contained in this manual. DO NOT skip any of the warnings and instructions contained in the preceding sections of this manual. WARNING LIGHTING INSTRUCTIONS: Follow the instructions exactly. 1.
Page 12 INS_810_4415-1.qxd 2/7/05 5:17 PM Page 13 LIGHTING THE SIDE BURNER: 1. Open lid before lighting side burner. 2. Make sure control knob is in the "OFF" position. 3. Push and turn side burner control knob to the "HIGH" position. 4. Press the electronic igniter on the main control panel and hold for 3 –...
Page 13: Operating Grill And Helpful Hints
INS_810_4415-1.qxd 2/7/05 5:17 PM Page 14 WARNING OPERATING THE GRILL: Never use Charcoal or Lighter Fluid inside your Gas Grill. Read and follow all warnings and instructions contained in the preceding sections of this manual. BREAKING IN YOUR GRILL: In manufacturing and preserving the components of your grill, oil residue may be present on the •...
Page 14: Using Other Features Of The Grill
INS_810_4415-1.qxd 2/7/05 5:17 PM Page 15 ROTISSERIE COOKING: Your grill was pre-drilled from factory to include mounting holes for a rotisserie (sold separately). Do • not use a rotisserie not specifically manufactured for this grill. Read and follow all instructions provided with the rotisserie. Save instructions for future reference. •...
Page 15: Proper Care And Maintenance
INS_810_4415-1.qxd 2/7/05 5:17 PM Page 16 GRILL COOKING TIPS CLEANLINESS • Always wash hands thoroughly with soap and hot water prior to handling food and after handling raw meat, uncooked poultry or seafood. • When using a platter to carry raw meat, uncooked poultry or seafood to the grill, make sure to wash the platter thoroughly with soap and hot water before placing cooked foods back on the platter or use different platters for raw and cooked foods.
Page 16: Burner Assembly/Maintenance
INS_810_4415-1.qxd 2/7/05 5:17 PM Page 17 CLEANING AND MAINTENANCE: • Keep the appliance free and clear of combustible materials, gasoline and other flammable vapors and liquids. • Keep the ventilation openings of the cylinder enclosure free and clear of debris. •...
Page 17: Transporting And Storage
INS_810_4415-1.qxd 2/7/05 5:17 PM Page 18 COOKING GRILLS Clean with mild soap detergent and water. A brass bristled brush or a nylon cleaning pad can be used • to remove residue from the stainless steel surfaces. Do not use steel wire bristles to clean the cooking grills.
Page 18: Trouble Shooting
INS_810_4415-1.qxd 2/7/05 5:17 PM Page 19 TROUBLE SHOOTING Problem: Possible Causes: 1. Check LP cylinder fuel level. 2. Bad electrode spark. Check to see if the grill will match light. Electrode or collector may need adjustment. • Burner will not light 3.
Page 19: Frequently Asked Questions
INS_810_4415-1.qxd 2/7/05 5:17 PM Page 20 FREQUENTLY ASKED QUESTIONS Your grill's serial number and model number, and the contact information for Brinkmann Customer Service, are listed on a silver label found on the back of the grill or on the grill body side, under the side shelf. These questions and answers are for your general knowledge, and may not be applicable to your model grill.
Page 20: Frequently Asked Questions
INS_810_4415-1.qxd 2/7/05 5:17 PM Page 21 FREQUENTLY ASKED QUESTIONS Cleaning Stainless Steel Cooking Grills: Wash grills with a mild detergent and rinse with hot water before initial use and as needed. DO NOT use a commercial oven cleaner. For stubborn food residue, use a degreaser and fiber or brass cleaning brush.
Page 21: Parts List And Assembly Instructions
INS_810_4415-1.qxd 2/7/05 5:17 PM Page 22 PARTS BAG CONTENTS Make sure you have all items listed under PARTS LIST and PARTS BAG CONTENTS before you begin the installation process. PARTS BAG CONTAINS: Qty. Qty. Screwdriver M6 washers Hex nut wrench M4 washers AA/1.5V Alkaline battery M6 nuts...
Page 22: Assembly Instructions
READ ALL SAFETY WARNINGS & ASSEMBLY INSTRUCTIONS CAREFULLY BEFORE ASSEMBLING OR OPERATING YOUR GRILL. WE RECOMMEND TWO PEOPLE WORK TOGETHER WHEN ASSEMBLING THIS UNIT. The following provided tools are required to assemble this Grand Gourmet 4415 Gas Grill: • Flathead Screwdriver • Hex Nut Wrench...
Page 23 INS_810_4415-1.qxd 2/7/05 5:17 PM Page 24 FOR MISSING PARTS, PLEASE CALL CUSTOMER SERVICE AT 800-527-0717. (Proof of purchase will be required.) Inspect contents of the box to ensure all parts are included and undamaged.
Page 24 INS_810_4415-1.qxd 2/7/05 5:17 PM Page 25 Choose a good, cleared assembly area and get a friend to help you put your grill together. Lay cardboard down to protect grill finish and assembly area. CAUTION! Some parts may contain sharp edges. Wear protective gloves if necessary.
Page 25 INS_810_4415-1.qxd 2/7/05 5:17 PM Page 26 NOTE: With the help of a friend, turn the cart over. Try to minimize the stress to the side panels. Locking Caster Step 3 Attach locking casters to the bottom Hex Nut Wrench of the cart. Tighten caster bolts securely using hex nut wrench provided in parts pack.
Page 26 INS_810_4415-1.qxd 2/7/05 5:17 PM Page 27 Step 5 Install door bracket using the four M6 X 50mm bolts. Make sure door stop is set toward front of cart. NOTE: Leave bolts hand tight until Step 9. Grease Cup Bracket Step 6 Attach the grease cup bracket onto the back cart panel by inserting the three tabs into the slots on the back...
Page 27 INS_810_4415-1.qxd 2/7/05 5:17 PM Page 28 Spring Pin Step 8 Insert right side door pivot into the hole in bottom cart shelf. Then align door with cart frame, depress spring pin located on top edge of door and slide door toward side cart panel until spring pin locks into hole in door bracket.
Page 28 INS_810_4415-1.qxd 2/7/05 5:17 PM Page 29 Step 10 Attach side table front panel to side table with two M6 nuts, two M6 washers and one M6 x 15mm bolt. Step 11 Attach side burner front panel to side burner with two M6 nuts, two M6 washers and one M6 x 15mm bolt.
Page 29 INS_810_4415-1.qxd 2/7/05 5:17 PM Page 30 Step 14 Attach side burner to right side of cart frame assembly. Insert four M6 X 15mm round head bolts halfway into cart frame assembly. Step 15 Place side burner keyholes over bolts and slide toward bottom of grill, then tighten securely.
Page 30 INS_810_4415-1.qxd 2/7/05 5:17 PM Page 31 Step 17 Place the bezel over the valve stem and position over holes in side burner base and side burner valve assembly. Attach with two bolts with spring washers which come with valve. Then install the side burner control knob onto valve stem.
Page 31 INS_810_4415-1.qxd 2/7/05 5:17 PM Page 32 Step 20 Insert grease tray into opening on backside of grill. Make sure to slide tray onto tracks as illustrated. Grease Tray Step 21 Place the heat distribution plates on lower level of grill body assembly Warming Rack directly above burners.

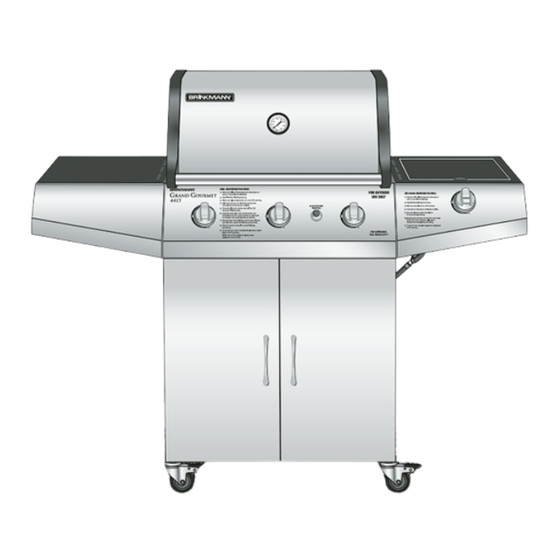

Page 32 INS_810_4415-1.qxd 2/7/05 5:17 PM Page 33 Grand Gourmet 4415 (Assembled)
Page 33: Grilling Accessories
INS_810_4415-1.qxd 2/7/05 5:17 PM Page 34 ACCESSORIES PROFESSIONAL SHISH-KABOB SKEWERS RIB RACK These heavy-duty, 18" shish-kabob skewers are extra-long for fabulous Chrome-plated rack can greatly increase the cooking restaurant style kabobs. Made of rust resistant stainless capacity of your grill. Holds ribs, chicken halves, steel to last for years.
Page 34 INS_810_4415-1.qxd 2/7/05 5:17 PM Page 35...
Page 35 INS_810_4415-1.qxd 2/7/05 5:17 PM Page 36...
Page 36 The Brinkmann Corporation requires reasonable proof of purchase. Therefore, we strongly recommend that you retain your sales receipt or invoice. To obtain replacement parts for your Brinkmann Grand Gourmet 4415 under the terms of this warranty, please call Customer Service Department at 800-527-0717. A receipt or proof of purchase will be required.
