Hoover Easy Logic Instruction Book

6+3 wash'n sensor dry
Hide thumbs Also See for Easy Logic:
Table of Contents

Advertisement

Quick Links

40003031.qxd
04/05/2005
10:14
Page 1
Instruction Book
®

Advertisement

Table of Contents
loading

Related Manuals for Hoover Easy Logic

Summary of Contents for Hoover Easy Logic

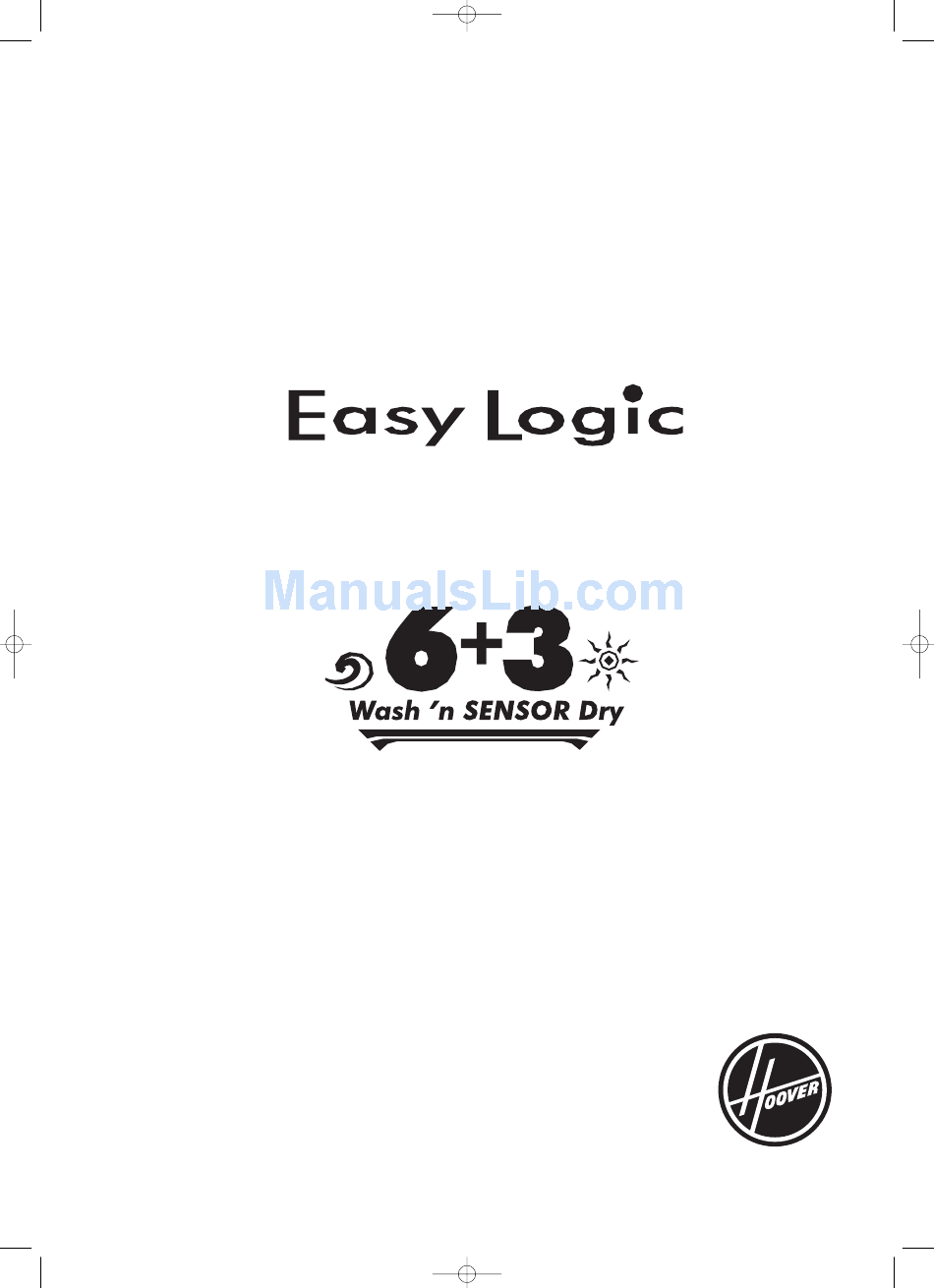

  • Page 1 40003031.qxd 04/05/2005 10:14 Page 1 Instruction Book ®...

  • Page 2: Table Of Contents

    40003031.qxd 04/05/2005 10:14 Page 2 Contents Introduction ........3 Delivery information .

  • Page 3: Introduction

    40003031.qxd 04/05/2005 10:14 Page 3 Introduction Check that no damage has occurred to the machine during transit. Please read and follow these instructions carefully and operate the machine accordingly. This booklet provides important If it has, call for service guidelines for safe use, installation, maintenance and some by GIAS.

  • Page 4: Unpacking The Product

    40003031.qxd 04/05/2005 10:14 Page 4 Unpacking the product Remove the machine from its packaging close to the final location of the machine. Cut carefully around the base of the packaging. Lay the machine on its back and remove the base and the two polystyrene spacers on each side of the machine.
  • Page 5 40003031.qxd 04/05/2005 10:15 Page 5 Remove the four retaining screws in the transit bar and pull out the transit bracket. We recommend you keep the transit bracket and screws to protect the machine for future transit. The manufacturers will not be responsible for any damage to the machine caused by not following the instructions relating to releasing the transit protection.

  • Page 6: Installation

    40003031.qxd 04/05/2005 10:15 Page 6 Take the two plastic fixing clips and fix the base panel to the base of the machine. Bring the machine back to the upright position. Cover the central hole in the rear of the machine with the cap enclosed in the instruction bag.

  • Page 7: Electricity Supply

    NEUTRAL cord which is ONLY Brown LIVE obtainable from the Green and Yellow EARTH Hoover spares service. CE Appliance complies with European Directive 89/336/EEC, It must be installed by a 73/23/EEC and subsequent amendments. competent person. Call GIAS Water supply 01204 556111 ●...

  • Page 8: Connecting To The Cold Water Supply

    40003031.qxd 04/05/2005 10:15 Page 8 Connecting to the cold water supply Only one hose is required to install this machine to a cold water supply. This Appliance Cold fill is an energy efficient system. Only the water required must be to wash the laundry is heated.

  • Page 9: Connection Of The Machine To The Drain

    40003031.qxd 04/05/2005 10:16 Page 9 Connection of the machine to the drain This machine must be connected in accordance with the water supply regulations. Water byelaws prohibit connection to a surface water drain. Decide which plumbing option suits you best then follow the instructions below. All machines are tested with water prior to leaving the factory so a small amount of water may remain in the drum and drain hose.

  • Page 10: Moving The Machine Into Position

    40003031.qxd 04/05/2005 10:16 Page 10 Moving the machine into position Your machine is heavy so care must be taken when moving it. Do not drag or lift the We recommend that two people move the machine to avoid strain and possible injury. machine by its door.

  • Page 11: Testing The Installation

    40003031.qxd 04/05/2005 10:16 Page 11 Testing the installation Refer to the ‘Selecting the programme’ for details of how to select programmes. Turn on the water supply and check for leaks from the fill hose. Switch on the electricity supply. Select the spin programme and then press the START/PAUSE button to start the machine.

  • Page 12: Washing And Drying Advice

    40003031.qxd 04/05/2005 10:16 Page 12 Washing and Drying advice The following tips are designed to assist in getting the best results from your machine whilst using it in the most environmentally-friendly and economical way. It is also important to understand the items to avoid in your laundry, to ensure the continued safe and reliable operation of your machine.

  • Page 13: Drying

    40003031.qxd 04/05/2005 10:16 Page 13 Check that there are no metal objects in the laundry as these Do not use the machine may damage the laundry and the machine. to wash or dry items Place small items in a wash bag. that do not have a Drying wash label.

  • Page 14: The Dispenser

    40003031.qxd 04/05/2005 10:16 Page 14 The Dispenser COMPARTMENT I COMPARTMENT Prewash detergent Fabric Conditioner Maximum dosage 100ml of powder Maximum dosage 100ml COMPARTMENT II Mainwash detergent Maximum dosage 200ml of powder Detergent dosage Only use detergents which are suitable for use in a washing DO NOT exceed machine.

  • Page 15: Dispensing Instructions

    40003031.qxd 04/05/2005 10:16 Page 15 Dispensing instructions Do not put any items into the drawer other The detergent drawer is split into 3 compartments: than detergents that ● the first, labelled "I", is for detergent utilised during are designed to be Prewash.

  • Page 16: The Control Panel

    40003031.qxd 04/05/2005 10:16 Page 16 The Control Panel COUNTDOWN Display START/ PROGRAMME OPTIONS DRYING TIME PAUSE BUTTONS SELECTOR SELECTOR Turning the machine On The programme Turn the machine ON by selecting a programme using the selector must be return programme selector. This status will be indicated by the STOP to the OFF position to indicator light flashing, this light will continue to flash until reset the controls...
  • Page 17 40003031.qxd 04/05/2005 10:16 Page 17 Cancelling and changing the programme To cancel the programme the programme selector should be rotated to the OFF position. Select a new programme and start as detailed above. Door Locked indicator The DOOR LOCKED indicator light is illuminated when the door is fully closed and the machine is ON.

  • Page 18: Wash And Dry Options

    40003031.qxd 04/05/2005 10:16 Page 18 Wash and Dry Options The following options should be selected BEFORE pressing the Start Pause button. The light on each option button will come on if the option has been selected. Economy This option can be used on all programmes. By selecting the Economy option the wash temperature is limited to the water inlet temperature thus reducing energy consumption.
  • Page 19 To ensure the best performance for your wash, this function is always activated on the Delicates and Woollens programs. Drying Selector The Hoover Sensor Washer Dryer gives many options for drying the laundry to suit all circumstances. The table below lists the programmes and the function of each programme.

  • Page 20: Automatic Features

    40003031.qxd 04/05/2005 10:16 Page 20 Automatic Features Automatic Variable Capacity (Half Load) The washing machine is fitted with a self adjusting water level system. This system enables the machine to use the optimum amount of water needed to wash and rinse the laundry in relation to the particular load.

  • Page 21: Programme Selector

    40003031.qxd 04/05/2005 10:16 Page 21 Programme Selector For handling the various types of fabric and their level of soiling in your laundry the washing machine has different programme groups according to type of wash, temperature, spin speeds and duration (see Programme Guide). Cottons The programmes are designed for maximum washing and rinsing.

  • Page 22: Daily Programmes

    3 rinses, oe for fabric conditioner, and a short spin. Sports Hoover has given sports items their own wash care programme. This washing machine has a unique Sportswear programme. It is specially designed to wash mixed sportswear fabrics that cannot be washed on hotter programmes and is designed to remove the soiling and staining created by participation in sports activities.

  • Page 23: Programme Guide

    40003031.qxd 04/05/2005 10:16 Page 23 Programme Guide Automatic Drying Cycle Maximum Maximum Maximum Load Water Drying High Fabric Type Size (kg) Temp (°C) available Programme Load ✔ Cottons Cottons, linen ✔ Colourfast Cotton, colourfast mixed fibres & Prewash ✔ Colourfast Cotton, colourfast mixed fibres ✔...

  • Page 24: A Typical Wash And Dry Cycle

    40003031.qxd 04/05/2005 10:23 Page 24 A Typical Wash and Dry Cycle This section summarises the main points when completing a wash cycle. For detailed explanations of features, options and Liquid detergents and details of the machine refer to the relevant section in the some concentrated instruction manual.

  • Page 25: Starting The Cycle

    40003031.qxd 04/05/2005 10:17 Page 25 Starting the cycle Press the START/PAUSE button. The door locked indicator and the START light illuminate, within a few seconds the programme will begin. Do not try to open the door when the door locked indicator is Do not open the dispenser drawer during the wash programme.

  • Page 26: Cleaning And Routine Maintenance

    40003031.qxd 04/05/2005 10:17 Page 26 Cleaning and Routine Maintenance The washing machine needs very little maintenance, but regular attention to a few small details will ensure the continued performance of your washing machine. Do not use abrasive cleaners, scouring pads, solvent based cleaners or polishes;...

  • Page 27: Cleaning The Filter

    40003031.qxd 04/05/2005 10:18 Page 27 Cleaning the filter The washing machine is fitted with a special filter to prevent items such as coins, buttons, etc. blocking the discharge hose. These may be retrieved by: Removing the kickplate by gently pulling it from the bottom in an outwards and upwards direction.

  • Page 28: Troubleshooting

    40003031.qxd 04/05/2005 10:18 Page 28 Troubleshooting What might be the cause of... Defects you can remedy yourself Before calling GIAS Service for technical advice please run through the following checklist. A charge will be made if the machine is found to be working or has been installed incorrectly or used incorrectly. If the problem persists after completing the recommended checks, please call GIAS Service (tel: 08705 400 600), they may be able to assist you over the telephone or arrange a service call.

  • Page 29: The Door Will Not Open

    40003031.qxd 04/05/2005 10:18 Page 29 ● Is the load unbalanced? Stop the programme, re-distribute the load and restart. The programme takes a long time… ● Some programmes do take a long time (over 2 hours). Low water pressure can increase the length of the programme.

  • Page 30: Power Failure

    40003031.qxd 04/05/2005 10:18 Page 30 Power Failure If there is a power failure the wash cycle will be interrupted, and the wash programme and functions will be suspended. When the power is restored, the wash programme and functions will re-start from the same point and complete the programme.

  • Page 31: Customer Service

    For a period of one year from the date of purchase the appliance is covered by a guarantee which allows you to call Hoover Service free of charge (except for the price of the call). Phone GIAS on 08705 400 600 Remember to send off the guarantee certificate for validation within 10 days of the date of purchase.

  • Page 32: Your Guarantee

    10:18 Page 32 Your Guarantee Hoover guarantees all parts of this product for 5 years from the date of purchase. During that time Hoover will replace or repair all defective parts free of charge, except for parts subject to fair wear and tear such as belts. The call out fee and labour costs are chargeable after the first 12 months.

This manual is also suitable for:

Easy logic hwd 120
