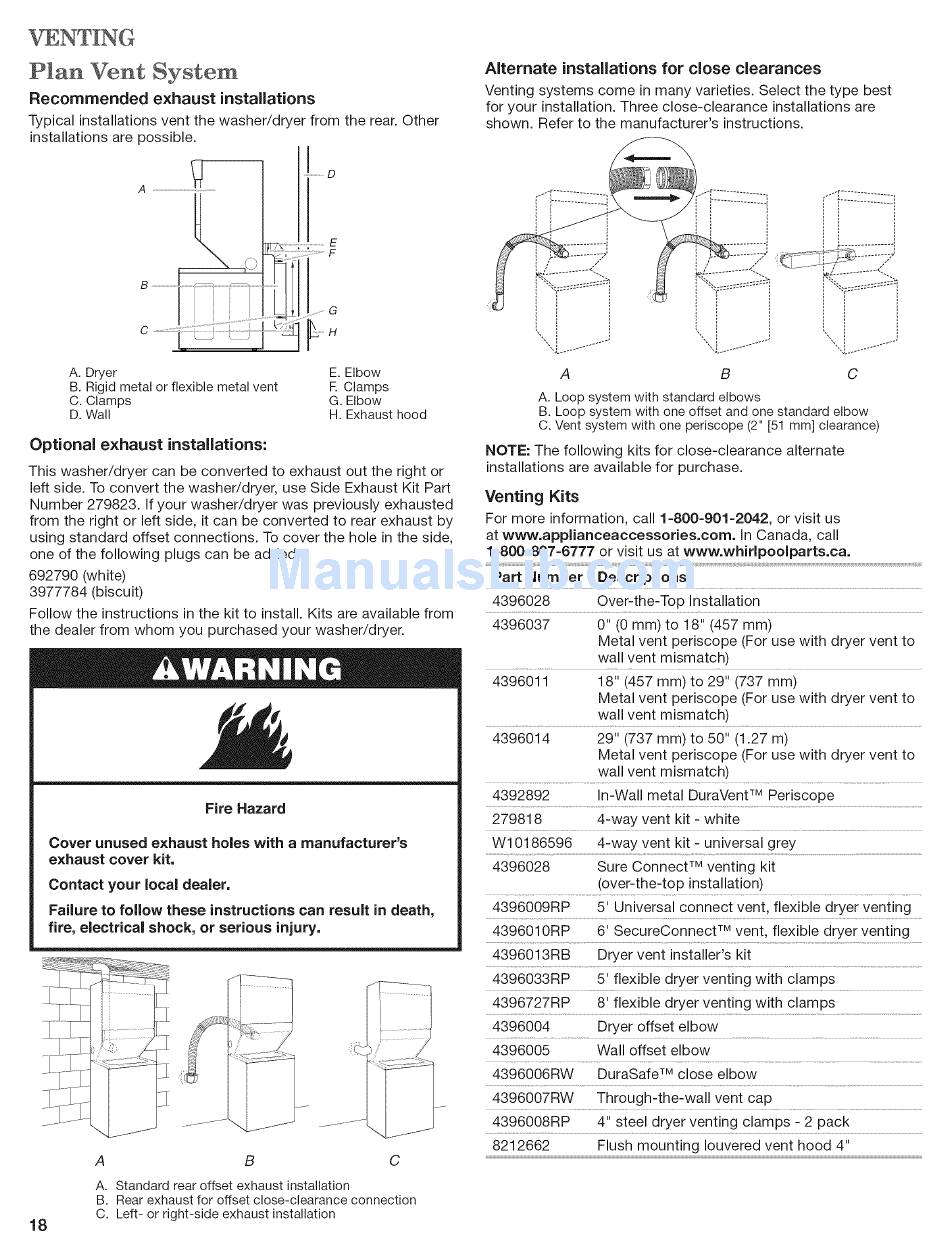

Plan
Vent
System
Recommended
exhaust
installations
Typical installations vent the washer/dryer
from the rear. Other
installations are possible.
A. Dryer
E. Elbow
B. Rigid metal or flexible metal vent
R Clamps
C. Clamps
G. Elbow
D. Wall
H. Exhaust hood
Optional
exhaust
installations:
This washer/dryer
can be converted to exhaust out the right or
left side. To convert the washer/dryer,
use Side Exhaust Kit Part
Number 279823. If your washer/dryer
was previously exhausted
from the right or left side, it can be converted to rear exhaust by
using standard offset connections. To cover the hole in the side,
one of the following plugs can be added:
692790 (white)
3977784 (biscuit)
Follow the instructions
in the kit to install. Kits are available from
the dealer from whom you purchased your washer/dryer.
Fire Hazard
Cover unused exhaust holes with a manufacturer's
exhaust cover kit,
Contact your local dealer.
Failure to fellow
these instructions can result
in death,
fire, electrical
shock, or ser=ous injury.
18
A
B
C
A. Standard rear offset exhaust installation
B. Rear exhaust for offset close-clearance
connection
C. Left- or right-side exhaust installation
Alternate
installations
for close clearances
Venting systems come in many varieties. Select the type best
for your installation. Three close-clearance
installations are
shown. Refer to the manufacturer's
instructions.
L,,
÷o.._÷_..
.....
.... r................
,
.... r.................
B
C
A. Loop system with standard elbows
B. Loop system with one offset and one standard elbow
C. Vent system with one periscope (2" [51 mm] clearance)
NOTE: The following kits for close-clearance
alternate
installations are available for purchase.
Venting
Kits
For more information, call 1=800=901=2042, or visit us
at www.applianceaccessodes.com,
in Canada, call
1-800-807-6777
or visit us at www.wNrlpoolparts.ca.
Part Number
Descriptions
4396028
Over-the-Top
Installation
4396037
0" (0 mm) to 18" (457 mm)
Metal vent periscope (For use with dryer vent to
wall vent mismatch!
Metal vent periscope (For use with dryer vent to
wall vent mismatch)
4396014
29" (737 mm) to 50" (1.27 m)
Metal vent periscope (For use with dryer vent to
wall vent mismatch)
4392892
In-Wall metal DuraVent TMPeriscope
279818
4-way vent kit - white
W10186596
4-way vent kit - universal grey
4396028
Sure Connect TMventing kit
(over-the-top
installation)
4396009RP
5' Universal connect vent, flexible dryer venting
4396010RP
6' SecureConnect TMvent, flexible dryer venting
4396013RB
Dryer vent installer's kit
4396033RP
5' flexible dryer venting with clamps
4396727RP
8' flexible dryer venting with clamps
4396004
Dryer offset elbow
4396005
Wall offset elbow
4396006RW
DuraSafe
TM
close elbow
4396007RW
Through-the-wall
vent cap
4396008RP
4" steel dryer venting clamps - 2 pack
8212662
Flush mounting Iouvered vent hood 4"
