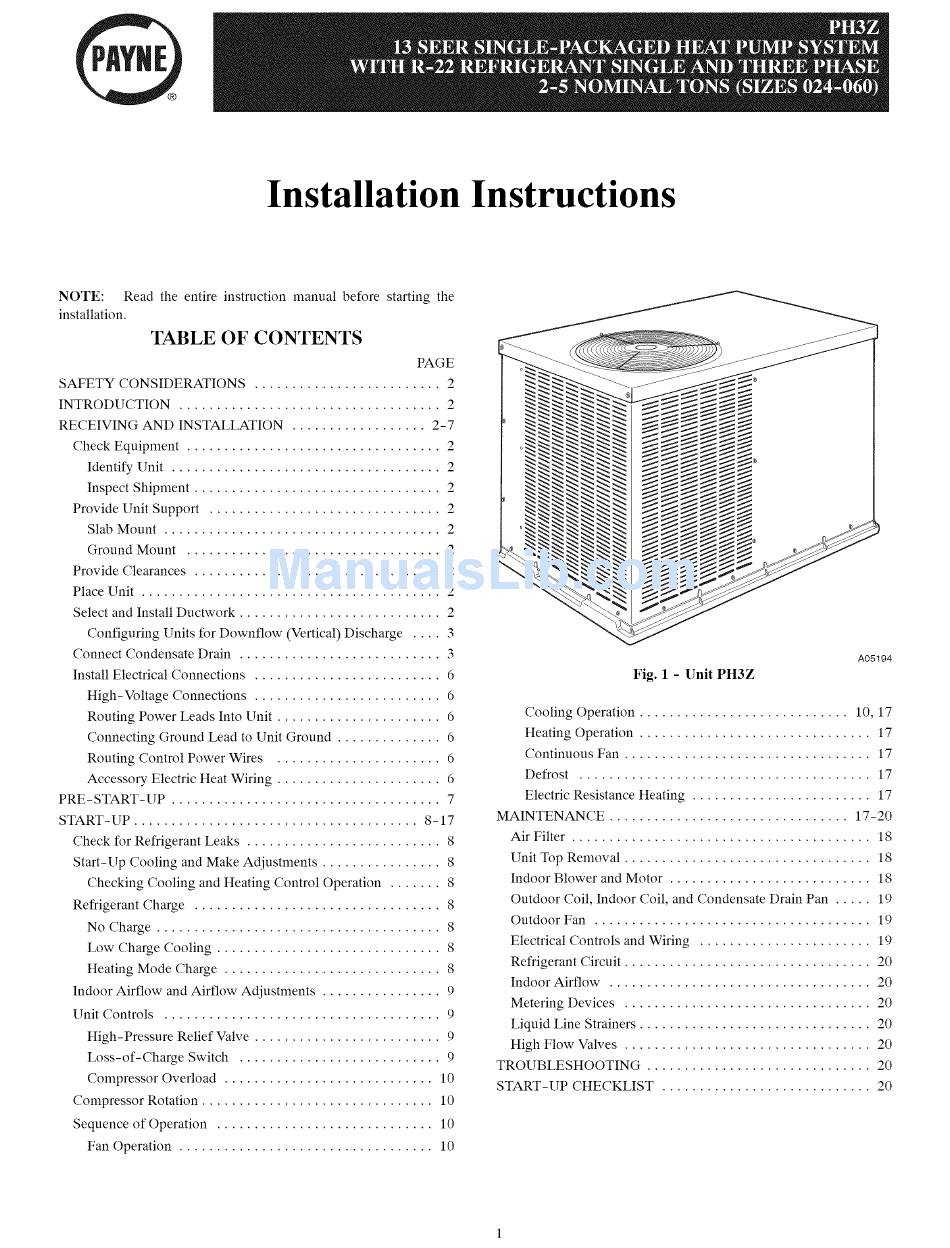

Installation Instructions
NOTE:
Read
the entire
instruction
manual
before
starting
the
installation.
TABLE
OF CONTENTS
PAGE
SAFETY
CONSIDERATIONS
.........................
2
INTRODUCTION
...................................
2
RECEIVING
AND INSTALLATION
..................
2-7
Check Equipment
..................................
2
Identify
Unit
....................................
2
Inspect
Shipment
.................................
2
Provide
Unit Support
...............................
2
Slab Mount
.....................................
2
Ground
Mount
..................................
2
Provide
Clearances
.................................
2
Place Unit
........................................
2
Select and Install Ductwork
...........................
2
Configuring
Units for Downflow
(Vertical)
Discharge
....
3
Connect
Condensate
Drain
...........................
3
Install Electrical
Connections
.........................
6
High-Voltage
Connections
.........................
6
Routing
Power Leads Into Unit ......................
6
Connecting
Ground
Lead to Unit Ground
..............
6
Routing
Control
Power Wires
......................
6
Accessory
Electric Heat Wiring
......................
6
PRE-START-UP
....................................
7
START-UP
......................................
8-17
Check for Refrigerant
Leaks
..........................
8
Start-Up
Cooling
and Make Adjustments
................
8
Checking
Cooling
and Heating
Control
Operation
.......
8
Refrigerant
Charge
.................................
8
No Charge
......................................
8
Low Charge
Cooling
..............................
8
Heating
Mode
Charge
.............................
8
Indoor Airflow
and Airflow
Adjustments
................
9
Unit Controls
.....................................
9
High-Pressure
Relief Valve .........................
9
Loss-of-Charge
Switch
...........................
9
Compressor
Overload
............................
10
Compressor
Rotation
...............................
10
Sequence
of Operation
.............................
10
Fan Operation
..................................
10
A05194
Fig. 1 - Unit PH3Z
Cooling
Operation
............................
10, 17
Heating
Operation
...............................
17
Continuous
Fan .................................
17
Defrost
.......................................
17
Electric Resistance
Heating
........................
17
MAINTENANCE
................................
17-20
Air Filter ........................................
18
Unit Top Removal
.................................
18
Indoor Blower
and Motor
...........................
18
Outdoor
Coil, Indoor Coil, and Condensate
Drain Pan
.....
19
Outdoor
Fan
.....................................
19
Electrical
Controls
and Wiring
.......................
19
Refrigerant
Circuit .................................
20
Indoor Airflow
...................................
20
Metering
Devices
.................................
20
Liquid Line Strainers
...............................
20
High Flow Valves
.................................
20
TROUBLESHOOTING
..............................
20
START-UP
CHECKLIST
............................
20
