Fisher ID EDGE Operating Manual

Target i.d. metal detector
Hide thumbs
Table of Contents

Advertisement

Quick Links

Enlarged version
QUALITY
Fisher detectors are renowned for their quality.
In the Fisher tradition, each detector is hand crafted with pride
PERFORMANCE
Our detectors are durable, dependable, and search deeper.
REPUTATION
Fisher produced the first patented metal detector in 1931. For
over 70 years, the Fisher logo has been a mark of excellence.
5-YEAR LIMITED WARRANTY
Fisher believes in the products we produce and backs this belief with
a 5-Year Limited Warranty. Warranty may vary outside the United
States. See your dealer for details
SERVICE
Fisher is committed to providing you, our valued customer, with
superior service. Each and every instrument is rigidly tested
& carefully inspected during assembly and before shipment.
Should you have any questions or problems, contact:
FISHER RESEARCH LABORATORY
200 West Willmott Road.,
Los Banos, California 93635
Tel 209.826.3292 Fax 209.826.0416
www.fisherlab.com email: info@fisherlab.com
FRL#8730024-C
IDedgeManual-8730024 .indd 1

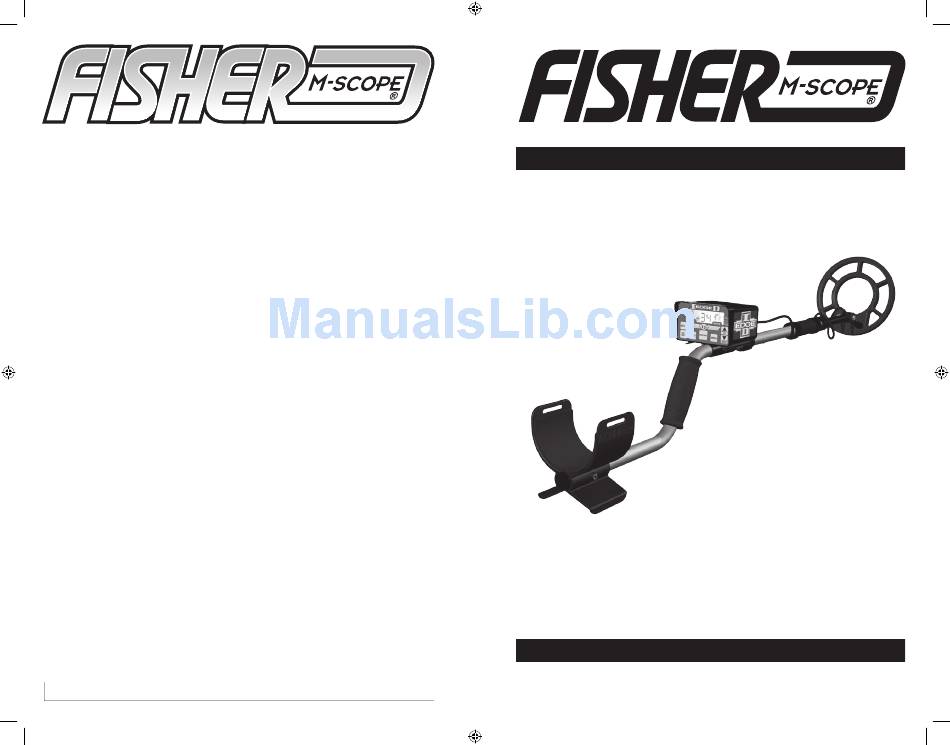

ID EDgE
Target I.D. Metal Detector
Operating Manual
F I S H E R
R E S E A R C H
L A B O R A T O R Y
6/13/06 3:08:57 PM

Advertisement

Table of Contents
loading

Related Manuals for Fisher ID EDGE

Summary of Contents for Fisher ID EDGE

  • Page 1 Our detectors are durable, dependable, and search deeper. REPUTATION Fisher produced the first patented metal detector in 1931. For over 70 years, the Fisher logo has been a mark of excellence. 5-YEAR LIMITED WARRANTY Fisher believes in the products we produce and backs this belief with a 5-Year Limited Warranty.
  • Page 2 CONTENTS About Your Detector ............... pg. 3 Setting Up ................. pg. 4 Control Panel ................pg. 6 4 Tone Audio System ............... pg. 10 Pinpointing ................pg. 10 LCD Identification System ............pg. 11 Auto ground Balance ............. pg. 12 Additional Features ..............

  • Page 3: About Your Detector

    3. The ID Edge disassembles to fit into an optional carrying case measuring approximately 6"x 21" x 15". 4. The ID Edge is a motion detector in the All Metal and Target ID modes. The search coil must be moving at least slightly to detect a target.
  • Page 4 MAINTENANCE SETTINg UP Your Fisher ID EDgE is built to last for years. Handle it carefully, care Your ID EDgE doesn’t require a lot of care. It’s built with high-quality for it regularly, and it will give you years of dependable service.

  • Page 5: Battery Replacement

    The ID EDgE is balanced for comfortable searching in a tight semicircle around the front of the operator. 1. To open the battery compartments, press gently 4.

  • Page 6: Control Panel

    -36 to +22 with the arrow buttons when the DISC icon is Unlike other metal detectors, the discrimination settings have little if any effect on the depth capability of the ID EDGE Depth is also determined by the size, shape flashing.
  • Page 7 SEARCHINg CONTROL PANEL Good search techniques are every bit as important as having a B. The VOLUME control can be varied from a setting of V1 TO good detector. V9 with the arrow buttons when the “V” icon is flashing, DISCRIMINATION CHART (APPROXIMATE) 1.

  • Page 8: Additional Features

    FOIL NOTCH CONSTANT CONTROL READOUT: Unlike many digital detectors, the ID EDGE LCD shows you the control settings at all times while in the search mode. The control icons are similar to the knobs of older detectors, constantly showing where the settings are at in NICKEL NOTCH one easy glance.

  • Page 9: Auto Ground Balance

    6. The Factory Preset “FP”: Fisher recommends that for a quick it is indicating the presence of metal under the target. Move to start setup or while you are learning to hunt with your ID Edge, another location and repeat the auto ground balance procedure.

  • Page 10: Tone Audio System

    I.D. system in the “discrimination” a number preceded by a “-” or “+” sign. The target identification mode. While sweeping the ID EDGE search coil over a target, you system works as follows: will hear one of four tones:...
