Summary of Contents for Amprobe DM73C
-

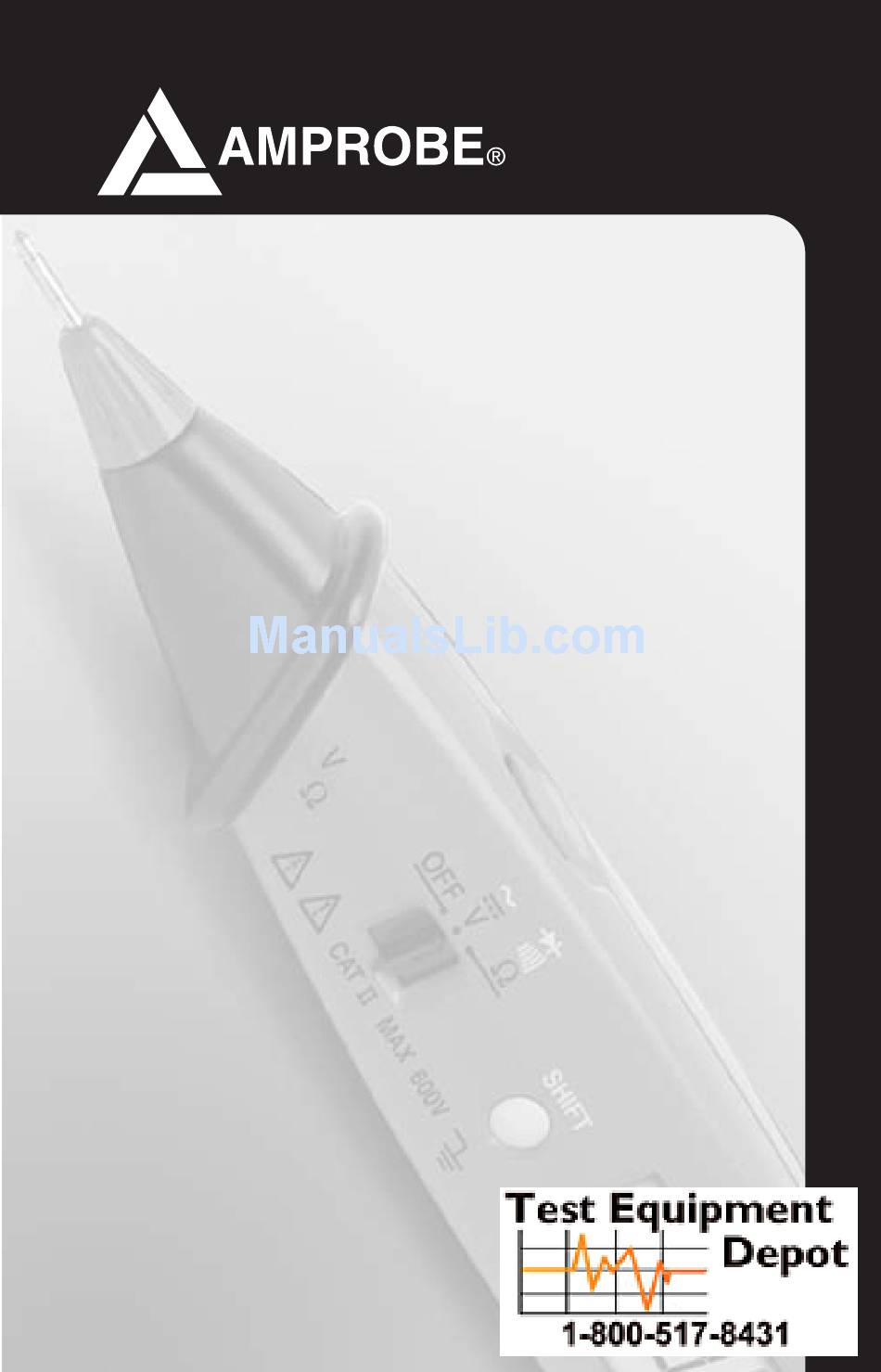

Page 1: Digital Multimeter
DM73C Digital Multimeter Pen Style DMM Users Manual · Manual de uso · Mode d'emploi · Bedienungshandbuch · Manuale d'Uso 99 Washington Street Melrose, MA 02176 Fax 781-665-0780 TestEquipmentDepot.com... - Page 3 DM73C Digital Multimeter Users Manual • Manual de uso • Mode d’emploi • Bedienungshandbuch • Manuale d’Uso 99 Washington Street Melrose, MA 02176 PN 2728873 Fax 781-665-0780 August 2006 TestEquipmentDepot.com ©Amprobe Test Tools. ® All rights reserved. Printed in Taiwan.
- Page 5 DM73C Digital Multimeter Users Manual • Manual de uso • Mode d’emploi • Bedienungshandbuch • Manuale d’Uso 99 Washington Street Melrose, MA 02176 Fax 781-665-0780 English TestEquipmentDepot.com...
-
Page 6: Warranty
Resellers are not authorized to extend any other warranty on Amprobe’s behalf. To obtain service during the warranty period, return the product with proof of purchase to an authorized Amprobe Test Tools Service Center or ®... -
Page 7: Certifications And Precautions
CERTIFICATIONS AND PRECAUTIONS ■ The DM73C instrument is UL, cUL, and EN61010-1 certified for Installation Category II – 600V and Category III – 300V. It is recommended for use with local level power distribution, appliances, portable equipment, etc, where only smaller transient overvoltages may occur, and not for primary supply lines, overhead lines and cable systems. -
Page 8: Measuring Procedures
MEASURING PROCEDURES Note: When connecting or disconnecting test leads to or from a circuit, always first turn off power to the circuit under test and discharge all capacitors. DC / AC Voltage Measurement Set the Function switch to “V”. Select AC or DC by pressing the mode selector button (AC or DC is displayed). -
Page 9: Automatic Shutdown
Automatic Shutdown This function causes the meter to enter power saving mode after approximately 10 minutes. Disable automatic shutdown by holding the shift button down while turning the meter on. MAINTENANCE In Case of Difficulties In the case of improper operation of the meter, first review the operating instructions for possible errors in operation. -
Page 10: Washington Street
Buy” section on www.amprobe.com for a list of distributors near you. Additionally, in the United States and Canada In-Warranty repair and replacement units can also be sent to a Amprobe Test ® Tools Service Center (see below for address). Non-Warranty Repairs and Replacement – US and Canada... -
Page 11: General Specifications
Class 2, Pollution degree II; UL3111-1. EMC: Conforms to EN61326-1. The TL73B test lead and alligator clip is UL approved for use only with the DM73C. This product complies with requirements of the following European Community Directives: 89/ 336/ EEC (Electromagnetic Compatibility) and 73/ 23/ EEC (Low Voltage) as amended by 93/ 68/ EEC (CE Marking). -
Page 12: Electrical Specifications
exercise care and take appropriate precautions to avoid misleading results when making measurements in the presence of electronic interference. Electrical Specifications Accuracy at 23°C ± 5°C, < 75 % RH, guaranteed for one year. DC Volts Ranges: 340mV, 3.4, 34, 340V, 600V Accuracy: ±... - Page 13 Continuity Display response: <0.5s Continuity threshold: ≤ 35 Ω Overload prot.: 500VDC or AC rms Accessories / User Replaceable Parts TL73B Test lead with alligator clip VC11 Vinyl Case TP73B Replaceable Probe tip Battery Type SR44, LR44, or S76 99 Washington Street Melrose, MA 02176 Fax 781-665-0780 TestEquipmentDepot.com...
