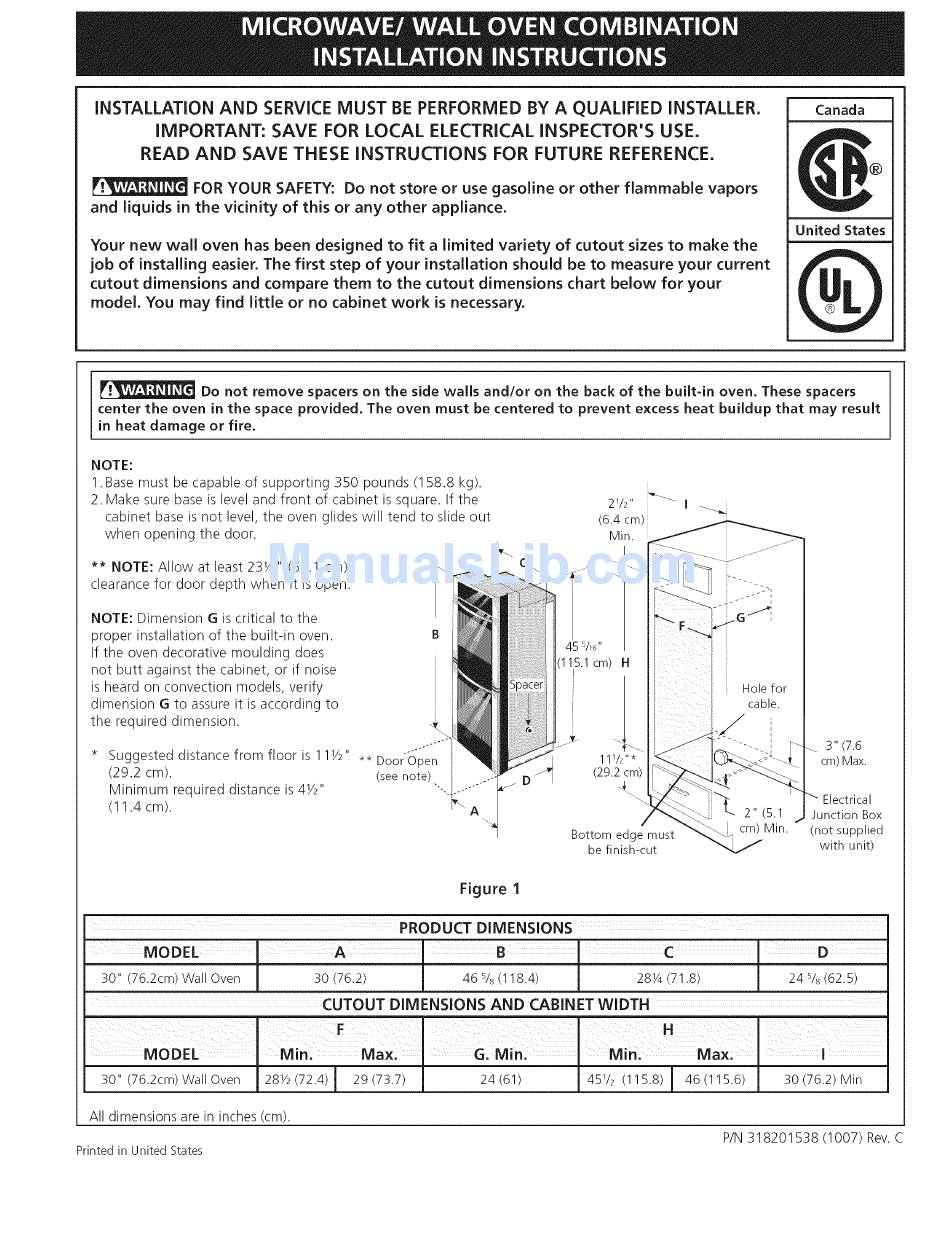

Electrolux E30MC75JSS2 Installation Instructions Manual

iNSTALLATiON AND SERVICE MUST BE PERFORMED BY A QUALiFiED iNSTALLER.
iMPORTANT: SAVE FOR LOCAL ELECTRICAL iNSPECTOR'S USE.
READ AND SAVE THESE iNSTRUCTiONS FOR FUTURE REFERENCE.
FOR YOUR SAFETY: Do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance.
Your new wall oven has been designed to fit a limited variety of cutout sizes to make the
job of installing easier. The first step of your installation should be to measure your current
cutout dimensions and compare them to the cutout dimensions chart below for your
model. You may find little or no cabinet work is necessary.
Canada
United States
Do not remove spacers on the side walls and/or on the back of the built-in oven. These spacers
center the oven in the space provided. The oven must be centered to prevent excess heat buildup that may result
in heat damage or fire.
NOTE:
1. Base must be capable of supporting 350 pounds (158.8 kg).
2. Make sure base is level and front of cabinet is square. If the
cabinet base is not level, the oven glides will tend to slide out
when opening the door.
** NOTE: Allow at least 231/4" (59.1 cm)
clearance for door depth when it is open.
NOTE: Dimension G is critical to the
proper installation of the built-in oven.
If the oven decorative moulding does
not butt against the cabinet, or if noise
is heard on convection models, verify
dimension G to assure it is according to
the required dimension.
B
Suggested distance from floor is 111/2" ** noor-n_en
(29.2 cm).
(see note)
Minimum required distance is 41/2" "',,
(11.4 cm).
3" (7.6
cm) Max.
Electrical
Junction Box
Bottom edge must _ / (not supplied
with
unit)
be finish-cut
Figure 1
PRODUCT DIMENSIONS
_ MODEL A _ C _ D
CUTOUT DIMENSIONS AND CABINET WIDTH
Min, I GI Min: Min, H Maxi
/ I I
30" (76.2cm) WallOven 128V2(72.4)[ 29(73.7) I 24(61) I 451/2 (115.8) [ 46(115.6) I 30(76.2) Min
All dimensions are in inches (cm).
Printedin United States
P/N 318201538 (1007) Rev.C
