LEXINGTON Spread Lavatory
Faucet with the Speed Connect™ Drain
Congratulations on purchasing your American Standard faucet
with the Speed Connect drain, a feature found only on
American Standard faucets.
Speed Connect™ Drain*
• Fewer parts, installs in less time
• Never needs adjustment
• Guaranteed to seal properly the first time, every time.
*Your new American Standard faucet is designed to work only with the Speed Connect drain.
To ensure that your installation proceeds smoothly-please read these instructions carefully before you begin.
Recommended tools
Screwdriver
1

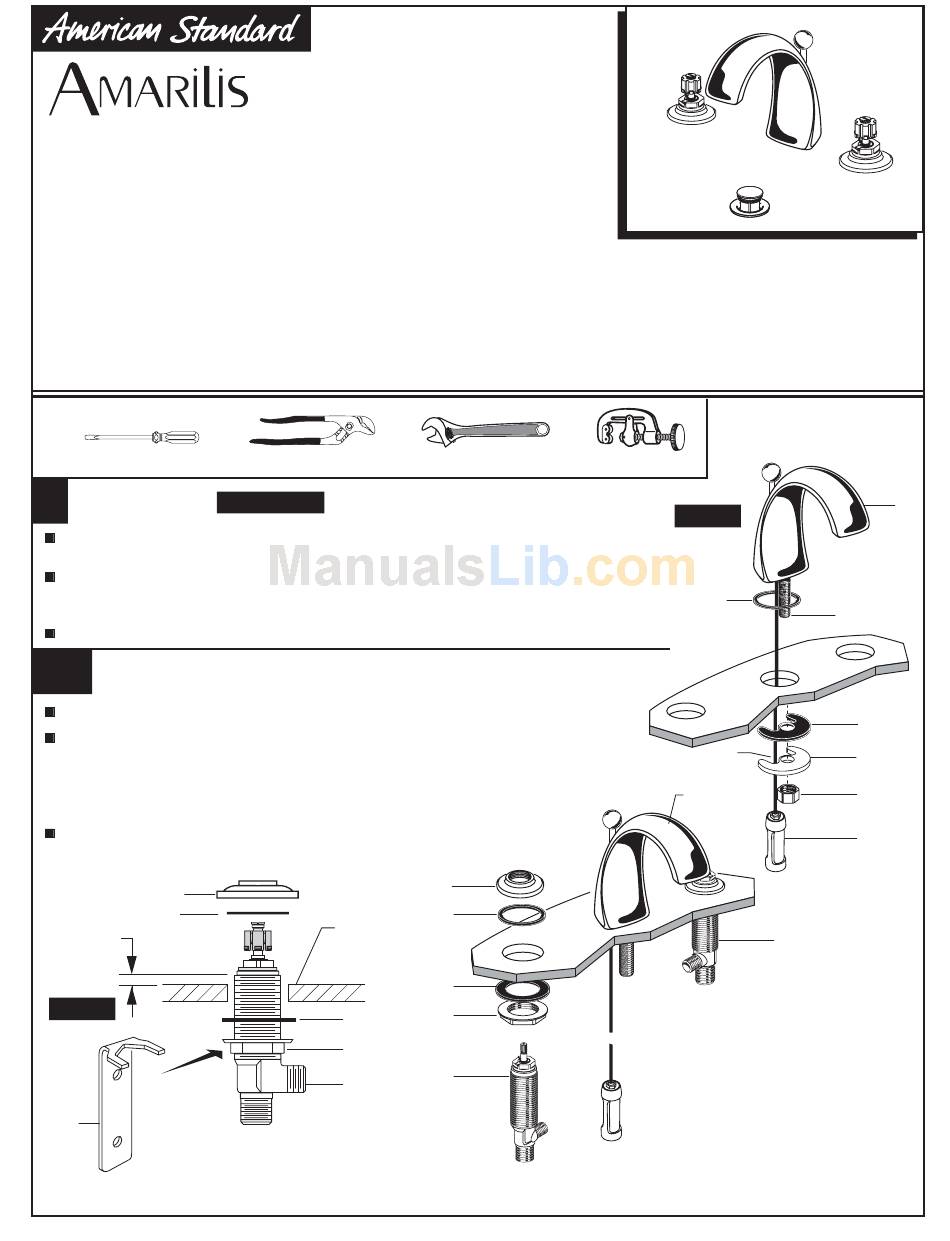

INSTALL SPOUT
Insert SPOUT (1) and CABLE CONNECTOR (2) through center hole, making sure
the SPOUT SEAL WASHER (3) is properly seated.
Assemble RUBBER WASHER (4), BRASS WASHER (5) and LOCKNUT (6) onto SPOUT
SHANK (7) from under side of sink . Make sure SPOUT (1) is centered in the mounting
hole and the slot in the BRASS WASHER (5) faces toward the rear of the sink.
Tighten LOCKNUT (6) firmly. Fig. A.
1A
INSTALL VALVE BODY
Place RUBBER RING (9) into DECK ADAPTER (10).
Install LOCKNUT (11) and RUBBER WASHER (12) onto VALVE BODY (13).
From under side of mounting surface, install VALVE BODY (13) through valve
mounting holes. Threads of VALVE BODY (13) should extent at least 5/16
of a inch above mounting surface top. Fig. B. Thread DECK ADAPTER (10)
onto VALVE BODY (13) until snug against internal stop. If necessary, adjust
LOCKNUT (11).
Tighten LOCKNUT (11) with WRENCH (8) (supplied) to secure VALVE
BODY (13). Repeat above steps for opposite VALVE BODY (13A).
10
9
5/16'' MIN.
Fig. B.
8
Instructions
Channel Locks
Turn off hot and cold water
CAUTION
supplies before beginning.
MOUNTING
SURFACE
12
11
13
Installation
8871
Adjustable Wrench
10
9
12
11
13
1
Certified to comply with ANSI A112.18.1
Tubing Cutter
Fig. A.
3
SLOT
1
13a
M966230 Rev. 1.2
1
7
4
5
6
2
