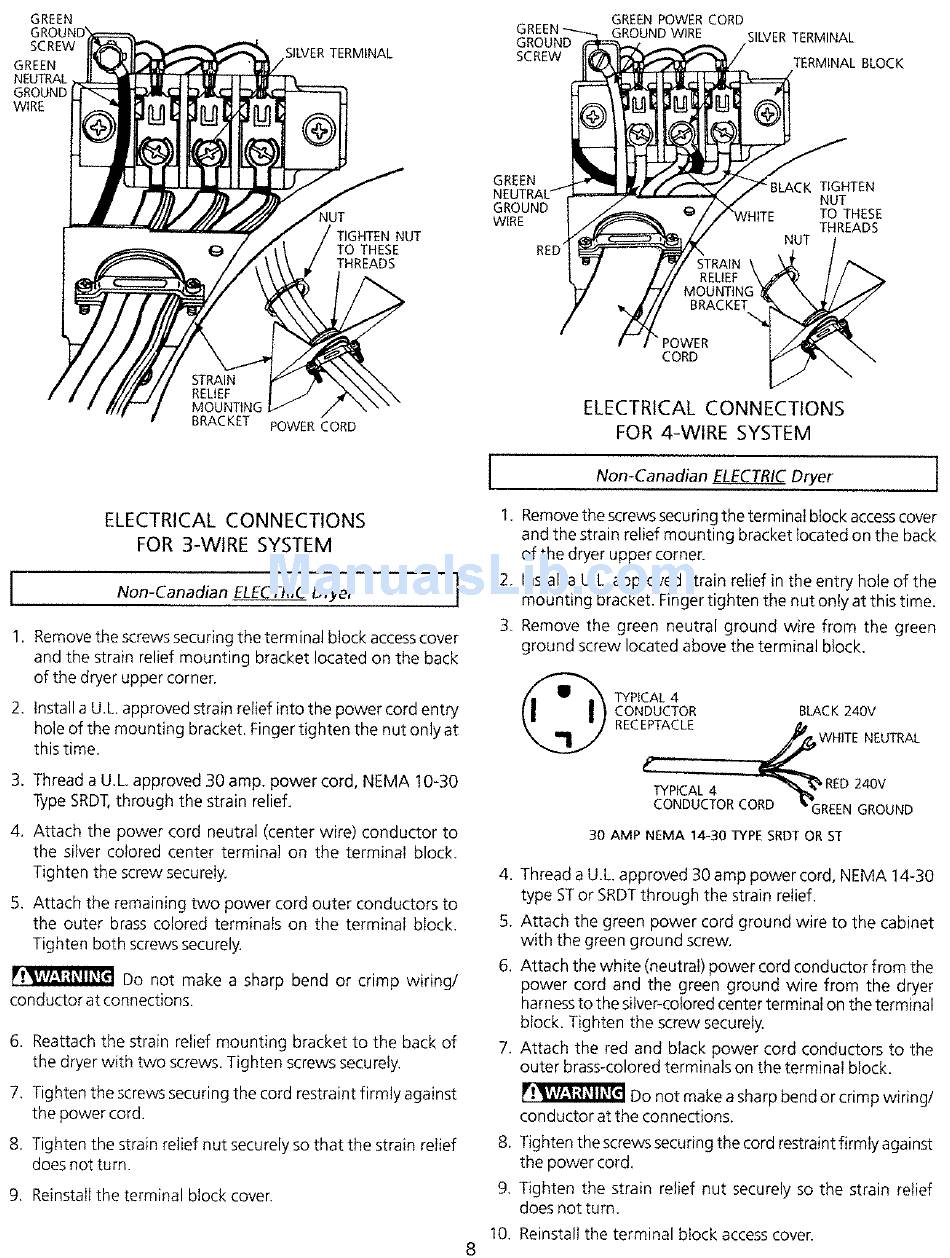

ELECTRICAL CONNECTIONS
FOR 3-WIRE SYSTEM
Non-Canadian ELE_CTRIC Dryer
1, Remove the screws securing the terminal block access cover
and the strain relief mounting bracket located on the back
of the dryer upper corner,
2. Install a U.L approved strain relief into the power cord entry
hole of the mounting bracket. Finger tighten the nut only at
this time.
3. Thread a U.L approved 30 amp. power cord, NEMA 10-30
Type SRDT,through the strain relief,
4, Attach the power cord neutral (center wire) conductor to
the silver colored center terminal on the terminal block.
Tighten the screw securely.
5. Attach the remaining two power cord outer conductors to
the outer brass colored terminals on the terminal block.
Tighten both screws securely.
Do not make a sharp bend or crimp wiring/
conductor at connections,
6. Reattach the strain relief mounting bracket to the back of
the dryer with two screws. Tighten screws securely.
7. Tighten thescrews securing thecord restraint firmtyagainst
the power cord.
8. Tighten the strain relief nut securely so that the strain relief
does not turn.
9. Reinstall the terminal block cover.
GREEN tLACK TIGHTEN
NUT
GROUND TO THESE
WIRE THREADS
NUT
1
1.
STRAIN
RELIEF
BRACKET
POWER
CORD
ELECTRICAL CONNECTIONS
FOR 4-WIRE SYSTEM
Non-Canadian ELECTRICDryer I
Remove the screws securing the terminal block accesscover
and the strain relief mounting bracket located on the back
of the dryer upper corner.
Install a U.L approved strain relief in the entry hole of the
mounting bracket. Finger tighten the nut only at this time.
Remove the green neutral ground wire from the green
ground screw located above the terminal block.
©
TYPICAL 4
CONDUCTOR BLACK 240V
RECEPTACLE _ WHITE NEUTRAL
TY,ICAL 4
RED 240V
CONDUCTOR CORD _'GREEN GROUND
30 AMP NEMA 14-30 TYPE SRDT OR ST
4. Thread a U.L. approved 30 amp power cord, NEMA 14-30
type STor SRDTthrough the strain relief.
5. Attach the green power cord ground wire to the cabinet
with the green ground screw.
6. Attach the white (neutral) power cord conductor from the
power cord and the green ground wire from the dryer
harness to the silver-colored center terminal on the terminal
block. Tighten the screw securely.
7. Attach the red and black power cord conductors to the
outer brass-colored terminals on the terminal block.
Do not make a sharp bend or crimp wiring/
conductor at the connections.
.
9,
10.
8
Tighten the screws securing the cord restraint firmly against
the power cord.
Tighten the strain relief nut securely so the strain relief
does not turn.
Reinstall the terminal block access cover.
