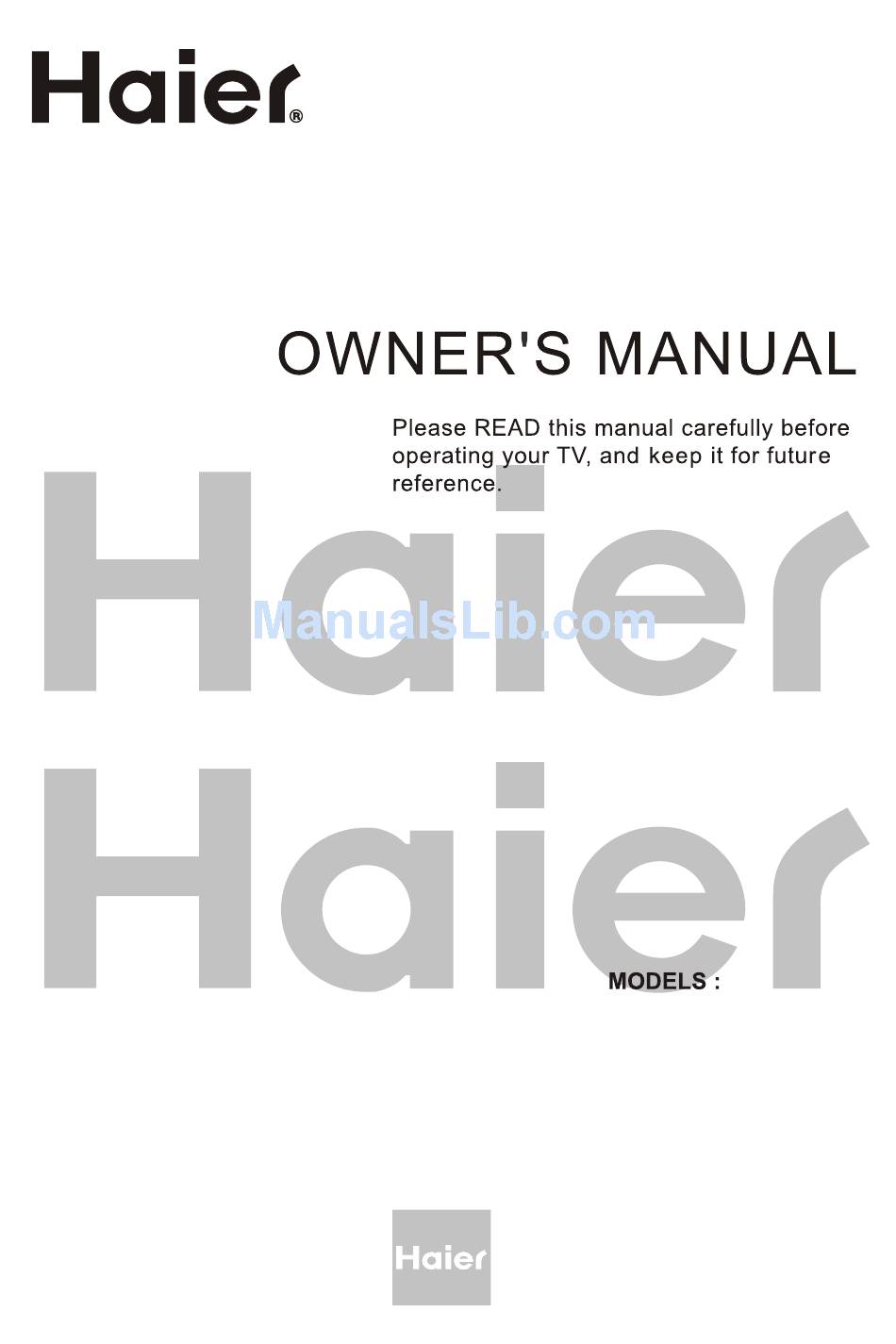

  • Page 1 TFT-LED LCD TV LE26B13200 LE32B13200...
  • Page 2: Table Of Contents

    Contents Safety and warnings...2-3 Introduction...4 Stand installation guide... 5 Installation...6-9 Remote Control...10 Operation...11-15 Trouble Shooting...16 Warranty... 17...
  • Page 3: Safety And Warnings

    They can take this product for environmental safe recycling. Haier is committed to safely recycling electronic products and product materials. Please check for a local recycling location in the United States at: 1800RECYCLING.COM...
  • Page 4: Safety And Warnings

    High voltages are used in the operation of this television receiver. Do not open the cabinet. Refer servicing to qualified service personnel. To prevent fire or electrical shock hazard, do not expose the television receiver to rain or moisture. Do not drop or push objects into the television cabinet slots or openings.
  • Page 5: Introduction

    Main features Integrated ATSC TV tuner for HDTV broadcast reception High brightness provides a vivid and brilliant picture Deeper blacks and brighter whites with high contrast Wide Screen aspect ratio (16:9) for a complete home theater experience HDMI input for true digital connection VGA port for connection to PC Built-in stereo speaker system Full-function Remote Control...
  • Page 6: Stand Installation Guide

    Base Stand Assembly Instruction 1. Attach the base stand neck to the base stand bottom with the included 3 screws. 2. Place the TV with the display side down on a flat surface. Use a cloth or the material from the TV packaging to protect the screen.
  • Page 7: Installation

    Front panel Remote control sensor. Indicator LED: BLUE POWER ON. Side panel keys REAR Connections AC-INPUT 100-240V~50/60Hz All the terminals are(from left to right): POWER SOCKET, VIDEO, AUDIO INPUT, YPbPr INPUT Note: AV and YPbPr share one audio channel. SIDE Connections HDMI1 HDMI1 HDMI2...
  • Page 8 ANTENNA Note: Aerial connections:IEC(female). Input impendance:75 unbalanced. STEPS: Be sure both the TV and computer are set to Power off. 1.Connect VGA and audio cable. 2.Connect the power cord. 3.Power on the TV, switch to PC mode. 4.Power on the PC. This sequence is very important.
  • Page 9 AC-INPUT 100-240V~50/60Hz PRESET MODE RESOLUTION 720*400 640*480 640*480 800*600 800*600 1024*768 1024*768 1024*768 1280*1024 1280*1024 VIDEO COMPOSITE COMPONENT V.Freq.(Hz) H.Freq.(KHz) INSTALLATION 31.47 31.47 37.50 37.88 46.88 48.36 56.48 60.02 63.98 80.00...
  • Page 10: Installation

    AV EQUIPMENT You can use the input terminals on TV set rear as follows. HDMI1 HDMI1 HDMI2 HDMI2 HDMI VIDEO EQUIPMENT with YPbPr Yellow (video) White(audio L) Red(audio R or Pr) Blue(Pb) Green(Y) AC-INPUT 100-240V~50/60Hz VIDEO EQUIPMIENT TO VIDEO OUTPUTS TO AUDIO OUTPUTS It can be connected to the following appliances: VCR, multi disc player, DVD, camcorder, video game or stereo system, etc...
  • Page 11: Remote Control

    YPbPr STRENGTH CH LIST 1: POWER To set the TV standby or on. 2: NUMBER KEY For direct access to program. Displays the main on-screen menu. 4: CURSOR To move within the menu. 5: EXIT Used to exit menu. HDMI 6: VOL+/- To adjust sound level.
  • Page 12: Operation

    1. PICTURE MENU The first item of the MENU is This menu provides several video adjustment options for fine tuning the video display. Press to select, press to adjust, press MENU to exit. < Picture Mode Standard Contrast Brightness Color Tint Sharpness Advanced Video...
  • Page 13: Change Password

    Change Password: Press , and the screen shown below will be displayed. ---- Old password ---- New password ---- Confirm password Adjust Select 1). Old password: Input the old password 2). New password: Input the new password 3). Confirm password: Input the new password again P.G switch: When the Parental Control...
  • Page 14 Description Rating Exempt: Includes news, sports, documents and other information programming: talk shows, music videos, and variety programming. Children: Intended for younger children under the age of 8 years. Pays careful attention to themes that could threaten their sense of securityand well-being.
  • Page 15: Channel Menu

    3.4 Menu Settings You can adjust Menu Settings here. Press to select, press to exit. < Menu Language Adjust Select 3.5 VGA Settings: O nly available in VGA (PC input) mode. Press to select VGA Settings, press the screen shown below will be displayed. H-pos V-pos Clock...
  • Page 16 5. Multimedia MENU If you select the storage source. You can use the Multimedia Menu to display JPEG pictures and play MP3 music. 1. Select a Photo The screen shown below will be displayed. Photo Music 011.jpg 200812222178878787.jpg 20081.jpg 20087.jpg 20287.jpg 20787.jpg 20087.jpg...
  • Page 17: Trouble Shooting

    Trouble phenomenon Symptom Picture Snow Ghost Interference Normal Picture No picture No color Picture breaking up No color The LCD TV panel is built with very high precision technology giving you fine picture details in vibrant color. Occasionally, a few non-active pixels may appear on the screen as a fixed point of red, green, blue, black or white.
  • Page 18: Warranty

    WARRANTY -17-...
