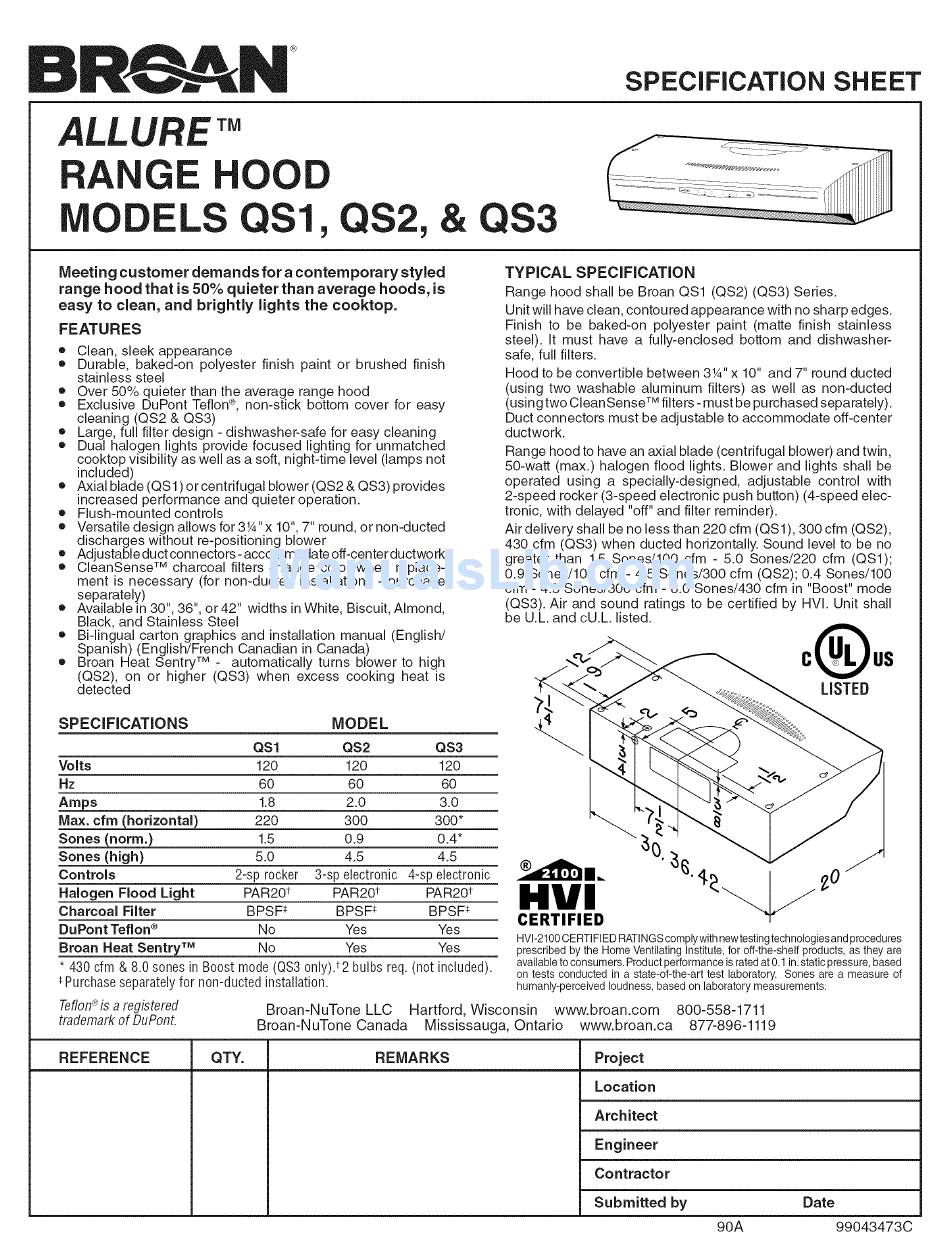

SPECiFiCATiON SHEET

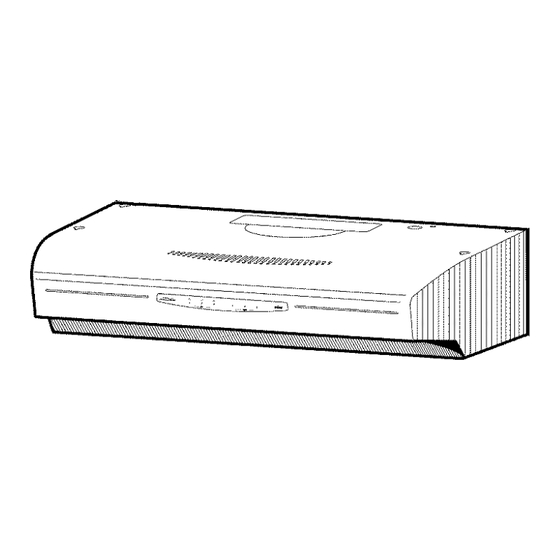

ALLURE
RANGE HOOD
MODELS QS1, QS2,
&
QS3
Meeting customer demands for a contemporary styled
range hood that is 50% quieter than average hoods, is
easy to clean, and brightly lights the cooktop.
FEATURES
• Clean, sleek appearance
• Durable, baked-on polyester finish paint or brushed finish
stainless steel
• Over 50% quieter than the average range hood
• Exclusive DuPont Teflon <_,non-stick bottom cover for easy
cleaning (QS2 & QS3)
• Large, full filter design - dishwasher-safe for easy cleaning
• Dual halogen lights provide focused lighting for unmatched
cooktop visibility as well as a soft, night-time level (lamps not
included)
• Axial blade (QSl) or centrifugal blower (QS2 & QS3) provides
increased performance and quieter operation.
• Flush-mounted controls
• Versatile design allows for 31A"x 10", 7" round, or non-ducted
discharges without re-positioning blower
• Adjustable duct connectors- accommodate off-center ductwork
• CleanSense
TM
charcoal filters change color when replace-
ment is necessary (for non-ducted installations - purchase
separately)
• Available in 30", 36", or 42" widths in White, Biscuit, Almond,
Black, and Stainless Steel
• Bi-Nngual carton graphics and installation manual (English/
Spanish) (English/French Canadian in Canada)
• Broan Heat Sentry
TM
- automatically turns blower to high
(QS2), on or higher (QS3) when excess cooking heat is
detected
SPECIFICATIONS MODEL
QS1 QS2 QS3
Volts 120 120 120
Hz 60 60 60
Amps 1.8 2.0 3.0
Max. cfm (horizontal) 220 300 300*
Sones (norm.) 1.5 0.9 0.4*
Sones (high) 5.0 4.5 4.5
Controls 2-sp rocker 3-sp electronic 4-sp electronic
Halogen Flood Light PAR201 PAR201 PAR201
Charcoal Filter BPSF _ BPSF _ BPSF
DuPont Teflon ® No Yes Yes
Broan Heat Sentry
TM
No Yes Yes
* 430 cfm & 8.0 sones in Boost mode (QS3only).t2 bulbs req. (not included).
Purchase separatelyfor non-ducted installation.
Teflon ®is a registered
trademarkof DuPont.
TYPICAL SPECIFICATION
Range hood shall be Broan QS1 (QS2) (QS3) Series.
Unit will have clean, contoured appearance with no sharp edges.
Finish to be baked-on polyester paint (matte finish stainless
steel). It must have a fully-enclosed bottom and dishwasher-
safe, full filters.
Hood to be convertible between 3W' x 10" and 7" round ducted
(using two washable aluminum filters) as well as non-ducted
(using two CleanSense
TM
filters- must be purchased separately).
Duct connectors must be adjustable to accommodate off-center
ductwork.
Range hood to have an axial blade (centrifugal blower) and twin,
50-watt (max.) halogen flood lights. Blower and lights shall be
operated using a speciaNy-designed, adjustable control with
2-speed rocker (3-speed electronic push button) (4-speed elec-
tronic, with delayed "off" and filter reminder).
Air delivery shall be no less than 220 cfm (QSl), 300 cfm (QS2),
430 cfm (QS3) when ducted horizontally. Sound level to be no
greater than 1.5 Sones/100 cfm - 5.0 Sones/220 cfm (QSl);
0.9 Sones/100 cfm - 4.5 Sones/300 cfm (QS2); 0.4 Sones/100
cfm - 4.5 Sones/300 cfm - 8.0 Sones/430 cfm in "Boost" mode
(QS3). Air and sound ratings to be certified by HVl. Unit shall
be U.L. and cU.h listed.
HVI
CERTIFIED
HVl-2100 CERTIFIED RATINGS complywith newtesting technologies a ndprocedures
prescribedbythe HomeVentilatingInstitute,for off-the-shelfproducts,asthey are
available toconsumers. P rod uctperformance is ratedat0.1in.staticpressu re,based
on tests conductedin a state-of-the-art t est laboratory. Sonesare a measureof
humanly-perceived l oudness,basedon laboratorymeasurements.
Broan-NuTone LLC Hartford, Wisconsin www.broan.com 800-558-1711
Broan-NuTone Canada Mississauga, Ontario www.broan.ca 877-896-1119
REFERENCE QTY. REMARKS Project
Location
Architect
Engineer
Contractor
Submitted by Date
90A 99043473C
