  • Page 1 WMS 450 BEDIENUNGSANLEITUNG (V 1.10) S. 2 Bitte vor Inbetriebnahme des Gerätes lesen! USER MANUAL (V 1.10) p. 18 Please read the manual before using the equipment! MODE D’EMPLOI (V 1.10) p. 34 Veuillez lire cette notice avant d’utiliser le système! ISTRUZIONI PER L’USO (V 1.10)
  • Page 2 WMS 450 SR 450 Fig. 1 Fig. 2 Fig. 8 Fig. 9 AKG WMS 450 V 1.10...
  • Page 3 WMS 450 PT 450 Fig. 4 Fig. 12 Fig. 5 / PT 450 AKG WMS 450 V 1.10...
  • Page 4 WMS 450 HT 450 Fig. 3 Fig. 5 / HT 450 AKG WMS 450 V 1.10...
  • Page 5 Fig. 6 Fig. 7 AKG WMS 450 V 1.10...
  • Page 6 Fig. 10 Fig. 11 ≈10 cm ≈10 cm Fig. 13 Fig.14 Fig. 15 Fig. 16 Fig. 17 AKG WMS 450 V 1.10...
  • Page 7 AKG WMS 450 V 1.10...

  • Page 8: Table Of Contents

    • Consult the dealer or an experienced radio/TV technician for help. Shielded cables and I/O cords must be used for this equipment to comply with the relevant FCC regulations. Changes or modifications not expressly approved in writing by AKG Acoustics may void the user’s authority to oper- ate this equipment.

  • Page 9: Safety And Environment

    11.Use the equipment for the applications described in this manual only. AKG cannot accept any liabili- ty for damages resulting from improper handling or misuse.

  • Page 10: Optional Accessories

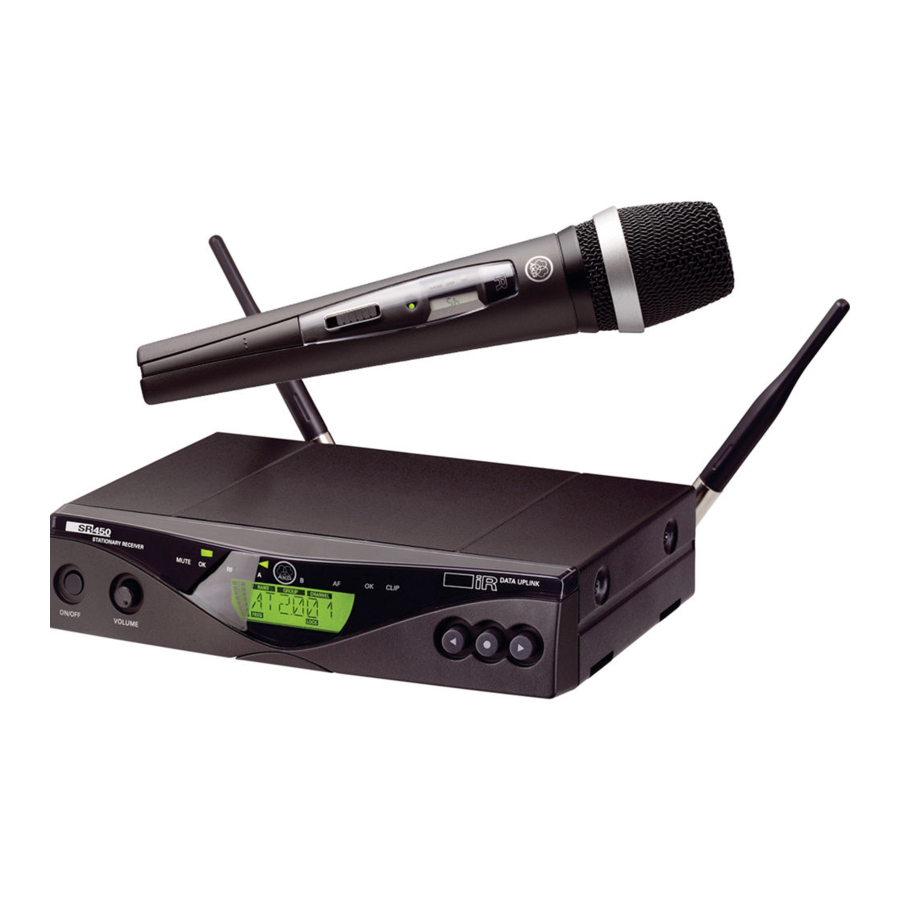

    2.4 WMS 450 The WMS 450 wireless microphone system comprises the SR 450 stationary diversity receiver, handheld transmitters HT 450/C with C 5 microphone element and HT 450/D with D 5 microphone ele- ment, and the PT 450 bodypack transmitter. The receiver and transmitters operate in a 30 MHz subband of each frequency set within the 650 MHz to 865 MHz UHF band.

  • Page 11: Ht 450 Handheld Transmitter

    AKG microphones (optional) or supplied MKG L instrument cable. You can connect AKG microphones with a mini LXLR connector to the audio input of the PT 450: The MKG L instrument cable lets you connect an electric guitar, electric bass, or remote keyboard to the bodypack transmitter.

  • Page 12: Setting Up

    3 Setting Up Important! Prior to setting up your WMS 450, check that the transmitter and receiver are tuned to the same frequency, referring to sections 3.8 and 3.9. 3.1 Inserting the 1. Open the battery compartment cover (1). Transmitter Battery 2.

  • Page 13: Lock Mode

    Diagram 2: Selecting setup LOCK (Name) screens "750.000 MHz" "AT 3.0 02" 3 3 s s e e c c s s . . AUTO AUTO AUTO Preset (NAME) REHEAR EXTRA LOCK GROUP CHANNEL Gain GROUP AKG WMS 450 V 1.10...

  • Page 14: Setting The Frequency Group (Auto Group Setup)

    25 kHz or to decrease the frequency by 25 kHz. ">750.025<" SAVE >Y< SAVE >N< SAVE >Y<: save your setting. >FREQ< >FREQ< SAVE >N<: reject your setting. >PRG IR< "750.000" FREQ Diagram 4a: Setting frequencies 3.9.1 directly. AKG WMS 450 V 1.10...

  • Page 15: Editing The Receiver Name

    (no communication). TXBAND: The frequency bands of the transmitter and receiver are not Diagram 7: Setting the audio input identical or the transmitter RF output >TXGAIN< gain on the handheld transmitter. is too high/low. AKG WMS 450 V 1.10...

  • Page 16: Bodypack Transmitter: Connecting A Microphone/Instrument And Setting Input Gain

    The PT 450 bodypack transmitter has been designed primarily for use with "L" type MicroMic Series Connecting a microphones from AKG (see section 2.7). If you wish to connect other microphones from AKG or other Microphone/Instrument and manufacturers to the PT 450, please note that you may have to rewire the existing connector of your Setting Input Gain microphone or replace it with a 3-pin mini XLR connector.

  • Page 17: Setting The Squelch Threshold

    Subchannel, use Auto Group Setup to select a different Frequency Group within the same Preset and select a new frequency for each WMS 450 channel (refer to sections 3.9.1 and 3.9.2). 3. Do not operate two or more wireless channels on the same frequency at the same time and location.

  • Page 18: Operating Notes

    Frequency LOCK Mode: LOCK (Name) Preset "750.000 MHz" "AT 3.0 02" AUTO AUTO (NAME) Preset REHEAR EXTRA SETUP Mode: LOCK GROUP CHANNEL Gain 3 sec. >NAME< >STATUS< >SQL< >INFO< >EXIT< Diagramm 11: Selecting screens. AKG WMS 450 V 1.10...

  • Page 19: Extra Functions

    To delete the warning message from the display, press the key briefly. This will bring up the next warn- ing message or, if no other critical system conditions were detected, the normal screen. The display backlighting will revert to green. AKG WMS 450 V 1.10...

  • Page 20: Ht 450 Handheld Transmitter

    The PB 1000 Presence Boost Adapter (installed in the HT 450/C handheld transmitter) boosts the sen- (HT 450/C only) sitivity of the microphone element by approx. 5 dB between 5 kHz and 9 kHz for optimum intelligibility of speech. AKG WMS 450 V 1.10...

  • Page 21: Pt 450 Bodypack Transmitter

    3. Make sure to aim the microphone at your mouth. Refer to the user manual of the respective microphone for instructions on how to use these AKG head- • C 520 L, C 555 L Head-worn worn and instrument microphones.

  • Page 22: Troubleshooting

    • Frequency settings cannot be changed. 1. Switch power to receiver OFF and back ERR.>SYS< ON after about 10 seconds. 2. If problem persists, contact your AKG Service Center. • Error in selected Preset. 1. Continue with previous Preset. ERR.>PRE<...

  • Page 23: Specifications

    60 x 73,5 x 30 mm (2.4 x 2.9 x 1.2 in.) Net weight: 90 g (3.2 oz.) This equipment conforms to the standards listed in the Declaration of Conformity. To order a free copy of the Declaration of Conformity, visit http://www.akg.com or contact sales@akg.com. AKG WMS 450 V 1.10...
