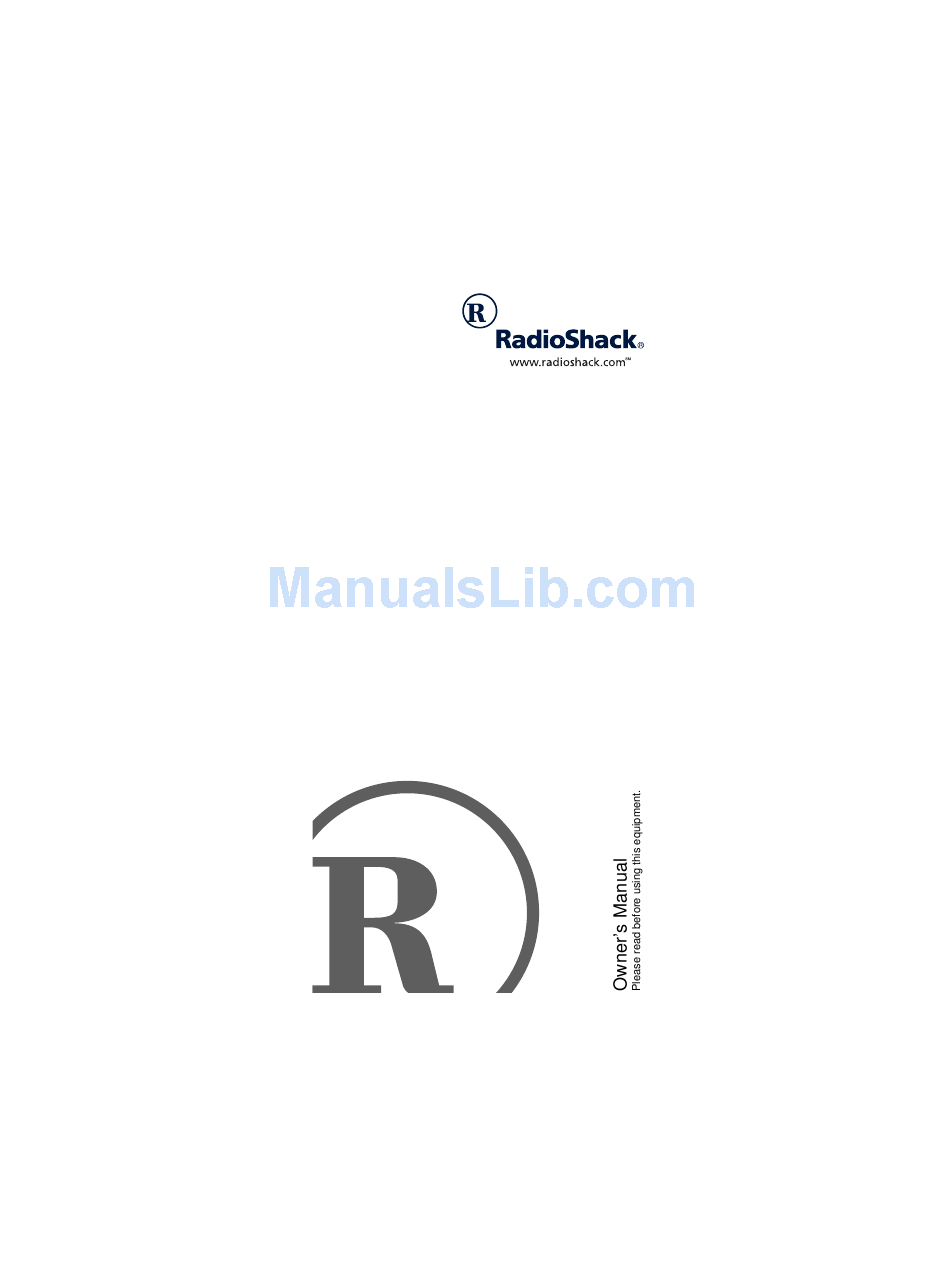

- Page 1 Microcassette Tape Recorder...
-
Page 2: Features
ˆ Features Your RadioShack Microcassette Tape Re- corder is ideal for quick note-taking. Its ul- tra-small size makes it easy to slip into a pocket, purse, or briefcase. You can use it at school, at business conferences, for dictation in the office, or anywhere on the Cue/Review —... -
Page 3: Table Of Contents
ˆ Contents Features ..........2 Contents ..........3 A Quick Look at Your Recorder ..4 Preparation .......... 5 Connecting to Power ..... 5 Using Batteries ....... 5 Using AC or DC Power ... 6 Connecting an Earphone ....8 Listening Safely ...... -
Page 4: A Quick Look At Your Recorder
ˆ A Quick Look at Your Recorder PHONE VOLUME PAUSE RECORD FAST-F/CUE PLAY REWIND/REV STOP/ EJECT SLOW/NORMAL SPEED A Quick Look at Your Recorder... -
Page 5: Preparation
ˆ Preparation CONNECTING TO POWER You can power your tape recorder from any of the following sources: • non-rechargeable batteries • standard AC power (with an optional AC adapter) • vehicle battery (using an optional DC adapter) Using Batteries Your recorder requires two AA batteries (not supplied) for power. -
Page 6: Using Ac Or Dc Power
rechargeable batteries of different capacities. 1. Slide off the battery compartment cover in the direction of the arrow. 2. Place the batteries in the compart- ment and on top of the attached rib- bon, as indicated by the polarity symbols (+ and –) marked inside. 3. - Page 7 are available at your local RadioShack store. Cautions: •You must use a (Class 2 for AC) power source that supplies 3V DC and deliv- ers at least 250 mA. Its center tip must be set to positive and its plug must fit the recorder's jack.
-
Page 8: Connecting An Earphone
4. Plug the other end of the adapter into the power source. CONNECTING AN EARPHONE You can use an optional earphone (not supplied) with a -inch (3.5 mm) plug to listen to a tape in privacy. Your local Ra- dioShack store carries a wide selection of earphones. -
Page 9: Traffic Safety
• Once you set the volume, do not increase it. Over time, your ears adapt to the volume level, so a vol- ume level that does not cause dis- comfort might still damage your hearing. Traffic Safety Do not wear an earphone while operating a motor vehicle or riding a bicycle. -
Page 10: Operation
ˆ Operation LOADING A MICROCASSETTE TAPE Note: We recommend MC-60 microcas- sette tapes for up to two hours of record- ing/playback time, MC-90 microcassette tapes for up to three hours of recording/playback time. 1. Use a pencil to turn the cassette’s hub and remove any tape slack. -
Page 11: Recording
2. Press again to open the STOP/EJECT cassette compartment and remove the tape. RECORDING 1. Load a blank microcassette tape or a tape to record over. 2. Set on the side of the recorder SPEED as follows: • For the best sound quality, slide the switch to NORMAL •... -
Page 12: Playing A Tape
setting does not affect VOLUME the recording level. • To temporarily stop recording, slide to the left. To resume record- PAUSE ing, slide to the right. PAUSE PLAYING A TAPE 1. Load a microcassette tape. 2. Set to the speed used when SPEED the tape was recorded. -
Page 13: Rewinding And Fast-Forwarding
REWINDING AND FAST-FORWARDING Slide the switch FAST-F/CUE REWIND/REV to rapidly advance a tape, FAST-F/CUE or to to rapidly rewind a REWIND/REV tape. If you slide the switch to or to FAST-F/CUE during playback, you can REWIND/REV hear the tape as it advances or rewinds. When you slide the switch back to the center position, the recorder resumes nor- mal playback. -
Page 14: Tape Tips
ˆ Tape Tips STORING CASSETTE TAPES Do not expose microcassette tapes to high temperatures, high humidity, dust or dirt, or motors, transformers, or other ob- jects with strong magnetic fields. PREVENTING ACCIDENTAL ERASURE Cassette tapes have two erase-protection tabs — one for each side. When a tab is in place, you can record on that side. -
Page 15: Erasing A Cassette Tape
Caution: Removing the erase-protection tabs does not prevent a bulk eraser from erasing a cassette tape. ERASING A CASSETTE TAPE To record over a cassette tape, simply record as usual. The cassette deck records over the previous recording. You can quickly erase both sides of a cas- sette tape using a RadioShack bulk tape eraser. -
Page 16: Care
ˆ Care Keep the recorder dry; if it gets wet, wipe it dry immediately. Use and store the re- corder only in normal temperature envi- ronments. Handle the recorder carefully; do not drop it. Keep the recorder away from dust and dirt, and wipe it with a damp cloth occasionally to keep it looking new. - Page 17 2. Open the cassette compartment door and press to expose the tape- PLAY handling parts. 3. Use a cotton swab dipped in dena- tured alcohol or tape head cleaning solution to clean the tape guides, record/play head, erase head, pinch roller, and capstan.
-
Page 18: Specifications
ˆ Specifications Tape Type ........Microcassette Tracks ....... 2 Tracks, Monaural Tape Speed ........2.4 cm/sec or 1.2 cm/sec Recording Time with MC-60 Microcassette: 2.4 cm/sec......60 min. Both Sides 1.2 cm/sec....... 120 min. Both Sides with MC-90 Microcassette: 2.4 cm/sec. - Page 19 Dimensions (HWD) ..5 inches (127 27 mm) Weight without Batteries ... 4.8 oz. (136 g) Weight with Batteries ....6.5 oz. (184 g) Specifications are typical; individual units might vary. Specifications are subject to change and improvement without notice. Specifications...
- Page 20 This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. RadioShack Customer Relations, 200 Taylor Street, 6th Floor, Fort Worth, TX 76102 We Service What We Sell 12/99 02A01 251-141166-203 14-1166 Printed in China...
