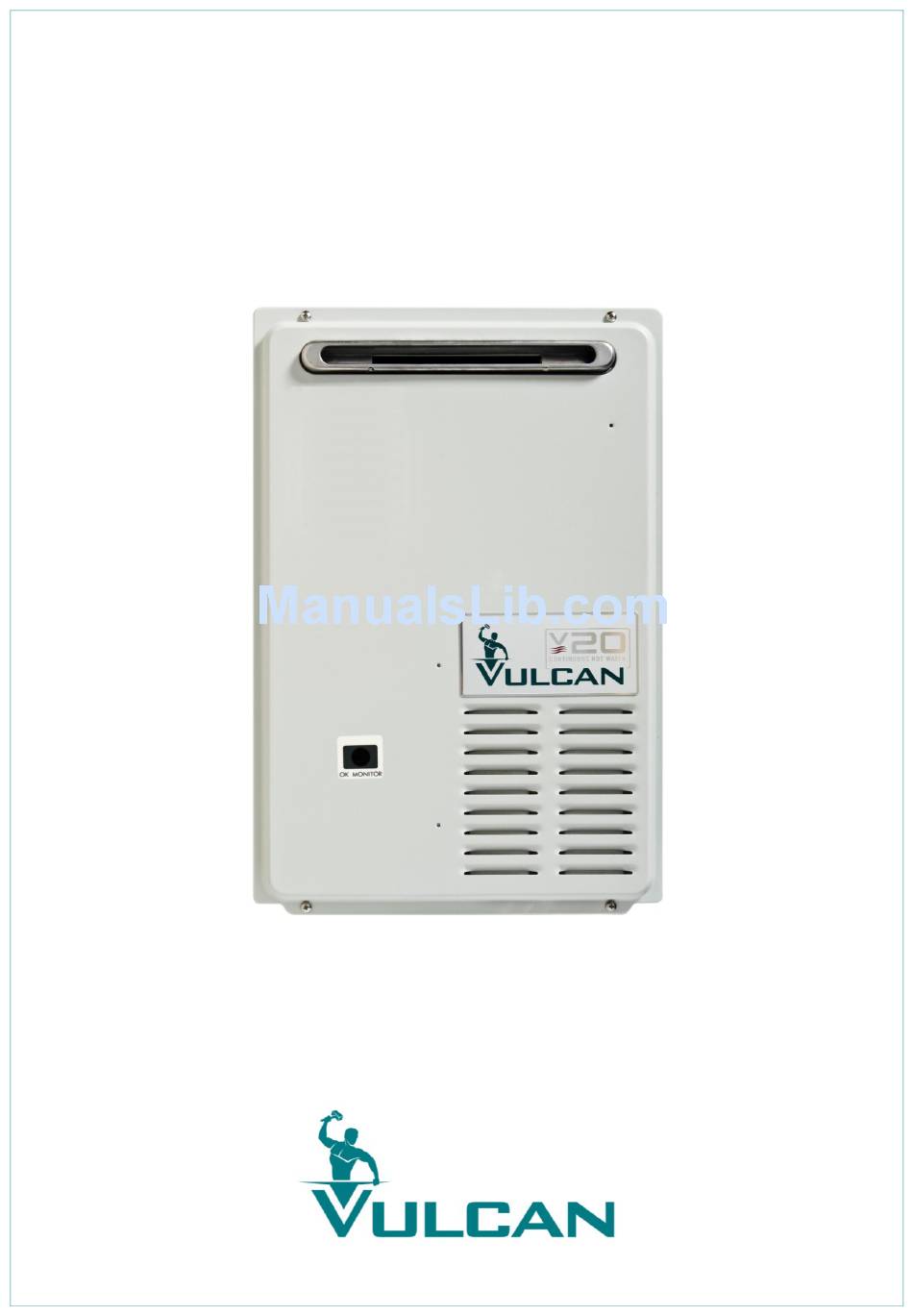

Page 1: Installation Instructions
Owner’s Guide Installation Instructions Continuous Flow Gas Water Heater 244, 246 Series This water heater must be installed and serviced by a qualified person. Please leave this guide with the householder. - Page 2 This water heater may be protected by one or more patents or registered designs in the name of Rheem Australia Pty Ltd or Paloma Co., Ltd. Rheem Australia Pty Ltd is the supplier of the Vulcan range of continuous flow gas water heaters, manufactured by Paloma Co., Ltd., a world leader in water heater technology and manufacture.
-
Page 3: Table Of Contents
CONTENTS HOUSEHOLDER - We recommend you read pages 4 to 14. The other pages are intended for the installer but may be of interest. About Your Water Heater ......................4 Water Supplies ........................... 11 Save A Service Call ........................12 Installation –... -
Page 4: About Your Water Heater
Solar heated water can reach temperatures up to 70°C to 80°C for a Vulcan solar direct or indirect pumped system and possibly higher for some other models of solar water heaters. The in-series gas booster operates automatically. - Page 5 We recommend and it may be required by regulations that an approved temperature limiting device be fitted into the hot water piping to the bathroom and ensuite when a 244 series water heater is installed. This will keep the water temperature below 50°C at the bathroom and ensuite. The risk of scald injury will be reduced and if the preset outlet temperature setting has not been adjusted below 55°C, still allow hotter water to the...
- Page 6 Warning: For continued safety of this water heater it must be installed, operated and maintained in accordance with the Owner‟s Guide and Installation Instructions. The Vulcan warranty may not cover faults if relief valves or other safety devices are tampered with or if the installation is not in accordance with these instructions.
- Page 7 ABOUT YOUR WATER HEATER PRECAUTIONS Where damage to property can occur in the event of the water heater leaking, the water heater must be installed over a safe tray. Construction, installation and draining of a safe tray must comply with AS/NZS 3500.4 and all local codes and regulatory authority requirements.
- Page 8 ABOUT YOUR WATER HEATER TO TURN OFF THE WATER HEATER If it is necessary to turn off the water heater: Switch off the electrical supply at the power outlet to the water heater if there is no risk of freezing conditions occurring (refer to note below).
- Page 9 The frost protection system will be rendered inoperable if electrical power is not available at the water heater. Damage caused by freezing due to the unavailability of power at the water heater is not covered by the Vulcan warranty (refer to “Terms of the Vulcan Warranty”...
- Page 10 Warning: Temperature controllers must not be fitted to this water heater (244 series) if it is installed as an in-series gas booster with a solar water heater system or if a Water Star water heater is installed because water at a temperature much higher than the controller setting can be delivered.
-
Page 11: Water Supplies
In a corrosive water supply, the water can attack copper parts and cause them to fail. Where the saturation index is less than –1.0, the water is very corrosive and the Vulcan warranty does not apply to a copper heat exchanger in a continuous flow water heater. -
Page 12: Save A Service Call
Check the items below before making a service call. You will be charged for attending to any condition or fault, which is not related to manufacture or failure of a part (refer to “Terms of the Vulcan Warranty” page 35). - Page 13 Collector area is too small For most installations, the number of solar collectors recommended in Vulcan literature has been proven to provide the required solar energy to meet the average family needs. However, in some circumstances, it may be necessary to install an additional solar collector.
- Page 14 SAVE A SERVICE CALL CLOUDS OF WHITE ‘VAPOUR’ FROM THE FLUE TERMINAL During the heating cycle, it is not unusual to see water vapour clouds steaming from the flue terminal, particularly on cold days. This is normal operation of the water heater. PRESSURE RELIEF VALVE DISCHARGING A pressure relief valve is incorporated into the water heater controls.
-
Page 15: Installation - Water Heater
The 244 series of water heater may be installed as an in-series gas booster to a solar water heater. For information relating to the function and operation of the solar water heater, refer to the Owner‟s Guide and Installation Instructions supplied with the solar water heater. - Page 16 INSTALLATION – WATER HEATER This water heater must be installed vertically upright with the water, gas and power connections on the underside, pointing toward the ground. The back of the water heater can be either against a wall or supported by a frame. The water heater must be secured to the wall or frame using either the screws provided or other mounting screws suitable for the application, two each at the top and bottom...
- Page 17 Damage to the water heater caused by freezing of the pipe work to or from the water heater is not covered under the Vulcan warranty. Refer to AS/NZS 3500.4 for precautions to be taken for installations in frost prone areas. The water heater is not suitable for installation in areas where the ambient temperature falls below - 20ºC (including wind chill factor).
- Page 18 This water heater can deliver water at temperatures which can cause scalding. It is necessary and we recommend that a temperature limiting device be fitted between a 244 series water heater and the hot water outlets in any ablution and public areas such as a bathroom, ensuite or public amenities, to reduce the risk of scalding.
- Page 19 In-series gas booster for a Solar Water Heater The temperature limiting device used with a 244 series in-series gas booster as part of a solar water heater installation must have the additional capability of receiving a hot water supply temperature of up to 99°C if the solar water heater does not have an over temperature protection system to limit the water to no greater than 90°C.
- Page 20 CIRCULATED HOT WATER FLOW AND RETURN SYSTEM A Vulcan 244 series continuous flow water heater can be installed as part of a circulated hot water flow and return system in a building. Notes: the preset outlet temperature setting of the water heater must be set to at least 60°C.
- Page 21 INSTALLATION – WATER HEATER Circulated Hot Water Flow and Return Continuous Flow Gas Water Heater LEGEND from solar storage tank Circulated Hot Water Flow and Return In-series Gas Booster as part of a Solar Water Heater Installation LEGEND REDUCING HEAT LOSSES The hot water line from the water heater and the pipe work between the solar storage tank, if one is installed, and the in-series gas booster must be insulated in accordance with the requirements of AS/NZS 3500.4.
- Page 22 0.770 0.885 1.185 3.50 Model numbers: N = Natural, P = Propane. Letter N or P is included in the model number, e.g. 244 020 NF, to denote gas type. F = Frost protection. Technical data is subject to change.
-
Page 23: Typical Installation
TYPICAL INSTALLATION ELECTRONIC INSTANTANEOUS GAS WATER HEATER INSTALLATION – WATER HEATER TYPICAL INSTALLATION – OUTDOOR LOCATION... -
Page 24: Connections - Plumbing
All gas work must be carried out by a qualified person and in compliance with the Standard AS 5601 or AS/NZS 5601.1, as applicable under local regulations, and all local codes and regulatory authority requirements. CONNECTION SIZES 244 016 244 018 244 020 Model... - Page 25 Warning: Always isolate the water heater before pressure testing the gas supply system. Disconnect the water heater after the isolation valve to prevent the risk of serious damage to the gas control. The Vulcan warranty does not cover damage of any nature resulting from failure to observe this precaution. Refer to...
-
Page 26: Connections - Electrical
Wiring Rules AS/NZS 3000 and all local codes and regulatory authority requirements. Warning: Temperature controllers must not be fitted to this water heater (244 series) if it is installed as an in-series gas booster with a solar water heater system or if a Water Star water heater is installed because water at a temperature much higher than the controller setting can be delivered. -
Page 27: Commissioning
COMMISSIONING All water heaters are tested and adjusted before dispatch from the factory, however further adjustments may become necessary because of local conditions. TO TURN ON THE WATER HEATER Open all of the hot taps in the house (don‟t forget the shower). Open the cold water isolation valve fully at the inlet to the water heater. - Page 28 COMMISSIONING Gas Inlet Test Point Pressure To check the gas inlet pressure: Close any hot taps and ensure the burners are not operating. Close the gas isolation valve at the gas inlet to the water heater. Locate the gas inlet test point on the gas connection to the water heater.
- Page 29 Warning: The removal of the front panel will expose 240 volt wiring. Take care not to touch wiring terminals. Note: If a 244 series model is installed as an in-series gas booster for a solar water heater, then during this procedure the temperature of the water entering the in-series gas booster must be below 58°C. Otherwise the gas burners will not ignite and the operational gas pressures cannot be measured.
- Page 30 COMMISSIONING cable cable terminal screws cable connectors Kitchen controller Bathroom1 contoller Switch on the electrical supply at the power outlet to the pri ori ty i n us e water heater. Turn on the controller by pressing the on / off button. The priority light (standard controller) or ACTIVE light (Deluxe controller) and the light in the on / off button will both glow.
- Page 31 COMMISSIONING Notes: If the burners extinguish and / or an error code starts to flash on the controller display: release the MIN and adjuster buttons close the hot tap clear the error code (refer to “Clearing Error Code” on page 31) ...
- Page 32 COMMISSIONING PRESET OUTLET TEMPERATURE SETTING The factory preset outlet temperature setting of the water heater is: 244 series 60°C 246 series 48°C It is usually not necessary to check or adjust the factory preset outlet temperature setting of the water heater, unless the customer has a particular requirement for this to be done or it is to be installed as an in-series gas booster to a solar water heater.
- Page 33 The temperature setting will be displayed by a series of flashes from the red LED, with a three (3) second pause between each series of flashes. The temperature settings and series of flashes are: 244 series 55°C (1 flash), 60°C (2 flashes), 70°C (3 flashes) 246 series 40°C (1 flash), 43°C (2 flashes), 48°C (3 flashes)
-
Page 34: Draining The Water Heater
Damage caused by freezing due to the unavailability of power at the water heater is not covered by the Vulcan warranty (refer to “Terms of the Vulcan Warranty” on page 35). If the power has been switched off to the water heater and there is a risk of freezing, then it is necessary to drain the water heater (refer to “Draining the Water Heater”... -
Page 35: Warranty
2.8 If you require a call out and we find that the fault is not covered by the Vulcan warranty, you are responsible for our standard call out charge. If you wish to have the relevant component repaired or replaced by Rheem, that service will be at your cost. - Page 36 6.2 The Vulcan warranty (set out above) is in addition to any rights and remedies that you may have under the Australian Consumer Law.
