Vulcan-Hart 641 series Owner's Manual And Installation Instructions

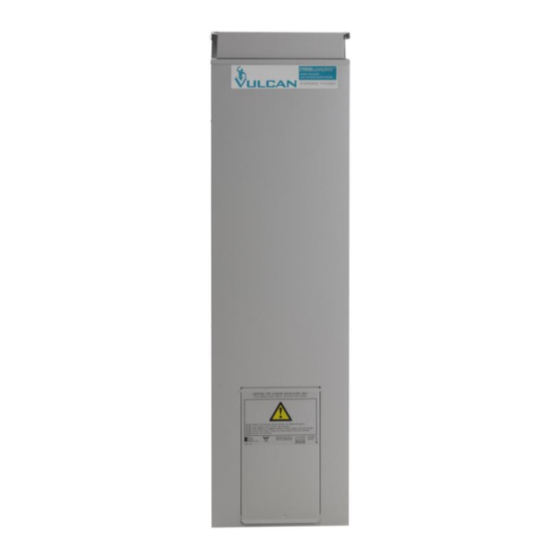

Gas domestic water heater
Hide thumbs
Table of Contents

Advertisement

Quick Links

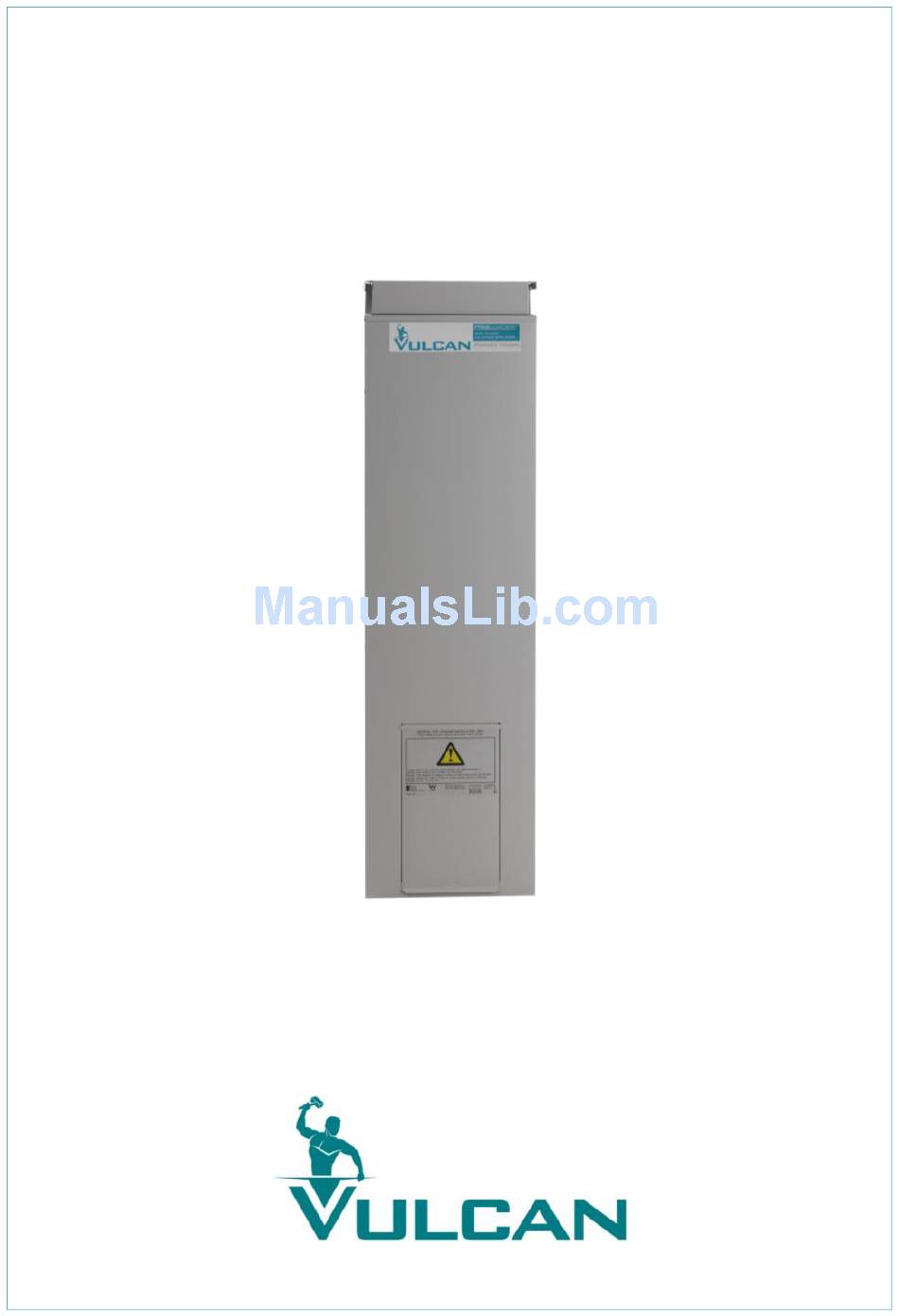

Owner's Guide
and
Installation Instructions
Gas Domestic
Water Heater
641 series
This water heater must be installed and serviced by a qualified person.
Please leave this guide with the householder.

Advertisement

Table of Contents
loading

Related Manuals for Vulcan-Hart 641 series

Summary of Contents for Vulcan-Hart 641 series

  • Page 1 Owner’s Guide Installation Instructions Gas Domestic Water Heater 641 series This water heater must be installed and serviced by a qualified person. Please leave this guide with the householder.
  • Page 2 Warning: Upon completion of the installation and commissioning of the water heater, leave this guide with the householder or responsible officer. DO NOT leave this guide inside of the cover of the water heater, as it may interfere with the safe operation of the water heater or ignite when the water heater is turned on.

  • Page 3: Table Of Contents

    CONTENTS HOUSEHOLDER – We recommend you read pages 4 to 19. The other pages are intended for the installer but may be of interest. About Your Water Heater ............4 Regular Care ................9 Water Supplies ................13 Save A Service Call ..............17 Installation ..................

  • Page 4: About Your Water Heater

    Its use in an application other than this may shorten its life. MODEL TYPE ® The Vulcan water heater model you have chosen is suitable for outdoor installation only. Water is stored in a vitreous enamel lined steel cylinder and heated by a gas burner located under the cylinder.
  • Page 5 ABOUT YOUR WATER HEATER HOTTER WATER INCREASES THE RISK OF SCALD INJURY This water heater can deliver water at temperatures which can cause scalding. Check the water temperature before use, such as when entering a shower or filling a bath or basin, to ensure it is suitable for the application and will not cause scald injury.
  • Page 6 Owner‟s Guide and Installation Instructions. The Vulcan warranty may not cover faults if relief valves or other safety devices are tampered with or if the installation is not in accordance with these instructions.
  • Page 7 ABOUT YOUR WATER HEATER MAINS PRESSURE The water heater is designed to operate at mains pressure by connecting directly to the mains water supply. If the mains supply pressure in your area exceeds that shown on page 22, a pressure limiting valve must be fitted. The supply pressure should be greater than 350 kPa for true mains pressure operation to be achieved.
  • Page 8 ABOUT YOUR WATER HEATER HOW DO I KNOW IF THE WATER HEATER IS INSTALLED CORRECTLY? Installation requirements are shown on pages 27. The water heater must be installed: by a qualified person, and in accordance with the installation instructions, and in compliance with Standards AS/NZS 3500.4, AS 5601 or AS/NZS 5601.1, as applicable under local regulations, and all local codes and regulatory authority requirements.

  • Page 9: Regular Care

    Phone Rheem Service or their nearest Accredited Service Agent. Note: The annual service and routine replacement of any components, if required, are not included in the Vulcan warranty. A charge will be made for this work. Only genuine replacement parts should be used on this water heater.
  • Page 10 Phone Rheem Service or their nearest Accredited Service Agent. Note: The five year service and routine replacement of any components, such as the anode and relief valve(s), are not included in the Vulcan warranty. A charge will be made for this work. Only genuine replacement parts should be used on this water heater.
  • Page 11 REGULAR CARE MINOR SIX MONTH MAINTENANCE It is recommended minor maintenance be performed every six months by the dwelling occupant. The minor maintenance includes: Operate the easing lever on the temperature pressure relief valve. It is very “Temperature important you raise and lower the lever gently. Refer to Pressure Relief Valve”...
  • Page 12 REGULAR CARE TEMPERATURE PRESSURE RELIEF VALVE This valve is near the top of the water heater and is essential for its safe operation. It is possible for the valve to release a little water through the drain line during each heating period. This occurs as the water is heated and expands by approximately 1/50 of its volume.

  • Page 13: Water Supplies

    Vulcan warranty. In addition, the use of an incorrect colour coded anode may shorten the life of the water heater cylinder.
  • Page 14 WATER SUPPLIES TOTAL DISSOLVED SOLIDS & CONDUCTIVITY (vitreous enamel lined water heater cylinder) no warranty applies warranty applies to a vitreous enamel lined water heater cylinder if the to a vitreous correct coloured anode is used for the TDS / conductivity level of water enamel lined water heater TOTAL DISSOLVED SOLIDS (TDS) - mg/L...
  • Page 15 Where the saturation index exceeds +0.40, the water is very scaling. An expansion control valve must be fitted on the cold water line after the non- return valve to protect and for the Vulcan warranty to apply to the temperature pressure relief valve and water heater cylinder.
  • Page 16 Those chemistries are listed below. If the water heater is connected at any time to a water supply with the following water chemistry, the Vulcan warranty will not cover any resultant faults on the components listed below: Water Chemistry Component Total Dissolved Solids (TDS) >...

  • Page 17: Save A Service Call

    SAVE A SERVICE CALL Check the items below before making a service call. You will be charged for attending to any condition or fault that is not related to manufacture or failure of a part. NOT ENOUGH HOT WATER (OR NO HOT WATER) Are you using more hot water than you think? Is one outlet (especially the shower) using more hot water than you think? Very often it is not realised the amount...
  • Page 18 SAVE A SERVICE CALL TEMPERATURE PRESSURE RELIEF VALVE RUNNING Normal Operation It is normal and desirable this valve allows a small quantity of water to escape during the heating cycle. However, if it discharges more than a bucket full of water in 24 hours, there may be another problem.
  • Page 19 SAVE A SERVICE CALL WATER HEATER APPEARS TO BE LEAKING When the water heater is first lit, or after a large usage of hot water, condensation may form on the burner of the water heater. This is quite normal, especially in winter months and will dry off as the water is heated. HIGHER THAN EXPECTED GAS BILLS Should you at any time, feel your gas account is higher than expected, we suggest you check the following points:...

  • Page 20: Installation

    INSTALLATION THIS WATER HEATER IS FOR OUTDOOR INSTALLATION ONLY. THIS WATER HEATER IS NOT SUITABLE FOR POOL HEATING. Check the water heater is suitable for the gas type available. (refer to the rating label on the water heater) INSTALLATION STANDARDS The water heater must be installed: by a qualified person, and in accordance with the installation instructions, and...
  • Page 21 INSTALLATION WATER HEATER LOCATION The water heater should be installed close to the most frequently used outlet and its position chosen with safety and service in mind. Make sure people (particularly children) will not touch the flue outlet. The flue terminal must be clear of obstructions and shrubbery.
  • Page 22 INSTALLATION The water heater must be located to ensure that the location of the flue terminal complies with the requirements of AS 5601 or AS/NZS 5601.1, as applicable under local regulations. As a guide the following requirements are extracted from the Gas Installations Standard. The distances are measured along the wall behind the water heater.
  • Page 23 INSTALLATION TANK WATER SUPPLY If the water heater is supplied with water from a tank supply and a pressure pump system is not installed, then the bottom of the supply tank must be at least 1 m above the highest point of the hot water plumbing system, including the water heater.
  • Page 24 INSTALLATION CIRCULATED HOT WATER FLOW AND RETURN SYSTEM If a Vulcan water heater is to be installed as part of a circulated hot water flow and return system, a storage water heater able to provide a hot water outlet temperature of at least 60°C must be used. Note: The thermostat must always be set to at least 60°C.
  • Page 25 Vulcan warranty. In addition, the use of an incorrect colour coded anode may shorten the life of the water heater cylinder.
  • Page 26 INSTALLATION DIMENSIONS AND TECHNICAL DATA Model 641 090 641 135 641 170 Storage capacity litres Mass (tank) Empty Full Dimensions 641 090 1158 422 502 588 328 298 1078 473 208 159 641 135 1558 422 502 988 328 298 1478 473 208 159 641 170 1858 422 502 1213 403 298 1778 473 208 159...
  • Page 27 INSTALLATION TYPICAL INSTALLATION – OUTDOOR LOCATION Installation Typical Gas Domestic Outdoor Water Heater Test Point Hourly Gas Min. Gas Max. Gas Gas Details Consumption Pressure Pressure Pressure (MJ) (kPa) (kPa) (kPa) 641 135 641 090 090 to 170 090 to 170 090 to 170 641 170 Natural...

  • Page 28: Connections – Plumbing

    CONNECTIONS – PLUMBING All plumbing work must be carried out by a qualified person and in compliance with the Standard AS/NZS 3500.4 and all local codes and regulatory authority requirements. All gas work must be carried out by a qualified person and in compliance with the Standard AS 5601 or AS/NZS 5601.1, as applicable under local regulations, and all local codes and regulatory authority requirements.
  • Page 29 CONNECTIONS – PLUMBING PIPE SIZES To achieve true mains pressure operation, the cold water line to the water heater should be the same size or bigger than the hot water line from the water heater. The pipe sizing for hot water supply systems should be carried out by persons competent to do so, choosing the most suitable pipe size for each individual application.
  • Page 30 CONNECTIONS – PLUMBING RELIEF VALVE DRAIN DN15 (copper drain lines must be fitted to the temperature pressure relief valve and expansion control valve (if one is installed) to carry the discharge clear of the water heater. Connect the drain lines to the valves using disconnection unions.
  • Page 31 Warning: Always isolate the water heater before pressure testing the gas supply system. Disconnect the water heater after the isolating cock to prevent the risk of serious damage to the gas control. The Vulcan warranty does not cover damage of any nature resulting from failure to observe this precaution.

  • Page 32: Commissioning

    COMMISSIONING TO FILL AND TURN ON THE WATER HEATER The gas pilot or burner must not be lit until the water heater is filled with water. Open all of the hot water taps in the house (don‟t forget the shower). Open the cold water isolation valve fully to the water heater.

  • Page 33: Lighting The Water Heater

    LIGHTING THE WATER HEATER FOR YOUR SAFETY READ BEFORE LIGHTING Warning: This gas water heater is designed to operate reliably and safely as long as the operating instructions are followed exactly. You must comply with these lighting instructions at every stage. Make sure the water heater is filled with water and the water supply is on, otherwise serious damage to the vitreous enamel cylinder lining and plastic components may occur.
  • Page 34 LIGHTING THE WATER HEATER LIGHTING INSTRUCTIONS Using the gas control light the water heater as follows: Stop, read the safety information on page 33. Remove the access cover. Turn the gas control knob fully clockwise to the “” (off) position. Wait five (5) minutes so any build up of unburnt gas can escape.
  • Page 35 LIGHTING THE WATER HEATER TEST THE WATER HEATER AFTER INSTALLATION The operation of the water heater must be thoroughly checked by the installer. The burner flame must light smoothly and quickly from the pilot flame, and must go out quietly and completely. The main burner flame must be stable, although slight lifting at the front edge of the burner is acceptable when the burner is cold.

  • Page 36: Draining The Water Heater

    DRAINING THE WATER HEATER Warning: Exercise care, as water discharged from the water heater may be of a very high temperature. To drain the water heater: “To Turn Off The Water Heater” Turn off the water heater (refer to page 32). Close all hot water taps.
  • Page 37 This page is intentionally blank.

  • Page 38: Warranty

    2.1 The decision of whether to repair or replace a faulty component is at Rheem’s sole discretion. 2.2 If you require a call out and we find that the fault is not covered by the Vulcan warranty, you are responsible for our standard call out charge. If you wish to have the relevant component repaired or replaced by Rheem, that service will be at your cost.
  • Page 39 2.9 If the water heater is not sized to supply the hot water demand in accordance with the guidelines in the Vulcan water heater literature, any resultant fault will not be covered by the Vulcan warranty. 3. WHAT IS COVERED BY THE VULCAN WARRANTY FOR THE WATER HEATERS DETAILED IN THIS DOCUMENT 3.1 Rheem will repair or replace a faulty component of your water heater if it fails to operate in...
  • Page 40 6.2 The Vulcan warranty (set out above) is in addition to any rights and remedies that you may have under the Australian Consumer Law.

This manual is also suitable for:

641 090641 135641 170
