Panasonic WJ-HD100 Specification Sheet

Equipped with a 30GB hard disk drive, this digital
surveillance recorder combines high image quality with
outstanding cost performance.
Panasonic proudly introduces the WJ-HD100 surveillance hard
disk recorder equipped with a 30GB disk drive for image storage.
The WJ-HD100 takes surveillance systems to a new level. The
benefits that come with a hard disk drive include, ultra-fast retrieval,
high durability, and elimination of image degradation due to
repeated recording and reproduction. And with no need to change or
file cassettes.
Additional features include motion detection, time & date display,
remote control from a PC, and alarm-driven image capture.
The *CompactFlash card slot makes it easy
to transfer images to other digital devices.
All these features are combined into a
single, compact unit. A digital surveillance
recorder whose cost performance is
extraordinary.
Time-Lapse Mode Recording Time
640H x 240V, NTSC Color Signal, Audio Signal ; Off
REC MODE (H)
Extended FPS
QUALITY
REC MODE (H)
M
Normal FPS
O
QUALITY
D
REC MODE (H)
E
Fine FPS
QUALITY
REC MODE (H)
Super Fine FPS
QUALITY
In Case of 30GB HDD
R
Hard Disk Drive
18 24 48 72 96
15 10 6.0 4.2 3.3
5 5 5 5 5
18 24 48 72 96
15 10 5.0 3.7 2.7
7 7 7 7 7
12 18 24 48 72 96
15 10 10 5.0 3.3 2.5
8 8 8 8 8 8
12 18 24 48 72 96
15 10 7.5 3.7 2.7 2.0
10 10 10 10 10 10

Key Features

• High quality picture by DIGITAL recording.
• Built-in 30GB HDD.
• Max. 960 hours (approx.) recording capability.
• Four(4) way compression modes (Super Fine / Fine / Normal / Extended)
and manual settings.
• Built-in *CF (CompactFlash) Card slot for browsing the recorded pictures to PC.
• Built-in Motion Detector function.
• Built-in Time & Date generator.
• Easy access Time/Date & Alarm search function for speedy checking.
• Up to 16 units WJ-HD100 as series connection for extended length recording.
• Remote control by PC with RS232C devices, and RS485 chain by
PS-Data link.
• Various alarm mode setting.
• Easy installation and operation.
• 1H (height) compact design.
*Trademarks : SanDisk and CompactFlash are trademarks of SanDisk Corporation.
FPS ( Field Per Second )
120 170 180 240 480 960
2.7 1.8 1.7 1.3 0.6 0.3
5 5 5 5 5 5
120 170 180 240 480 960
2.3 1.5 1.5 1.1 0.5 0.2
7 7 7 7 7 7
120 170 180 240 480 960
2.0 1.4 1.3 1.0 0.5 0.2
8 8 8 8 8 8
120 170 180 240 480 960
1.5 1.1 1.0 0.8 0.4 0.2
10 10 10 10 10 10

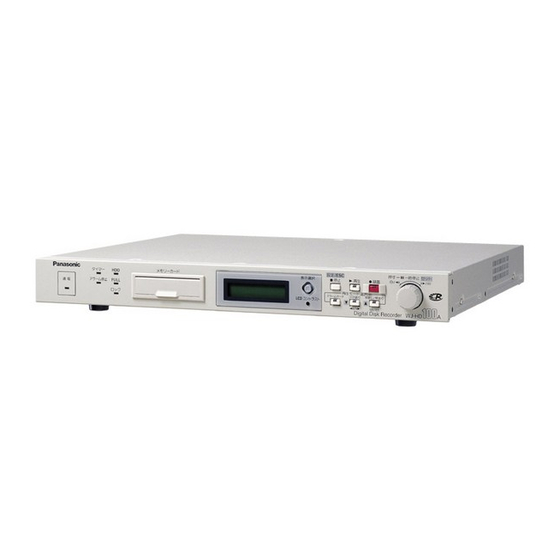

Digital Disk Recorder
WJ-HD100
Time-Lapse Mode Recording Time
640H x 240V, NTSC Color Signal, Audio Signal ; Off
Capture Rate 0.5 sec 1.0 sec
FPS 2
Extended 166
Normal 139
Fine 125
Super Fine 99
2.0 sec
1 0.5
333 667
277 556
250 500
199 399
( Hours )
