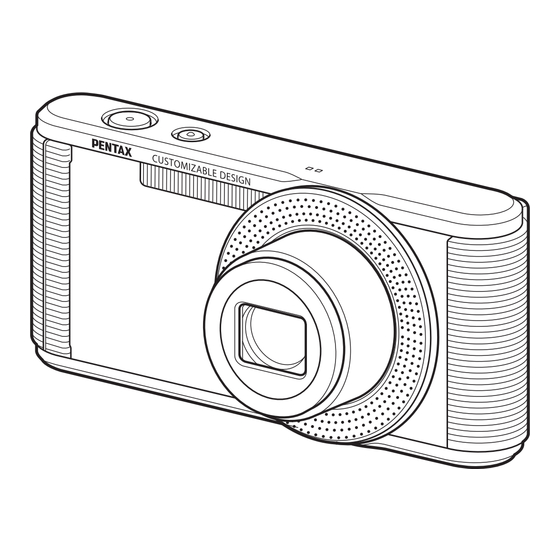

Pentax Optio LS 465 Operating Manual
  1. Manuals
  2. Brands
  3. Pentax Manuals
  4. Digital Camera
  5. Optio LS 465
  6. Operating manual
Pentax Optio LS 465 Operating Manual

Pentax Optio LS 465 Operating Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Digital Camera
Operating Manual
To ensure the best performance from your camera, please
read the Operating Manual before using the camera.

Advertisement

Table of Contents
loading

Related Manuals for Pentax Optio LS 465

Summary of Contents for Pentax Optio LS 465

  • Page 1 Digital Camera Operating Manual To ensure the best performance from your camera, please read the Operating Manual before using the camera.
  • Page 2 Regarding copyrights Images taken with the PENTAX Digital Camera that are for anything other than personal enjoyment cannot be used without permission according to the rights as specified in the Copyright Act. Please take care, as there are cases where limitations are placed on taking pictures even for personal enjoyment during demonstrations, performances or of items on display.

  • Page 3: Using Your Camera Safely

    To users of this camera • Do not use or store this device in the vicinity of equipment that generates strong electromagnetic radiation or magnetic fields. Strong static charges or the magnetic fields produced by equipment such as radio transmitters could interfere with the monitor, damage the stored data, or affect the product’s internal circuitry and cause camera misoperation.
  • Page 4 • If any irregularities occur during use, such as smoke or a strange odor, stop use immediately, remove the battery, and contact your nearest PENTAX Service Center. Continuing to use the camera can cause a fire or electric shock.

  • Page 5: About The Battery

    Service Center. Continuing to use the adapter can cause a fire or electric shock. • If water should happen to get inside the power adapter, consult a PENTAX Service Center. Continuing to use the adapter can cause a fire or electric shock.
  • Page 6 Caution • Only use the specified battery with this camera. Use of other batteries may cause an explosion or fire. • Do not disassemble the battery. Disassembling the battery may cause an explosion or leakage. • Remove the battery from the camera immediately if it becomes hot or begins to smoke.

  • Page 7: Care To Be Taken During Handling

    Care to be Taken During Handling Before Using Your Camera • When traveling, take the Worldwide Service Network listing that is included in the package. This will be useful if you experience problems abroad. • When the camera has not been used for a long time, make sure that it is still working properly, particularly prior to taking important pictures (such as at a wedding or when traveling).

  • Page 8: Cleaning Your Camera

    • Avoid contact with garbage, mud, sand, dust, water, toxic gases, or salt. These could cause the camera to breakdown. Wipe the camera to dry off any rain or water drops. • Please do not press forcefully on the monitor. This could cause it to break or malfunction.
  • Page 9 • The SD Memory Card is equipped with a write-protect switch. Setting the switch to LOCK prevents new data from being recorded on the card, the stored data from being deleted, and the card from being Write-protect formatted by the camera or computer. switch r appears on the display when the card is write-protected.

  • Page 10: Table Of Contents

    Contents Using Your Camera Safely ...............1 Care to be Taken During Handling ...........5 Contents ...................8 Composition of the Operating Manual ..........13 Camera Features................. 14 Checking the Contents of the Package .......... 17 Names of Parts................18 Names of Operating Parts .............. 19 Monitor Indications .................
  • Page 11 Taking Pictures in Basic Mode (Green Mode)........61 Using the Zoom ................63 Taking Pictures of Your Pet (Pet Mode) ......... 65 Framing Your Pictures (Frame Composite Mode) ......66 Taking Pictures of Text (Text Mode) ..........67 Taking Pictures Using the Miniature/HDR Filter ......68 Setting the Shooting Functions............70 Selecting the Flash Mode ...............
  • Page 12 Protecting Images from Deletion (Protect) ........100 Connecting the Camera to AV Equipment........103 Editing and Printing Images Editing Images .................. 105 Changing the Image Size (Resize)..........105 Cropping Images ................106 Processing Images to Make a Face Look Smaller ....... 107 Processing Images with the Miniature/HDR Filter ......108 Processing Images with the Digital Filters........
  • Page 13 Connecting the Camera and the Computer........138 Disconnecting the Camera from the Computer ......139 Using the Provided Software ............140 System Requirements ..............140 Installing the Software ..............141 Using MediaImpression on Windows ...........144 Using MediaImpression on Macintosh.......... 146 Appendix Functions Available for Each Shooting Mode........148 Messages...................150 Troubleshooting................
  • Page 14 In this manual, the method for operating the four-way controller is shown in illustrations, such as in the ones below. The meanings of the symbols used in this Operating Manual are explained below. indicates the reference page number for an explanation of the related operation.

  • Page 15: Composition Of The Operating Manual

    Composition of the Operating Manual This Operating Manual contains the following chapters. 1 Getting Started ––––––––––––––––––––––––––––––––––––––––– This chapter explains what you need to do after purchasing the camera before you start taking pictures. Be sure to read this chapter and follow the instructions.

  • Page 16: Camera Features

    Camera Features In addition to basic picture-taking, this camera has a variety of shooting modes to suit different situations. This section describes how to make the most of the key features of your camera. For details of camera operations, refer to the pages for each function. Easy-to-Navigate Capture and Playback Functions! The user-friendly design of this camera...
  • Page 17 Perfect for Portrait Shots! This camera comes with a “Face Detection” function that spots the faces in your shot and automatically adjusts the focus and exposure for the faces. It can detect up to 16 people per shot, so it will help you take perfect group shots too.
  • Page 18 Advanced Movie Recording Functions This camera has a “Movie SR” function to reduce camera shake during movie recording (p.86), and it enables you to record movies in 1280×720 pixel (16:9) HDTV format (*) (p.86). * When connecting to and playing back images on AV equipment, the recorded data is output at normal screen resolution.

  • Page 19: Checking The Contents Of The Package

    Checking the Contents of the Package Camera Strap Software (CD-ROM) Optio LS465 O-ST116 (*) S-SW127 USB cable Alternative Skins Lens Ring O-LR2 I-USB116 (*) (10 types) (installed on camera) Rechargeable lithium-ion Power adapter Quick Guide battery D-LI108 (*) D-PA116 (*) Digital Camera Operating Manual To ensure the best performance from your camera, please...

  • Page 20: Names Of Parts

    Names of Parts Front Flash Self-timer lamp Microphone Lens Battery/card cover Speaker Tripod socket PC/AV terminal...

  • Page 21: Names Of Operating Parts

    Back Power switch Shutter release button Strap lug Display Names of Operating Parts Power switch Shutter release button Zoom button Q button Movie button Four-way controller 4 button Green/i button 3 button Refer to “Understanding the Button Functions” (p.42 - p.45) for an explanation of the function of each button.

  • Page 22: Monitor Indications

    Monitor Indications Display in A Mode The display shows information such as the shooting conditions in capture mode. The display changes in the following sequence each time you press the 4 button: “Normal Display”, “No Info” and “Histogram + Info”. Normal Display No Info 38 38 38...
  • Page 23 Still Picture Capture Mode (All of the display items are displayed here for explanatory purposes.) A1 to A14 and B1 appear when “Normal Display” is selected. All the icons appear when “Histogram + Info” is selected. Only B1 appears when “No Info” is selected. A14 A13 A12 A11 +1.0 +1.0...

  • Page 24: Display In Q Mode

    * When the shooting mode is b (Auto Picture) and if you press the shutter release button halfway, the automatically selected shooting mode appears in A1 even when “No Info” is selected (p.60). * The current date and time (p.20) appear instead of B3 to B5 for two seconds when “Normal Display”...
  • Page 25 Playback Mode (All of the display items are displayed here for explanatory purposes.) The display shows information such as the shooting conditions. A1 to A8 appear when “Normal Display” or “Histogram + Info” is selected. B1 to B6 appear only when “Histogram + Info” is selected. A7 A6 100 - 0038 100 - 0038...
  • Page 26 Guide Indications A guide indication for each available button/key operation appears as follows on the display during operation. Four-way controller (2) Zoom button Four-way controller (3) 4 button Four-way controller (4) Shutter release button SHUTTER Four-way controller (5) Green/i button 3 button MENU Using the Histogram...
  • Page 27 When the image is underexposed, the part to the left is cut off (dark portions) and when the image is overexposed, the part to the right is cut off (bright portions). Understanding Contrast The graph peaks gradually for images in which contrast is balanced. The graph peaks on both sides but sinks in the middle for images with a large difference in contrast and low amounts of mid-level brightness.

  • Page 28: Getting Started

    Attaching the Strap Gettin Starte Attach the strap supplied with the camera. Pass the narrow end of the strap through the strap lug. Pass the other end of the strap through the loop and pull tight.

  • Page 29: Dress-Up The Camera

    Dress-up the Camera The Alternative Skins are supplied with the camera. You can choose a desired sheet and put it on the front of the camera to dress up. Lens Ring Front panel Alternative Skin Remove the lens ring. Put the camera on a flat surface and detach the lens ring following the direction of arrow 1.
  • Page 30 Put on the front panel. Attach the lens ring. Replace the lens ring removed in Step1. Put the camera on a flat surface, fit the lens ring to the camera in its designated position, snap the lens ring along the groove. •...

  • Page 31: Powering The Camera

    2. Push the battery lock lever in the direction of the arrow 3 and insert the battery so that the PENTAX logo is facing the lens side of the camera. Match the marks on the battery to the marks inside the battery...
  • Page 32 Close the battery/card cover. Slide the battery/card cover in the opposite direction indicated by 1. When you hear a click, the cover is securely closed. Charge the battery before using it in the camera for the first time. (p.31) To Remove the Battery Make sure that the camera is turned off and open the battery/card cover.

  • Page 33: Charging The Battery

    Charging the Battery Charge the battery from a power outlet using the provided power adapter (D-PA116) and USB cable (I-USB116) before using it for the first time, after a long period of non-use, or when the [Battery depleted] message appears. Self-timer lamp While charging: Turns on When charging is finished: Turns off...
  • Page 34 • Do not use the power adapter D-PA116 to charge batteries other than the rechargeable lithium-ion battery D-LI108, as the adapter may overheat or be damaged. • Make sure that the battery has been inserted correctly and the cable is connected properly if the self-timer lamp blinks. •...

  • Page 35: Battery Level Indicator

    • Battery Level Indicator You can check the battery level by the indicator on the display. Screen Display Battery Status (green) Adequate power remains. (green) Battery is running low. (yellow) Battery is running very low. (red) Battery is exhausted. [Battery depleted] The camera will turn off after this message appears.

  • Page 36: Installing An Sd Memory Card

    Installing an SD Memory Card This camera uses a commercially available SD Memory Card, SDHC Memory Card, or SDXC Memory Card. Captured images are saved on the SD Memory Card when a card is inserted in the camera. They are saved in the built-in memory when a card is not inserted (p.36).
  • Page 37 Battery/card cover SD Memory Card SD Memory Card socket Make sure that the camera is turned off and open the battery/card cover. Slide the battery/card cover in the direction indicated by the arrow 1 and flip the cover open 2. Insert the SD Memory Card into the SD Memory Card socket so that the label is facing the lens side of the camera.

  • Page 38: Turning The Camera On And Off

    Turning the Camera On and Off Power switch Press the power switch. The camera turns on and the display turns on. When you turn the camera on, the lens cover opens and the lens extends. If the [Language/u] screen or [Date Adjustment] screen appears when you turn the camera on, follow the procedure on p.37 to set the display language and/or current date and time.

  • Page 39: Initial Settings

    Initial Settings The [Language/u] screen appears when the camera is turned on for the first time. Perform the operations in “Setting the Display Language” below to set the language, and in “Setting the Date and Time” (p.40) to set the current date and time. The language, date, and time can be changed later.
  • Page 40 If you accidentally select the wrong language and proceed to the next procedure, perform the following operation to set the desired language. When the Wrong Language Has Been Inadvertently Selected Press the four-way controller (5). Use the four-way controller (2345) to select the desired language and press the 4 button.
  • Page 41 Press the four-way controller (3). The frame moves to [W Hometown]. Press the four-way controller Initial Setting (5). English The [W Hometown] screen appears. Hometown New York Settings complete MENU Cancel Use the four-way controller Hometown (45) to choose a city. City New York Cancel...

  • Page 42: Setting The Date And Time

    Setting the Date and Time Set the current date and time and the display style. Press the four-way controller (5). The frame moves to [mm/dd/yy]. Use the four-way controller Date Adjustment (23) to choose the date mm/dd/yy Date Format format. Date 01/01/2012 Choose from [mm/dd/yy], [dd/mm/yy]...
  • Page 43 If you press the 4 button in Step 10, the camera clock is reset to 0 seconds. To set the exact time, press the 4 button when the time signal (on the TV, radio, etc.) reaches 0 seconds. When the [Initial Setting] or [Date Adjustment] screen is displayed, you can cancel the settings made up to that point and switch to the capture mode by pressing the 3 button.

  • Page 44: Common Operations

    Understanding the Button Functions Comm Operat ions A Mode Power switch Turns the camera on and off (p.36). Shutter release button Focuses the camera on the subject when pressed halfway in still picture capture mode (except in 3 and s modes). Takes a still picture when pressed down fully (p.55).
  • Page 45 Four-way controller Changes the drive mode (p.71). Displays the Capture Mode Palette (p.57). Changes the flash mode (p.70). Changes the focus mode (p.73). 4 button Changes the information on the display (p.20). Green button Switches to the 9 (Green) mode (p.61). Calls up the assigned function (p.82).

  • Page 46: Q Mode

    Q Mode Power switch Turns the camera on and off (p.36). Shutter release button Switches to A mode (p.46). Zoom button Press towards the left (f) during single-image display to change to six- image display. Changes to twelve-image display when pressed towards the left again.
  • Page 47 Four-way controller Plays back or pauses a movie (p.90). Displays the Playback Mode Palette (p.93). Stops a movie during playback (p.90). Displays the previous or next image during single-image display (p.89). Fast-forwards, fast-reverses, frame forwards, frame reverses, plays back a movie in forward and reverse during movie playback (p.90).

  • Page 48: Switching Between A Mode And Q Mode

    Switching Between A Mode and Q Mode In this manual, the capture mode, such as for taking still pictures, is referred to as “A mode” (the capture mode). The playback mode, such as for viewing the captured images on the display, is referred to as “Q mode”...

  • Page 49: Setting The Camera Functions

    Setting the Camera Functions To change the camera settings, press the 3 button to display the menu screens. Functions for playing back and editing images are called up from the Playback Mode Palette (p.93). Operating the Menus There are three menus available with the camera: [A Rec. Mode], [C Movie], and [W Setting].
  • Page 50 Ex.) To set [Focusing Area] on the [A Rec. Mode] menu Press the 3 button in A mode. The [A Rec. Mode] menu appears. Press the four-way controller Rec. Mode (3). Recorded Pixels The frame moves to [Recorded White Balance Focusing Area Pixels].
  • Page 51 To Save the Setting and Start Taking Pictures Press the shutter release button halfway. The setting is saved and the camera returns to capture status. When the shutter release button is pressed fully, the picture is taken. When the [W Setting] menu is displayed from Q mode, you can switch to A mode by pressing the Q button.

  • Page 52: Menu List

    Menu List This displays the items that can be set from the menus and provides descriptions of each item. See the list of default settings in the Appendix “Default Settings” (p.154) to check whether the settings are saved when the camera is turned off and whether the settings return to the defaults when the camera is reset.
  • Page 53 [A Rec. Mode] Menu 1 [A Rec. Mode] Menu 2 Rec. Mode Rec. Mode Recorded Pixels Digital Zoom White Balance Memory Focusing Area Green Button Sensitivity Auto Sharpness EV Compensation Saturation Face Detection Contrast Exit Exit MENU MENU [A Rec. Mode] Menu 3 Rec.
  • Page 54 [W Setting] Menu Item Description Page For adjusting the operation volume and playback Sound volume, and setting the start-up sound, shutter sound, p.124 key operation sound and self-timer sound Date Adjustment For adjusting the date and time p.125 World Time For setting the Hometown city and Destination city p.127 For setting the language in which menus and...
  • Page 55 [W Setting] Menu 1 [W Setting] Menu 2 Setting Setting Sound Video Out NTSC Date Adjustment 01/01/2012 Wallpaper Brightness Level World Time English Power Saving 5s e c . Folder Name Auto Power Off Date 3min. USB Connection MSC Reset Exit Exit MENU...

  • Page 56: Taking Pictures

    Taking Still Pictures Taking Picture Shutter release button Power switch Zoom button Four-way controller 4 button Green button Taking Pictures This camera features a wide range of shooting modes and functions to suit almost any subject or scene. This chapter describes how to take pictures with the most commonly used standard settings (the factory default settings).
  • Page 57 Press the shutter release button halfway. The focus frame (or face detection frame) on the display turns green 1/250 1/250 1/250 when the camera focuses on the F4.6 F4.6 F4.6 subject at the correct distance. 38 38 38 Press the shutter release button fully. The picture is taken.
  • Page 58 Using the Shutter Release Button The shutter release button works in a two-step action as follows. Press halfway This refers to pressing the shutter release button gently to the first position. This locks the focus setting and the exposure. The green focus frame is displayed on the monitor when the shutter release button is pressed halfway and the subject is in focus.

  • Page 59: Setting The Shooting Mode

    Instant Review Immediately after capturing an image, it appears on the screen display (Instant Review). Setting the Shooting Mode This camera has a variety of shooting modes that let you take pictures in different situations simply by choosing the appropriate mode for the particular situation from the Capture Mode Palette.
  • Page 60 There are 23 shooting modes which can be selected from the Capture Mode Palette. Shooting Mode Description Auto Picture Automatically selects the best capture mode. (1p.60) Used for basic shooting. Various functions can also be set Program with this mode. (1p.61) Emphasizes saturation of the sky to produce a bright Blue Sky image.

  • Page 61: Using The Face Detection Function

    Shooting Mode Description For capturing images at parties or in dim light. Increases Party ISO and clarity. Candlelight For capturing scenes in candlelight. Captures text in an easy to read manner. Text contrast can Text be adjusted. (1p.67) For capturing an image with the subject looks like o Miniature Filter miniature objects.

  • Page 62: Taking Pictures Automatically (Auto Picture Mode)

    The Face Detection function can detect When the multiple faces are detected up to 16 people’s faces. If it detects multiple faces, the camera displays a yellow frame over the main face and white frame(s) over the other face(s). The default setting is [On]. You can switch to the Smile Capture function that automatically releases the shutter when 38 38 38...

  • Page 63: Taking Pictures In The Custom Settings (Program Mode)

    The following restrictions apply in b mode: • [Face Detection] cannot be set to [Off]. • The focusing area setting is fixed at J (Multiple). • The (Flower) mode cannot be selected when using digital zoom or Intelligent Zoom. • If the (Night Scene Portrait) mode is selected when the flash mode is set to , (Auto), the flash mode automatically changes to d (Flash On + Red-eye) when the camera detects a face and determines that...
  • Page 64 Flash Mode , (Auto) EV Compensation ±0.0 Drive Mode 9 (Standard) Face Detection Focus Mode = (Standard) Digital Zoom O (On) Information Display Normal Sharpness G (Normal) Recorded Pixels Saturation G (Normal) White Balance F (Auto) Contrast G (Normal) Focusing Area J (Multiple) Date Imprint Sensitivity...

  • Page 65: Using The Zoom

    Using the Zoom You can use the zoom to change the captured area. Press the zoom button in A mode. 1.0 m- 1.0 m- 1.0 m- 36.0 x 36.0 x 36.0 x Right (T) Tele Enlarges the subject. Left (W) Wide Widens the area that is captured by 38 38 38...
  • Page 66 Recorded pixels and the maximum zoom ratio Recorded Intelligent Zoom Digital zoom Pixels Not available (5× optical zoom only) Not available (5× optical zoom only) Equivalent to approx. 36.0× Approx. 7.5× Approx. 12.0× Approx. 36.0× (Same as digital zoom) • It is recommended to use a tripod or other support to prevent camera shake when taking pictures at high zoom.

  • Page 67: Taking Pictures Of Your Pet (Pet Mode)

    Use the four-way controller Rec. Mode (45) to select O or P. Digital Zoom Memory Uses Digital Zoom Green Button Uses only optical zoom and Sharpness Saturation Intelligent Zoom Contrast Exit MENU Press the 3 button. The camera returns to capture status. Saving the Digital Zoom Function setting 1p.87 Taking Pictures of Your Pet (Pet Mode) Use the H (Pet) mode to keep your moving pet in focus and capture the...

  • Page 68: Framing Your Pictures (Frame Composite Mode)

    Press the 4 button. The selected icon appears and the camera returns to capture status. The camera tracks the subject and continues to focus on it. When the camera detects a person’s face, the Face Detection function is activated and the face detection frame appears (p.59). Press the shutter release button fully.

  • Page 69: Taking Pictures Of Text (Text Mode)

    Press the 4 button. The framed image appears on the display. When the camera detects a person’s face, the Face Detection function is activated and the face detection frame appears (p.59). Press the shutter release button halfway. The focus frame on the display turns green when the camera focuses on the subject at the correct distance.

  • Page 70: Taking Pictures Using The Miniature/Hdr Filter

    Press the 4 button. The c mode selection screen appears. Cancel Cancel Cancel MENU Use the four-way controller (23) to select c, d, c or d. Press the 4 button. The selected icon appears and the camera returns to capture status. If the camera detects a person’s face when (Color) is selected, the Face Detection function is activated and the face detection frame...
  • Page 71 Press the 4 button. When the o mode is selected, the screen for selecting the area to be blurred is displayed. When the p mode is selected, proceed to Step 5. Use the four-way controller Select the range to blur Select the range to blur Select the range to blur (45) to select an option.

  • Page 72: Setting The Shooting Functions

    Setting the Shooting Functions Selecting the Flash Mode The flash discharges automatically depending on the Auto light conditions. If the Face Detection function is activated, the flash mode is automatically set to d. The flash does not discharge, regardless of the Flash Off brightness.

  • Page 73: Selecting The Drive Mode

    About the red-eye phenomenon Taking pictures using the flash may cause the subject’s eyes to appear red in the resulting picture. This phenomenon occurs when the light from the flash is reflected in the subject’s eyes. It can be reduced by illuminating the area around the subject or moving closer to the subject and zooming out to a wider angle.
  • Page 74 • Focusing may be compromised if you move the camera while the self- timer lamp is blinking when taking still pictures. • The flash does not discharge in j or q mode. • In the following modes, you cannot select j or q. 9 (Green), S (Fireworks), N (Frame Composite), o (Miniature Filter), or p (HDR Filter) mode or when recording a movie.

  • Page 75: Selecting The Focus Mode

    Selecting the Focus Mode This mode is used when the distance to the subject is 40 cm (16 in.) or more. The camera is focused on the subject in the autofocus Standard area when the shutter release button is pressed halfway. When the subject is close to the camera, the Auto-Macro function is activated and q appears on the display.

  • Page 76: Setting The [A Rec. Mode] Menu

    Setting the [A Rec. Mode] Menu To set the main shooting functions, choose each function on the [A Rec. Mode] menu. Refer to the explanation of the respective functions for how to change the settings. Press the 3 button in A mode. The [A Rec.

  • Page 77: Selecting The Number Of Recorded Pixels

    Selecting the Number of Recorded Pixels You can choose from six recorded pixels settings for still pictures. The larger the number of recorded pixels, the clearer the details will appear when you print your picture. As the quality of the printed picture also depends on the image quality, exposure control, resolution of the printer, and other factors, you do not need to select more than the required number of recorded pixels.

  • Page 78: Compensating For Exposure (Ev Compensation)

    Press the 4 button. The setting is saved. • The number of recorded pixels in 9 (Green) mode is fixed at m. • The number of recorded pixels in N (Frame Composite) mode is fixed at h for the 4:3 aspect ratio and h for the 16:9 aspect ratio. •...

  • Page 79: Adjusting The White Balance

    Adjusting the White Balance You can take pictures in natural colors by adjusting the white balance according to the light conditions at the time of shooting. F Auto The camera adjusts the white balance automatically. Daylight Use this mode when taking pictures outside in sunlight. Shade Use this mode when taking pictures outside in the shade.

  • Page 80: Setting The Sensitivity

    To Set the White Balance Manually Have a blank sheet of white paper or similar material ready. In the [White Balance] screen, use the four-way controller (23) to select K (Manual). Point the camera at the blank sheet of paper or other material so that it fills the frame displayed in the center of the screen.

  • Page 81: Switching The Face Detection Function

    Press the 4 button. The setting is saved. • When the sensitivity is set to 3200 or 6400, the number of recorded pixels is fixed at f for the 4:3 aspect ratio and 1 for the 16:9 aspect ratio. • In 9 (Green) mode, only [Auto] (sensitivity 64 - 800) is available. •...

  • Page 82: Setting The Image Sharpness (Sharpness)

    Press the 4 button. The setting is saved. The Face Detection icon appears on the display. When [Face Detection] is set to [On] When [Face Detection] is set to [Smile] • Face Detection AF and AE may not work if the subject is wearing sunglasses, has part of their face covered or is not looking toward the camera.

  • Page 83: Setting The Color Saturation (Saturation)

    Setting the Color Saturation (Saturation) You can set the color saturation. Use the four-way controller (23) to select [Saturation] in the [A Rec. Mode] menu. Use the four-way controller (45) to change the saturation level. Normal High Setting the Image Contrast (Contrast) You can set the image contrast level.

  • Page 84: Calling Up A Specific Function

    Use the four-way controller (23) to select the Date Imprint details. Choose from [Date], [Date & Time], [Time] or [Off]. Press the 4 button. The setting is saved. • The date and/or time imprinted cannot be deleted. • Note that if the printer or the image editing software is set to print the date and the images to be printed already have the date and/or time imprinted, the imprinted dates and/or times may overlap.
  • Page 85 To Assign a Function to the Green Button Use the four-way controller (23) to select [Green Button] in the [A Rec. Mode] menu. Press the four-way controller (5). A pull-down menu appears. Use the four-way controller (23) to select a function you want to assign, and press the 4 button.

  • Page 86: Recording Movies

    Recording Movies Recording a Movie This mode enables you to record movies. Sound is recorded at the same time. Shutter release button Zoom button Movie button Four-way controller 4 button Point the camera at your subject in A mode. When the camera detects a person’s face, the Face Detection function is activated and the face detection frame appears (p.59).

  • Page 87: Setting The [C Movie] Menu

    Press the Movie button. Recording stops. Playing Back a Movie 1p.90 • The flash does not discharge while recording a movie. • The autofocus system does not operate while recording a movie. • You can use optical zoom only before recording, while digital zoom is available both before and during recording.

  • Page 88: Selecting The Recorded Pixels For Movies

    Selecting the Recorded Pixels for Movies You can choose from the following recorded pixels settings for movies. The more pixels there are, the clearer the details and the bigger the file size. Recorded Frame Setting Pixels Rate Records images in HDTV format (16:9). Movement is 1280×720 30 fps recorded smoothly.

  • Page 89: Saving The Settings (Memory)

    Saving the Settings (Memory) The Memory function is for saving the current camera settings when the camera is turned off. For some camera settings, the Memory function is always set to O (On) (the settings are saved when the camera is turned off), while for others you can choose O or P (Off) (to choose whether the settings are saved or not when the camera is turned off).
  • Page 90 Use the four-way controller (23) to select [Memory] in the [A Rec. Mode] menu. Press the four-way controller (5). The [Memory] screen appears. Use the four-way controller (23) to choose an item. Use the four-way controller (45) to select O or P.

  • Page 91: Playing Back And Deleting Images

    Playing Back Images Playin g Back Deletin Image Zoom button Q button Four-way controller 4 button Green/i button 3 button Playing Back Still Pictures Press the Q button after File number taking a picture. 100 - 0038 100 - 0038 100 - 0038 The camera enters the Q mode and the captured image appears on the...

  • Page 92: Playing Back A Movie

    Playing Back a Movie You can play back the movies you have taken. Recorded sound is played back at the same time. In Q mode, use the four-way controller (45) to choose the movie you want to play back. Press the four-way controller 100 - 0017 100 - 0017 100 - 0017...

  • Page 93: Multi-Image Display

    Multi-Image Display Six-Image Display/Twelve-Image Display You can display six or twelve thumbnails of images at a time. In Q mode, press the zoom button towards the left (f). The six-image display appears showing with six thumbnails. Press the zoom button towards the left (f) again to switch to twelve-image display.
  • Page 94 Folder Display/Calendar Display In twelve-image display, press the zoom button towards the left (f) to switch to folder display or calendar display. Press the Green button to switch between folder display and calendar display. In Q mode, press the zoom button towards the left (f) three times.

  • Page 95: Using The Playback Functions

    Using the Playback Functions Press the four-way controller (3) in Q mode. The Playback Mode Palette appears. Use the four-way controller Slideshow Slideshow Slideshow 1 / 2 1 / 2 1 / 2 (2345) to choose a playback mode. The guide for the selected function For continuously playing appears below.

  • Page 96: Slideshow

    Changes Recorded Pixels to make the file size Resize p.105 smaller. For cropping images to the size you like. Saved as Cropping p.106 a new image. To copy images between the built-in memory and Image Copy p.118 an SD Memory Card. Protects images from delete function.
  • Page 97 To Set the Slideshow Conditions You can set the playback interval and also a screen effect and sound effect for when one image changes to the next. Use the four-way controller (23) to select [Interval] in Step 4 on p.94. Press the four-way controller (5).

  • Page 98: Rotating An Image

    • The slideshow will continue until you press any button other than the 4 button. • Movies will be played through to the end before the next picture is played back, regardless of the interval setting. However, pressing the four-way controller (5) while playing back a movie skips to the next image.

  • Page 99: Zoom Playback

    Zoom Playback You can magnify an image up to ten times. In Q mode, use the four-way controller (45) to choose the image you want to magnify. Press the zoom button towards the right (y). The image is magnified (×1.1 to ×10). Continuing to press the zoom button towards the right (y) changes the magnification continuously.

  • Page 100: Deleting Images

    Deleting Images You can delete images that you do not want to keep. Deleting a Single Image You can delete a single image. Protected images cannot be deleted (p.100). In Q mode, use the four-way controller (45) to choose the image you want to delete. Press the i button.

  • Page 101: Deleting All Images

    Press the i button. P appears on the images. Select & Delete Select & Delete Select & Delete 100-0010 100-0010 100-0010 Use the four-way controller (2345) to choose the images that you want to delete, then press the 4 button. O appears on the selected images.

  • Page 102: Protecting Images From Deletion (Protect)

    Use the four-way controller (23) to select [Delete All]. Press the four-way controller (5). The [Delete All] screen appears. Use the four-way controller (23) to select [Delete All]. Press the 4 button. All the images are deleted. Protecting Images from Deletion (Protect) You can protect stored images from being accidentally deleted.
  • Page 103 Use the four-way controller 100-0017 100-0017 100-0017 (23) to select [Protect]. Protects this image Protects this image Protects this image Protect Unprotect Cancel Press the 4 button. The selected image is protected and the screen shown in Step 4 reappears. To protect other images, repeat Steps 4 to 7.
  • Page 104 Press the 4 button. All the images are protected and the screen shown in Step 1 reappears. Use the four-way controller (23) to select [Cancel] and press the 4 button. The Playback Mode Palette reappears. Protected images will be deleted when the SD Memory Card/built-in memory is formatted (p.123).

  • Page 105: Connecting The Camera To Av Equipment

    Connecting the Camera to AV Equipment By using the optional AV cable (I-AVC116), you can capture and play back images on equipment with a video input terminal, such as a TV. PC/AV terminal External input terminal AUDIO VIDEO Yellow White Turn the AV equipment and camera off.

  • Page 106: Turn The Camera On

    Turn the camera on. • Depending on the country or region, images and sounds may fail to be played back if the video output format is set differently from the one in use there. If this happens, change the video output format setting (p.131).

  • Page 107: Editing And Printing Images

    Editing Images Editing Printin Image Changing the Image Size (Resize) By changing the recorded pixels of a selected image, you can make the file size smaller than the original. You can use this function to continue taking pictures when the SD Memory Card or the built-in memory is full, by making the images smaller and overwriting the original images to make more space available.

  • Page 108: Cropping Images

    Press the 4 button. The resized image is saved. Cropping Images You can delete the unwanted part of a picture and save the cropped image as a new image. Images taken with the recorded pixels of n/h/m and movies cannot be cropped. In Q mode, use the four-way controller (45) to choose the image you want to crop.

  • Page 109: Processing Images To Make A Face Look Smaller

    Press the 4 button. The cropped image is saved with a new file name. The number of recorded pixels is selected automatically according to the size of the cropped image. Processing Images to Make a Face Look Smaller Images are processed to reduce the size of a person’s face detected with the Face Detection function (p.59) when taking pictures so that the face looks smaller.

  • Page 110: Processing Images With The Miniature/Hdr Filter

    You may not be able to process images in the following situations: - When the size of face taken in relation to an image is too large or too small - When a face is not in the center of an image Processing Images with the Miniature/HDR Filter This function lets you perform special processing on the selected image.
  • Page 111 Use the four-way controller (45) to select an option. Processes the image so that the top of the image is blurred as if only the bottom of the image is in focus. Cancel Cancel Cancel MENU Processes the image so that the top and bottom of the image is blurred as if only the center of the image is in focus.

  • Page 112: Processing Images With The Digital Filters

    Processing Images with the Digital Filters This function lets you change the color tones and perform special processing on the selected image. Processes the image into one that has the look of a black and white B&W photograph. Processes the image into one that has the look of a sepia photograph. Sepia Processes the image that looks as though it was shot with a toy Toy Camera...
  • Page 113 To Select a B&W, Sepia or Soft Filter Use the four-way controller ( ) to choose a filter. The preview image of the result of the filter effect appears. Press the 4 button. A confirmation dialog for overwriting the image appears. If the selected image is protected, the processed image is saved as a new image and the following confirmation dialog does not appear.

  • Page 114: Compensating For An Unwanted Red-Eye Effect

    To Select a Toy Camera or Brightness Filter Use the four-way controller (23) to choose a filter. The preview image of the result of the filter effect appears. Use the four-way controller (45) to adjust the effect. Four-way controller Four-way controller Default Setting Toy Camera Weak...

  • Page 115: Adding A Frame (Frame Composite)

    Press the 4 button. A confirmation dialog for overwriting the image appears. If the selected image is protected, the processed image is saved as a new image and the following confirmation dialog does not appear. Use the four-way controller (23) to select [Overwrite] or [Save as].
  • Page 116 Press the zoom button towards the right (y). The selected frame appears in single-image display. You can choose another frame using either of the following operations. Four-way Press to choose a controller (45) different frame. Zoom button Returns to the 12-frame towards the left display of the frame selection screen, and...

  • Page 117: Usb Cable

    Optional Frames In addition to the built-in frames that come with this camera, there are optional frames included on the supplied CD-ROM. You can save the optional frames to the camera’s built-in memory or an SD Memory Card. To save them to the built- in memory, first remove the SD Memory Card before proceeding.

  • Page 118: Editing Movies

    To Use a New Frame Frames downloaded from the PENTAX website or other source can be used for adding a frame to pictures. • Extract the downloaded frame and copy it to the FRAME folder in the built-in memory or on the SD Memory Card.
  • Page 119 Use the four-way controller 100-0042 100-0042 100-0042 (2345) to choose the 00:06 00:06 00:06 frame you want to save. Select the image Select the image Select the image Plays or pauses the movie to save to save to save Stops the movie and returns to the first frame Cancel Cancel...

  • Page 120: Copying Images

    Use the four-way controller (23) to select [Divide]. Divide at this position? Divide at this position? Divide at this position? Divide Cancel Press the 4 button. The movie is divided at the specified position, each segment is saved as a new file, and the original movie is deleted. Protected movies cannot be divided.
  • Page 121 Use the four-way controller (23) to select [2}{]. Cancel Cancel Cancel Press the 4 button. All the images are copied to the SD Memory Card. To Copy Files from the SD Memory Card to the Built-in Memory Selected images from the SD Memory Card are copied to the built-in memory one by one.

  • Page 122: Setting The Printing Service (Dpof)

    Setting the Printing Service (DPOF) DPOF (Digital Print Order Format) is the format for storing print order data on still pictures captured with a digital camera. Once the print order data has been stored, the pictures can be printed according to the DPOF settings by using a DPOF-compatible printer or at a photo processing lab.
  • Page 123 Use the four-way controller (23) to select [Single Image]. Single Image All Images All Images All Images Cancel Cancel Cancel Press the 4 button. The message [Applies DPOF settings to this image] appears. Use the four-way controller (45) to select an image. If DPOF settings have already been made for the selected image, the previous number of copies and date setting (O or P) will be displayed.

  • Page 124: Printing All Images

    To cancel DPOF settings, set the number of copies to [00] in Step 6 and press the 4 button. Printing All Images DPOF settings are applied to all the images stored in the camera. Select [All Images] in Step 3 on p.121. Press the 4 button.

  • Page 125: Settings

    Camera Settings Setting Changing the [W Setting] Menu To change the main camera settings, choose each setting on the [W Setting] menu. Refer to the explanation of the respective functions for how to change the settings. Press the 3 button in Q mode. The [W Setting] menu appears.

  • Page 126: Changing The Sound Settings

    Use the four-way controller (23) to select [Format] in the [W Setting] menu. Press the four-way controller (5). The [Format] screen appears. Use the four-way controller Format (23) to select [Format]. All data will be deleted Format Cancel Press the 4 button. Formatting starts.

  • Page 127: Changing The Date And Time

    Use the four-way controller (45) to adjust the volume. Set the volume to f to mute the start-up sound, shutter sound, operation sound, and self-timer sound. Change [Playback Volume] in the same way as in Steps 3 and 4. To Change the Sound Type Use the four-way controller (23) to select [Start-up Sound].
  • Page 128 Press the four-way controller Date Adjustment (5). mm/dd/yy 24h Date Format The frame moves to [mm/dd/yy]. Date 01/01/2012 Depending on the initial setting or 00:00 Time previous setting, [dd/mm/yy] or [yy/ Settings complete mm/dd] may be displayed. Cancel MENU Use the four-way controller (23) to choose the date format.

  • Page 129: Setting The World Time

    Change the time in the same way as in Steps 7 to 11. If you select [12h] in Step 6, the camera automatically switches the display between am and pm corresponding to the time. Press the four-way controller (3) to select [Settings complete].
  • Page 130 Press the four-way controller (5). The [X Destination] screen appears. The city that is currently selected blinks on the map. Use the four-way controller 14:25 Destination (45) to change the Destination city. The current time, location and time difference of the selected city appear. City New York + 0:00...

  • Page 131: Changing The Display Language

    Use the four-way controller World Time (23) to select [Select Time]. Select Time Destination London 20:25 Hometown New York 14:25 MENU Press the four-way controller (5). A pull-down menu appears. Use the four-way controller (23) to select X or W. Displays the time of the Destination city Displays the time of the Hometown city Press the 4 button.

  • Page 132: Changing The Naming System Of The Folder

    Use the four-way controller (2345) to select the desired language. Press the 4 button. The menus and messages are displayed in the selected language. Changing the Naming System of the Folder You can change the naming system of the folder for storing images. When the naming system is set to [Date], pictures are saved in separate folders by the date they were taken.

  • Page 133: Changing The Video Output Format

    Use the four-way controller (23) to select [PENTX] or [Date]. Press the 4 button. The setting is saved. Changing the Video Output Format When you take pictures and/or play them back with the camera connected to AV equipment, select an appropriate video output format (NTSC or PAL).

  • Page 134: Adjusting The Brightness Of The Display

    Press the four-way controller (5). A pull-down menu appears. Use the four-way controller (23) to select the wallpaper type. Choose from [1], [2], [3], [USER] or [Off]. Press the 4 button. 100 - 0017 100 - 0017 100 - 0017 When [1], [2], [3] or [Off] is selected: The setting is saved.

  • Page 135: Using The Power Saving Function

    Using the Power Saving Function You can save battery power by setting the display to dim automatically when no operation is performed for a fixed time. After the power saving function has been activated, the display returns to the ordinary brightness if any button is pressed.

  • Page 136: Changing The Start-Up Screen

    You can choose any of the following images as the start-up screen: - The Guide Display Start-up Screen showing a guide for the shooting modes and buttons - PENTAX logo - One of your own images (compatible images only) Use the four-way controller (2345) to select R (Start-up Screen) from the Playback Mode Palette.

  • Page 137: Correcting Defective Pixels In The Ccd Sensor (Pixel Mapping)

    PENTAX logo screen or the Guide Display Start-up screen already stored in the camera. Press the 4 button. The start-up screen is set. • Once the start-up screen has been set, it will not be deleted even if the original image is deleted or the SD Memory Card/built-in memory is formatted.

  • Page 138: Starting-Up In Playback Mode

    Starting-up in Playback Mode You can turn on the camera by pressing and holding the Q button. Use the four-way controller (23) to select [Playback Mode] in the [W Setting] menu. Use the four-way controller (45) to select O or P. O Starts up in Playback Mode P Does not start up in Playback Mode Press the 4 button.

  • Page 139: Connecting To A Computer

    Connecting to a Computer Conne cting to a Comp uter Setting the USB Connection Mode Set the device to which the camera is connected with the USB cable. Make sure to set the USB Connection mode before connecting your camera to a computer. You cannot perform the following setting if your camera is connected to a computer with the USB cable.

  • Page 140: Connecting The Camera And The Computer

    Unless otherwise specified, select MSC when connecting this camera to a computer. Connecting the Camera and the Computer Connect your camera to the computer using the provided USB cable. Turn the computer on. Turn your camera off. Connect your camera to the computer using the USB cable.

  • Page 141: Disconnecting The Camera From The Computer

    • The self-timer lamp blinks while the camera is connected to a computer. • If there is no SD Memory Card in the camera, the images stored in the built-in memory can be viewed with a computer. • For information on system requirements, refer to p.140. Disconnecting the Camera from the Computer When the camera is being used by an application such as MediaImpression, it cannot be disconnected until the application is...

  • Page 142: Using The Provided Software

    Using the Provided Software The following software is included in the provided CD-ROM. Image viewing/managing/editing software “MediaImpression 3.1 for PENTAX” (for Windows) “MediaImpression 2.1 for PENTAX” (for Macintosh) Languages: English, French, German, Spanish, Portuguese, Italian, Dutch, Swedish, Russian, Korean, Chinese (traditional and simplified), Japanese...

  • Page 143: Installing The Software

    Windows 95, Windows 98, Windows 98SE, Windows Me, Windows NT and Windows 2000 are not supported. Macintosh Mac OS X (Ver.10.3.9, 10.4, 10.5, 10.6, 10.7) • The OS must be preinstalled and updated to the latest version. PowerPC G4 800 MHz processor or equivalent CPU (Intel Core Duo or higher processor recommended) Memory 512 MB or more (1 GB or more recommended)
  • Page 144 Click [Computer] in the Start menu. Double-click the CD/DVD drive icon. The installation screen appears. Click [MediaImpression 3.1 for PENTAX]. Choose a language in the “Choose Setup Language” screen and click [OK]. The setup screen appears. Follow the on-screen guidance and install the software.
  • Page 145 Macintosh Turn your Macintosh on. Insert the provided CD-ROM into the CD/DVD drive. Double-click the CD-ROM icon. Double-click the [Pentax Software Installer] icon. The installation screen appears. Click [MediaImpression 2.1 for PENTAX]. The setup screen appears. Follow the on-screen guidance and install the software.

  • Page 146: Using Mediaimpression On Windows

    Product Registration on the Internet In order to better serve you, we request that you complete the product registration. If the computer is connected to the Internet, please click [Product Registration] on the installation screen. The world map screen shown on the right for Internet Product Registration is displayed.
  • Page 147 When the [AutoPlay] screen does not appear 1 Double-click the [MediaImpression 3.1 for PENTAX] icon on the desktop. 2 Click [PhotoImpression]. 3 Click [Import]. Click the folder icon next to [Destination Folder] and specify the destination location. To transfer all images, proceed to Step Select an image to transfer.

  • Page 148: Using Mediaimpression On Macintosh

    Using MediaImpression on Macintosh Connect the camera to your Macintosh. Refer to Steps 2 to 4 on p.138 for details. Double-click the [MediaImpression 2.1 for PENTAX] icon in the [Applications] folder. MediaImpression 2.1 for PENTAX starts and the start page appears. Click [Import].
  • Page 149 Click [Import]. The images are transferred to the computer and the Media Browser screen appears. When a message appears after transfer is complete, click [Done]. • If the images from the camera are not displayed in the Import screen, select [NO NAME] (or the volume label name) in [Get Media from]. •...

  • Page 150: Appendix

    Functions Available for Each Shooting Appen Mode z: Can be set. ×: Cannot be set. Shooting Mode Function Zoom button Zoom operation , (Auto) × a (Flash Off) Flash Mode b (Flash On) × d (Flash On + Red-eye) × (Standard) g (Self-timer) Drive...
  • Page 151 Shooting menu items not listed in this chart can be set in any shooting mode except for Green Mode. However, these settings may not function properly in certain shooting modes and setting conditions even if they can be selected. For further information, please refer to the pages listed below.

  • Page 152: Messages

    Messages Messages such as the following may appear on the display during camera operation. Message Description The battery is exhausted. Charge the battery using the Battery depleted power adapter D-PA116 (p.31). The SD Memory Card is full and no more images can be saved.
  • Page 153 Message Description The largest file number (9999) has been assigned to an Image folder image in the largest folder number (999) and no more cannot be created images can be saved. Insert a new SD Memory Card or format the card/built-in memory (p.123). Protected The image you are trying to delete is protected (p.100).

  • Page 154: Troubleshooting

    Troubleshooting Problem Cause Remedy The battery is not Check if a battery is installed. installed The camera will not turn on The battery is Charge the battery. exhausted The camera is The display is off when the camera is connected to a connected to a computer.
  • Page 155 Problem Cause Remedy Lock the focus on an object the same distance away as the subject (by The subject is difficult pressing and holding the shutter release to focus on with button halfway), then aim the camera at autofocus your subject and press the shutter release button fully (p.56).

  • Page 156: Default Settings

    Default Settings The table below lists the factory default settings. The meaning of the indications for menu items with a default setting is explained below. Last Memory Setting Yes : The current setting (last memory) is saved when the camera is turned off.
  • Page 157 Last Reset Item Default Setting Memory Page Setting Setting Flash Mode O (On) Drive Mode P (Off) Focus Mode P (Off) Zoom Position P (Off) White Balance P (Off) Memory Sensitivity P (Off) p.87 EV Compensation P (Off) Face Detection P (Off) Digital Zoom O (On)
  • Page 158 [W Setting] Menu Items Last Reset Item Default Setting Memory Page Setting Setting Operation Volume Playback Volume Start-up Sound Sound p.124 Shutter Sound Operation Sound Self-timer Sound According to the initial Date Format (date) setting Date Format (time) Date p.40 Adjustment p.125 Date...

  • Page 159: Playback Mode Palette Items

    Playback Mode Palette Items Last Reset Item Default Setting Memory Page Setting Setting Interval 3 sec. Slideshow Screen Effect Wipe p.94 Sound Effect O (On) Image Rotation Normal — — p.96 Small Face Filter G (approx. 7%) p.107 Miniature Filter p.108 (Blurring of the top and bottom)

  • Page 160: Key Operation

    Key Operation Last Reset Item Function Default Setting Memory Page Setting Setting Operation Q button Q mode — — — Mode Zoom button Zoom Position Full wide-angle p.63 Drive Mode 9 (Standard) p.71 Shooting b (Auto Picture) p.57 Four-way Mode controller Flash Mode (Auto)

  • Page 161: List Of World Time Cities

    List of World Time Cities City: indicates cities that can be set as either the Initial Setting (p.37) or the World Time (p.127). Video Output Format: indicates the video output format of the city set as the initial setting. Video Output Video Output Region City...

  • Page 162: Optional Accessories

    Optional Accessories A number of dedicated accessories are available for this camera. Products marked with an asterisk (*) are the same as those supplied with the camera. Power supply Rechargeable lithium-ion battery D-LI108 (*) Power adapter D-PA116 (*) Battery charger D-BC108 Cable USB cable I-USB116 (*) AV cable I-AVC116...

  • Page 163: Main Specifications

    Main Specifications Type Fully automatic compact digital camera with built-in zoom lens Number of Approx. 16 megapixels Effective Pixels Image Sensor 1/2.3 inch CCD Number of Still m (4608×3456), n (3456×3456), o (4608×2592), 6 (3072×2304), Recorded Pixels h (1920×1080), m (640×480) * Fixed at h for the 4:3 aspect ratio and h for the 16:9 aspect ratio in Frame Composite mode.
  • Page 164 Approximate Image Storage Capacity and Recording Time Still Pictures 2 GB Built-in Memory SD Memory Card 13 pictures 640 pictures 4608×3456 18 pictures 842 pictures n 3456×3456 18 pictures 842 pictures o 4608×2592 25 pictures 1159 pictures 3072×2304 72 pictures 3235 pictures h 1920×1080 243 pictures...
  • Page 165 Shake Reduction Still High-sensitivity anti-shake mode (Digital SR) Movie Electronic Movie Shake Reduction (Movie SR) Display 2.7 inch wide-LCD, approx. 230,000 dots Playback Modes Single-frame, 6-frame, 12-frame, Enlargement (max. 10×, scrollable), Folder Display, Calendar Display, Histogram Display, Deleting Selected Images, Slideshow, Image Rotation, Small Face Filter, Miniature Filter, HDR Filter, Digital Filter, Frame Composite, Movie Playback/Edit (Save as Still Image, Divide Movies), Red-eye Compensation, Resize, Cropping, Image Copy, Protect, DPOF, Start-...
  • Page 166 Built-in Flash Modes Auto, Flash Off, Flash On, Flash On + Red-eye Flash Range Wide-angle: approx. 0.3 m - 3.6 m (approx. 1.0 ft - 12 ft) (Sensitivity: in Auto condition) Telephoto: approx. 1.0 m - 2.2 m (approx. 3.3 ft - 7.2 ft) (Sensitivity: in Auto condition) Drive Modes Single-frame, Self-timer (approx.

  • Page 167: Warranty Policy

    Shipping charges are to be borne by the owner. If your PENTAX was purchased outside of the country where you wish to have it serviced during the warranty period, regular handling and servicing fees may be charged by the manufacturer’s representatives in that country.
  • Page 168 Therefore, we recommend that you review the warranty card supplied with your product at the time of purchase, or contact the PENTAX distributor in your country for more information and to receive a copy of the warranty policy.
  • Page 169 For customers in USA STATEMENT OF FCC COMPLIANCE This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 170: Declaration Of Conformity

    Declaration of Conformity According to 47CFR, Parts 2 and 15 for Class B Personal Computers and Peripherals PENTAX RICOH IMAGING AMERICAS CORPORATION Located at: 633 17 Street, Suite 2600 Denver, Colorado 80202 U.S.A. Phone: 800-877-0155 Fax: 303-790-1131 Declare under sole responsibility that the product identified herein complies with 47CFR Parts 2 and 15 of the FCC rules as a Class B digital device.
  • Page 171 Information for Users on Collection and Disposal of Old Equipment and Used Batteries 1. In the European Union These symbols on the products, packaging and/or accompanying documents mean that used electrical and electronic equipment and batteries should not be mixed with general household waste. Used electrical/electronic equipment and batteries must be treated separately and in accordance with legislation that requires proper treatment, recovery and recycling of...
  • Page 172 Memo...

  • Page 173: Index

    Index Symbols N Frame Composite ........66, 113 A Mode ...... 12, 46 B Party ......59 Q Mode ..... 12, 46 U Candlelight ....59 Q button ....42, 44 c Text .......67 [A Rec. Mode] o Miniature ...68, 108 menu ......50, 154 p HDR ....68, 108 [C Movie] Menu ..
  • Page 174 Color Emphasis filter ..110 Flash On + Red-eye d ..70 Color filter ......110 Flash On b ......70 Connecting to a TV ..103 Flower Mode ......58 Continuous Shooting j ..71 Fluores. Light J ....77 Contrast ......81 Focus Mode .......73 Copy ........
  • Page 175 Language setting ..37, 129 Picture Transfer Protocol .........137 Pixel Mapping ....135 Macintosh ......141 Playback ......89, 90 Macro q ......73 Playback Mode ....136 Magnify y ......97 Playback Mode Manual K ......77 Palette ......93, 157 Mass Storage Class ..137 Playing back movies ..90 MediaImpression .....
  • Page 176 Self-timer g ...... 71 Sensitivity ......78 Video output Sepia filter ....... 110 format .......131, 159 Setting menu ..... 52, 156 Volume change ..90, 124 Shade H ......77 Shake Reduction ....86 Wallpaper ......131 Sharpness ......80 White Balance ....77 Shooting information ..
  • Page 177 Memo...
  • Page 178 Memo...
  • Page 179 Memo...
  • Page 180 23D, Jun Yao International Plaza, 789 Zhaojiabang CHINA CO., LTD. Road, Xu Hui District, Shanghai, 200032, CHINA (http://www.pentax.com.cn) http://www.pentax.jp/english • Specifications and external dimensions are subject to change without notice. 54572 Copyright © PENTAX RICOH IMAGING CO., LTD. 2012 R02AYF12 Printed in China...

Table of Contents
