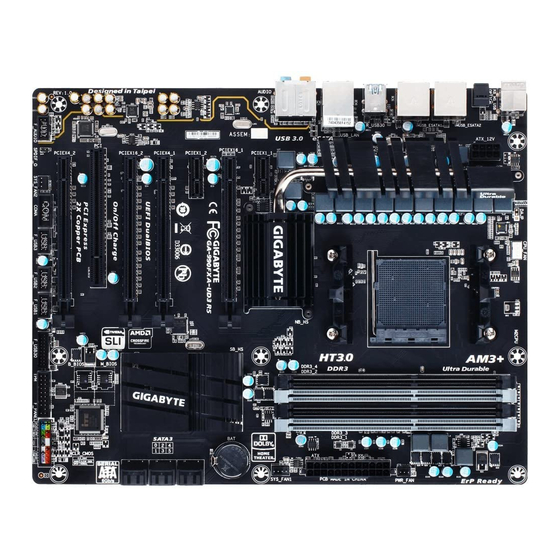

Gigabyte GA-990FXA-UD3 User Manual

Hide thumbs Also See for GA-990FXA-UD3:
Table of Contents

Advertisement

Quick Links

See also: User Manual
GA-990FXA-UD3
User's Manual
Rev. 1002
12ME-990FXA3-1002R

Advertisement

Table of Contents
loading

Related Manuals for Gigabyte GA-990FXA-UD3

Summary of Contents for Gigabyte GA-990FXA-UD3

  • Page 1 GA-990FXA-UD3 User's Manual Rev. 1002 12ME-990FXA3-1002R...
  • Page 2 Motherboard GA-990FXA-UD3 Motherboard GA-990FXA-UD3 May 20, 2011 May 20, 2011...

  • Page 3: Identifying Motherboard Revision

    Copyright © 2011 GIGA-BYTE TECHNOLOGY CO., LTD. All rights reserved. The trademarks mentioned in this manual are legally registered to their respective owners. Disclaimer Information in this manual is protected by copyright laws and is the property of GIGABYTE. Changes to the speciications and features in this manual may be made by GIGABYTE with- out prior notice.

  • Page 4: Table Of Contents

    Table of Contents Box Contents ........................6 Optional Items .........................6 GA-990FXA-UD3 Motherboard Layout ................7 GA-990FXA-UD3 Motherboard Block Diagram ...............8 Chapter 1 Hardware Installation ..................9 Installation Precautions ..................9 Product Speciications ..................10 Installing the CPU and CPU Cooler ............... 13 1-3-1 Installing the CPU ....................13...
  • Page 5 Chapter 3 Drivers Installation ..................57 Installing Chipset Drivers ................57 Application Software ..................58 Technical Manuals ..................58 Contact ......................59 System ......................59 Download Center ................... 60 New Utilities ....................60 Chapter 4 Unique Features ...................61 Xpress Recovery2 ..................61 BIOS Update Utilities ..................

  • Page 6: Box Contents

    Box Contents GA-990FXA-UD3 motherboard Motherboard driver disk User's Manual Quick Installation Guide Two SATA cables I/O Shield (Note) One 2-Way SLI bridge connector (Note ) To enable NVIDIA SLI technology, you need SLI-supported graphics cards, BIOS, and driver. For more details, please go to GIGABYTE's website.

  • Page 7: Ga-990Fxa-Ud3 Motherboard Layout

    GA-990FXA-UD3 Motherboard Layout ATX_12V KB_MS_USB CPU_FAN OPTICAL USB_1394_ESATA Socket AM3+ Marvell 88SE9172 USB_ESATA PWR_FAN R_USB30 USB_LAN Etron EJ168 AUDIO PCIEX1_1 AMD 990FX Realtek RTL8111E PCIEX16_1 GA-990FXA-UD3 PCIEX1_2 AMD SB950 SATA3_4 PCIEX4_1 CODEC SATA3_5 SATA3_2 SATA3_3 PCIEX16_2 B_BIOS SATA3_0 SATA3_1 M_BIOS...

  • Page 8: Ga-990Fxa-Ud3 Motherboard Block Diagram

    GA-990FXA-UD3 Motherboard Block Diagram 2 PCI Express x16 2 PCI Express x4 CPU CLK+/- (200 MHz) DDR3 2000(O.C.)/1866/1600/1333/1066 MHz AM3+/AM3 CPU Dual Channel Memory PCIe CLK (100 MHz) Hyper Transport 3.0 PCI Express Bus PCI Express Bus AMD 990FX Marvell...

  • Page 9: Chapter 1 Hardware Installation

    Chapter 1 Hardware Installation Installation Precautions The motherboard contains numerous delicate electronic circuits and components which can become damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's manual and follow these procedures: • Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or warranty sticker provided by your dealer.

  • Page 10: Product Speciications

    Product Speciications Š AM3+ Socket: AMD AM3+ FX processors AMD AM3 Phenom II processors/ AMD Athlon II processors ™ ™ (Go to GIGABYTE's website for the latest CPU support list.) Hyper Transport Š 5200 MT/s Š North Bridge: AMD 990FX Chipset Š...
  • Page 11 Š South Bridge: Up to 14 USB 2.0/1.1 ports (8 ports on the back panel, 6 ports available through the internal USB headers) Š 2 x Etron EJ168 chips: Up to 4 USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header) Š...
  • Page 12 2 x 32 Mbit lash Š BIOS Š Use of licensed AWARD BIOS Š ™ Support for DualBIOS Š PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b Š Unique Features Support for @BIOS Š Support for Q-Flash Š Support for Xpress BIOS Rescue Š...

  • Page 13: Installing The Cpu And Cpu Cooler

    Installing the CPU and CPU Cooler Read the following guidelines before you begin to install the CPU: • Make sure that the motherboard supports the CPU. (Go to GIGABYTE's website for the latest CPU support list.) • Always turn off the computer and unplug the power cord from the power outlet before installing the CPU to prevent hardware damage.
  • Page 14 B. Follow the steps below to correctly install the CPU into the motherboard CPU socket. • Before installing the CPU, make sure to turn off the computer and unplug the power cord from the power outlet to prevent damage to the CPU. • Do not force the CPU into the CPU socket.

  • Page 15: Installing The Cpu Cooler

    1-3-2 Installing the CPU Cooler Follow the steps below to correctly install the CPU cooler on the CPU. (The following procedure uses the GIGABYTE cooler as the example.) Step 1: Step 2: Place the CPU cooler on the CPU. Apply an even and thin layer of thermal grease on the surface of the installed CPU.

  • Page 16: Installing The Memory

    Installing the Memory Read the following guidelines before you begin to install the memory: • Make sure that the motherboard supports the memory. It is recommended that memory of the same capacity, brand, speed, and chips be used. (Go to GIGABYTE's website for the latest supported memory speeds and memory modules.) •...

  • Page 17: Installing A Memory

    1-4-2 Installing a Memory Before installing a memory module, make sure to turn off the computer and unplug the power cord from the power outlet to prevent damage to the memory module. DDR3 and DDR2 DIMMs are not compatible to each other or DDR DIMMs. Be sure to install DDR3 DIMMs on this motherboard.

  • Page 18: Installing An Expansion Card

    Installing an Expansion Card Read the following guidelines before you begin to install an expansion card: • Make sure the motherboard supports the expansion card. Carefully read the manual that came with your expansion card. • Always turn off the computer and unplug the power cord from the power outlet before installing an expansion card to prevent hardware damage.

  • Page 19: Setting Up Amd Crossfirex Coniguration

    Coniguration ™ Setting up AMD CrossFireX A. System Requirements - Windows 7, Windows Vista or Windows XP operating system - A CrossFireX-supported motherboard with two PCI Express x16 slots and correct driver - Two CrossFireX-ready graphics cards of identical brand and chip and correct driver (Note) - CrossFireX bridge connector(s) - A power supply with suficient power is recommended (Refer to the manual of your graphics cards for...

  • Page 20: Back Panel Connectors

    Back Panel Connectors USB 2.0/1.1 Port The USB port supports the USB 2.0/1.1 speciication. Use this port for USB devices such as a USB key- board/mouse, USB printer, USB lash drive and etc. PS/2 Keyboard/Mouse Port Use this port to connect a PS/2 mouse or keyboard. Optical S/PDIF Out Connector This connector provides digital audio out to an external audio system that supports digital optical audio.
  • Page 21 Center/Subwoofer Speaker Out Jack (Orange) Use this audio jack to connect center/subwoofer speakers in a 5.1/7.1-channel audio coniguration. Rear Speaker Out Jack (Black) Use this audio jack to connect rear speakers in a 7.1-channel audio coniguration. Side Speaker Out Jack (Gray) Use this audio jack to connect side speakers in a 4/5.1/7.1-channel audio coniguration.

  • Page 22: Internal Connectors

    Internal Connectors ATX_12V SPDIF_O F_USB1/F_USB2/F_USB3 CPU_FAN F_USB30 SYS_FAN1/SYS_FAN2 F_1394 PWR_FAN COMA SATA3_0/1/2/3/4/5 CLR_CMOS F_PANEL F_AUDIO Read the following guidelines before connecting external devices: • First make sure your devices are compliant with the connectors you wish to connect. • Before installing the devices, be sure to turn off the devices and your computer. Unplug the power cord from the power outlet to prevent damage to the devices.
  • Page 23 1/2) ATX_12V/ATX (2x4 12V Power Connector and 2x12 Main Power Connector) With the use of the power connector, the power supply can supply enough stable power to all the com- ponents on the motherboard. Before connecting the power connector, irst make sure the power supply is turned off and all devices are properly installed.
  • Page 24 3/4/5) CPU_FAN/SYS_FAN1/SYS_FAN2/PWR_FAN (Fan Headers) The motherboard has a 4-pin CPU fan header (CPU_FAN), a 3-pin (SYS_FAN2) and a 4-pin (SYS_ FAN1) system fan headers, and a 3-pin power fan header (PWR_FAN). Most fan headers possess a foolproof insertion design. When connecting a fan cable, be sure to connect it in the correct orientation (the black connector wire is the ground wire).

  • Page 25: F_Panel Front Panel Header

    7) F_PANEL (Front Panel Header) Connect the power switch, reset switch, speaker, chassis intrusion switch/sensor and system status indicator on the chassis to this header according to the pin assignments below. Note the positive and negative pins before connecting the cables. Message/Power/ Power Speaker...

  • Page 26: Front Panel Audio Header

    8) F_AUDIO (Front Panel Audio Header) The front panel audio header supports Intel High Deinition audio (HD) and AC'97 audio. You may connect your chassis front panel audio module to this header. Make sure the wire assignments of the module con- nector match the pin assignments of the motherboard header.
  • Page 27 10) F_USB1/F_USB2/F_USB3 (2.0/1.1 USB Headers) The headers conform to USB 2.0/1.1 speciication. Each USB header can provide two USB ports via an optional USB bracket. For purchasing the optional USB bracket, please contact the local dealer. Pin No. Deinition Power (5V) Power (5V) USB DX- USB DY-...
  • Page 28 12) F_1394 (IEEE 1394a Header) The header conforms to IEEE 1394a speciication. The IEEE 1394a header can provide one IEEE 1394a port via an optional IEEE 1394a bracket. For purchasing the optional IEEE 1394a bracket, please con- tact the local dealer. Pin No.

  • Page 29: Clearing Cmos Jumper

    14) CLR_CMOS (Clearing CMOS Jumper) Use this jumper to clear the CMOS values (e.g. date information and BIOS conigurations) and reset the CMOS values to factory defaults. To clear the CMOS values, place a jumper cap on the two pins to temporarily short the two pins or use a metal object like a screwdriver to touch the two pins for a few seconds.
  • Page 30 15) BAT (Battery) The battery provides power to keep the values (such as BIOS conigurations, date, and time information) in the CMOS when the computer is turned off. Replace the battery when the battery voltage drops to a low level, or the CMOS values may not be accurate or may be lost. You may clear the CMOS values by removing the battery: 1.

  • Page 31: Chapter 2 Bios Setup

    Chapter 2 BIOS Setup BIOS (Basic Input and Output System) records hardware parameters of the system in the CMOS on the motherboard. Its major functions include conducting the Power-On Self-Test (POST) during system startup, saving system parameters and loading operating system, etc. BIOS includes a BIOS Setup program that allows the user to modify basic system coniguration settings or to activate certain system features.

  • Page 32: Startup Screen

    A. The LOGO Screen (Default) Function Keys B. The POST Screen Award Modular BIOS v6.00PG Copyright (C) 1984-2011, Award Software, Inc. GA-990FXA-UD3 D4 Motherboard Model BIOS Version Function Keys <DEL>: BIOS Setup <F9>: XpressRecovery2 <F12>: Boot Menu <End>: Qflash 04/27/2011-RD990-SB950-7A66FG06C-00 Function Keys: <TAB>: POST SCREEN...

  • Page 33: The Main Menu

    The Main Menu Once you enter the BIOS Setup program, the Main Menu (as shown below) appears on the screen. Use ar- row keys to move among the items and press <Enter> to accept or enter a sub-menu. (Sample BIOS Version: D4) CMOS Setup Utility-Copyright (C) 1984-2011 Award Software ...

  • Page 34: Integrated Peripherals

     The Functions of the <F11> and <F12> keys (For the Main Menu Only)  F11: Save CMOS to BIOS This function allows you to save the current BIOS settings to a proile. You can create up to 8 proiles (Proile 1-8) and name each proile.

  • Page 35: Mb Intelligent Tweaker(M.i.t.)

    MB Intelligent Tweaker(M.I.T.) CMOS Setup Utility-Copyright (C) 1984-2011 Award Software MB Intelligent Tweaker(M.I.T.) Item Help CPU Clock Ratio [Auto] Menu Level  CPU NorthBridge Freq. [Auto] (Note) Core Performance Boost [Enabled] (Note) CPB Ratio [Auto] (Note) Turbo CPB [Disabled] CPU Host Clock Control [Auto] x CPU Frequency(MHz) PCIE Clock(MHz)
  • Page 36 CPU Clock Ratio Allows you to alter the clock ratio for the installed CPU. The adjustable range is dependent on the CPU being used. CPU NorthBridge Freq. Allows you to alter the North Bridge controller frequency for the installed CPU. The adjustable range is dependent on the CPU being used.

  • Page 37: Dram Coniguration

    DRAM Coniguration CMOS Setup Utility-Copyright (C) 1984-2011 Award Software DRAM Coniguration Item Help CPU Host Clock Control [Auto] Menu Level  x CPU Frequency(MHz) Set Memory Clock [Auto] x Memory Clock x6.66 1333Mhz DCTs Mode [Unganged] DDR3 Timing Items [Auto] Auto x 1T/2T Command Timing Auto x CAS# latency Auto...
  • Page 38 CPU Host Clock Control, CPU Frequency (MHz), Set Memory Clock, Memory Clock The settings under the four items above are synchronous to those under the same items on the MB In- telligent Tweaker(M.I.T.) main menu. DCTs Mode Allows you to set memory control mode. Ganged Sets memory control mode to single dual-channel.
  • Page 39 Data Drive Strength Options are: Auto (default), 0.75x, 1.0x, 1.25x, 1.5x. MEMCLK Drive Strength Options are: Auto (default), 0.75x, 1.0x, 1.25x, 1.5x. Addr/Cmd Drive Strength Options are: Auto (default), 1.0x, 1.25x, 1.5x, 2.0x. CS/ODT Drive Strength Options are: Auto (default), 1.0x, 1.25x, 1.5x, 2.0x. CKE Drive Strength Options are: Auto (default), 1.0x, 1.25x, 1.5x, 2.0x.
  • Page 40 ******** System Voltage Optimized ******** System Voltage Control Determines whether to manually set the system voltages. Auto lets the BIOS automatically set the system voltages as required. Manual allows all voltage control items below to be conigurable. (Default: Auto) CPU PLL Voltage Control Allows you to set the CPU PLL voltage.

  • Page 41: Standard Cmos Features

    Standard CMOS Features CMOS Setup Utility-Copyright (C) 1984-2011 Award Software Standard CMOS Features Item Help Date (mm:dd:yy) Wed, Mar 16 2011 Menu Level  Time (hh:mm:ss) 22:31:24  IDE Channel 0 Master [None]  IDE Channel 0 Slave [None]  IDE Channel 1 Master [None] ...
  • Page 42 Halt On Allows you to determine whether the system will stop for an error during the POST. All Errors Whenever the BIOS detects a non-fatal error the system boot will stop. No Errors The system boot will not stop for any error. All, But Keyboard The system boot will not stop for a keyboard error but stop for all other errors.

  • Page 43: Advanced Bios Features

    Advanced BIOS Features CMOS Setup Utility-Copyright (C) 1984-2011 Award Software Advanced BIOS Features Item Help AMD C1E Support [Auto] Menu Level  Virtualization [Disabled] AMD K8 Cool&Quiet control [Auto] (Note) CPU Unlock [Disabled] CPU core Control [Auto] x CPU core 0 Enabled x CPU core 1 Enabled...
  • Page 44 Virtualization Virtualization allows a platform to run multiple operating systems and applications in independent parti- tions. With virtualization, one computer system can function as multiple virtual systems. (Default: Disabled) AMD K8 Cool&Quiet control Auto Lets the AMD Cool'n'Quiet driver dynamically adjust the CPU clock and VID to re- duce heat output from your computer and its power consumption.
  • Page 45 HDD S.M.A.R.T. Capability Enables or disables the S.M.A.R.T. (Self Monitoring and Reporting Technology) capability of your hard drive. This feature allows your system to report read/write errors of the hard drive and to issue warnings when a third party hardware monitor utility is installed. (Default: Disabled) Away Mode Enables or disables Away Mode in Windows XP Media Center operating system.

  • Page 46: Integrated Peripherals

    Integrated Peripherals CMOS Setup Utility-Copyright (C) 1984-2011 Award Software Integrated Peripherals Item Help OnChip SATA Controller [Enabled] Menu Level  OnChip SATA Type [Native IDE] x OnChip SATA Port4/5 Type x OnChip SATA RAID5 Support Enabled OnChip SATA3.0 Support [Enabled] x OnChip SATA Port as ESP Press Enter F_USB30 Controller [Enabled]...
  • Page 47 OnChip SATA Port as ESP CMOS Setup Utility-Copyright (C) 1984-2011 Award Software OnChip SATA Port as ESP Item Help Port0 as ESP [Disabled] Menu Level  Port1 as ESP [Disabled] Port2 as ESP [Disabled] Port3 as ESP [Disabled] Port4 as ESP [Disabled] Port5 as ESP [Disabled]...
  • Page 48 Onboard LAN Function Enables or disables the onboard LAN function. (Default: Enabled) If you wish to install a 3rd party add-in network card instead of using the onboard LAN, set this item to Disabled. Onboard LAN Boot ROM Allows you to decide whether to activate the boot ROM integrated with the onboard LAN chip. (Default: Disabled) SMART LAN (LAN Cable Diagnostic Function) CMOS Setup Utility-Copyright (C) 1984-2011 Award Software...
  • Page 49 Onboard Audio Function Enables or disables the onboard audio function. (Default: Enabled) If you wish to install a 3rd party add-in audio card instead of using the onboard audio, set this item to Disabled. Onboard 1394 Function Enables or disables the onboard IEEE 1394 function. (Default: Enabled) R_USB30 Controller (Etron EJ168 USB Controller, USB 3.0/2.0 ports on the back panel) Enables or disables the Etron EJ168 USB controller.

  • Page 50: Power Management Setup

    Power Management Setup CMOS Setup Utility-Copyright (C) 1984-2011 Award Software Power Management Setup Item Help ACPI Suspend Type [S3(STR)] Menu Level  Soft-Off by Power button [Instant-off] USB Wake Up from S3 [Enabled] Modem Ring Resume [Disabled] PME Event Wake Up [Enabled] (Note) HPET Support...
  • Page 51 PME Event Wake Up Allows the system to be awakened from an ACPI sleep state by a wake-up signal from a PCI or PCIe de- vice. Note: To use this function, you need an ATX power supply providing at least 1A on the +5VSB lead. (Default: Enabled) (Note) HPET Support...

  • Page 52: Pc Health Status

    PC Health Status CMOS Setup Utility-Copyright (C) 1984-2011 Award Software PC Health Status Item Help Hardware Thermal Control [Enabled] Menu Level  Reset Case Open Status [Disabled] Case Opened Vcore 1.364V DDR3 1.5V 1.536V +3.3V 3.280V +12V 12.048V Current System Temperature Current CPU Temperature Current CPU FAN Speed 1962 RPM...
  • Page 53 Current Voltage(V) Vcore/DDR3 1.5V/+3.3V/+12V Displays the current system voltages. Current System/CPU Temperature Displays current system/CPU temperature. Current CPU/SYSTEM/POWER FAN Speed (RPM) Displays current CPU/system/power fan speed. CPU Warning Temperature Sets the warning threshold for CPU temperature. When CPU temperature exceeds the threshold, BIOS will emit warning sound.

  • Page 54: Load Fail-Safe Defaults

    Load Fail-Safe Defaults CMOS Setup Utility-Copyright (C) 1984-2011 Award Software  MB Intelligent Tweaker(M.I.T.) Load Fail-Safe Defaults  Standard CMOS Features Load Optimized Defaults  Advanced BIOS Features Set Supervisor Password  Integrated Peripherals Set User Password  Power Management Setup Save &...

  • Page 55: Set Supervisor/User Password

    2-11 Set Supervisor/User Password CMOS Setup Utility-Copyright (C) 1984-2011 Award Software  MB Intelligent Tweaker(M.I.T.) Load Fail-Safe Defaults  Standard CMOS Features Load Optimized Defaults  Advanced BIOS Features Set Supervisor Password  Integrated Peripherals Set User Password  Power Management Setup Save &...

  • Page 56: Save & Exit Setup

    2-12 Save & Exit Setup CMOS Setup Utility-Copyright (C) 1984-2011 Award Software  MB Intelligent Tweaker(M.I.T.) Load Fail-Safe Defaults  Standard CMOS Features Load Optimized Defaults Save to CMOS and EXIT (Y/N)? Y  Advanced BIOS Features Set Supervisor Password ...

  • Page 57: Chapter 3 Drivers Installation

    Chapter 3 Drivers Installation • Before installing the drivers, irst install the operating system. • After installing the operating system, insert the motherboard driver disk into your optical drive. The driver Autorun screen is automatically displayed which looks like that shown in the screen shot below.

  • Page 58: Application Software

    Application Software This page displays all the utilities and applications that GIGABYTE develops and some free software. You can click the Install button on the right of an item to install it. Technical Manuals This page provides GIGABYTE's application guides, content descriptions for this driver disk, and the mother- board manuals.

  • Page 59: Contact

    Contact For the detailed contact information of the GIGABYTE Taiwan headquarter or worldwide branch ofices, click the URL on this page to link to the GIGABYTE website. System This page provides the basic system information. - 59 - Drivers Installation...

  • Page 60: Download Center

    Download Center To update the BIOS, drivers, or applications, click the Download Center button to link to the GIGABYTE website. The latest version of the BIOS, drivers, or applications will be displayed. New Utilities This page provides a quick link to GIGABYTE's lately developed utilities for users to install. You can click the Install button on the right of an item to install it.

  • Page 61: Chapter 4 Unique Features

    Chapter 4 Unique Features Xpress Recovery2 Xpress Recovery2 is a utility that allows you to quickly compress and back up your system data and perform restoration of it. Supporting NTFS, FAT32, and FAT16 ile systems, Xpress Recovery2 can back up data on PATA and SATA hard drives and restore it.
  • Page 62 Step 3: Step 4: When partitioning your hard drive, make sure to After the operating system is installed, click Start, leave unallocated space (10 GB or more is recom- right-click the Computer and select Manage. Go to mended; actual size requirements vary, depending Disk Management to check disk allocation.
  • Page 63 D. Using the Restore Function in Xpress Recovery2 Select RESTORE to restore the backup to your hard drive in case the system breaks down. The RESTORE option will not be present if no backup is created before. E. Removing the Backup Step 1: Step 2: If you wish to remove the backup ile, select...

  • Page 64: Bios Update Utilities

    SATA controller, use the <End> key during the POST to access Q-Flash. Award Modular BIOS v6.00PG Copyright (C) 1984-2011, Award Software, Inc. GA-990FXA-UD3 D4 <DEL>: BIOS Setup <F9>: XpressRecovery2 <F12>: Boot Menu <End>: Qlash 04/27/2011-RD990-SB950-7A66FG06C-00 Because BIOS lashing is potentially risky, please do it with caution. Inadequate BIOS lashing may result in system malfunction.
  • Page 65 B. Updating the BIOS When updating the BIOS, choose the location where the BIOS ile is saved. The following procedure as- sumes that you save the BIOS ile to a USB lash drive. Step 1: Insert the USB lash drive containing the BIOS ile into the computer. In the main menu of Q-Flash, use the up or down arrow key to select Update BIOS from Drive and press <Enter>.
  • Page 66 Step 4: Press <Esc> and then <Enter> to exit Q-Flash and reboot the system. As the system boots, you should see the new BIOS version is present on the POST screen. Step 5: During the POST, press <Delete> to enter BIOS Setup. Select Load Optimized Defaults and press <Enter> to load BIOS defaults.

  • Page 67: Updating The Bios With The @Bios Utility

    4-2-2 Updating the BIOS with the @BIOS Utility A. Before You Begin In Windows, close all applications and TSR (Terminate and Stay Resident) programs. This helps prevent unexpected failures when performing a BIOS update. During the BIOS update process, ensure the Internet connection is stable and do NOT interrupt the Internet connection (for example, avoid a power loss or switching off the Internet).

  • Page 68: Easytune 6

    EasyTune 6 GIGABYTE's EasyTune 6 is a simple and easy-to-use interface that allows users to ine-tune their system settings or do overclock/overvoltage in Windows environment. The user-friendly EasyTune 6 interface also includes tabbed pages for CPU and memory information, letting users read their system-related information without the need to install additional software.

  • Page 69: Easy Energy Saver

    Easy Energy Saver GIGABYTE Easy Energy Saver is a revolutionary technology that delivers unparalleled power savings with a click of the button. Featuring an advanced proprietary software design, GIGABYTE Easy Energy Saver is able to provide exceptional power savings and enhanced power eficiency without sacriicing computing per- formance.
  • Page 70 B. Total Mode In Total Mode, users are able to see how much total power savings they have accumulated in a set period of time since activating Easy Energy Saver for the irst time (Note 3) Total Mode - Button Information Table Button Description Easy Energy Saver On/Off Switch (Default: Off) (Note 1)

  • Page 71: Q-Share

    Q-Share Q-Share is an easy and convenient data sharing tool. After coniguring your LAN connection settings and Q-Share, you are able to share your data with computers on the same network, making full use of Internet resources. Directions for using Q-Share After installing Q-Share from the motherboard driver disk, go to Start>All Programs>GIGABYTE>Q-Share.

  • Page 72: Smart Recovery

    SMART Recovery With SMART Recovery, users can quickly create backups of changed data iles or copy iles from a spe- (Note 1) ciic backup on PATA and SATA hard drives (partitioned on NTFS ile system) in Windows 7/Vista. Instructions: In the main menu, click the Conig button to open the Smart Recov- ery Preference dialog box.

  • Page 73: Auto Green

    Auto Green Auto Green is an easy-to-use tool that provides users with simple options to enable system power savings via a Bluetooth cell phone. When the phone is out of the range of the computer's Bluetooth receiver, the sys- tem will enter the speciied power saving mode. The Coniguration dialog box: First, you have to set your Bluetooth cell phone as a portable key.

  • Page 74: Cloud Oc

    Cloud OC (Note 1) Cloud OC is an easy-to-use overclocking utility designed for system overclock- ing via virtually any Internet-connected device, such as a smart phone, iPhone, note- book PC, etc. By simply connecting to an Internet browser via LAN, wireless LAN, or (Note 2) Bluetooth and logging in to the Cloud OC server, you can easily access three major functions of Cloud...

  • Page 75: Chapter 5 Appendix

    Chapter 5 Appendix Coniguring SATA Hard Drive(s) To conigure SATA hard drive(s), follow the steps below: A. Install SATA hard drive(s) in your computer. B. Conigure SATA controller mode in BIOS Setup. C. Conigure a RAID array in RAID BIOS. (Note 1) (Note 2) D.
  • Page 76 B. Coniguring SATA controller mode in BIOS Setup Make sure to conigure the SATA controller mode correctly in system BIOS Setup. Step 1: Turn on your computer and press <Delete> to enter BIOS Setup during the POST (Power-On Self-Test). Make sure OnChip SATA Controller is enabled. To enable RAID for the SATA3_0/1/2/3 connectors, set On- Chip SATA Type to RAID.
  • Page 77 C. Coniguring RAID set in RAID BIOS Enter the RAID BIOS setup utility to conigure a RAID array. Skip this step and proceed with the installation of Windows operating system for a non-RAID coniguration. Step 1: After the POST memory test begins and before the operating system boot begins, look for a message which says "Press <Ctrl-F>...
  • Page 78 Create Arrays Manually To create a new array, press <2> to enter the LD View Menu window (Figure 4). To create an array, press <Ctrl+C> to access the LD Deine Menu. Option ROM Utility (c) 2011 Advanced Micro Devices, Inc. [ LD View Menu ] <...
  • Page 79 In the following procedure, we'll create RAID 0 as an example. 1. Under the RAID Mode section, press the <SPACE> key to select RAID 0. 2. Set the Stripe Block size. 64 KB is the default. 3. Under the Drives Assignments section, press the up or down arrow key to highlight a drive. 4.
  • Page 80 View Drive Assignments The View Drive Assignments option in the Main Menu displays whether the attached hard drives are as- signed to a disk array or are unassigned. Under the Assignment column, drives are labeled with their as- signed disk array or shown as Free if unassigned. Option ROM Utility (c) 2011 Advanced Micro Devices, Inc.

  • Page 81: Coniguring Marvell 88Se9172 Sata Controller

    5-1-2 Coniguring Marvell 88SE9172 SATA Controller A. Installing SATA hard drive(s) in your computer Attach one end of the SATA signal cable to the rear of the SATA hard drive and the other end to available SATA port on the motherboard. The Marvell 88SE9172 SATA controller controls the eSATA connectors on the back panel.
  • Page 82 C. Coniguring a RAID array in RAID BIOS Enter the RAID BIOS setup utility to conigure a RAID array. Skip this step and proceed to the installation of Windows operating system for a non-RAID coniguration. After the POST memory test begins and before the operating system boot begins, look for a message which says "Press <Ctrl>+<M>...
  • Page 83 Create a RAID Array: Step 1: On the main screen, press <Enter> on the RAID tab. Then the RAID Conig menu appears (Figure 4). Press <Enter> on the Create VD item. Marvell BIOS Setup (c) 2009 Marvell Technology Group Ltd. [ Selection] [ Adapter] [ Devices]...
  • Page 84 Step 3: On the Create VD menu (Figure 6), use the up or down arrow key to move the selection bar to select an item and press <Enter> to display options. Set the required items in sequence and press the down arrow key to proceed to the next item.
  • Page 85 When completed, the RAID tab will display the new array. (Figure 8) Marvell BIOS Setup (c) 2009 Marvell Technology Group Ltd. [ Selection] [ Adapter] [ Devices] [ RAID ] [Virtual Disks] Name Size Level Status Stripe CacheMode 152.4GB RAID0 ONLINE 64KB WriteBack...
  • Page 86 Use the Marvell Storage Utility in the Operating System: With the Marvell Storage utility, you can set up an array or view the current array status in the operating system. To install the utility, insert the motherboard driver disk, then go to Application Software\Install Ap- plication Software and select Marvell Storage Utility to install.

  • Page 87: Installing The Sata Raid/Ahci Driver And Operating System

    5-1-3 Installing the SATA RAID/AHCI Driver and Operating System With the correct BIOS settings, you are ready to install Windows 7/Vista/XP. A. Installing Windows 7/Vista (The following instructions use Windows 7 as the example operating system.) Step 1: Boot from the Windows 7/Vista setup disk and perform standard OS installation steps. When you arrive at the "Where do you want to install Windows?"...
  • Page 88 Step 2: For the Marvell 88SE9172: Insert the motherboard driver disk and then browse to the location of the driver. The locations of the drivers are as follows: RAID driver for Windows 32-bit: \BootDrv\Marvell\RAID\i386 RAID driver for Windows 64-bit: \BootDrv\Marvell\RAID\amd64 AHCI driver for Windows 32-bit: \BootDrv\Marvell\AHCI\Floppy32 AHCI driver for Windows 64-bit: \BootDrv\Marvell\AHCI\Floppy64 Step 3:...
  • Page 89 B. Installing Windows XP Before installing Windows XP, connect a USB loppy disk drive to your computer irst because you need to in- stall the SATA RAID/AHCI driver from a loppy disk that contains the driver during the OS installation. Without the driver, the hard drive(s) may not be recognized during the Windows setup process.
  • Page 90 Refer to the following for installing the driver during the Windows setup process. Step 1: Restart your system to boot from the Windows XP setup disk and press <F6> as soon as you see the mes- sage "Press F6 if you need to install a 3rd party SCSI or RAID driver." A screen will then appear asking you to specify an additional SCSI adapter.
  • Page 91 For the Marvell 88SE9172: Insert the loppy disk containing the SATA RAID/AHCI driver and press <Enter>. Select either the 32-bit or 64-bit items depending on whether you want to install the 32-bit or 64-bit version of Windows XP (Figure 5). Both of the Marvell shared library and Marvell 91xx SATA RAID Controller need to be installed.
  • Page 92 Rebuilding an Array: Rebuilding is the process of restoring data to a hard drive from other drives in the array. Rebuilding applies only to fault-tolerant arrays such as RAID 1, RAID 5, or RAID 10. To replace the old drive, make sure to use a new drive of equal or greater capacity.
  • Page 93 For the Marvell 88SE9172: Turn off your computer and replace the failed hard drive with a new one. Restart your computer. To enable an automatic rebuild in the operating system, you have to set the new hard drive as a Spare drive in the RAID setup utility irst.
  • Page 94 Step 3: Make sure you have installed the Marvell RAID driver and Marvell Storage Utility from the motherboard driver disk. While in the operating system, launch the Marvell Storage Utility from Start\All Programs\Marvell Storage icon in the notiication area, and select Open MSU. Then login the Utility\Marvell Tray, right-click on the Marvell Storage Utility.

  • Page 95: Coniguring Audio Input And Output

    Coniguring Audio Input and Output 5-2-1 Coniguring 2/4/5.1/7.1-Channel Audio The motherboard provides six audio jacks on the back (Note) panel which support 2/4/5.1/7.1-channel audio. The picture to the right shows the default audio jack Center/Subwoofer Line In Speaker Out assignments. Rear Speaker Out Front Speaker Out The integrated HD (High Definition) audio provides...
  • Page 96 Step 2: Connect an audio device to an audio jack. The The cur- rent connected device is dialog box appears. Select the device according to the type of device you connect. Then click OK. Step 3: On the Speakers screen, click the Speaker Conigura- tion tab.

  • Page 97: Coniguring S/Pdif Out

    5-2-2 Coniguring S/PDIF Out The S/PDIF Out jack can transmit audio signals to an external decoder for decoding to get the best audio quality. 1. Connecting a S/PDIF Out Cable: Connect a S/PDIF optical cable to the corresponding S/PDIF out connector as shown below and an external decoder for transmitting the S/PDIF digital audio signals.

  • Page 98: Enabling The Dolby Home Theater Function

    5-2-3 Enabling the Dolby Home Theater Function Before Dolby Home Theater is enabled, you get only 2-channel playback output (from the front speakers) when playing 2-channel stereo sources. You must play 4-, 5.1-, or 7.1- chan- nel content to get 4-, 5.1-, or 7.1- channel audio effects. With Dolby Home Theater enabled, 2-channel stereo content will be transformed into multi-channel audio, creating a virtual sur- round sound environment.

  • Page 99: Coniguring Microphone Recording

    5-2-4 Coniguring Microphone Recording Step 1: After installing the audio driver, the HD Audio Manager will appear in the notiication area. Double-click icon the icon to access the HD Audio Manager. Step 2: Connect your microphone to the Mic in jack (pink) on the back panel or the Mic in jack (pink) on the front panel.
  • Page 100 Step 5: After completing the settings above, click Start, point to All Programs, point to Accessories, and then click Sound Recorder to begin the sound recording. * Enabling Stereo Mix If the HD Audio Manager does not display the recording device you wish to use, refer to the steps below. The following steps explain how to enable Stereo Mix (which may be needed when you want to record sound from your computer).

  • Page 101: Using The Sound Recorder

    Step 4: Now you can access the HD Audio Manager to conig- ure Stereo Mix and use Sound Recorder to record the sound. 5-2-5 Using the Sound Recorder A. Recording Sound 1. Make sure you have connected the sound input device (e.g. microphone) to the computer. 2.

  • Page 102: Troubleshooting

    Troubleshooting 5-3-1 Frequently Asked Questions To read more FAQs for your motherboard, please go to the Support & Downloads\FAQ page on GIGABYTE's website. Q: In the BIOS Setup program, why are some BIOS options missing? A: Some advanced options are hidden in the BIOS Setup program. Press <Delete> to enter BIOS Setup during the POST. In the Main Menu, press <Ctrl>+<F1>...

  • Page 103: Troubleshooting Procedure

    5-3-2 Troubleshooting Procedure If you encounter any troubles during system startup, follow the troubleshooting procedure below to solve the problem. START Turn off the power. Remove all peripherals, connecting cables, and power cord etc. Make sure the motherboard does not short-circuit with the chassis or Isolate the short circuit.
  • Page 104 The power supply, CPU or When the computer is turned on, is the CPU cooler running? CPU socket might fail. The problem is veriied and solved. The graphics card, expansion slot, or monitor Check if there is display on your monitor. might fail.

  • Page 105: Regulatory Statements

    5-3-3 Regulatory Statements Regulatory Notices This document must not be copied without our written permission, and the contents there of must not be imparted to a third party nor be used for any unauthorized purpose. Contravention will be prosecuted. We believe that the information contained herein was accurate in all respects at the time of printing.
