TRENDnet TV-IP551WI User Manual

Wireless n day / night internet camera
Hide thumbs Also See for TV-IP551WI:
Table of Contents

Advertisement

Quick Links

Cover Page
TRENDnet User's Guide

Advertisement

Table of Contents
loading

Related Manuals for TRENDnet TV-IP551WI

Summary of Contents for TRENDnet TV-IP551WI

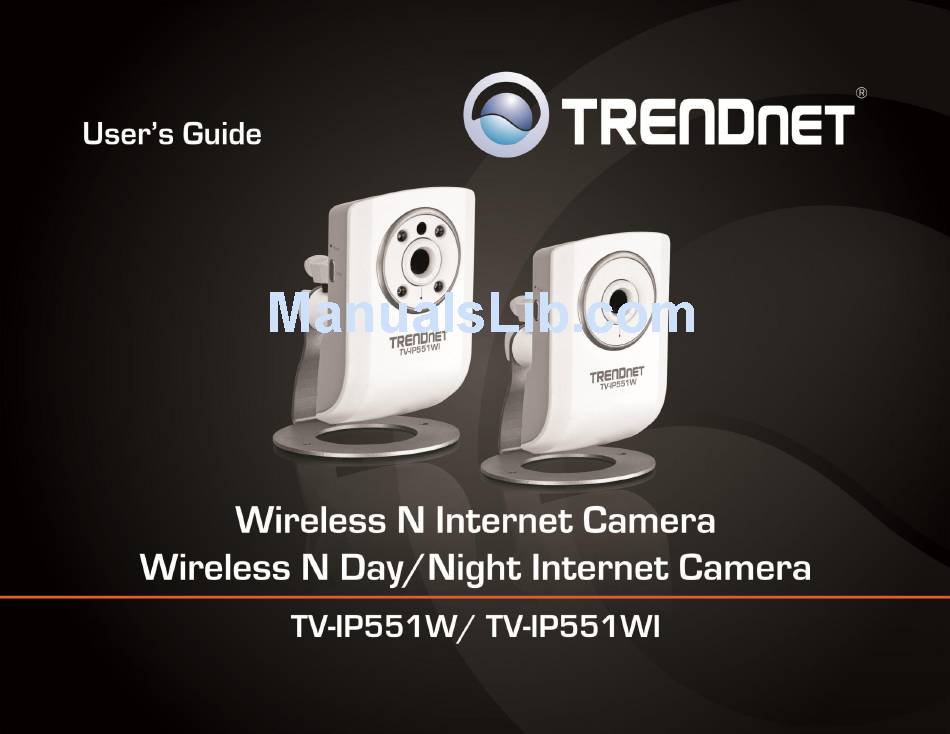

  • Page 1 Cover Page TRENDnet User’s Guide...

  • Page 2: Table Of Contents

    Video ........................12 Audio ........................12 Wireless ........................12 Network........................13 Active Users ......................13 Configuring Camera Settings ..................13 System ........................13 Video ........................14 Audio ........................14 Wireless ........................15 Network........................16 © Copyright 2011 TRENDnet. All Rights Reserved.

  • Page 3: Product Overview

    Wi-Fi Protected Setup (WPS). Record 640 x 480 (VGA) video at up to 20 frames per second (fps). Manage up to 32 TRENDnet cameras with the included complimentary camera management software. Advanced features include adjustable motion detection recording areas, email alerts, scheduled recording sessions, one-way audio, an adjustable lens, and four times digital zoom.

  • Page 4: Product Hardware Features

    Power/Link LED Power port Ethernet port  IR LED – Built-in 4 IR LED for night vision uses. (for TV-IP551WI)  LAN Port – Connect Ethernet cables to your wired network devices.  Light Sensor – Detects the light source to turn IR on or off.

  • Page 5: Application Diagram

    3 seconds and release to reset your camera to its factory defaults.  WPS (Wi-Fi Protected Setup) – Push and hold this button for 3 seconds to activate WPS. The button LED is blinking green when WPS is activated. © Copyright 2012 TRENDnet. All Rights Reserved.

  • Page 6: Installation

    Attach the included power supply to the DC 5V 1.2A receptor on the rear panel of the camera and then connect it to a wall outlet or power strip. A blue LED will light up under the lens indicating that the camera has power. © Copyright 2012 TRENDnet. All Rights Reserved.

  • Page 7: Starting The Setup Wizard

    When the installation of the Setup Wizard is complete, run the Setup Wizard: 1. Click Start > Programs > TRENDnet > SetupWizard > SetupWizard. The TRENDnet Setup Wizard appears. © Copyright 2012 TRENDnet. All Rights Reserved.
  • Page 8 Fixed IP: Select this option if your camera is directly connected to a DSL modem and your ISP has supplied you with a fixed IP for your Internet connection. Select the radio button for your connection type and click Next to continue. © Copyright 2012 TRENDnet. All Rights Reserved.
  • Page 9 9. A summary screen of the settings you have chosen appears. Click Next to continue. You are now ready to use your camera. Click the IP address link or the link button to access the camera’s advanced configuration page. © Copyright 2012 TRENDnet. All Rights Reserved.
  • Page 10 Select the type of authentication and encryption required by the access point and enter the Key required to connect. Check the radio button for the method of connection you want to use for your camera and click Next to continue. © Copyright 2012 TRENDnet. All Rights Reserved.
  • Page 11 Next to continue. wireless connection found, the following screen will appear: When the Setup Wizard has finished, the configuration is complete. If there is no wireless connection found, the following screen will appear: © Copyright 2012 TRENDnet. All Rights Reserved.

  • Page 12: Configuration

    Web configuration utility is designed to allow you to easily access and configure Click VIEW VIDEO | ACTIVEX or VIEW VIDEO | JAVA to begin viewing live video from your TV-IP551W or TV-IP551WI camera. Open a web browser such as Internet Explorer® your camera.

  • Page 13: Viewing Camera Settings

    Sun’s website free of charge (http://www.java.com) 1. Login to the camera 2. Click ADMINISTRATION. The system status screen appears. From the menu on the left side of the screen, select an option under the STATUS heading. © Copyright 2012 TRENDnet. All Rights Reserved.

  • Page 14: System

    This screen shows the connection mode, link status, SSID name, channel and encryption This screen shows the details of the video capture settings including Video Resolution, status. Compression Rate, Frame Rate, Frame Size and Light Frequency. © Copyright 2012 TRENDnet. All Rights Reserved.

  • Page 15: Network

    LED Control: Setting this to Normal will display the lights on the front of the camera indicating power and network activity. Setting this to OFF will turn off both lights on the front of the camera. © Copyright 2012 TRENDnet. All Rights Reserved.

  • Page 16: Video

    1 and 128.  Saturation Control: Allows you to control the saturation level. Enter a value between 1 and 128.  Light Frequency: Select the correct frequency (50Hz/60Hz) to reduce the amount of flicker. © Copyright 2012 TRENDnet. All Rights Reserved.

  • Page 17: Wireless

    Connection Mode: Infrastructure is a wireless connection using an access point as a transmission point of all wireless devices. Ad-Hoc is a wireless connection used without an access point, where your TV-IP551W or TV-IP551WI is directly connected to your PC. This is done using the on-board wireless adapter on the TV-IP551W or TV-IP551WI connected to a wireless adapter on the PC.

  • Page 18: Network

     Define Users: You can create new user accounts here. Enter a user name and password and select whether the user is allowed to upload or email an image from the camera. © Copyright 2012 TRENDnet. All Rights Reserved.

  • Page 19: Date/Time

    Set Manually: If you prefer to manually set the time for the camera, select this mode. You can check the box Synchronized with Computer Time to set the time on the camera to be the same as the computer you are on. © Copyright 2012 TRENDnet. All Rights Reserved.

  • Page 20: Upload

    User Name: The user name of the FTP account.  Password: The password for the user account on the FTP.  Directory Path: The path you want the files to be uploaded to on the FTP. © Copyright 2012 TRENDnet. All Rights Reserved.

  • Page 21: E-Mail

    E-mail This section allows you to configure the email notification settings of your camera.  SMTP Server Address: The domain name or IP address of your external mail server. © Copyright 2012 TRENDnet. All Rights Reserved.

  • Page 22: Tools

    If you do not receive the test e-mail, you should check that you have entered the e-mail details correctly in the configuration section. © Copyright 2012 TRENDnet. All Rights Reserved.

  • Page 23: Restart

    See the Backup and Restore reconnect to the camera so that it has time to go through its boot up sequence. section for more information. Restarting the camera will retain the configuration settings you have entered. © Copyright 2012 TRENDnet. All Rights Reserved.

  • Page 24: Firmware Upgrade

    Note: Upgrading the firmware is a sensitive process. Be sure that you have the configuration file on your hard drive then click OK. Click Restore to complete the correct firmware for your model of camera and do not disconnect the power during process. the upgrade process. © Copyright 2012 TRENDnet. All Rights Reserved.

  • Page 25: How To Setup/Access The Camera Remotely

    9000. 4. Open another web browser and go to your Router’s Web Configuration page. (In the example, TRENDnet’s TEW-651BR Wireless N router is used) How to setup/access the camera remotely You can either setup the Dynamic DNS connection via camera itself or your home router.
  • Page 26 Some router might use Port Forwarding or Special applications for this function. The setup steps should be very similar. 2. Login to your router’s web configuration page. 6. Open another web browser and enter your DDNS domain and camera’s port number. http://yourDomainName:PortNumber © Copyright 2012 TRENDnet. All Rights Reserved.
  • Page 27 7. The camera login page will appear. 5. Go to Virtual Server* section and create a new entry. Enable: Click Enable Name: Enter the application name (eg. Camera Name) Protocol: Select TCP © Copyright 2012 TRENDnet. All Rights Reserved.

  • Page 28: Technical Specifications

    Output: 5V, 1.2A external power adapter 802.11n: -71dBm at 150Mbps Dimension 75 x 115 x 30 mm (2.95 x 4.5 x 1.2 in.) Channels 1~11 (FCC), 1~13(ETSI) Weight 110 g (3.8 oz) Management © Copyright 2011 TRENDnet. All Rights Reserved.
  • Page 29 Protocols DHCP Client, NTP Client, DNS Client, DDNS Client, SMTP Client, FTP Client Diagonal: 46.5 degrees HTTP Digital Zoom: 4x PPPoE UPnP Audio Built-in omni-directional microphone Sensitivity: -38dB +/- 3dB (5 meters max.) © Copyright 2011 TRENDnet. All Rights Reserved.
  • Page 30 Resolution: 640 x 480 , 320 x 240 , 160 x 120 Max frame rate: VGA@20fps, QVGA@30fps, QQVGA@30fps JPEG quality: Very Low, Low, Medium, High, Very High Snapshot Trigger event: motion detection Action: send alert email and/or upload to FTP © Copyright 2011 TRENDnet. All Rights Reserved.

  • Page 31: Troubleshooting

    © Copyright 2011 TRENDnet. All Rights Reserved.
  • Page 32 This device complies with the essential requirements of the R&TTE Directive 1999/5/EC. The following test methods have been applied in order to prove presumption of conformity with the essential requirements of the R&TTE Directive 1999/5/EC: © Copyright 2011 TRENDnet. All Rights Reserved.
  • Page 33 TV-IP551WI cumple con los requisitos esenciales y cualesquiera Directiva 1999/5/CE. otras disposiciones aplicables o exigibles de la Directiva Slovensko TRENDnet izjavlja, da je ta TV-IP551W / TV-IP551WI v skladu z 1999/5/CE. [Slovenian] bistvenimi zahtevami in ostalimi relevantnimi določili direktive Ελληνική...
  • Page 34 Download section limited to, duty, tax, and other fees. and look for the desired TRENDnet product to access to the GPL Code or LGPL Code. These codes are distributed WITHOUT WARRANTY and are subject to the copyrights of WARRANTIES EXCLUSIVE: IF THE TRENDNET PRODUCT DOES NOT OPERATE AS the developers.

This manual is also suitable for:

Tv-ip551w
