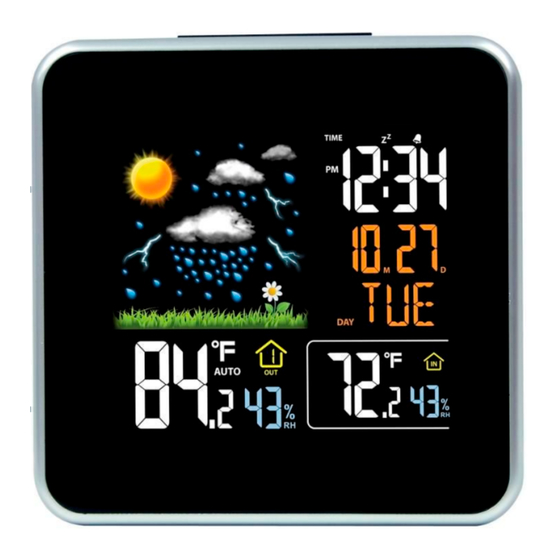

Wireless Color Forecast Station Model: K86319 INTRODUCTION: The Wireless Color Forecast Station features manual set time, weather forecast, indoor and outdoor temperature/humidity as well as heat index and dew point, on a stylish, colorful, and easy to read display. THIS STATION LEARNS! Please allow 3-4 weeks for barometer calibration to generate an accurate forecast.
TABLE OF CONTENTS: INTRODUCTION FORECAST STATION OUTDOOR TEMPERATURE/HUMIDITY TRANSMITTER TX14TH FEATURES INITIAL SETUP POWER THE FORECAST STATION A/C ADAPTER BATTERIES INSTALL BATTERIES IN THE OUTDOOR TRANSMITTER FUNCTION BUTTONS PROGRAM MENU 12 OR 24 HOUR TIME FORMAT SET TIME SET CALENDAR FAHRENHEIT/CELSIUS ALARM SET DEACTIVATE ALARM...
FEATURES: • 12/24 hour time with snooze alarm and alarm icon • Calendar display: month, day, date • Heat index and dew point • Color forecast: sunny, partly sunny, cloudy, rainy and stormy • 12 hour forecast based on changing barometric pressure •...
POWER THE FORECAST STATION: The clock can be powered by the 5-volt a/c adapter or batteries. A/C power adapter: Insert enclosed 5-volt a/c power adapter into a wall outlet, then into the Forecast Station. Battery Compartment 5-Volt a/c adapter Batteries: 1.
FUNCTION BUTTONS: Button Press and Release Functions Hold 3-5 seconds Move through program menu Confirm Enter program menu, set time, setting. date, etc. View Alarm ALARM Alarm set Activate/Deactivate Alarm 1 step forward (setup) Fast advance (setup) Select temperature in °C/° F -/°C/°F Fast backward (set) 1 step backward (setup)
3. Press and release the SET button to set the minutes. 4. The minute’s digit will flash. 5. Press and release the + or -/°C/°F button to select the minutes. 6. Confirm with the SET button and move to Set Calendar. SET CALENDAR: The date default of the Forecast Station is 1.
BACKLIGHT: A/C adapter: The backlight is on continuously when operating the Forecast Station with the 5-volt a/c adapter. 1. HIGH: The backlight is defaulted to HI (brightness) when the a/c adapter is in use. 2. LO: Press and release the LIGHT HI/LO button to dim the brightness of the backlight. 3.
LCD SCREEN: The LCD screen is split into 5 sections displaying the information for time, calendar, weather forecast, indoor data, and outdoor data. MIN/MAX TEMPERATURE/HUMIDTY DATA: This Forecast Station features daily minimum and maximum temperatures each day starting at midnight (12:00 AM). The clock automatically resets the min/max temperatures at midnight (12:00 AM).
HEAT INDEX: Heat Index combines the effects of heat and humidity. It is the apparent temperature of how hot it feels to a human being. When relative humidity increases, the air feels warmer than it actually is because your body is less able to cool effectively by evaporation of perspiration. Note: Heat index will be the same number as the temperature until the temperature is above 80 degrees °F (26.7°C).
USE MULTIPLE OUTDOOR TRANSMITTERS: The Forecast Station will accommodate up to three remote outdoor transmitters (TX14TH). The channel selection button allows you to easily see the temperature in various locations: outdoors, baby’s room, greenhouse, basement, etc. To connect multiple remote transmitters to the Forecast Station: 1.
Low Battery: When this icon appears in the Indoor reading section the batteries in the Forecast Station need to be replaced. When this icon appears in the Outdoor readings section, replace the batteries in the outdoor transmitter. It is recommended to replace the batteries every 12 months to ensure optimum accuracy of this unit. CARE AND MAINTENANCE: Do Not Mix Old and New Batteries Do Not Mix Alkaline, Lithium, Standard, or Rechargeable Batteries...
SPECIFICATIONS: Indoor: Temperature Range: +32° F to +122°F (0° C to + 50° C) Humidity Range: 1%-99% (RH) Interval: Every 30 seconds Outdoor: Temperature Range: -40°F to 140°F (-40°C to 50°C) Use Alkaline batteries in outdoor sensor: -20°F to 140°F (-20°C to 60°C) Switch to Lithium batteries in outdoor sensor if temperature drops below - 20°F (-28.8°C) Humidity Range: 1%-99% (RH)
Ltd or La Crosse Technology, Ltd’s authorized service center. La Crosse Technology, Ltd will repair or replace this product, at our option and at no charge as stipulated herein, with new or reconditioned parts or products if found to be defective during the limited warranty period specified above.
For warranty work, technical support, or information contact: La Crosse Technology, Ltd 2817 Losey Blvd. S. La Crosse, WI 54601 The complete instruction manual is available at: www.lacrossetechnology.com/k86319 Contact Support: 1-608-782-1610 Product Registration: www.lacrossetechnology.com/support/register FCC DISCLAIMER: This Device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) the device must accept any interference received, including interference that may cause undesired operation.
