1

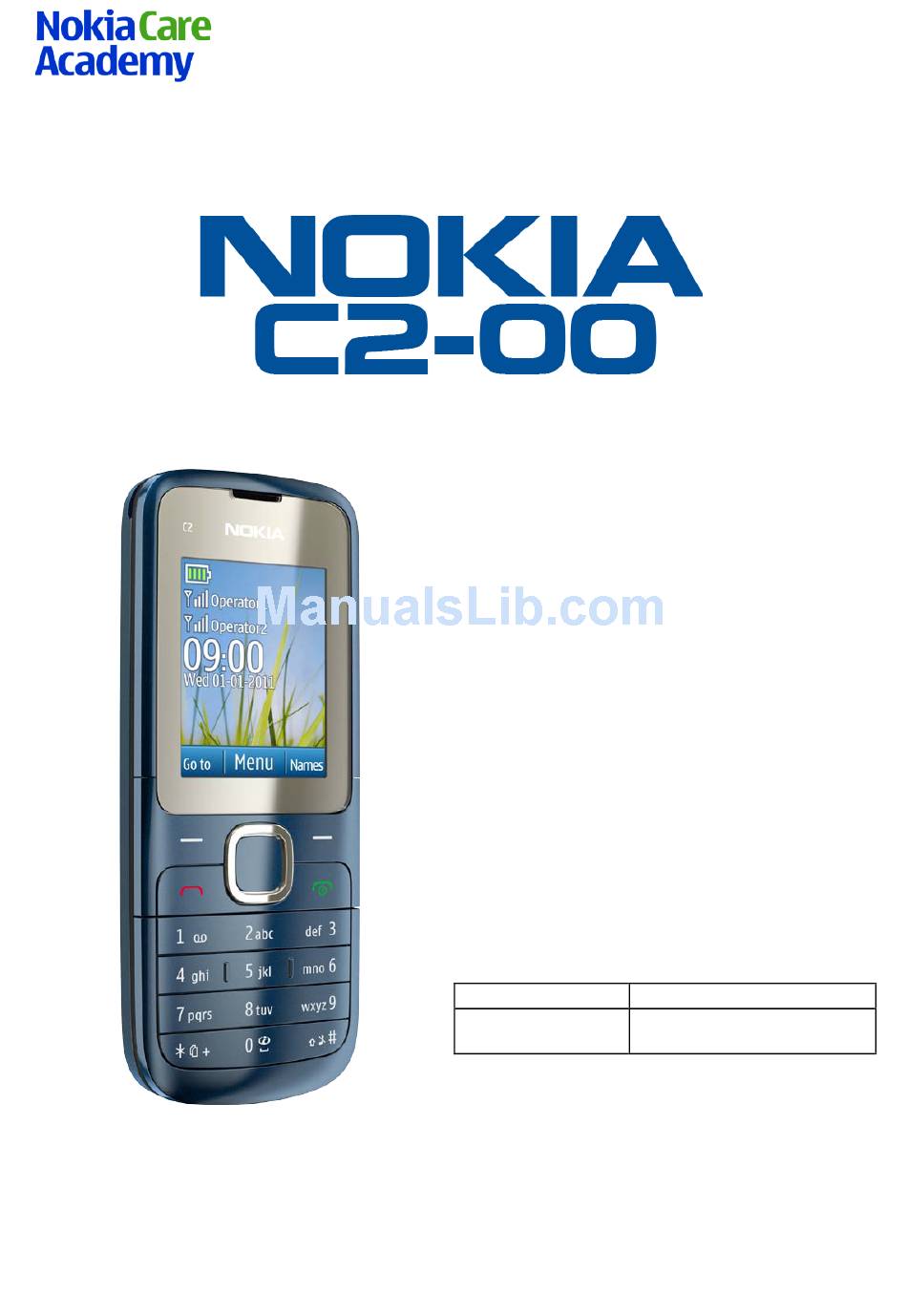

SERVICE MANUAL
Level 1&2
RM-704
Transceiver characteristics
Band
RM-607:
EGSM 900/1800
RM-608:
EGSM 850/1900
Display
128x160 TFT display
Camera
VGA camera
Operating System
S40
Connections:
3.5 mm AV connector, Stereo FM radio, Micro USB,
Bluetooth, MicroSD card support up to 32GB, Dual sim
Transceiver with BL-5C / BL-5CB battery pack
Talk time
BL-5C:
GSM: up to 5.75h
Note:
Talk times are dependent on network parameters
and phone settings
Conf idential | Copyright © 2011 Nokia | A ll rights reserved
Nokia C2-00
Service Manual Level 1&2
Standby
BL-5C:
GSM: up to 416 h
RM-704
Version 1.0
Advertisement
Table of Contents
Related Manuals for Nokia C2-00
Summary of Contents for Nokia C2-00
- Page 1 Transceiver with BL-5C / BL-5CB battery pack Talk time Standby BL-5C: BL-5C: GSM: up to 5.75h GSM: up to 416 h Note: Talk times are dependent on network parameters and phone settings Conf idential | Copyright © 2011 Nokia | A ll rights reserved Version 1.0...
-
Page 2: Table Of Contents
BATTERY INFORMATION..............................8 EXPLODED VIEW ................................. 9 SERVICE DEVICES ................................10 SOFTWARE UPDATE................................11 DISASSEMBLY INSTRUCTIONS ............................12 10. ASSEMBLY HINTS................................18 11. SOLDER COMPONENTS ..............................19 Conf idential | Copyright © 2011 Nokia | A ll rights reserved Version 1.0... - Page 3 19.04.2011 First approved version The purpose of this document is to help NOKIA service levels 1 and 2 workshop technicians to carry out service to NOKIA products. This Service Manual is to be used only by authorized NOKIA service suppliers, and the content of it is confidential. Please note that NOKIA provides also other guidance documents (e.g.
-
Page 4: Copyright
Nokia operates a policy of continuous development. Nokia reserves the right to make changes and improvements to any of the products described in this document without prior notice. Under no circumstances shall Nokia be responsible for any loss of data or income or any special, incidental, consequential or indirect damages howsoever caused. -
Page 5: Warnings And Cautions
3. Use only approved components as specified in the parts list. 4. Ensure all components, modules screws and insulators are correctly re–fitted after servicing and alignment. 5. Ensure all cables and wires are repositioned correctly Conf idential | Copyright © 2011 Nokia | A ll rights reserved Version 1.0... -
Page 6: Esd Protection
ESD protected spare part packages MUST NOT be opened/closed out of an ESD Protected Area. For more information and local requirements about ESD protection and ESD Protected Area, contact your local Nokia After Market Services representative. Conf idential | Copyright © 2011 Nokia | A ll rights reserved Version 1.0... -
Page 7: Care And Maintenance
All of the above suggestions apply equally to the product, battery, charger or any accessory. Conf idential | Copyright © 2011 Nokia | A ll rights reserved Version 1.0... -
Page 8: Battery Information
Batteries’ performance is particularly limited in temperatures well below freezing. Do not dispose batteries in a fire! Dispose of batteries according to local regulations (e.g. recycling). Do not dispose as household waste. Conf idential | Copyright © 2011 Nokia | A ll rights reserved Version 1.0... -
Page 9: Exploded View
TYPE LABEL I0011 SCREW TORX+ SIZE 4 M1.4x4 I0018 BATTERY COVER I0019 Only available Not reuseable Repair/swap Ver. 1.0 as assembly after removal only in level 3 Conf idential | Copyright © 2011 Nokia | A ll rights reserved Version 1.0... -
Page 10: Service Devices
For more information, refer to the Service Bulletin (SB-011) on Nokia Online. Supplier or manufacturer contacts for tool re-order can be found in “Recommended service equipment” document on Nokia Online. Conf idential | Copyright © 2011 Nokia | A ll rights reserved Version 1.0... -
Page 11: Software Update
Service Manual Level 1&2 8. SOFTWARE UPDATE Flash concept (Point of Sale) Please check always for the latest version of flash software, which is available on Nokia Online. Conf idential | Copyright © 2011 Nokia | A ll rights reserved Version 1.0... -
Page 12: Disassembly Instructions
4) Open the BATTERY COVER by using the release notch. 5) Remove the BATTERY COVER. 6) Unscrew the two Torx+ size 4 screws in the order shown. Conf idential | Copyright © 2011 Nokia | A ll rights reserved Version 1.0... - Page 13 10) Protect the DISPLAY with the protective film. 11) Protect the other side of the A-COVER with the 12) Push down to release the KEYMAT. protective film. Conf idential | Copyright © 2011 Nokia | A ll rights reserved Version 1.0...
- Page 14 By using this with the SS-93. procedure, the AV JACK in the top part of the device is released properly. Conf idential | Copyright © 2011 Nokia | A ll rights reserved Version 1.0...
- Page 15 24) Lever out the BB SHIELDING LID with the dental Discard it. tool. Be careful not to injure yourself or any nearby components with the sharp end of the dental tool. Conf idential | Copyright © 2011 Nokia | A ll rights reserved Version 1.0...
- Page 16 28) Use the sharp end of the SS-93 to release the tweezers. EARPIECE / SPEAKER / VIBRA. 29) Remove it with the tweezers. 30) Release the DC JACK with the DC plug. Conf idential | Copyright © 2011 Nokia | A ll rights reserved Version 1.0...
- Page 17 Nokia C2-00 RM-704 Service Manual Level 1&2 31) Remove it with the tweezers. 32) The Nokia C2-00 disassembly is now complete. -END OF DISASSEMBLY- Conf idential | Copyright © 2011 Nokia | A ll rights reserved Version 1.0...
-
Page 18: Assembly Hints
1) Tighten the TORX + size 6 screws to the torque of 2) Tighten the TORX + size 4 screws to the torque of 18 Ncm. 15 Ncm. Conf idential | Copyright © 2011 Nokia | A ll rights reserved Version 1.0... -
Page 19: Solder Components
Nokia C2-00 RM-704 Service Manual Level 1&2 11. SOLDER COMPONENTS BOTTOM X2080 V2405 F2051 V2406 E7453 E7454 Ver. 1.0 Conf idential | Copyright © 2011 Nokia | A ll rights reserved Version 1.0...
