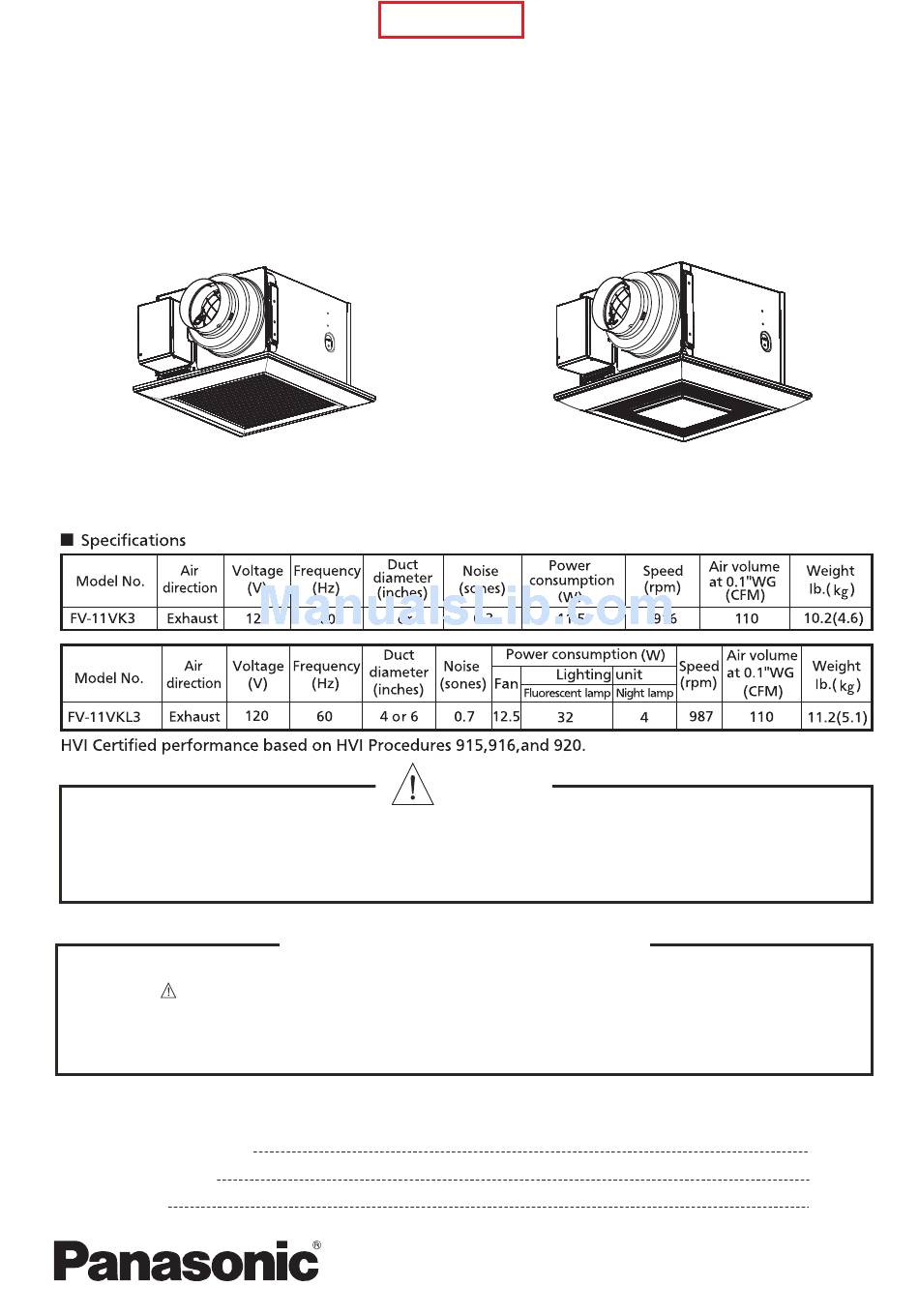

Service Manual
FV-11VK3
This service information is designed for experienced repair technicians only and is not designed for use by
the general public. It does not contain warnings or cautions to advise non-technical individuals of potential
dangers in attempting to service a product. Products powered by electricity should be serviced or repaired
only by experienced professional technicians. Any attempt to service or repair the product or products dealt
with in this service information by anyone else could result in serious injury or death.
There are special components used in this equipment which are important for safety. These parts are
marked by
in the Schematic Diagrams, Exploded Views and Replacement Parts List. It is essential
that these critical parts should be replaced with manufacturer's specified parts to prevent shock, fire
or other hazards. Do not modify the original design without permission of manufacture.
We suggest to handle such parts after the static electricity prevention.
It is forbidden to touch the PCB parts by bare hands during the repairing process.
CONTENTS
1. Parts Identification
2.Wiring Diagram
3. Parts List
Reference
WARNING
IMPORTANT SAFETY NOTICE
Ceiling Mount Ventilating Fan
Whisper Green
(North America Market)
FV-11VKL3
PEG1111029CE
Version:1101
TM
PAGE
1~3
4
5~8
Advertisement
Related Manuals for Panasonic Whisper Green FV-11VK3
Summary of Contents for Panasonic Whisper Green FV-11VK3
- Page 1 Service Manual Ceiling Mount Ventilating Fan Whisper Green (North America Market) FV-11VK3 FV-11VKL3 WARNING This service information is designed for experienced repair technicians only and is not designed for use by the general public. It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.
-
Page 2: Parts Identification
Reference 1.Parts Identification FV-11VK3 Main Body Section (3pcs) (2pcs) FV-11VK3 Details Of Wiring Section CAUTION: To reduce the risk of injury to persons,install fan at least 2.1m(7feet)above the floor. (3pcs) ATTENTION: Afin de reduire les risques de blessures corporelles, Installer le ventilateur a au moins 2,1m(7 pieds)du sol. - Page 3 Reference 1.Parts Identification FV-11VKL3 Main Body Section (3pcs) (2pcs) FV-11VKL3 CAUTION: To reduce the risk of injury to persons,install fan at least 2.1m(7feet)above the floor. ATTENTION: Afin de reduire les risques de blessures corporelles, Installer le ventilateur a au moins 2,1m(7 pieds)du sol. Details Of Wiring Section (3pcs) (4pcs)
- Page 4 The main PCB assembly is commonly used in below models.If you replace PCB,please set up the switch according to below table firstly. Switch seting condition for PCB Model Part No. Part Name (SW103、SW102) FV-11VK3 FFV3740024S Main PCB Assembly FV-11VKL3 FFV3740024S Main PCB Assembly...
-
Page 5: Wiring Diagram
Reference 2.Wiring Diagram FV-11VK3 FV-11VKL3... -
Page 6: Parts List
Reference 3.Parts List FV-11VK3 Part No. Part Name Q'ty Remark FFV0420027S Bracket Cover FFV1600111S Frame Assembly FFV0000116S Adapter Assembly FFV0900052S Connector Plate FFV0900049S Connector Assembly V FFV1340008S Earth Lead Wire Assembly FFV2800012S Junction Cover FFV0800001S Casing Support FFV3700323S Motor Assembly... - Page 7 Reference 3.Parts List FV-11VK3 Part No. Part Name Q'ty Remark 42 FFV9001011S Packing Case Assembly FFV7000108S Truss Tap Screw FFV7000065S Bind Screw FFV7000168S Earth Screw Assembly FFV7000109S Stainless Steel Screw FFV7000089S Truss Tap Screw FFV7000164S Pan Tap Screw FFV7000140S Pan Tap Screw...
- Page 8 Reference 3.Parts List FV-11VKL3 Part No. Part Name Q'ty Remark FFV0420027S Bracket Cover FFV1600111S Frame Assembly FFV0900048S Connector Plate FFV0900049S Connector Assembly V FFV0900039S Connector Assembly L FFV1340008S Earth Lead Wire Assembly FFV2800012S Junction Cover FFV0800001S Casing Support FFV3700323S Motor Assembly 10 FFV3700324S Motor Lead Wire Assembly 11 FFV0000112S Adapter Assembly 12 FFV0960001S Nylon Clamp...
- Page 9 Reference 3.Parts List FV-11VKL3 Part No. Part Name Q'ty Remark 42 FFV2540110S Installation Instruction English,For CA Market/USA Market 43 FFV2540111S Installation Instruction French,For USA Market (43) FFV2540112S Installation Instruction Spanish,For CA Market 44 FFV0010200S Accessory A 45 FFV4710343S Grille Case Assembly 46 FFV4710344S Right Pad 47 FFV4710345S Left Pad 48 FFV9001012S Packing Case Assembly...
