MODEL H3273
42-PIECE AIR TOOL SET

INSTRUCTION MANUAL

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

Advertisement

Table of Contents
loading

Related Manuals for Grizzly H3273

Summary of Contents for Grizzly H3273

  • Page 1: Instruction Manual

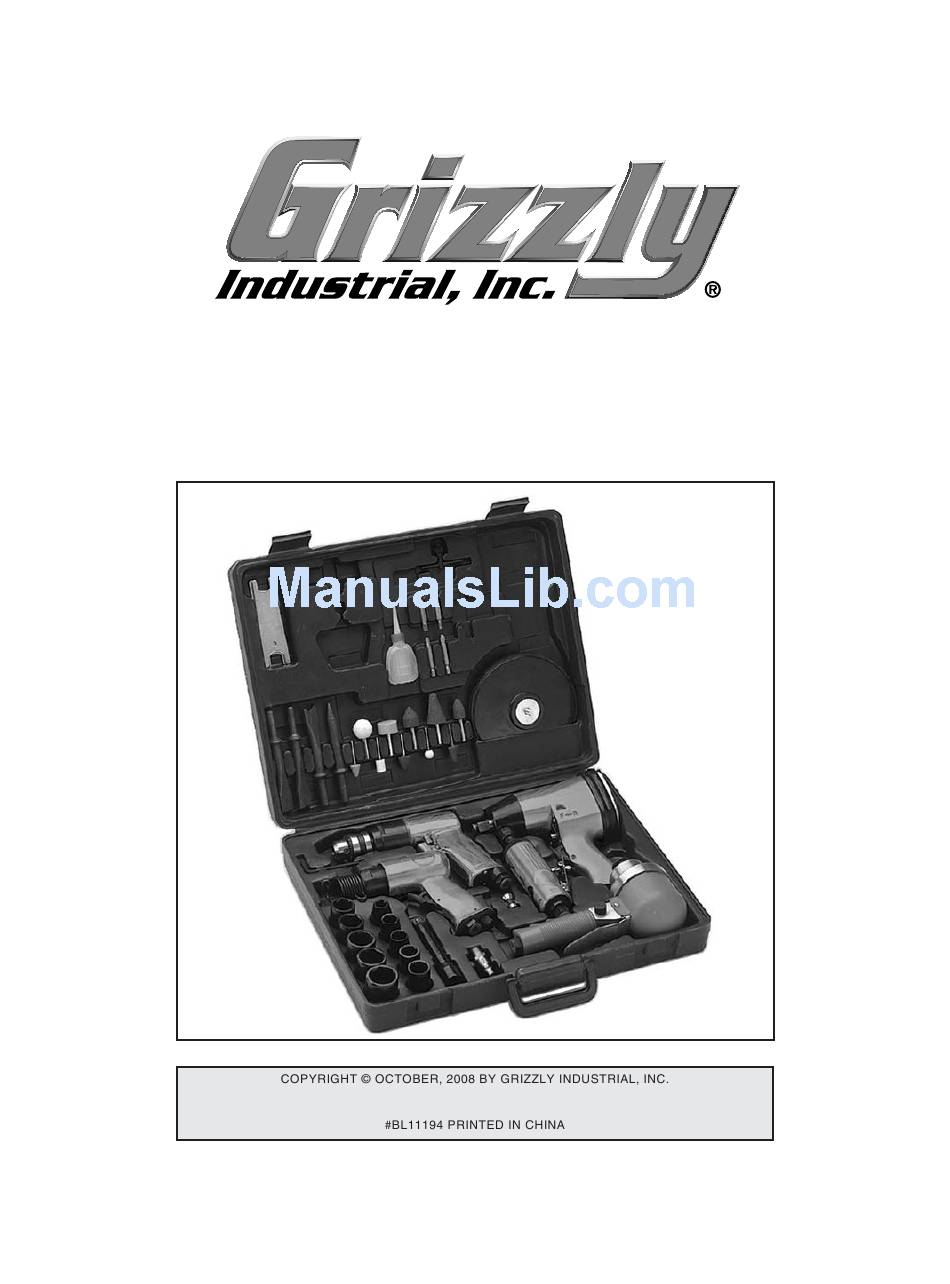

    MODEL H3273 42-PIECE AIR TOOL SET INSTRUCTION MANUAL WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

  • Page 3: Safety Instructions For Pneumatic Tools

    SAFETY For Your Own Safety Read Instruction Manual Before Operating This Equipment The purpose of safety symbols is to attract your attention to possible hazardous conditions. This manual uses a series of symbols and signal words which are intended to convey the level of importance of the safety messages. The progression of symbols is described below.
  • Page 4 7. AVOID ENTANGLEMENTS. 8. USE CORRECT AIR PRESSURE. 9. DISCONNECT AIR PRESSURE 10. SECURE TOOLING. 11. SHARP SURFACES. 12. REMOVE ADJUSTING KEYS AND WRENCHES AFTER USE. 13. AVOID FLAMMABLES 14. SECURE WORK. 15. MAINTAIN TOOLS WITH CARE. No list of safety guidelines is complete, because every work environment is different.

  • Page 5: Specifications

    INTRODUCTION Specifications Foreword Impact Wrench Air Hammer Reversible Air Drill...
  • Page 6 Die Grinder Random Orbit Sander Inventory Figure 1.

  • Page 7: Air Supply

    OPERATIONS Read the manual before operation. Become familiar with this tool, its safety instructions, and its operation before beginning any work. Serious personal injury may result if safety or operational information is not understood or followed. LUNG/EAR INJURY HAZARD! Wear protective equipment when using this tool.
  • Page 8 Figure 3. Figure 4 Figure 4. Reversible Air Drill www. grizzly.com To install a drill bit: Figure 5 Figure 5.
  • Page 9 To use the drill: avoid accidental starting, disconnect the drill from the air supply when it is not in use. Die Grinder To install a bit: Figure Note: It is not necessary to completely remove the collet nut from the shaft unless you are also changing the collet.

  • Page 10: Daily Maintenance

    To use the grinder: Daily Maintenance Figure 7 Figure 7. Figure 2 These procedures should be done after each use: Note: For the impact wrench, you must also remove the 4mm plug, put 2-3 drops of oil into the hole, and reinstall the plug.
  • Page 11 Figure 9 Figure 9. To operate the sander: Figure 10 Figure 10 Figure 10 To change operating modes: Figure Figure 11. Figure Figure 12. Sander Maintenance Figure 7...
  • Page 12 ACCESSORIES 6" PSA Aluminum Oxide Sanding Discs (3 Pack): H3175— ⁄ " NPT Female, Quick Coupler H3176— ⁄ " NPT Male, Quick Coupler H3177— ⁄ " NPT Male, Plug H3178— ⁄ " NPT Female, Plug Figure 13 H3258—Filter/Lube/Regulator ⁄ "NPT H3259—Filter/Lube/Regulator ⁄...

  • Page 13: Accessory Parts

    ACCESSORY PARTS* REF PART # DESCRIPTION PH3273001 WRENCHES (SET OF 2) PH3273002 5" EXTENSION 1/2" DRIVE PH3273004 BRASS AIR FITTING PH3273005 POINT CHISEL PH3273006 NOTCHED-SPADE CHISEL PH3273007 DOVETAIL CHISEL PH3273008 BLADE CHISEL PH3273009 SOCKET 1/2" DRIVE X 7/16" PH3273010 SOCKET 1/2" DRIVE X 1/2" PH3273011 SOCKET 1/2"...

  • Page 14: Impact Wrench

    IMPACT WRENCH* REF PART # DESCRIPTION PH327101 HOUSING PH327102 VALVE SLEEVE PH327103 REVERSE VALVE PH327104 TRIGGER PRP02M ROLL PIN 3 X 16 PH327106 VALVE STEM PH327107 BUSHING PH327108 STEEL BALL PH327109 COMPRESSION SPRING PH327110 ADAPTOR 1/4 NPT PH327111 AIR REGULATOR PORP009 O-RING 8.8 X 1.9 P9 PSS07M...
  • Page 15 REVERSIBLE AIR DRILL* REF PART # DESCRIPTION PH327201 HOUSING PR4AZZ BEARING PH327203 END PLATE PH327204 ROTOR PH327205 ROTOR BLADE PH327206 CYLINDER PH327207 PH327208 FRONT PLATE PH327209 INTERNAL GEAR PH327210 ROLL PIN PH327211 WORK SPINDLE PH327212 THREAD RING GEAR PR4AZZ BEARING PH327214 CLAMP NUT PH327215...
  • Page 16 DIE GRINDER* REF PART # DESCRIPTION PH3273301 ADAPTOR 1/4 NPT PH3273302 EXHAUST DEFLECTOR PH3273303 VALVE PH3273304 THROTTLE LEVER PH3273305 ROLL PIN PH3273306 ROLL PIN PH3273307 COMPRESSION SPRING PH3273308 SAFETY LEVER PH3273309 WASHER PH3273310 THROTTLE VALVE PH3273311 O-RING PH3273312 COMPRESSION SPRING PH3273313 AIR REGULATOR PH3273314...
  • Page 17 RANDOM ORBIT SANDER* REF PART # DESCRIPTION PH3273401 HOUSING PH3273402 ADAPTOR 1/4 NPT PH3273403 O-RING PH3273404 VALVE SPRING PH3273405 O-RING PH3273406 VALVE STEM PH3273407 O-RING PH3273408 O-RING PH3273409 O-RING PH3273410 VALVE BODY PH3273411 SCREW PH3273412 BRACKET PH3273413 TRIGGER SCREW PH3273414 WASHER PH3273415 HEX NUT...

  • Page 18: Air Hammer

    AIR HAMMER* REF PART # DESCRIPTION PH3273501 HANDLE PH3273502 BALL SEAT PH3273503 O-RING PH3273504 REGULATOR PH3273505 NEEDLE PIN PH3273506 O-RING PH3273507 PIN SEAT PH3273508 COMPRESSION SPRING PH3273509 ADAPTOR 1/4 NPT PH3273510 UPPER VALVE CASE REF PART # DESCRIPTION PH3273511 VALVE DISC PH3273512 LOWER VALVE CASE PH3273513...

  • Page 20: Warranty And Returns

    WARRANTY AND RETURNS 1 year Grizzly Industrial, Inc. 1203 Lycoming Mall Circle Muncy, PA 17756 Phone: (570) 546-9663 Fax: (800) 438-5901 E-Mail: techsupport@grizzly.com Web Site: http://www.grizzly.com...
