- Page 1 OWNER'S MANUAL RSC-1401CLTW /1651CLTW Laminator Read all instructions carefully before use. For any Customer Support needs please choose the Customer Support tab on www.royalsovereign.com Royal Sovereign International Inc. www.royalsovereign.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS TOPIC PAGE 1. Introduction ............................3 2. Safety Precautions ..........................3 3. Installation ............................4 4. Included with Laminator ........................5 5. Product Identification ..........................6 6. Control Panel ............................. 7 7. Roller Nip Settings ..........................8 8. Using Foot Pedal and Remote Control ....................9 9. -
Page 3: Introduction
RSC-1401CLTW /RSC-1651CLTW 1. INTRODUCTION T h a n k y o u f o r c h o o s i n g a R o y a l S o v e r e i g n l a m i n a t o r . I t h a s b e e n d e s i g n e d a n d m a n u f a c t u r e d t o p r o v i d e y e a r s o f c o n t i n u o u s s e r v i c e . -
Page 4: Installation
R o y a l S o v e r e i g n r e c o m m e n d s t h a t a l i c e n s e d e l e c t r i c i a n e n s u r e s p r o p e r p o w e r installation to your laminator in accordance with electrical codes in your area. The laminator should have a dedicated power line. MODEL RSC-1401CLTW RSC-1651CLTW 220-240V 220-240V... -
Page 5: Included With Laminator
RSC-1401CLTW /RSC-1651CLTW 4. INCLUDED WITH LAMINATOR Thoroughly inspect the parts and the unit. It is imperative that any missing parts are reported and a claim is filed with the reseller immediately upon receipt of shipment. Quantity Picture Part Name Laminator Owner's Manual 3´´... -
Page 6: Product Identification

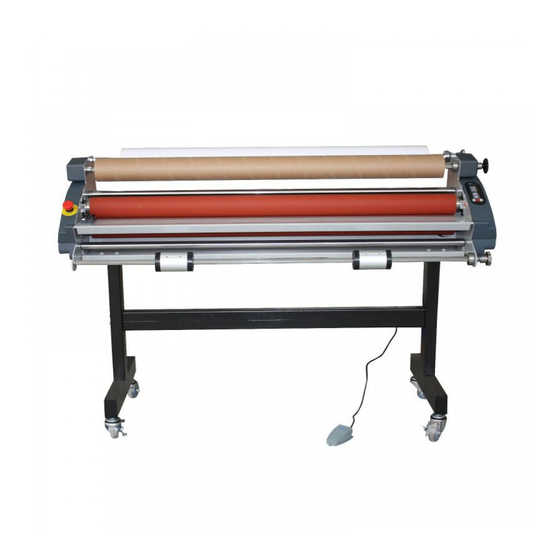

5. PRODUCT IDENTIFICATION PART NAME RSC-1401CLTW RSC-1651CLTW SAFETY SENSOR EMERGENCY SWITCH FEED TABLE MAIN ROLLER ASSEMBLY STAND FOOT PEDAL PRESSURE LEVER CONTROL PANEL SHAFT TAKE UP... -
Page 7: Control Panel
RSC-1401CLTW /RSC-1651CLTW 6. CONTROL PANEL When the machine is initially turned on, the LED display window will show the speed at 1. Control Buttons 1. SPEED DISPLAY: Display’s current Speed. 2. SPEED BUTTON: Adjusting the speed of the rollers. To change the speed of the rollers, press the up or down arrow button. -
Page 8: Roller Nip Settings
7. ROLLER NIP SETTING It is important to adjust the roller nip settings to the appropriate thickness of the board being used. Use the guide below to adjust to the correct position. Inches Metric (mm) Lamination Lamination 0.06˝ 0.12˝ 0.2˝ 0.3˝... -
Page 9: Using Foot Pedal And Remote Control
Repeat to stop the rollers. 9. LOADING FILM Royal Sovereign films are wound with the adhesive side facing the inside of the roll (adhesive in). Loading films to upper and lower film shafts: (See page 5 for assistance with parts identification.) -
Page 10: Threading Film
10. THREADING FILM PAPER BACK 10.1. Decaling 1. T u r n t h e p o w e r s w i t c h o n ( “ I ” p o s i t i o n ) . T h e P o w e r switch is located on the rear left side of the unit. -
Page 11: Mounting
RSC-1401CLTW /RSC-1651CLTW 10.2 Mounting 1. Lay the decaled image face down on a flat surface. Carefully peel back and put a crease along the edge of the release liner (Approximately 1 inch or 25mm, Figure 1). Figure 1 2. With the image facing up, align the image onto the board. Press firmly from the center out (Figure 2). -
Page 12: Installation Of Front Feeder And Rear Rewinder Options
11. INSTALLATION OF FRONT FEEDER and REAR REWINDER OPTIONS Note : Below options are to be installed by an authorized RS reseller. Installation of the Front Feeder Option (Includes 2 brackets, one spindle, and mounting hardware). 1. Install the Front Feeder to the inside of the front frames using six 5/32(M4) round head screws on each side (Figure 1) Installing the Rear Rewinder Option (Includes motorized Figure 1... -
Page 13: Maintenance
RSC-1401CLTW /RSC-1651CLTW 12. MAINTENANCE Cleaning the Body of the laminator 1.To clean the machine body, dampen a cloth with water only and gently wipe the machine clean. Removing Adhesive Build Up 1. Remove the film from the laminator. 2. Use a damp (water only) cloth and a rubber gum eraser to remove the adhesive on the Teflon (metal) and silicone rollers. -
Page 14: Specifications
14. SPECIFICATIONS Description RSC-1401CLTW RSC-1651CLTW Power supply AC 100-120V or 220-240V 50/60Hz AC 100-120V or 220-240V 50/60Hz Power consumption 100W 100W Max laminating widt 1400mm / 55" 1650mm / 65" Film thickness 50~500 mic /2~20mil 50~500 mic /2~20mil Max laminating speed 5m/min / 16.4ft/min... -
Page 15: Warranty
Royal Sovereign International and cannot be modified or amended. Royal Sovereign’s sole and exclusive liability and the customer’s sole and exclusive remedy under this warranty shall be, at Royal Sovereign’s option, to repair or replace any such defective part or product. These remedies are only available if Royal Sovereign’s examination of the product discloses to Royal Sovereign’s satisfaction that such defects...
