Summary of Contents for AER COMPACT 60 2

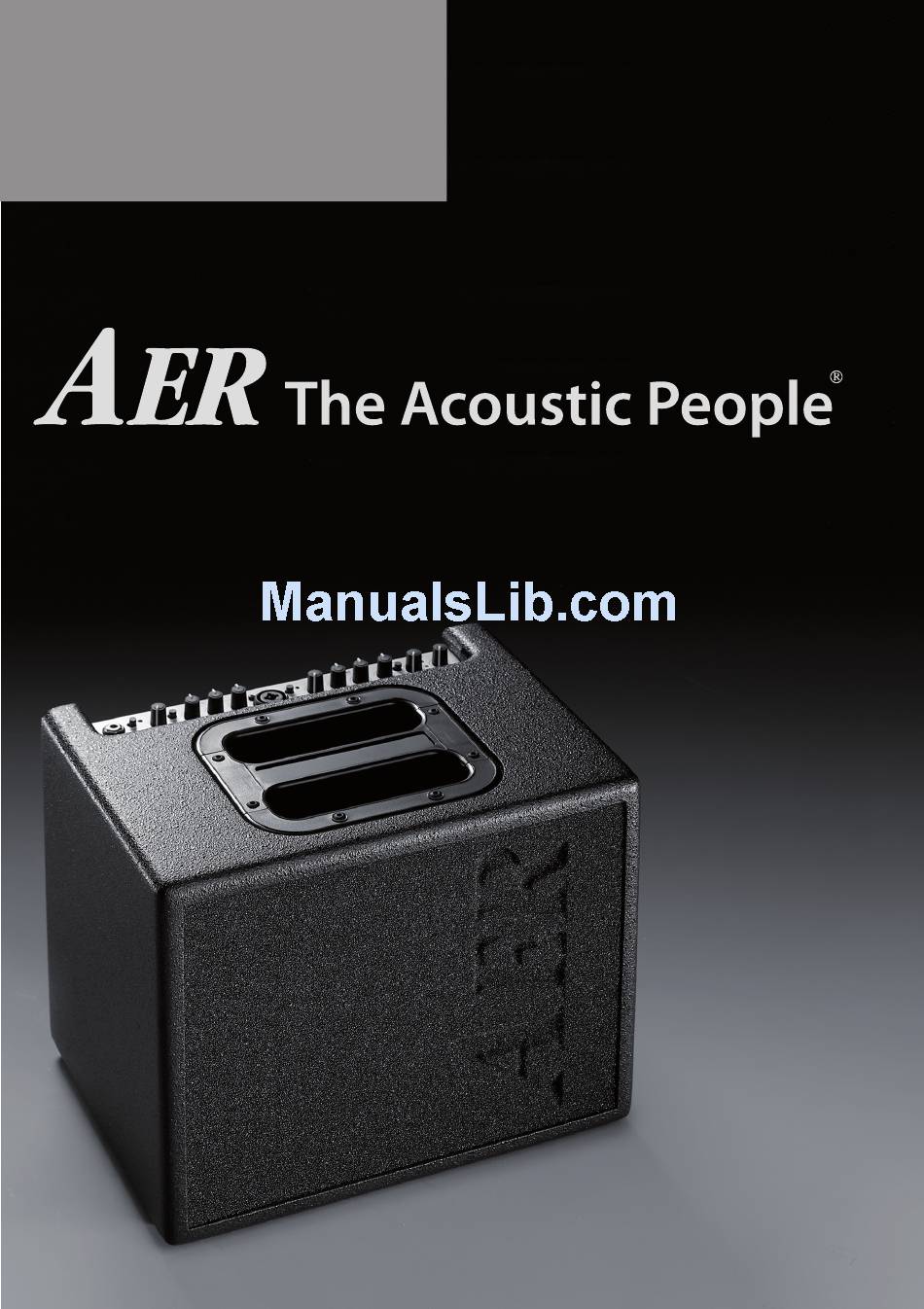

  • Page 1 Acoustic Compact 60 Solutions Manual English...
  • Page 2 . You have chosen a profes- sional, powerful and compact amplifier system for acoustic instru- ments in superb quality with AER‘s typical authentic, transparent and self-asserting sound performance. Two channels make it possible to operate a microphone and an instrument independently of each other.

  • Page 3: Controls And Connections

    2. Safety Precautions The following guidelines shall help minimize the risk of injury through 8. Use only the right fuses with the same current rating and trigger fire or electric shock. characteristic as replacements. Never mend fuses! Pull the mains plug before replacing a fuse.
  • Page 4 Caution: Risk of electric shock. Do not open! No user serviceable parts inside. 6.3 mm mono jack socket. (Tip = internal Effect, Ring = external Effect on/off ). Refer servicing to quali ed personnel. Made in Germany by AER. 6.3 mm stereo jack socket. DI-out Balanced preamp output, pre master, post EQ, with return and effects.

  • Page 5: Operation Summary

    4. Operation Summary • Cabling and startup • Equalization Check if your local mains voltage (e.g. 120 V in the USA, 230 V in Euro- The three-band equalizer with individual bass, middle and treble pe) complies with the required operating voltage for your amplifier. control of your Compact 60 has been designed in such a way that it The proper mains voltage is printed on the rating plate on the rear...

  • Page 6: Specifications

    5. Technical Data Inputs Tone controls channel 1: ± 8 dB at 100 Hz Bass Input (channel 1) Stereo jack ¼” (6.35 mm) channel 2: ± 8 dB at 100 Hz High impedance, unbalanced jack input for channel 1: ± 6 dB at 800 Hz instruments (pick-ups) and line-level sources.

  • Page 7: Block Diagram

    6. Block Diagram...

  • Page 8: Effects Table
