BEFORE WE BEGIN
Thank you.................
for purchasing this audio product. The is your assurance of quality, performance
and value.
Our engineers have included many useful and convenient features in this product.
Please be sure to read this Owner's Manual completely to make sure you are
getting the maximum benefit from each feature.
This product was manufactured using the highest quality components and
standards of workmanship. It was tested by inspectors and found to be in perfect
working order before it left our factory. However, there is always the chance that
some problem may occur because of rough handling during shipment to the retail
store or to the final consumer.
If, after reading this Manual, you experience any problems with the operation of
this product, please refer to the instructions for obtaining service at the end of this
Manual.
Once again, thanks for purchasing this audio product.
For future reference, record the serial number in the space provided.
Model No.: QX-D3500
Serial Number :

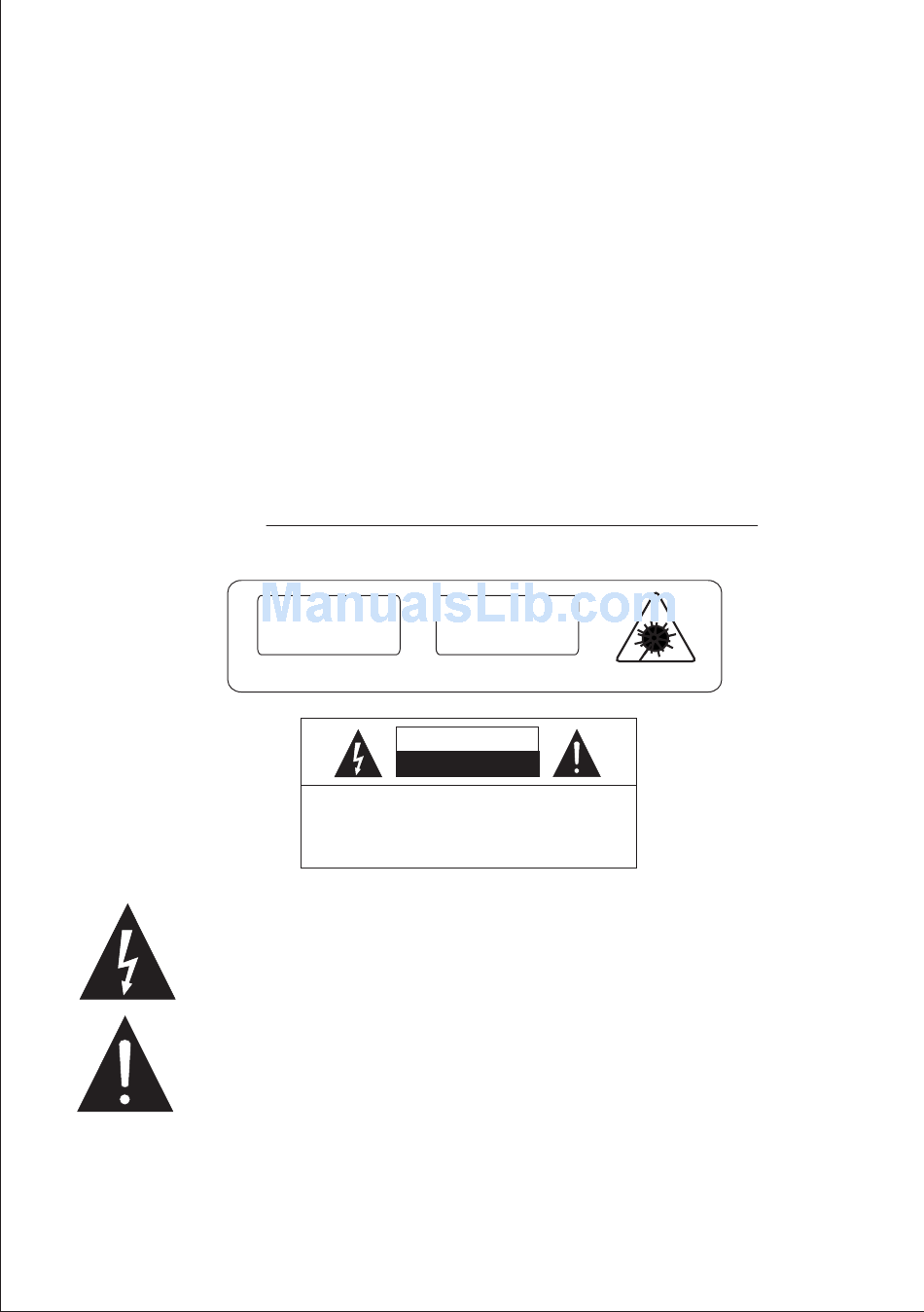

CLASS 1 LASER PRODUCT
This product contains a low power Laser Device.
DANGEROUS VOLTAGE
Uninsulated Dangerous Voltage, that may be of sufficient magnitude
to constitute a risk of electric shock to persons if present within this
product's enclosure.
ATTENTION
The Owner's Manual contains important operating and
maintenance instructions.
For your safety, it is necessary to refer to the manual.
NOTE: The manufacturer is not responsible for any RADIO or TV interference
caused by unauthorized modifications to this equipment. Such modifications could
void the user's authority to operate the equipment.
CLASS 1 LASER PRODUCT
APPAREIL A LASER DE CLASSE 1
PRODUCTO LASER DE CLASE 1
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER
SERVICEABLE PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
CAUTION
INVISIBLE LASER RADIATION
WHEN OPEN AND INTERLOCKS
DEFEATED.
AVOID EXPOSURE TO BEAM
E 1

Advertisement

Table of Contents
loading

Summary of Contents for Akai QX-D3500

  • Page 1 Manual. Once again, thanks for purchasing this audio product. For future reference, record the serial number in the space provided. Model No.: QX-D3500 Serial Number : CLASS 1 LASER PRODUCT CAUTION...
  • Page 2: Important Notes

    IMPORTANT NOTES Operate controls and switches as Avoid installing this unit in places d e s c r i b e d i n t h e m a n u a l . exposed to direct sunlight or close Before turning on the power, make to heat radiating appliances such certain that the connecting cords,...
  • Page 3: Preparation For Use

    PREPARATION FOR USE UNPACKING AND SET-UP Carefully remove the unit from the carton and remove all packing material from the unit. Remove any labels or stickers which may be on the front or top of the set, but do not remove any labels from the back or bottom. We suggest that you retain the original carton and packing materials in case it ever becomes necessary to return your unit for service.
  • Page 4 1. Mute Indicator 2. Track Search Forward 3. LCD Track Display 4. Remote Sensor 5. CD Door Open 6. Power Standby Indicator 7. Power Standby Button 8. CD Play/Pause 9. Mode Setting 10. Timer Selting 11. Band Selector 12. CD Stop 13.
  • Page 5: Remote Control

    REMOTE CONTROL 1. Power On/off Button 2. Repeat Button 3. Band Button 4. Program (Memory) Button 5. Timer On Button 6. Stop Button 7. Aux Button 8. Volume Up Button 9. Tuning Down/CD Skip Button 10. Volume Down Button 11. Tuning Up/CD Skip Button 12.
  • Page 6: General Operation

    GENERAL OPERATION Power POWER STANDBY Press the POWER on and off. Volume Phones Raise or lower volume level. For personal listening, insert the right plug PHONES from a pair of stereo headphones (not VOLUME VOLUME supplied) into the jack mentioned PHONES at the back of the unit.
  • Page 7 GENERAL OPERATION TO SET THE TIMER AT POWER OFF MODE. 1. Press TIMER Button. The display will show " ". 2. Press MODE Button. The icon " " will flash. 3. Press MEMORY Button, the hour display will flash. Press the tuning button to set timer on hour.
  • Page 8: Compact Disc Operation

    COMPACT DISC OPERATION NORMAL PLAY 1. Use the FUNCTION button to FUNCTION select the CD player (CD). 2. Press CD DOOR OPEN button to open the CD door, and place OPEN the CD into the CD compartment. 3. Close the CD door. The LCD display will show the total number of the disc.
  • Page 9 COMPACT DISC OPERATION (continued) NOTES: If a disc is loaded upside down or if no dis is loaded, the word " - - " will show on the display panel. Opening the CD compartment lid while a CD is playing could scratch the disc. Always press the STOP button and wait for the disc to stop rotating before opening the CD compartment lid.
  • Page 10: Pause Mode

    COMPACT DISC OPERATION (continued) Pause Mode (1) Press the PLAY/PAUSE button during play mode. Play will stop temporarily and the PLAY indicator will flash. (2) Press the PLAY/PAUSE button again to resume play. Track Skip SEARCH (1) Press and release the SEARCH button repeatedly during play to quickly locate the beginning of a particular track.
  • Page 11 COMPACT DISC OPERATION (continued) (2) Press MEMORY. MEMORY PROGRAM PROGRAM (MEMORY) TRACK indicator will begin to flash. (3) Press PROGRAM SEARCH The selected track number can be seen on the main display panel (4) Press MEMORY PROGRAM MEMORY TRACK indicator will turn to "00" indicating you can select the next track to be programmed.
  • Page 12: Repeat Play

    COMPACT DISC OPERATION (continued) PROGRAMMED (MEMORY) PLAY (continued) (3) Press button then MEMORY press button to clear STOP STOP MEMORY the program. The PROGRAM indicator will go off. REPEAT PLAY Repeat One: Press the button once REPEAT to repeat the current track during normal or programmed play.
  • Page 13: Listening To Preset Stations

    RADIO OPERATION (continued) PROGRAMMING STATIONS This unit is capable of memorizing the location BAND FM 10. AM 10. SEARCH (1) Select the "BAND" key can select FM/AM two band. (2) Tune in a station. MEMORY PRESET 3) Press the MEMORY button. The MEMORY indicator will flash.
  • Page 14: Cassette Tape Operation

    RECORDING FROM THE BUILT-IN RADIO WARNING UNAUTHORIZED RECORDING O COPYRIGHTED MATERIAL MAY VIOLATE APPLICABLE COPYRIGHT LAWS. AKAI ASSUMES NO (1) Press the STOP/EJECT RESPONSIBILITY FOR UNAUTHORIZED DUPLICATION, USE OR OTHER button to open the cassette ACTS WHICH INFRINGE UPON THE RIGHTS OF COPYRIGHT OWNERS.
  • Page 15 CASSETTE TAPE OPERATION (4) Press the RECORD button. (5) When you have finished recording, press the STOP button (or press PAUSE to momentarily suspend recording). Automatic Level Control (ALC) recording The ALC circuit adjusts the recording input level automatically. No adjustments are required.
  • Page 16 UNIT INFORMATION Model : QX-D3500 Specification Main Unit FM tuner section Tuning range 87.5MHz to 108 MHz Usable sensitivity (30 dB S/N) 22 db Antenna wire MW tuner section Tuning range 531 kHz to 1602 kHz (9 kHz Step) Usable sensitivity...
