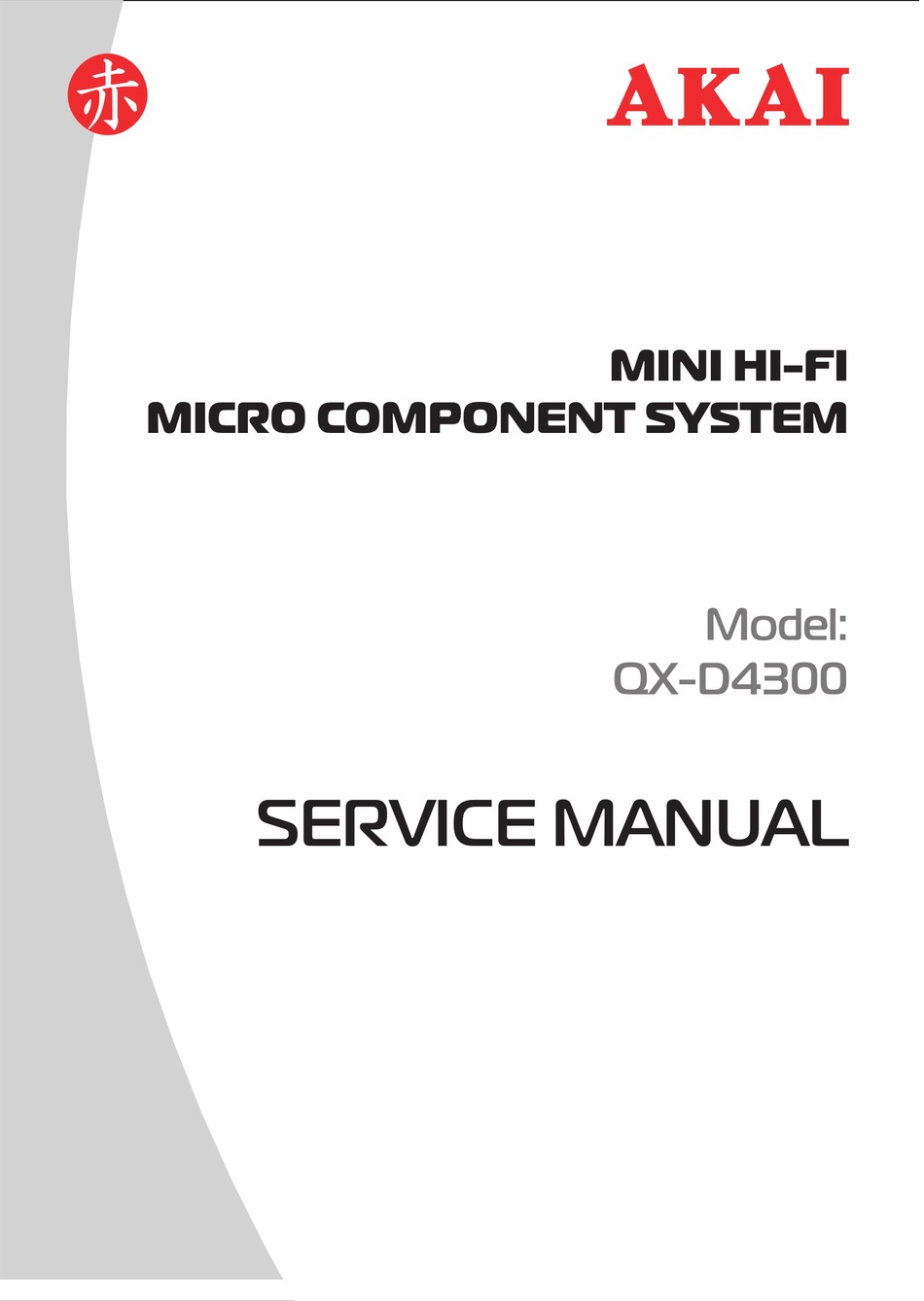

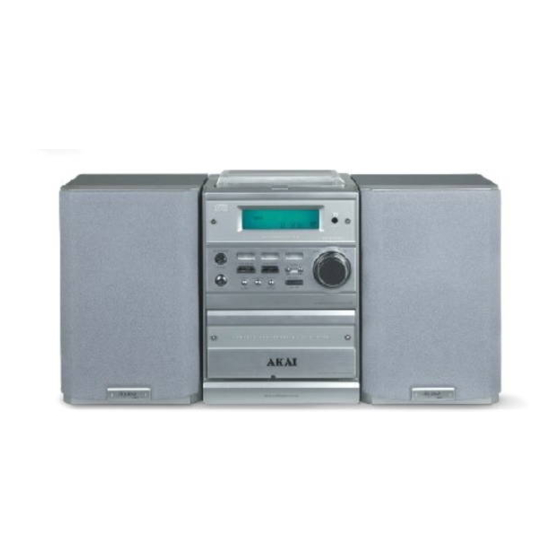

- Page 1 MINI HIFI MICRO COMPONENT SYSTEM Model: QXD4300 SERVICE MANUAL...
- Page 13 1 OF 13 Spare Parts List Model no.: QX-D4300 Part no. Description t No.: MX-329 R5-0007 MX-329/5W AKAI(QX-D4300) AM/FM VDE 230V SILVER/CLEAR LENS 121-481111-7V TRANSFORMER EI-48 230V VDE APP W/115?M20 FUSE (SF48E/131603) (S0012) LOW CURRENT 192-300000-02 CLOSE END CONNECTOR UL/VDE APP HW-C4 (TCM &...
- Page 14 PCB BKT. (RC VER) 845-032901-00 CD DOOR OPEN KNOB BKT. 878-032900-01 CASS KNOB DOOR BRIGHT SILVER (A78-030) W/D.GREY (432C) 901-032800-36 GIFT BOX AKAI DESIGN(QX-D4300) SILVER/CLEAR LENS "4905192504823" 902-032900-02 INSTRUCTION MANUAL AKAI DESIGN (QX-D4300) (ENG/CZ/SK) 912-032820-00 BACKLIGHT PLATE (90 X 27.5 X 0.6mm) BLUE COLOR...
- Page 15 0,13 720-000301-00 BATTERY SPRING (+) 0,14 720-001200-00 BATTERY SPRING (+/-) 0,15 858-000300-76 FRONT CABINET (RH-03) BRIGHT SILVER (A78-030) W/D.GREY (432C) S.S. AKAI (QX-D4300) 0,16 859-000300-04 REAR CABINET (RH-03) BRIGHT SILVER (A78-030) SPRAY 0,17 860-000300-04 BATTERY DOOR (RH-03) BRIGHT SILVER (A78-030) SPRAY...
- Page 16 4 OF 13 Part no. Description t No.: MX-329 R5-0007 MX-329/5W AKAI(QX-D4300) AM/FM VDE 230V SILVER/CLEAR LENS 0,19 960-080404-02 POLYBAG 8"(L) x 4"(O) x 0.04mm W/PRINTING (SKD) K-CD39-0001 CD PART ASS'Y MX-32/MX-329 (SONY CD) 175-012100-4B LEAF SWITCH 1P2T TC48-021-03 (51-60G FORCE) (A0003)
- Page 17 5 OF 13 Part no. Description t No.: MX-329 R5-0007 MX-329/5W AKAI(QX-D4300) AM/FM VDE 230V SILVER/CLEAR LENS 130-147331-00 RESISTOR 47 K OHM 1/4W ?% 0,21 130-156231-00 RESISTOR 5.6 K OHM 1/4W ?% 0,22 130-168231-00 RESISTOR 6.8 K OHM 1/4W ?%...
- Page 18 6 OF 13 Part no. Description t No.: MX-329 R5-0007 MX-329/5W AKAI(QX-D4300) AM/FM VDE 230V SILVER/CLEAR LENS (H0030) 0,13 112-301693-00 RESONATOR 16.93MHZ 2 PINS 0,14 113-750005-02 CRYSTAL 75KHZ DT-38 (A0016) 0,15 117-410204-10 CHOKE COIL 10uH ?mm ?0% 0,16 117-410305-11 CHOKE COIL 100uH ?mm ?0%...
- Page 19 7 OF 13 Part no. Description t No.: MX-329 R5-0007 MX-329/5W AKAI(QX-D4300) AM/FM VDE 230V SILVER/CLEAR LENS W/22 PIN L=36mm TRANSMISSIVE (Y0013) 0,66 193-204020-07 WAFER 4 PIN P=2mm (U0003) 0,67 193-208020-17 WAFER 8 PIN P=2mm (U.F.A) (ANGLE TYPE) 0,68 193-216010-0G 16 PIN WAFER P=1MM X 2 ROW DOUBLE ENTRY &...
- Page 20 8 OF 13 Part no. Description t No.: MX-329 R5-0007 MX-329/5W AKAI(QX-D4300) AM/FM VDE 230V SILVER/CLEAR LENS 0,18 113-450004-02 CRYSTAL 4.5MHz (A0016) 0,19 116-736191-03 I.F.T. AM MIX 10mm (YELLOW) NO.:6191 116-736192-03 I.F.T. AM OSC 10mm (RED) NO.:6192 0,21 116-834935-03 I.F.T. FM DET 10mm (PINK) No.:4935...
- Page 21 9 OF 13 Part no. Description t No.: MX-329 R5-0007 MX-329/5W AKAI(QX-D4300) AM/FM VDE 230V SILVER/CLEAR LENS 0,67 140-015022-20 CERAMIC CAP 15p 50V ?0% NPO 0,68 140-015122-00 CERAMIC CAP 150pF 50V ?0% 0,69 140-018122-00 CERAMIC CAP 180pF 50V ?0% 140-020022-20...
- Page 22 10 OF 13 Part no. Description t No.: MX-329 R5-0007 MX-329/5W AKAI(QX-D4300) AM/FM VDE 230V SILVER/CLEAR LENS 130-120231-00 RESISTOR 2 K OHM 1/4W ?% 130-127231-00 RESISTOR 2.7 K OHM 1/4W ?% 130-139231-00 RESISTOR 3.9 K OHM 1/4W ?% 130-143331-00 RESISTOR 43 K OHM 1/4W ?% 130-168231-00 RESISTOR 6.8 K OHM 1/4W ?%...
- Page 23 11 OF 13 Part no. Description t No.: MX-329 R5-0007 MX-329/5W AKAI(QX-D4300) AM/FM VDE 230V SILVER/CLEAR LENS 0,35 140-010320-00 CERAMIC CAP 0.01uF 50V +80-20% 0,36 140-010420-00 CERAMIC CAP 0.1uF 50V +80-20% 0,37 140-020320-00 CERAMIC CAP 0.02uF 50V +80-20% 0,38 140-033122-00...
- Page 24 12 OF 13 Part no. Description t No.: MX-329 R5-0007 MX-329/5W AKAI(QX-D4300) AM/FM VDE 230V SILVER/CLEAR LENS W/SHINNY BLACK CAP (GARDENS) (JQa50W8-N-09) 172-078196-19 SPEAKER 4" 4?5-8W MAG=60mm W/SHINNY BLACK CAP & MOUNTING (JQb102W4-N-57) HONG JI 196-003180-12 SPEAKER WIRE 1800mm AWG #22...
- Page 25 13 OF 13 Part no. Description t No.: MX-329 R5-0007 MX-329/5W AKAI(QX-D4300) AM/FM VDE 230V SILVER/CLEAR LENS 404-032800-B3 SPK WOODEN BOX (DEPT=120mm) (MK-2907N) (G0018) 500-030807-00 SCREW 3 x 8 W/T 500-031007-00 SCREW 3 x 10 W/T ..10 853-032901-01 SPEAKER FRONT CABINET 'R' BRIGHT SILVER SPRAY ..11...
