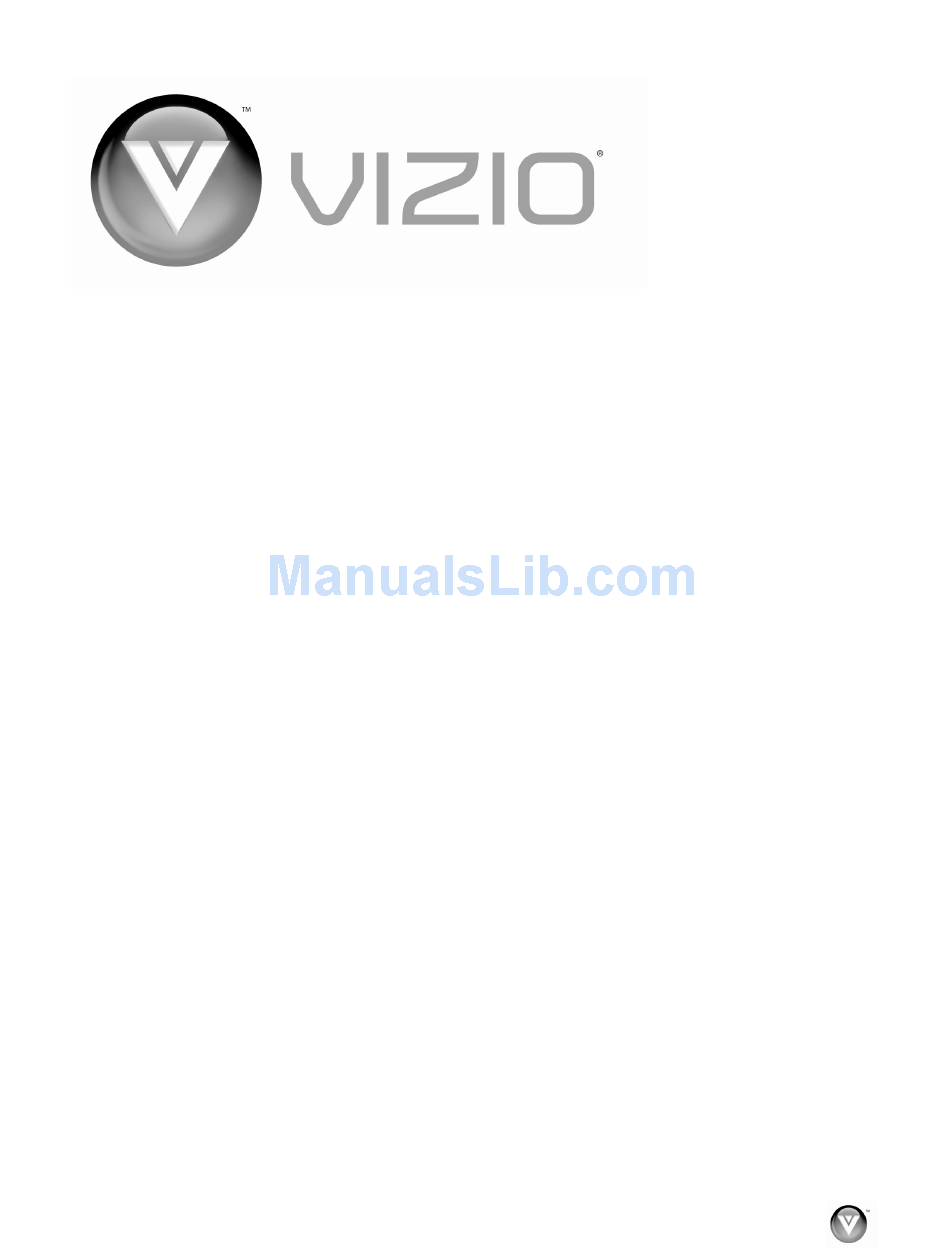

User Manual
Dear VIZIO Customer,
Congratulations on your new VIZIO purchase. Thank you for your support.
For maximum benefit of your wall mount, please read these instructions
before installation and retain them for future reference. We hope you will
experience many years of enjoyment from your new VIZIO wall mount.
For assistance, please call (877) 668-8462 or e-mail us at
To inquire about installation services for your VIZIO wall mount, please visit
our website at
We recommend you register your wall mount either at our website
www.VIZIO.com
Purchase Date _____________________
VIZIO is a registered trademark of VIZIO, Inc. dba V, Inc.
THE TRADEMARKS SHOWN HEREIN ARE THE PROPERTY OF THEIR RESPECTIVE OWNERS; IMAGES USED ARE FOR
ILLUSTRATION PURPOSES ONLY. BRAVO, VIZIO AND THE V LOGO AND WHERE VISION MEETS VALUE AND OTHER VIZIO
TRADEMARKS ARE THE INTELLECTUAL PROPERTY OF VIZIO INC. PRODUCT SPECIFICATIONS ARE SUBJECT TO
CHANGE WITHOUT NOTICE OR OBLIGATION. © 2009 VIZIO INC. ALL RIGHTS RESERVED.
Version 6/23/2009
www.vizio.com
or call toll free at (888) 849-4623.
or fill out and mail your registration card.
1
www.VIZIO.com
VIZIO VMT40-55M User Manual
www.vizio.com
.
Advertisement
Table of Contents
Related Manuals for Vizio VMT40-55M
Summary of Contents for Vizio VMT40-55M
- Page 1 THE TRADEMARKS SHOWN HEREIN ARE THE PROPERTY OF THEIR RESPECTIVE OWNERS; IMAGES USED ARE FOR ILLUSTRATION PURPOSES ONLY. BRAVO, VIZIO AND THE V LOGO AND WHERE VISION MEETS VALUE AND OTHER VIZIO TRADEMARKS ARE THE INTELLECTUAL PROPERTY OF VIZIO INC. PRODUCT SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE OR OBLIGATION.
-
Page 2: Table Of Contents

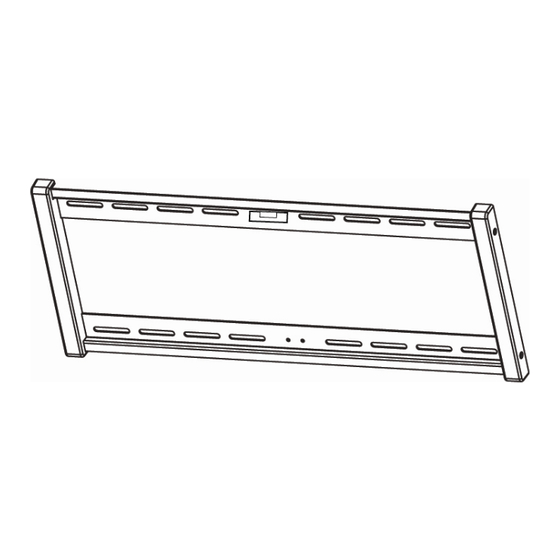

VIZIO VMT40-55M User Manual Table of Contents Important Safety Instructions ........................2 SECURING WALL MOUNT TO WALL ..............5 Wood Stud Walls ............................5 Concrete Walls ............................6 ATTACH BRACKETS TO TV ................7 ATTACH TV TO MOUNT ..................7 ATTACH TV TO MOUNT .................. - Page 3 VIZIO VMT40-55M User Manual Package Contents Item Qty Description Image Item Description Qty Image Wall Plate M4 x 30mm 2 & 3 1 ea Brackets M5 x 30mm M6 x 35mm Remote M8 x 40mm Control AC Adapter Jack IR receiver...
-
Page 4: M4/M5
VIZIO VMT40-55M User Manual 5/16” M4/M5 Concrete M6/M8 Anchor M4 x 12mm M4/M5 M5 x 12mm M6/M8 M6 x 12mm M6 x 20mm M8 x 16mm www.VIZIO.com... -
Page 5: Securing Wall Mount To Wall
VIZIO VMT40-55M User Manual Securing Wall Mount to Wall Caution: This product is not designed for use in metal stud walls Wood Stud Walls Note: You must attach the TV wall mount to a wall that has at least 2” x 4” wood studs to avoid property damage or injury. -
Page 6: Concrete Walls
VIZIO VMT40-55M User Manual Concrete Walls Mark and drill holes 1. Tape the included poster to the wall. Hold the wall plate [1] up to the poster and use the built-in level to make sure it is level. Put the wall plate [1] aside. -
Page 7: Attach Brackets To Tv
VIZIO VMT40-55M User Manual Attach Brackets to TV Caution: Make sure you use the correct depth of screw for your TV. Using screws that are too long or too short can damage your TV. Use washer [26] with M4 or M5 hardware only. Use washer [27] with M6 or M8 hardware only. -
Page 8: Attach Tv To Mount
VIZIO VMT40-55M User Manual Attach TV to Mount Caution: For safety, we recommend having two people lift the TV onto the mount. 1. Remove both safety screws from the bottom of each bracket. 2. Lift TV onto mount 3. Replace safety screws into bottom of brackets and tighten to secure to mount. -
Page 9: Connect Cables
VIZIO VMT40-55M User Manual Connect Cables Caution: Do not run any cables near moving parts. 1. Tilt TV up and insert pin [04] into the “UP” position. See next step. 2. Insert IR receiver jack [07] into the control box, and attach the head of the IR receiver to the bottom of the TV so it is visible from the front. -
Page 10: Optional: Adjust Upright Position Of The Tv
VIZIO VMT40-55M User Manual Optional: Adjust upright position of the TV If desired, adjust the upright position of the TV by ± 2º by turning the bottom screw on the motorized bracket [02]. www.VIZIO.com... -
Page 11: Adjust Tilt For Viewing
VIZIO VMT40-55M User Manual Adjust Tilt for Viewing Tighten the pin [04] into: • P1 for maximum tilt of ~ 6º • P2 for maximum tilt of ~ 9º • STORE for full 13º tilt down, and to store the pin •... -
Page 12: Using The Remote Control
VIZIO VMT40-55M User Manual Using the Remote Control Remote Buttons Function Description Up Key ▲ Tilts the TV up. Down Key ▼ Tilts the TV down to a maximum of 13º STOP Stops the movement AUTO The factory default setting is Auto-Mode. If your TV is... -
Page 13: Troubleshooting Guide
If the VMT40-55M fails to operate, or the performance changes dramatically, check the operation in accordance with the following instructions. If the VMT40-55M still fails to perform as expected, contact the VIZIO for assistance by calling 1-877-MYVIZIO (1-877-698-4946) or e-mail us at techsupport@vizio.com. -
Page 14: Telephone & Technical Support
Covers units purchased as new in United States and Puerto Rico Only VIZIO warrants for a period of one (1) year from the date of purchase to the original purchaser of its mounting brackets, that the bracket shall be free from defects in assembly, material, or workmanship and will repair or replace, at its sole discretion, a defective bracket free of charge, provided the bracket is returned to VIZIO with shipping prepaid by purchaser. - Page 15 VIZIO determines that the VIZIO bracket has been improperly installed, altered in any way or tampered with; or if it is determined by VIZIO that the damage did not result from the VIZIO product’s failure or that in fact no occurrence took place; or the repair or replacement of the damaged Component is covered under a manufacturer’s warranty;...
