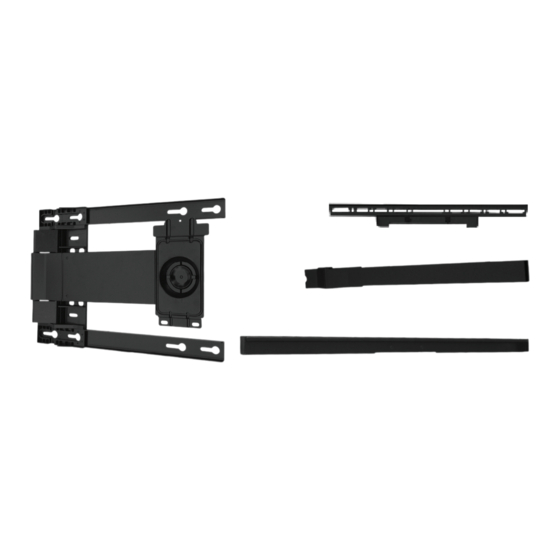

Vizio XMA1200 Quick Install Manual

Full articulating mount universal for 40” - 60” tvs up to 120 lbs

Advertisement

Quick Links

FULL ARTICULATING MOUNT
UNIVERSAL FOR 40" - 60" TVS UP TO 120 LBS
XMA1200 - QUICK INSTALL GUIDE

Advertisement

loading

Summary of Contents for Vizio XMA1200

  • Page 1 FULL ARTICULATING MOUNT UNIVERSAL FOR 40” - 60” TVS UP TO 120 LBS XMA1200 - QUICK INSTALL GUIDE...
  • Page 2: Important Safety Information

    IMPORTANT SAFETY INFORMATION Read the Important Safety Information on this page before installing or using this mounting system. Always follow the instructions in this Quick Install Guide. VIZIO is not liable for damage or injury caused by incorrect mounting, assembly, or use.
  • Page 3: Step 1 - Before You Begin

    STEP 1 - BEFORE YOU BEGIN TWO-PERSON JOB Before you begin the installation, ensure you have all of the items listed on this page. Do not begin the installation unless you have all of the following items. Mounting a TV requires power tools. If you are unfamiliar with safe power tool use, consult a professional installer.
  • Page 4 STEP 2 - REVIEW THE PACKAGE CONTENTS Before you begin, ensure all parts are included and undamaged. To prevent loss, do not unpack the small parts until they are required. If any parts are missing or damaged, contact VIZIO Customer Service (877) 698-4946. (Attached to Mount) Quick Install Guide &...
  • Page 5 ANCHOR MISC...
  • Page 6 STEP 3 - CHOOSE THE DIRECTION OF SWING ARM The mount features an arm designed to swing away from the wall like a door. Like a door, the mount can swing open to the left or to the right. Before you begin the installation, you must decide which direction you want the arm to swing–to the left or to the right.
  • Page 7 If you want the mount to swing to the right: 1. Lay the mount on the floor. Using the screwdriver, remove the 2 philips-head screws as shown. 2. Hold down the mount as shown and swing the arm away from Swing Arm the mount.
  • Page 8 4. Gently separate the arm from the mount. Separate Arm from Mount 5. Flip the arm over, then gently reattach the arm to the mount. Flip Over Then Reattach 6. Using the phillips-head screwdriver, replace the 6 phillips-head screws. Note that the tab should be on the top of the arm. The arm is ready to swing to the right.
  • Page 9 STEP 4 - SET THE LENGTH OF SWING ARM If you are mounting a 40 - 52” TV, you can adjust the swing arm so that more of the mount is hidden behind the TV screen. 40 - 48” 50 - 52” 55 - 60”...
  • Page 10 3. Push on the end of the swing arm to shorten it. Ensure the holes for the screws are aligned with the correct holes for your TV’s size: • For TVs 40 - 48” use the innermost holes. • For TVs 50 - 52” use the middle holes. •...
  • Page 11 STEP 5A - MOUNTING TO A WALL WITH WOOD STUDS The mount can be attached to walls with wood studs. The wall covering (drywall, lath, plaster, etc.) may not be thicker than 1/2”. To attach the mount: 16” 1. Use the electronic stud finder to locate two studs in the wall. The studs should be approximately 16”...
  • Page 12 3. Using the power drill and the 7/32” drill bit, drill into the top two template holes. Drill about 2” into the studs. Remove the template from the wall. 4. Remove 2 lag bolts and 2 washers from the pouch labeled LAG. Use a wrench to insert the lag bolts and washers into the holes you just drilled.
  • Page 13 5. Remove the plastic covers from the mount. Use the thumb holes to lift the covers away from the mount. Save the plastic covers. They will be reattached in Step 7. Use the Thumb Hole Mount, then slide 6. Hang the mount on the wall using the 2 lag bolts, then slide the mount so the lag bolts are resting in the narrow part of the slot.
  • Page 14 7. Ensure the mount is level. Make any necessary adjustments, then use a wrench to tighten the top 2 lag bolts. Ensure the bottom mount holes are over a stud. Using the power drill and the 7/32” drill bit, drill 2 holes in the bottom two mount holes.
  • Page 15 STEP 5B - MOUNTING TO A CONCRETE WALL 1. Hold the template against the wall, using the level to level the Level template. When the template is level, tape it in place. 2. Using the power drill and the 1/2” drill bit, drill into 6 of the template holes as shown.
  • Page 16 3. Remove 6 anchors from the pouch labeled ANCHOR. Push the anchors into the holes you just drilled. Ensure the anchors are completely inserted and flush with the wall. 4. Remove 6 lag bolts and 6 washers from the pouch labeled LAG. Use a wrench to tighten the lag bolts and washers into the anchors.
  • Page 17 5. Remove the plastic covers from the mount. Save the plastic covers. They will be reattached in Step 7. 6. Hang the mount on the wall using the 6 lag bolts, then slide the Mount, then slide mount so the lag bolts are resting in the narrow part of the slot. Verify that the mount is level.
  • Page 18 STEP 6 - ATTACHING THE TV BRACKETS 1. Gently place the TV on the floor screen-down. You may want to place a rug or blanket beneath the screen to prevent scratches. Mounting Holes In your TV’s User Guide, find the size of your TV’s mounting holes. These will be listed as M4, M5, M6, or M8.
  • Page 19 3. Using the screwdriver, insert the screws, star washers, and washers as shown. Because each TV is different, your VIZIO TV mount includes screws of different lengths. Use screws that can be inserted completely. Do not use a short screw if a longer screw can be inserted completely.
  • Page 20 4. Center the horizontal brackets over the vertical brackets as shown. Open the pouch labeled Sec X1 and remove 4 nuts and their 4 matching screws. 5. Insert the screws through both the horizontal and vertical TV brackets. Ensure you attach both the top and bottom horizontal brackets.
  • Page 21 STEP 7 - HANGING THE TV ON THE MOUNT This step requires lifting the TV. To prevent injury to yourself or damage to your TV, perform this step with the help of another person. Swing Arm Away 1. Swing the arm away from the mount. 2.
  • Page 22 3. Remove the locking tool and 2 security screws from the pouch labeled Sec X1. Using the locking tool, insert and tighten the 2 security screws as shown. Locking Tool 4. Place the locking tool inside one of the mount brackets, then snap the plastic covers back into place.
  • Page 23: Step 6 - Final Adjustments

    STEP 6 - FINAL ADJUSTMENTS Using the included zip-ties, you can bundle and hide your TV’s cables. 1. To bundle and hide your TV’s cables, take the 4 zip-ties and 4 sticky mounts from the pouch labeled Sec X1. Bundle the cables together and wrap them with zip-ties. Before closing the zip-ties, lace each one through a sticky mount as shown.
  • Page 24 If necessary , you can adjust both the swivel and tilt of the TV. Remove the allen wrench from the pouch labeled Sec X1. 1. Using the allen wrench, adjust the swivel tension by adjusting the top and bottom screws as shown. 2.
  • Page 25: Warranty

    ABILITY AND FITNESS FOR A PARTICULAR PURPOSE, SHALL BE LIMITED IN DURATION TO A VIZIO SERVICE CENTER. Proof of purchase in the form of a purchase receipt or copy TO THE PERIOD OF TIME SET FORTH ABOVE. VIZIO’S TOTAL LIABILITY FOR ANY AND ALL thereof is required to show that a Product is within the warranty period.
  • Page 26: Technical Support

    Customer support and quality service are integral parts of VIZIO’s commitment to service excellence. For technical assistance contact our VIZIO Technical Support Department via email or phone. Please have your VIZIO model number, serial number, and date of purchase available before your call. Address:...
  • Page 28 TRADEMARKS SHOWN ARE THE PROPERTY OF THEIR RESPECTIVE OWNERS. IMAGES USED ARE FOR ILLUSTRATION PURPOSES ONLY. VIZIO, THE V LOGO, WHERE VISION MEETS VALUE, AND OTHER VIZIO TRADEMARKS ARE THE INTELLECTUAL PROPERTY OF VIZIO INC. PRODUCT FEATURES AND SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
