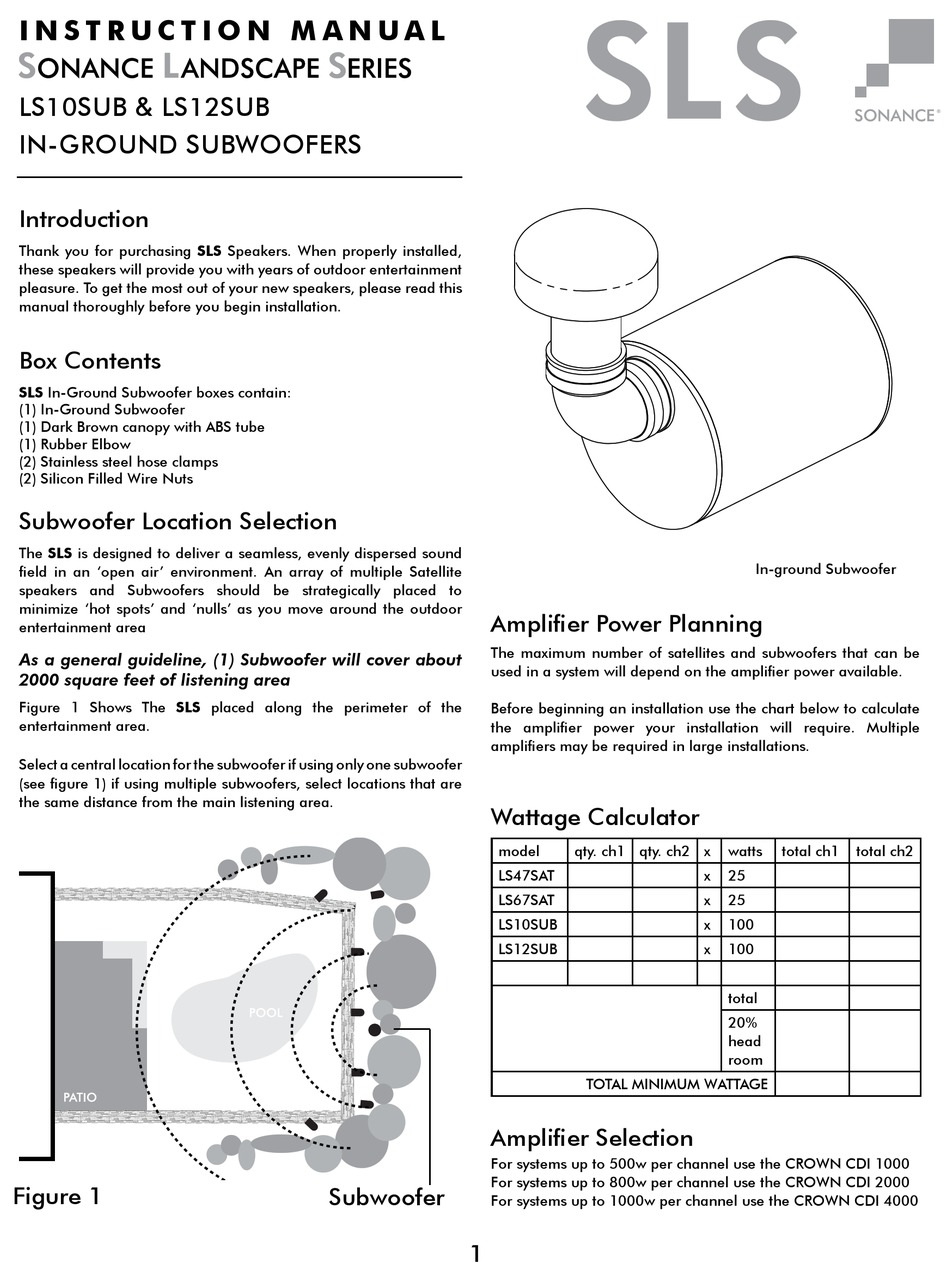

Sonance LS10SUB Instruction Manual

9.50" (241mm)
I n s t r u c t I o n M a n u a l
16.00" (406mm)
LS10SUB & LS12SUB
in-groUnd SUBwooferS
introduction
Thank you for purchasing sls Speakers. when properly installed,
these speakers will provide you with years of outdoor entertainment
pleasure. To get the most out of your new speakers, please read this
manual thoroughly before you begin installation.

Box Contents

sls in-ground Subwoofer boxes contain:

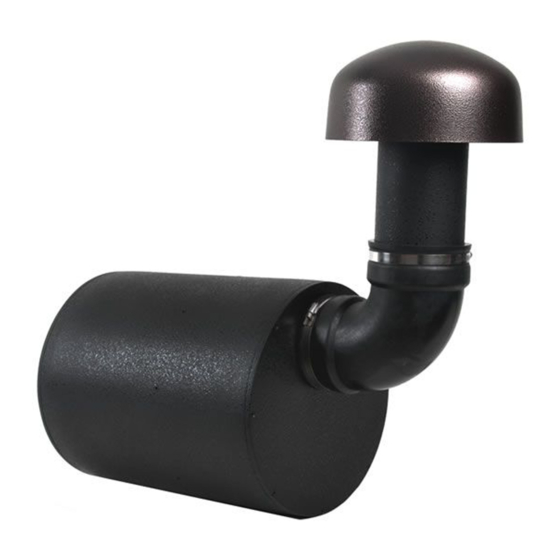

(1) in-ground Subwoofer
(1) dark Brown canopy with ABS tube
(1) rubber elbow
(2) Stainless steel hose clamps
(2) Silicon filled wire nuts
Subwoofer Location Selection
4.0" (102mm)
The sls is designed to deliver a seamless, evenly dispersed sound
field in an 'open air' environment. An array of multiple Satellite
speakers and Subwoofers should be strategically placed to
minimize 'hot spots' and 'nulls' as you move around the outdoor
entertainment area
As a general guideline, (1) Subwoofer will cover about
2000 square feet of listening area
figure 1 Shows The sls placed along the perimeter of the
entertainment area.
Select a central location for the subwoofer if using only one subwoofer
(see figure 1) if using multiple subwoofers, select locations that are
the same distance from the main listening area.
figure 1
Amplifier Power Planning
The maximum number of satellites and subwoofers that can be
used in a system will depend on the amplifier power available.
Before beginning an installation use the chart below to calculate
the amplifier power your installation will require. Multiple
amplifiers may be required in large installations.
wattage Calculator
model
LS47SAT
LS67SAT
LS10SUB
LS12SUB
Amplifier Selection
for systems up to 500w per channel use the Crown Cdi 1000
for systems up to 800w per channel use the Crown Cdi 2000
Subwoofer
for systems up to 1000w per channel use the Crown Cdi 4000
1
qty. ch1 qty. ch2 x watts
x 25
x 25
x 100
x 100
total
20%
head
room
TOTAL MINIMUM WATTAGE
in-ground Subwoofer
total ch1 total ch2
