I n s t r u c t I o n M a n u a l
sonance landscape series
®

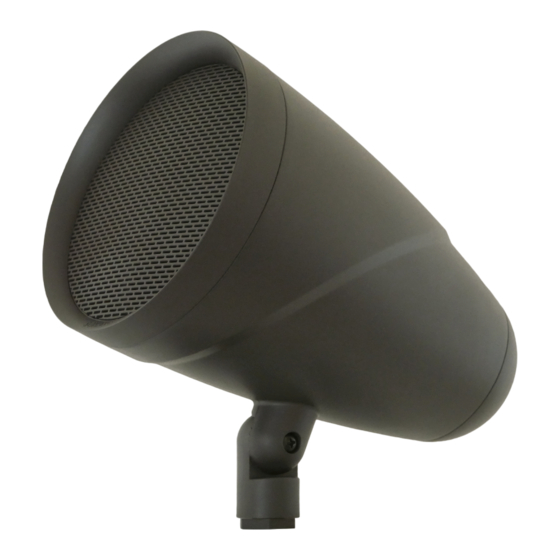

ls67saT & ls47saT speakers
introduction
Thank you for purchasing sonance landscape series speakers.
When properly installed, these speakers will provide you with years
of outdoor entertainment pleasure. To get the most out of your new
speakers, please read this manual thoroughly before you begin
installation.

Box contents

sonance landscape series satellite box contains:
(1) satellite speaker
(2) silicone Filled Wire nuts
satellite location selection
The sonance landscape series is designed to deliver a seamless,
evenly dispersed sound field in an 'open air' environment. An array
of multiple satellite speakers and subwoofers should be strategically
placed to minimize 'hot spots' and 'nulls' as you move around the
outdoor entertainment area. see Figure 1.
As a general guideline, (1) Satellite will cover about 250
square feet of listening area
select locations for the satellites that are as close as possible to the
same distance from the main listening area. When possible use high
and low locations to centralize the acoustic stage. See figure 2
Figure 1
Figure 2
Amplifier Power Planning
The maximum number of satellites and subwoofers that can be
used in a system will depend on the quantity of amplifier power
available.
Before beginning an installation use the chart below to calculate
the amplifier power your installation will require. Multiple
amplifiers may be required in large installations.
Wattage calculator
Model qty. ch1 qty. ch2 x
ls47saT
ls67saT
ls67W
ls10sUB
TOTAL MINIMUM WATTAGE
Amplifier Selection
For systems up to 500w per channel use the croWn cdi 1000
For systems up to 800w per channel use the croWn cdi 2000
For systems up to 1000w per channel use the croWn cdi 4000
1
ls47saT
landscape series satellite speaker
watts total ch1
x 25
x 25
x 25
x 100
total
20%
head
room
total ch2
