FUSES AND RELAYS

Fuses
If electrical components in the
vehicle are not working, a fuse may
have blown. Blown fuses are
identified by a broken wire within
the fuse. Check the appropriate
fuses before replacing any electrical
components.
Note: Always replace a fuse with one that has the specified amperage
rating. Using a fuse with a higher amperage rating can cause severe wire
damage and could start a fire.

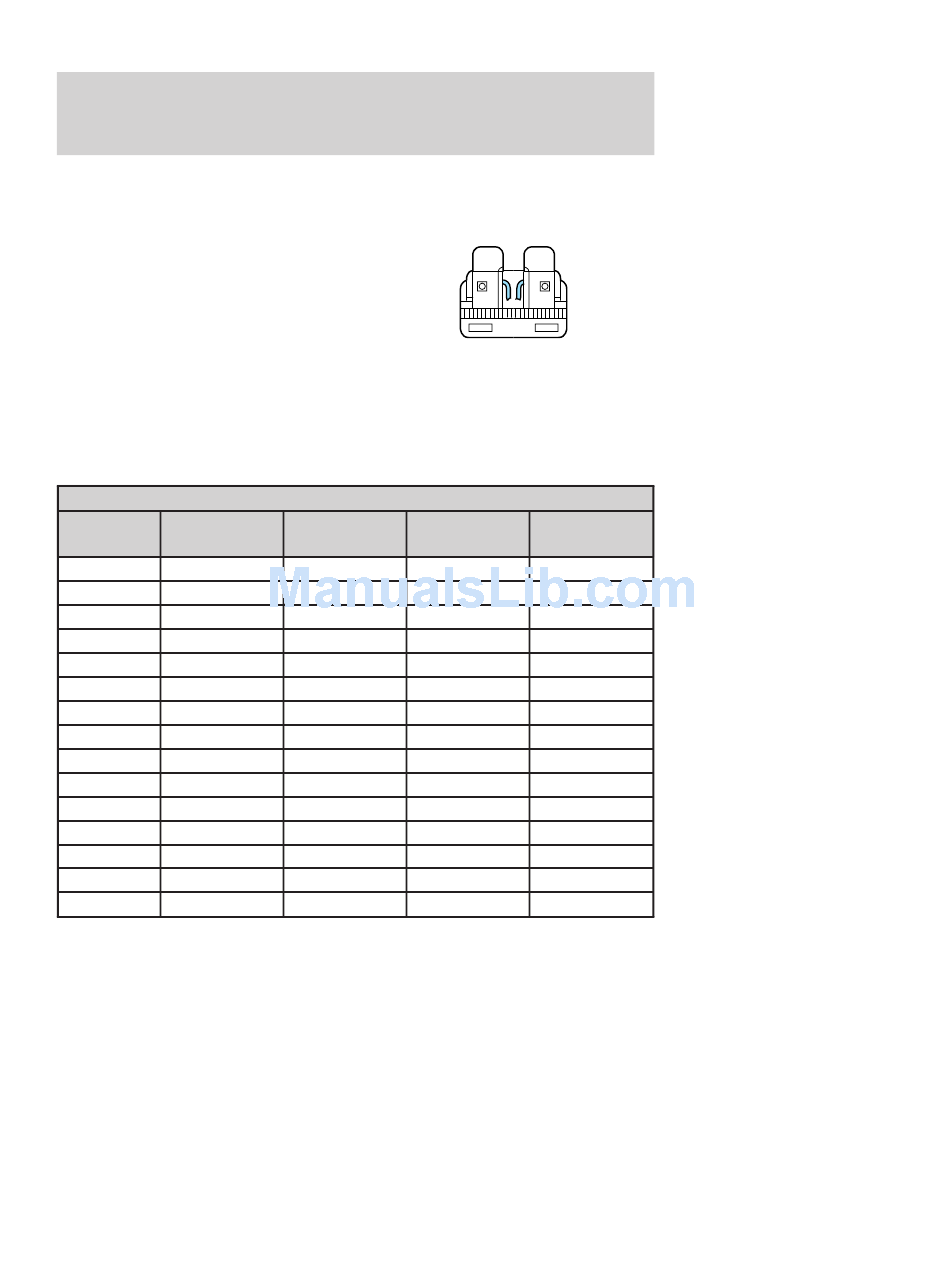

Standard fuse amperage rating and color

Fuse
Mini fuses
rating
2A Grey
3A Violet
4A Pink
5A Tan
7.5A Brown
10A Red
15A Blue
20A Yellow
25A Natural
30A Green
40A —
50A —
60A —
70A —
80A —
2008 07+ Explorer Sport Trac (esp)
Owners Guide (post-2002-fmt)
USA (fus)
Roadside Emergencies
COLOR
Standard
Maxi fuses
fuses
Grey —
Violet —
Pink —
Tan —
Brown —
Red —
Blue —
Yellow Yellow
Natural —
Green Green
— Orange
— Red
— Blue
— Tan
— Natural
15
Cartridge
maxi fuses
—
—
—
—
—
—
—
Blue
—
Pink
Green
Red
Yellow
—
—
283
