The information included in this Repair Manual
may change without notice.
Please see our website
www.splendide.com/service/docs.html
for more information.
Splendide
T E C H N I C A L E D U C AT I O N
G R O U P P R E S E N T S
®

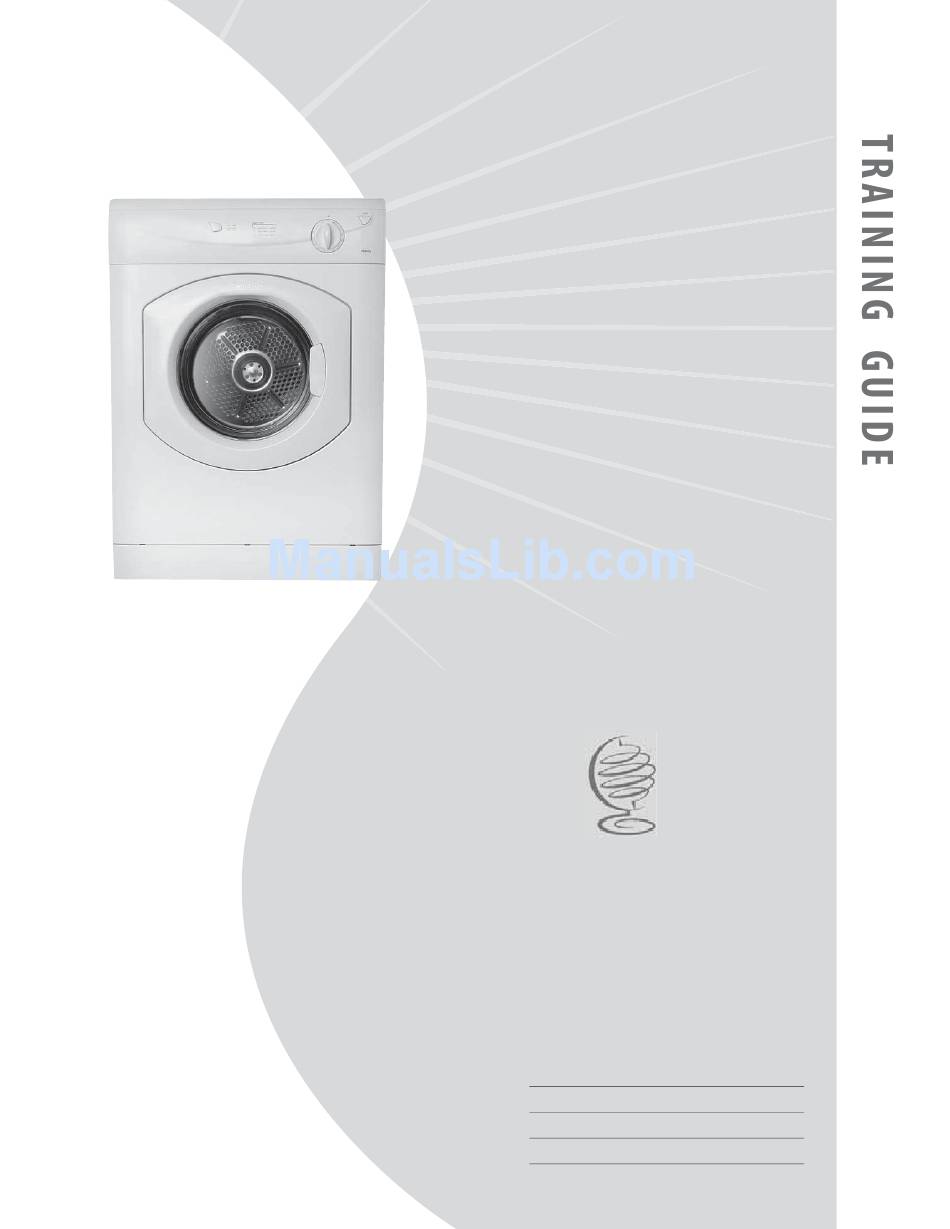

AS66VX (Ariston Dryer by Splendide)
120V Automatic Vented Dryer
Training Guide
Part No. TRAINMAN66
1
Advertisement
Table of Contents
Related Manuals for Splendide AS66VX
Summary of Contents for Splendide AS66VX
- Page 1 T E C H N I C A L E D U C AT I O N G R O U P P R E S E N T S AS66VX (Ariston Dryer by Splendide) 120V Automatic Vented Dryer Training Guide...
-
Page 2: Table Of Contents
Organization Safety Notes and General Servicing Advice Technical Specifi cations Machine Function Component Description Dismantling Instructions 8-17 A. Top Cover 5 - 7 B. Control Panel C. Program Timer 8 - ? D. Starting Reley E. Option Switches F. Side Panels G. -
Page 3: Technical Specifi Cations
Technical specifications... -
Page 4: Machine Function
louvers Machine function... -
Page 5: Component Description
bottom panel. bottom panel, Component Description... - Page 6 button (WHITE DOT) (PURPLE DOT) (BLUE DOT) Component Description...
-
Page 7: Component Description
Component Description... -
Page 8: Dismantling Instructions
DISMANTLING INSTRUCTIONS • Ensure that the machine is unplugged. • Beware of sharp edges on metal panels and parts. TOP COVER Remove the 2 screws securing the top cover to the back panel (see right). Slide the top cover back and lift clear of the control panel. -
Page 9: Program Timer 8
C. PROGRAM TIMER Remove the top cover as in (A). Remove the 2 screws securing the timer mounting plate to the control panel and unclip the timer mounting plate from the control panel. Remove the 2 screws securing the timer to the mounting plate. -
Page 10: Side Panels
F. SIDE PANELS Remove the top cover as in (A). Remove the screws securing the side to the base panel. Remove the lower panel by popping the top edge out then the bottom. Pull the side panel backward to Remove the screw behind the lower disengage from the lugs on the base panel. -
Page 11: Front Panel & Air Duct
G. FRONT PANEL & AIR DUCT H. ENERGY SAVE THERMOSTATS Remove the top cover as in (A). 1. Remove the right hand side panel as in (F) above, or the front panel as in (G) Remove the complete control panel as in (B7). -
Page 12: Door Switch
I. DOOR SWITCH J. DOOR SEAL 1. Remove the top cover as in (A). 1. Remove the front panel and air duct as in (G). 2. Remove the right hand side panel as in (F). 2. Remove the 4 screws securing the air duct 3. -
Page 13: Door
K. DOOR L. DOOR HINGES 1. Open the door and remove the 4 screws se- 1. The door must be removed and split as curing the door assembly to the front panel. (L1)-(6) above. 2. Turn the door hinges inwards and slide the hinge upwards to disengage from the rear trim molding. -
Page 14: Drive Belt Removal/Replacement
O. CAPACITOR N. DRIVE BELT REMOVAL NOTE: Ensure the capacitor is discharged (IF NOT BROKEN) completely before proceeding. 1. Remove the right hand side panel as in (E). 1. Remove the right hand side panel as in (F) 2. Slide the belt off the drum and pass be- 2. -
Page 15: Drum Assembly
Q. MOTOR P. DRUM ASSEMBLY 1. Remove the top cover as in (A) 1. Remove the right hand side panel as in (F). 2. Remove the 8 screws that secure the heat- 2. Remove the control panel as in (B) er cover. -
Page 16: Rear Seal
R. REAR SEAL 4. Note the wire locations and disconnect the 1. Remove the drum as in (M). wires from the motor going to the capacitor. 2. Remove the rear seal and clean any rem- nants of the seal and adhesive from the 5. -
Page 17: Heating Assembly & Thermostats
S. HEATING ASSEMBLY & THERMOSTATS 1. Remove the right hand side panel as in assembly to the rear panel. (F). NOTE: If only changing T-Stats go to 5. Remove the 2 screws securing the element step 3. 2. Disconnect the wiring harness to the heater assembly. - Page 18 Wiring diagram...
-
Page 19: Wiring Diagram
AS66VX ELECTRICAL SCHEMATIC BLACK ORANGE LOWER HEATER CUTOUT UPPER SHOT DOT) (PURPLE STAT SAVING ENERGY BLACK WHITE WHITE RELAY Wiring diagram... - Page 20 Splendide ® © C o p y r i g h t 2 0 0 4 , W e s t l a n d S a l e s , C l a c k a m a s , O R 9 7 0 1 5...
