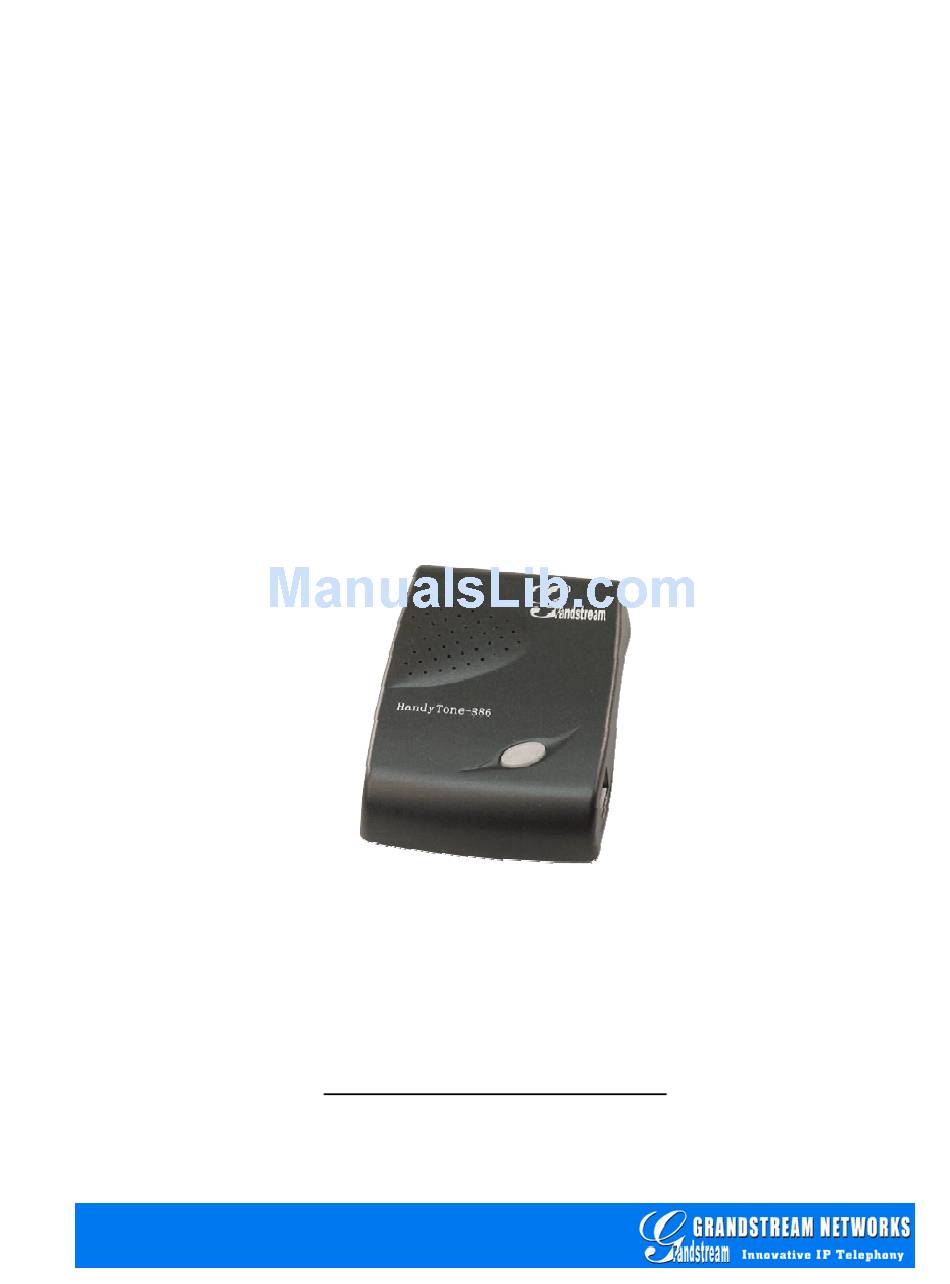

- Page 1 User Manual HandyTone-386 Analog Telephone Adaptor For SW Release Version 1.0.2.5 Grandstream Networks, Inc. www.grandstream.com...
-
Page 2: Table Of Contents
PGRADE THROUGH TFTP ...28 PGRADE THROUGH RESTORE FACTORY DEFAULT SETTING ...30 Table of Contents ...6 ...8 ...9 OICE ROMPT ...13 NDICATION -386 WAN IP THROUGH OICE -386 ...14 WITH ROWSER ...26 ENTRAL ERVER ) ...28 PENDING Grandstream Networks, Inc..14 ROMPT... -
Page 3: Welcome
HandyTone-386 User Manual Grandstream Networks, Inc. Welcome Congratulations on becoming an owner of HandyTone-386. You made an excellent choice and we hope you enjoy all of its capabilities. Grandstream's HandyTone-386 is an all-in-one VoIP integrated access device that features superb audio quality, rich functionalities, high level of integration, compactness and ultra-affordability. -
Page 4: Installation
Cordless Phone Installation RJ11 Line Port (Line ) RJ11 FXS Port (Phone) Internet ADSL/Cable Modem Ethernet FXS 1 FXS 2 LINE Phone Line Grandstream Networks, Inc. Side Views +5V/1200mA RJ45 10M Ethernet RJ11 FXS Port (Fax) Analog Phone Cordless Phone... - Page 5 Ethernet cable to an uplink port (a router or a modem, etc.) 5. Insert the power adapter into the HandyTone-386 and connect it to a wall outlet. Please follow the instructions in section 6.2.1 to configure the HandyTone-386. Grandstream Networks, Inc.
-
Page 6: What Is Included In The Package
Information in this document is subject to change without notice. No part of this document may be reproduced or transmitted in any form or by any means, electronic or mechanical, for any purpose without the express written permission of Grandstream Networks, Inc.. What is Included in the Package... -
Page 7: Product Overview
TFTP or HTTP • Support firmware upgrade via TFTP or HTTP (pending) with encrypted configuration files. • Ultra compact (wallet size) and lightweight design, great companion for travelers • Compact, lightweight Universal Power adapter. Product Overview Grandstream Networks, Inc. -
Page 8: Hardware Specification
1x PSTN pass-through or life line port Green and red color Input: 100-240VAC 50-60 Hz Output: +5VDC, 1200mA, UL certified 70mm (W) 130mm (D) 27mm (H) 0.6lbs (0.3kg) 40 - 130 5 – 45 10% - 90% (non-condensing) Grandstream Networks, Inc. -
Page 9: Basic Operations
This menu can also be entered by pressing the button again Enter “9” to dial pre-configured phone number to retrieve VM Enter “9” to reboot the phone Enter encoded MAC address to restore factory default setting Automatically returns to main menu Grandstream Networks, Inc. Options... -
Page 10: Make Phone Calls
“*4” (encoding for “:”) followed by the encoded port number. Following is a table of the encoding scheme for the most commonly used characters: Input Meaning . (dot character) : (column character) Grandstream Networks, Inc. -
Page 11: Blind Transfer
1. A presses FLASH (on the analog phone, or Hook Flash for old model phones) to get a dial tone. 2. A dials C’s number then # (or wait for 4 seconds). A and C are now in conversation. 3. A can hang up. Grandstream Networks, Inc. -
Page 12: 3-Way Conferencing
To use this feature, dial “*72” and get the dial tone. Then dial the forward number and “#” for a dial tone, then hang up. Cancel Unconditional Call Forward To cancel “Unconditional Call Forward”, dial “*73” and get the dial tone, then hang up. Busy Call Forward Grandstream Networks, Inc. Call Features... -
Page 13: Pstn Pass Through / Life Line
Message Waiting Indication RINGING RINGING INTERVAL Button flashes every 2 seconds (if DHCP is configured) Button flashes every 2 seconds (if SIP server is configured) Button flashes every 2 seconds Button flashes at 1/10 second Button flashes every second Grandstream Networks, Inc. -
Page 14: Configuration Guide
Phone-IP-Address is the IP address of the phone. 6.2.2 End User Configuration Once this HTTP request is entered and sent from a Web browser, the HandyTone-386 will respond with the following login screen: Configuration Guide http://Phone-IP-Address Grandstream Networks, Inc. - Page 15 " GMT-6:00 (US Central Time, Chicago)" Daylight Savings Time: Grandstream Device Configuration Login All Rights Reserved Grandstream Networks, Inc. 2005 Grandstream Device Configuration (purposely not displayed for security protection) dynamically assigned via DHCP (default) or PPPoE PPPoE account ID:...
- Page 16 Software Version: Program-- 1.0.2.5 Bootloader-- 1.0.1.0 HTML-- 1.0.0.5 VOC-- 1.0.0.10 System Up Time: 0 day(s) 4 hour(s) 43 minute(s) Registered: Yes PPPoE Link Up: disabled detected NAT type is symmetric NAT Grandstream Device Configuration All Rights Reserved Grandstream Networks, Inc. 2004 Grandstream Networks, Inc.
-
Page 17: Advanced User Configuration
SIP configuration, Codec selection, NAT Traversal Setting and other miscellaneous configuration. Following is a snap shot of the advanced configuration page. Grandstream Device Configuration Login All Rights Reserved Grandstream Networks, Inc. 2004 Grandstream Device Configuration Grandstream Networks, Inc. - Page 18 (can be identical to or different from SIP User ID) (purposely not displayed for security protection) (optional, e.g., John Doe) (in minutes. default 1 hour, max 45 days) (default 5062) (1024-65535, default 5008) Yes (if Yes, Call Forwarding & Call-Waiting-Disable are supported Grandstream Networks, Inc. via SIP INFO...
- Page 19 Yes (use "Yes" only if proxy supports 484 response) (this prefix string is added to each dialed number) (in seconds, default is 4 seconds) Yes (if set to Yes, "#" will function as the "(Re-)Dial" key) Grandstream Networks, Inc. via SIP INFO (0-7)
- Page 20 Lock keypad update: PSTN access code: Syslog Server: current setting is "NONE" Syslog Level: All Rights Reserved Grandstream Networks, Inc. 2004 Admin Password This contains the password to access the Advanced Web Configuration page. This field is case sensitive. SIP Server SIP Server’s URI or IP address...
- Page 21 SDP message. The first Vocoder in this list can be entered by choosing the appropriate option in “Choice 1”. Similarly, the last Vocoder in this list can be entered by choosing the appropriate option in “Choice 7”. Grandstream Networks, Inc.
- Page 22 Precedence or Diff-Serv or MPLS. Default value is 48. This contains the value used for layer 2 VLAN tag. Default setting is Layer 2 QoS blank. Use DNS SRV: Default is No. If set to Yes the client will use DNS SRV for server lookup Grandstream Networks, Inc.
- Page 23 3 attempts before timeout and then it will start the boot process using the existing code image in the Flash memory. If a TFTP server is configured and a new code image is retrieved, the new downloaded image will be verified and then saved into the Flash memory. Grandstream Networks, Inc.
- Page 24 If this parameter is set to “Yes”, the configuration update via keypad is update disabled. Syslog Server The IP address or URL of System log server. This feature is especially useful for ITSP (Internet Telephone Service Provider) Grandstream Networks, Inc.
-
Page 25: Saving The Configuration Changes
SIP message (DEBUG level) SIP message summary (INFO level) inbound and outbound calls (INFO level) registration status change (INFO level) negotiated codec (INFO level) Ethernet link up (INFO level) SLIC chip exception (WARNING and ERROR levels) memory exception (ERROR level) Grandstream Networks, Inc. -
Page 26: Rebooting The Handytone-386 From Remote
“cfg.txt” and the other is “cfg000b82xxxxxx”, where Grandstream Device Configuration They will take effect on next reboot. All Rights Reserved Grandstream Networks, Inc. 2004 Grandstream Device Configuration The device is rebooting now... Click to relogin All Rights Reserved Grandstream Networks, Inc. - Page 27 HandyTone-386 User Manual Grandstream Networks, Inc. “000b82xxxxxx” is the MAC address of the HandyTone ATA. For more information regarding configuration file format, please refer to the related Grandstream documentation. The configuration file can be downloaded via TFTP or HTTP from the central server. A service...
-
Page 28: Software Upgrade
TFTP process may take as long as 1 to 20 minutes over the Internet, or just 20+ seconds if it is performed on a LAN. Users are recommended to conduct TFTP upgrade in a controlled LAN environment if possible. For those who do not have a local TFTP server, Grandstream provides a Software Upgrade Grandstream Networks, Inc. - Page 29 TFTP or HTTP server log can be ignored. TFTP Error from [IP ADRESS] requesting cfg000b82023dd4 : File does not exist TFTP Error from [IP ADRESS] requesting cfg.txt : File does not exist Grandstream Networks, Inc.
-
Page 30: Restore Factory Default Setting
2. Enter “99” and get the voice prompt “Reset”. 3. Enter the encoded MAC address of the device. A "click" sound will be heard. 4. Wait for 15 seconds. The device is now restored to the factory default setting. Restore Factory Default Setting Grandstream Networks, Inc.
