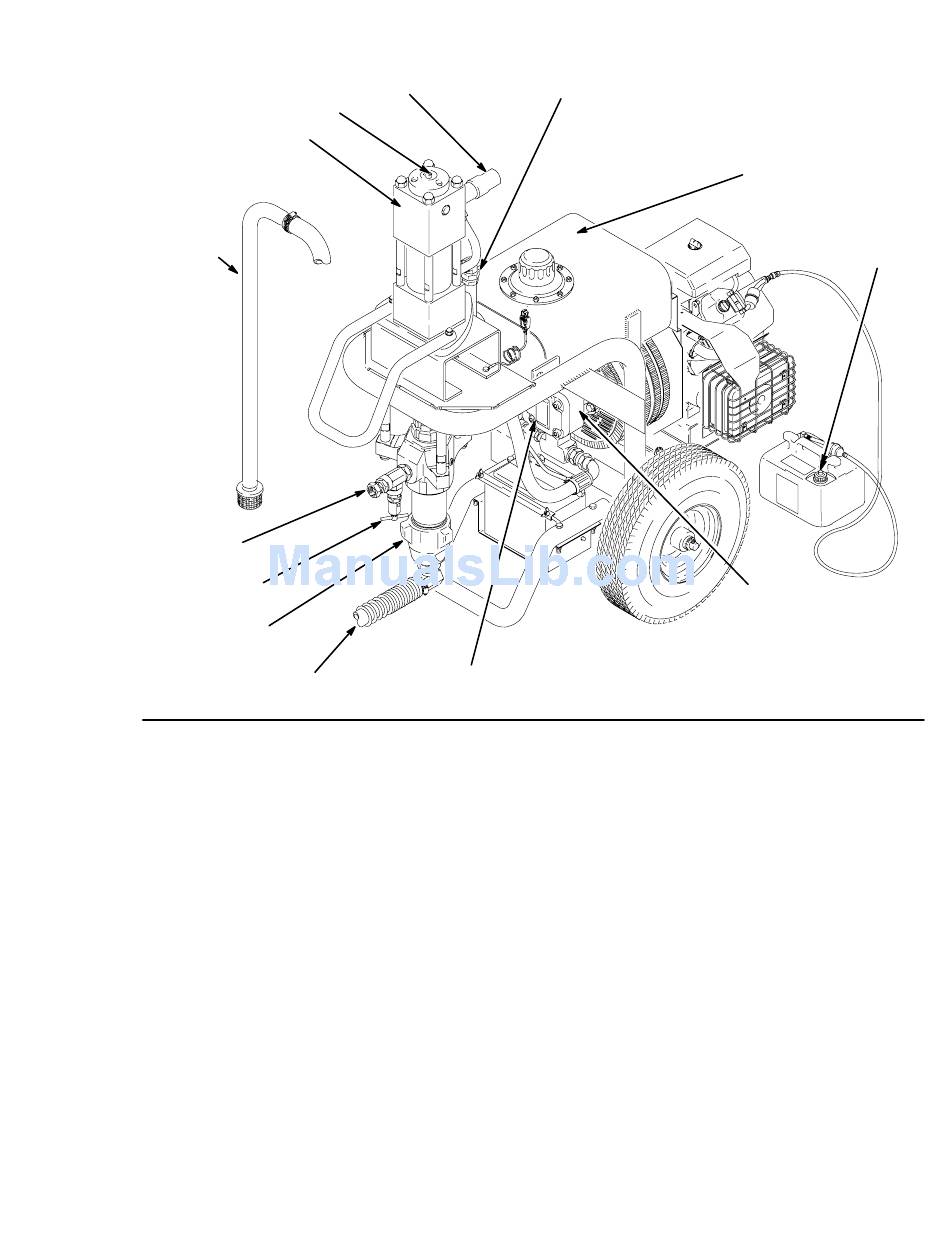

HYDRAULIC RETURN LINE TO MOTOR
MOTOR RESET BUTTON
HYDRAULIC MOTOR
SUCTION TUBE
OUTLET
FITTING
PRESSURE
DRAIN VALVE
DISPLACEMENT PUMP
SUCTION HOSE
Fig 1
1. Connect the Hose and Gun
a. Remove the plastic cap plug from the outlet
tee and screw an accessory, conductive or
grounded spray hose onto the 1/4 npsm(f) out-
let fitting. See Fig 1.
b. Connect a small diameter, 3 ft (0.9 m) whip
hose between the main hose and a spray gun,
if desired, for more flexible gun movement.

Component Identification

HYDRAULIC SUPPLY LINE TO MOTOR
PRESSURE
CONTROL KNOB
9089d

Setup

c. Don't use thread sealant on the swiveling nut
of the hose couplings, and don't install the
spray tip yet.
NOTE: Use thread sealant on all male threads except at
swivel unions. Swivel unions are made to self–
seal, and using thread sealant prevents the
swivel from turning freely.
2. Fill the Packing Nut/Wet Cup 1/3 full with Graco
Throat Seal Liquid (TSL), supplied. See Fig. 2.
HYDRAULIC
RESERVOIR
GASOLINE
FILL CAP
HYDRAULIC
PUMP
307616 5
