www.fishman.com
USER GUIDE
PREFIX PRO BLEND

Advertisement

loading

Related Manuals for Fishman PREFIX PRO BLEND

Summary of Contents for Fishman PREFIX PRO BLEND

  • Page 1 USER GUIDE PREFIX PRO BLEND...
  • Page 2 Welcome Thank you for making Fishman a part of your acoustic experience. We are proud to offer you the fi nest acoustic amplifi cation products available: high-quality professional-grade tools to empower you to sound your very best. We are confi dent the Prefi x Pro Blend will both enhance and inspire your music making.

  • Page 3: Quick Start

    Quick Start Before you begin, set the controls as shown: 1. Plug in: Use a ¼” instrument cable. 2. T urn up: Raise the Volume and adjust the Blend control to your liking. 3. Pickup tone: Adjust tone controls to your liking.

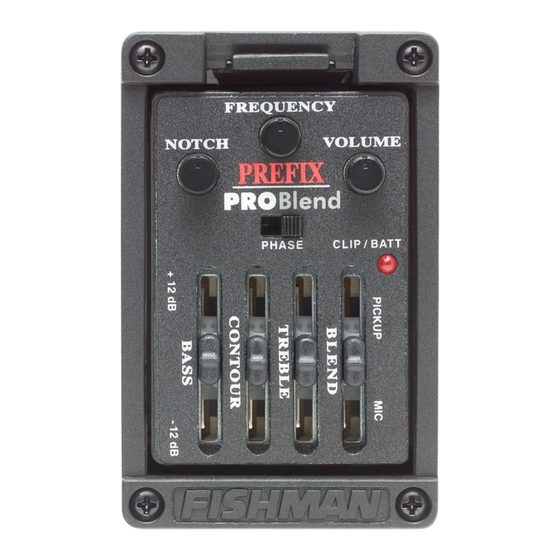

  • Page 4 Controls Volume: For the cleanest signal, set the Volume knob as high as possible, without causing distortion or feedback. Blend: Move the Blend slider to change the balance between the pickup and the microphone. Bass: Boost here to add depth and weight to the sound of the guitar. Note that this control only affects the pickup signal.
  • Page 5 Power Plug in the guitar, and the Prefi x Pro Blend switches on. The Battery LED will fl ash once at power-up to tell you the preamp is on. Low battery indicator When the Battery indicator lights steadily, it is time to change the battery. To conserve power, unplug the instrument when not in use.

  • Page 6: Sample Settings

    Sample Settings Fingerstyle “Scooped” mid This will add fullness to the bass and This setting emphasizes extreme bass defi nition to the treble. and treble.

  • Page 7: Electrical Specifications

    Electrical Specifi cations Nominal Input Level: -20dBV Input Impedance: 20MOhm Output Impedance: Less than 3.5kOhm Nominal Output Level: -12dBV THD: Less than .04 %, -20dBV input Noise Floor: -97dB Dynamic Range: 102dB Battery Life: 100hrs. Notch Filter Range: 30Hz – 300Hz (-15dB) Bass Control Frequency: 60Hz Treble Control Frequency:...
  • Page 8 www.fi shman.com 009-089-005 Rev C 4-09...
