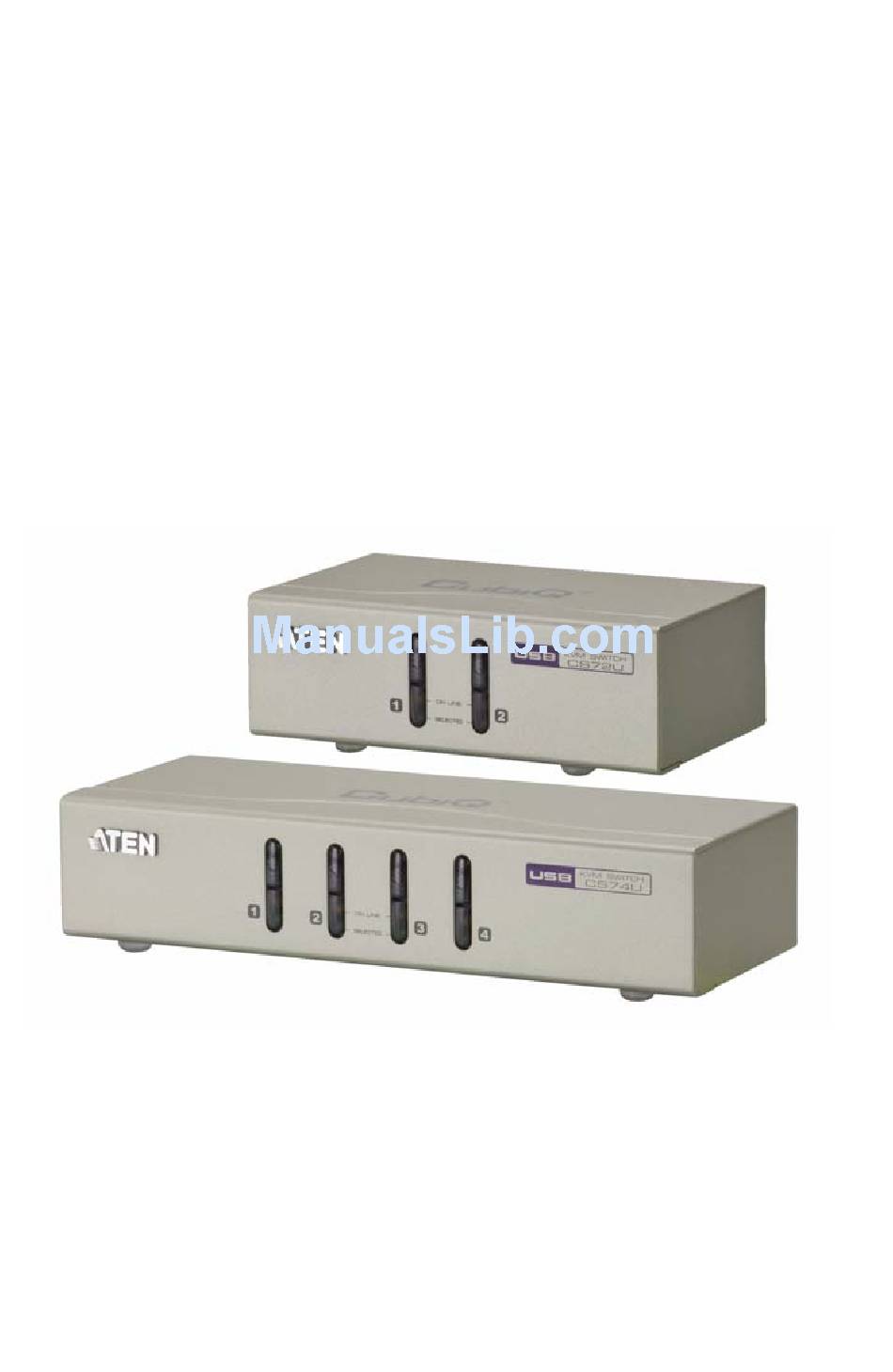

2/4-Port USB KVM Switch
CS72U / CS74U
User Manual
www.aten.com

Advertisement

Table of Contents
loading

Summary of Contents for ATEN CS72U

  • Page 1 2/4-Port USB KVM Switch CS72U / CS74U User Manual www.aten.com...
  • Page 2: Fcc Information

    CS72U / CS74U User Manual FCC Information This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 3: User Information

    CS72U / CS74U User Manual User Information Online Registration Be sure to register your product at our online support center: International http://support.aten.com North America http://www.aten-usa.com/product_registration Telephone Support For telephone support, call this number: International 886-2-8692-6959 China 86-10-5255-0110 Japan 81-3-5615-5811 Korea...
  • Page 4: Package Contents

    * Features may have been added to the CS72U / CS74U since this manual was published. Please visit our website to download the most up-to-date version of the manual.
  • Page 5: Table Of Contents

    CS72U Front View........
  • Page 6: About This Manual

    CS72U / CS74U User Manual About this Manual This User Manual is provided to help you get the most from your CS72U / CS74U. It covers all aspects of installation, configuration and operation. An overview of the information found in the manual is provided below.
  • Page 7: Conventions

    For information about all ATEN products and how they can help you connect without limits, visit ATEN on the Web or contact an ATEN Authorized Reseller. Visit ATEN on the Web for a list of locations and telephone numbers: International http://www.aten.com...
  • Page 8 CS72U / CS74U User Manual This Page Intentionally Left Blank viii...
  • Page 9: Introduction

    Since the CS72U / CS74U intercepts keyboard input directly, it will work on multiple computing platforms. There is no better way to save time and money than with a CS72U / CS74U installation. Since a single console manages all of the computers, the CS72U / CS74U setup: eliminates the expense of having to purchase separate console components for each computer;...
  • Page 10: Hardware Requirements

    Only KVM cable sets which are specifically designed to work with this switch may be used to link to the computers. Two (CS72U) or four (CS74U) cable sets are provided with this package. To order further cable sets, please see table,...
  • Page 11: Operating Systems

    Chapter 1. Introduction Operating Systems Supported operating systems are shown in the table, below: Version Windows 2000 / XP / 2003 / 2008 / Vista / 7 Linux RedHat 9.0 and higher SuSE 10 / 11.1 and higher Debian 3.1 / 4.0 Ubuntu 7.04 / 7.10 UNIX...
  • Page 12: Components

    CS72U / CS74U User Manual Components CS72U Front View 1 & 2 CS74U Front View 1 & 2...
  • Page 13 Chapter 1. Introduction Component Description Port For manual port selection: Selection Press and release a port selection pushbutton to bring the Pushbuttons KVM focus to the computer attached to its corresponding port. The Port LED lights green. Port LEDs The Port LEDs are built into the Port Selection Switches. Lights DIM ORANGE to indicate that the computer attached to the corresponding port is up and running (On Line).
  • Page 14: Cs72U Rear View

    CS72U / CS74U User Manual CS72U Rear View CS74U Rear View...
  • Page 15 Port this port. KVM Port Section The custom KVM cable sets that link the CS72U / CS74U to your computers plug in here. Each KVM port section is comprised of a single female SPHD- 18 port, which incorporates both the USB and VGA connection.
  • Page 16 CS72U / CS74U User Manual This Page Intentionally Left Blank...
  • Page 17: Hardware Setup

    Keyboard Power On function. Cable Connections To set up your CS72U / CS74U installation, refer to the installation diagram on the following page (the numbers in the diagrams correspond to the steps, below), and do the following: 1.
  • Page 18: Installation Diagram

    CS72U / CS74U User Manual Installation Diagram and / or CS74U Rear View (Optional) Custom KVM Cable Set Custom KVM Cable Set...
  • Page 19: Basic Operation

    Each KVM port section on the CS72U / CS74U switch is assigned a port number. (1 or 2 for the CS72U; 1 to 4 for the CS74U). The port numbers are marked on the rear panel of the switch (see page 6 for details).
  • Page 20 CS72U / CS74U User Manual This Page Intentionally Left Blank...
  • Page 21: Appendix

    Appendix Safety Instructions Read all of these instructions. Save them for future reference. Follow all warnings and instructions marked on the device. Do not place the device on any unstable surface (cart, stand, table, etc.). If the device falls, serious damage will result. Do not use the device near water.
  • Page 22 CS72U / CS74U User Manual If an extension cord is used with this device make sure that the total of the ampere ratings of all products used on this cord does not exceed the extension cord ampere rating. Make sure that the total of all products plugged into the wall outlet does not exceed 15 amperes.
  • Page 23: Technical Support

    Appendix Technical Support International For online technical support – including troubleshooting, documentation, and software updates: http://support.aten.com For telephone support, Telephone Support, page iii North America Email Support support@aten-usa.com Online Troubleshooting http://www.aten-usa.com/support Technical Documentation Support Software Updates Telephone Support 1-888-999-ATEN ext 4988 When you contact us, please have the following information ready beforehand: Product model number, serial number, and date of purchase.
  • Page 24: Specifications

    CS72U / CS74U User Manual Specifications Function CS72U CS74U Computer Connections Port Selection Front Panel Pushbuttons Connectors Console Keyboard 1 x USB Type A Female (Black) Ports Video 1 x HDB-15 Female (Blue) Mouse 1 x USB Type A Female (Black)
  • Page 25: Troubleshooting

    Appendix Troubleshooting Operation problems can be due to a variety of causes. The first step in solving them is to make sure that all cables are securely attached and seated completely in their sockets. In addition, updating the product’s firmware may solve problems that have been discovered and resolved since the prior version was released.
  • Page 26: About Sphd Connectors

    CS72U / CS74U User Manual About SPHD Connectors This product uses SPHD connectors for its KVM and/or Console ports. We have specifically modified the shape of these connectors so that only KVM cables that we have designed to work with this product can be connected.
