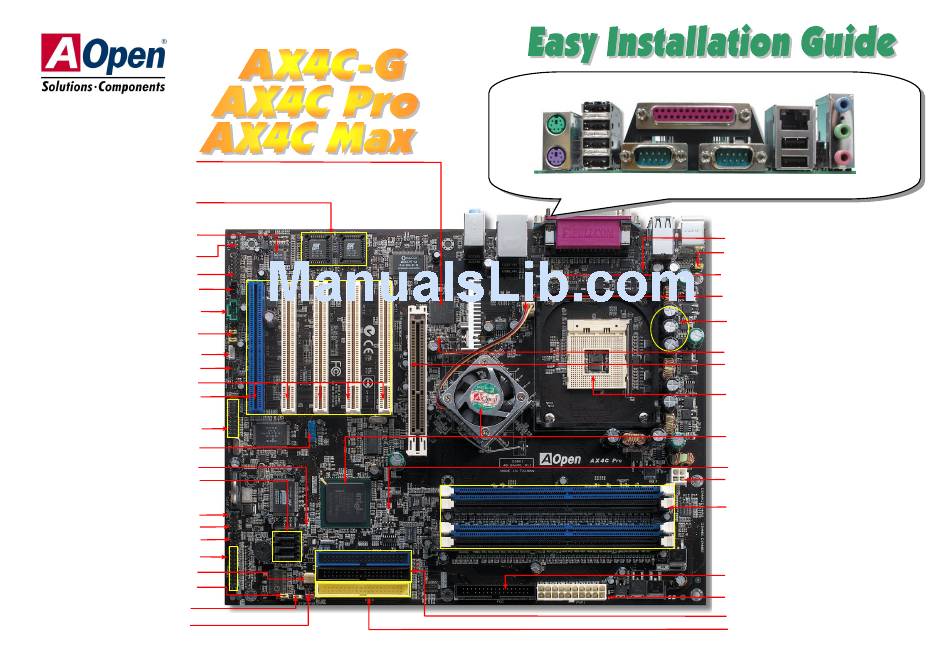

AOpen AX4C-G Easy Installation Manual

Broadcom 10/100Mbps LAN Chip
(For AX4C Pro only)
Broadcom Gigabit PCI LAN Chip
(For AX4C Max only)
Die-Hard BIOS 1 and BIOS 2
(For AX4C-G, AX4C Max)
(AX4C PRO, User Upgrade Optional)
Onboard AC'97 CODEC
(AX4C Pro, AX4C Max only)
S/PDIF Connector
(AX4C Pro, AX4C Max only)
GAME Connector
CD-IN Connector
(AX4C Pro, AX4C Max only)
AUX-IN Connector
(AX4C Pro, AX4C Max only)
Front Audio Connector
(AX4C Pro, AX4C Max only)
WOL (Wake on LAN) Connector
WOM (Wake on MODEM) Connector
32-bit PCI Expansion Slot x5
(Slot 5: Self-Powered PCI card that
supports high power-consuming PCI cards)
IEEE1394 Connectors x2
(AX4C Max only)
nd
Supports 2 USB (2.0) Connector
STBY LED
Serial ATA Ports x 4
(AX4C Max with RAID 0, 1, 0+1)
(AX4C Pro with RAID 0, 1 only)
Chassis Intrusion Connector
IrDA Connector
Dr. LED Connector
Front Panel Connector
SYSFAN3 Connector
JP24 DieHard BIOS Rescue Jumper
JP2 Dr. Voice Output Select Jumper
(AX4C Pro, AX4C Max only)
JP14 CMOS Clear Jumper
AOpen reserves the right to revise all the specifications and information contained in this documentation, which are subject to change without notice.
SPP/EPP/ECP
PS/2 Mouse
Parallel Port
Connector
PS/2 Keyboard
USB Port
COM 1 Port
Connector
(2.0)
RJ45 LAN Jack
(AX4C Pro, AX4C Max only
Line-In
Speaker Out
MIC-In
USB Port
COM 2 Port
(2.0)
Resetable Fuse
JP28 Keyboard/Mouse Wakeup
Enable/Disable Jumper
CPUFAN1 Connector with H/W
Monitoring Function
SYSFAN2 Connector
3300 F Low ESR Capacitors
μ
AGP LED
AGP slot
(For 1.5V AGP card only)
478-pin CPU socket with Voltage and
Frequency Auto-detection that supports
® ®
Intel Pentium 4 CPU
®
Intel 875P and ICH5 chipsets
ICH5R (AX4C Pro, AX4C Max)
ICH5 (AX4C-G)
BOOT LED
4-pin 12V. ATX Power Connector
184-pin DIMMx3 supports Dual
Channel DDR400/DDR333
(Max. to 4GB)
FDD Connector
ATX Power Connector
ATA33/66/100 IDE Connector x2
Promise ATA133 IDE Connector x1
(AX4C Max only)
