(AOpen reserves the right to revise all
the specifications
and information
contained in this document which is
subject to change without notice.)

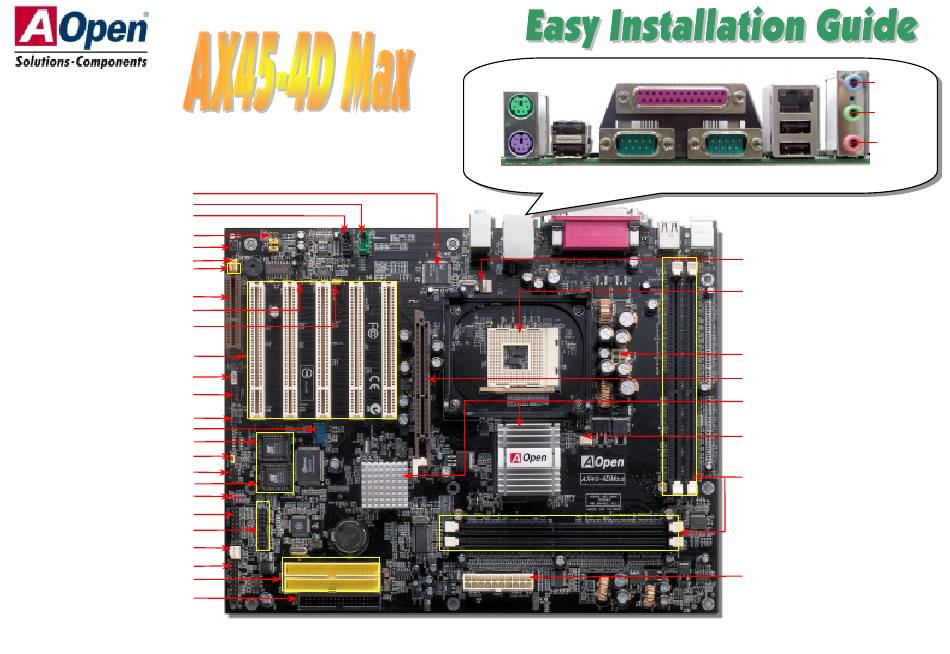

Realtek RTL8100BL LAN Chip
AUX-IN Connector
CD-IN Connector
Front Audio Connector
Dr. LED Connector
JP2 Dr. Voice Output Jumper
JP15/16 Dr. Voice Language Jumper
CNR Expansion Slot
S/PDIF Connector
JP28 Keyboard/Mouse Wakeup Jumper
32-bit PCI Expansion Slot x5
WOL Connector
WOM Connector
Case Open Connector
nd
2
USB2.0 Connector
Die-Hard BIOS 2
JP24 Die-Hard BIOS Select Jumper
IrDA Connector
Die-Hard BIOS 1
JP14 CMOS Clear Jumper
JST-MIDI Connector
IEEE 1394 Connector x2
SYSFAN2 Connector
Front Panel Connector
ATA100/133 IDE Connector x2
FDD Connector
SPP/EPP/ECP Parallel Port
PS/2 Mouse
Connector
USB2.0 Ports
PS/2 Keyboard
COM 1 Port
Connector
RJ45 10/100
LAN Jack
Line-In
Speaker Out
Mic-In
COM 2 Port
USB2.0 Ports
CPUFAN1 Connector
478-pin CPU socket (Willamette/Northwood)
with Voltage and Frequency Auto-detection
®
®
that supports Intel
Pentium
4 CPU
4-pin 12V. ATX Power Connector
AGP 8X/4X Expansion Slot
SIS 655/963 Chipsets
SYSFAN3 Connector
184-pin DIMMx4 supports dual channel
DDRAM333/266 maximum up to 4GB
ATX Power Connector
Advertisement
Table of Contents
Related Manuals for AOpen AX45-4D Max
Summary of Contents for AOpen AX45-4D Max
- Page 1 RJ45 10/100 SPP/EPP/ECP Parallel Port LAN Jack PS/2 Mouse Line-In Connector (AOpen reserves the right to revise all the specifications and information USB2.0 Ports contained in this document which is Speaker Out subject to change without notice.) Mic-In PS/2 Keyboard...
-
Page 2: Jp14 Clear Cmos
1. JP14 Clear CMOS You can clear CMOS to restore system default setting. To clear the CMOS, follow the procedure below. 1. Turn off the system and unplug the AC power. 2. Remove ATX power cable from connector PWR2. Everything you need to boot this 3. -
Page 3: Installing Processor
3. Installing Processor 5. Setting CPU Voltage & Frequency Setting CPU Core Voltage This socket supports Micro-FC-PGA2 package CPU, which is the latest CPU package This motherboard supports CPU VID function. The CPU core voltage will be automatically developed by Intel. Other forms of CPU package are impossible to be fitted in. detected. -
Page 4: S/Pdif Connector
6. Memory & AGP Voltage Adjustment 8. S/PDIF Connector With our considerate design, you can adjust memory and AGP voltage in BIOS. The S/PDIF (Sony/Philips Digital Interface) is a latest audio transfer file format that provides memory voltage range is from 2.5V to 2.7V and the AGP voltage is from 1.5V to 1.6V. impressive quality through optical fiber and allows you to enjoy digital audio instead of analog. - Page 5 12. JP2 Dr. Voice Output Jumper 10. Connecting Front Panel Cable This motherboard comes with another considerate option that allows you to control the voice output. You can choose to let the voice come out from the PC buzzer on the board by setting JP2 to pin 1-2, or have the voice out from audio speaker by setting JP2 to pin 2-3.
- Page 6 After selecting the model name, you can install its AGP, IDE, Audio, LAN upgrading. and USB2.0 drivers from this CD. Download the new version of BIOS package file from AOpen official web site. (ex: http://www.aopen.com) Unzip the download BIOS package (ex: WAX454DM102.ZIP) with WinZip (http://www.winzip.com) in Windows environment.
-
Page 7: Part Number And Serial Number
IDE cable. The problem should be caused by the Check if the system can IDE cables or HDD itself. reboot successfully. Re-install Windows 95, Windows 98 or Windows NT. AX45-4D Max is model name of motherboard; R1.02 is BIOS version... - Page 8 Dear Customer, Test Report: We recommend you to choose board/card/device from the Thanks for choosing AOpen products. To provide the best and fastest service to compatibility test reports for assembling your PC. our customer is our first priority. However, we receive numerous emails and http://english.aopen.com.tw/tech/report/default.htm...
