Shure KSM44 User Manual

Multiple polar pattern condenser microphone
Hide thumbs Also See for KSM44:
Table of Contents

Advertisement

Quick Links

Download this manual
User Guide

Advertisement

Table of Contents
loading

Related Manuals for Shure KSM44

Summary of Contents for Shure KSM44

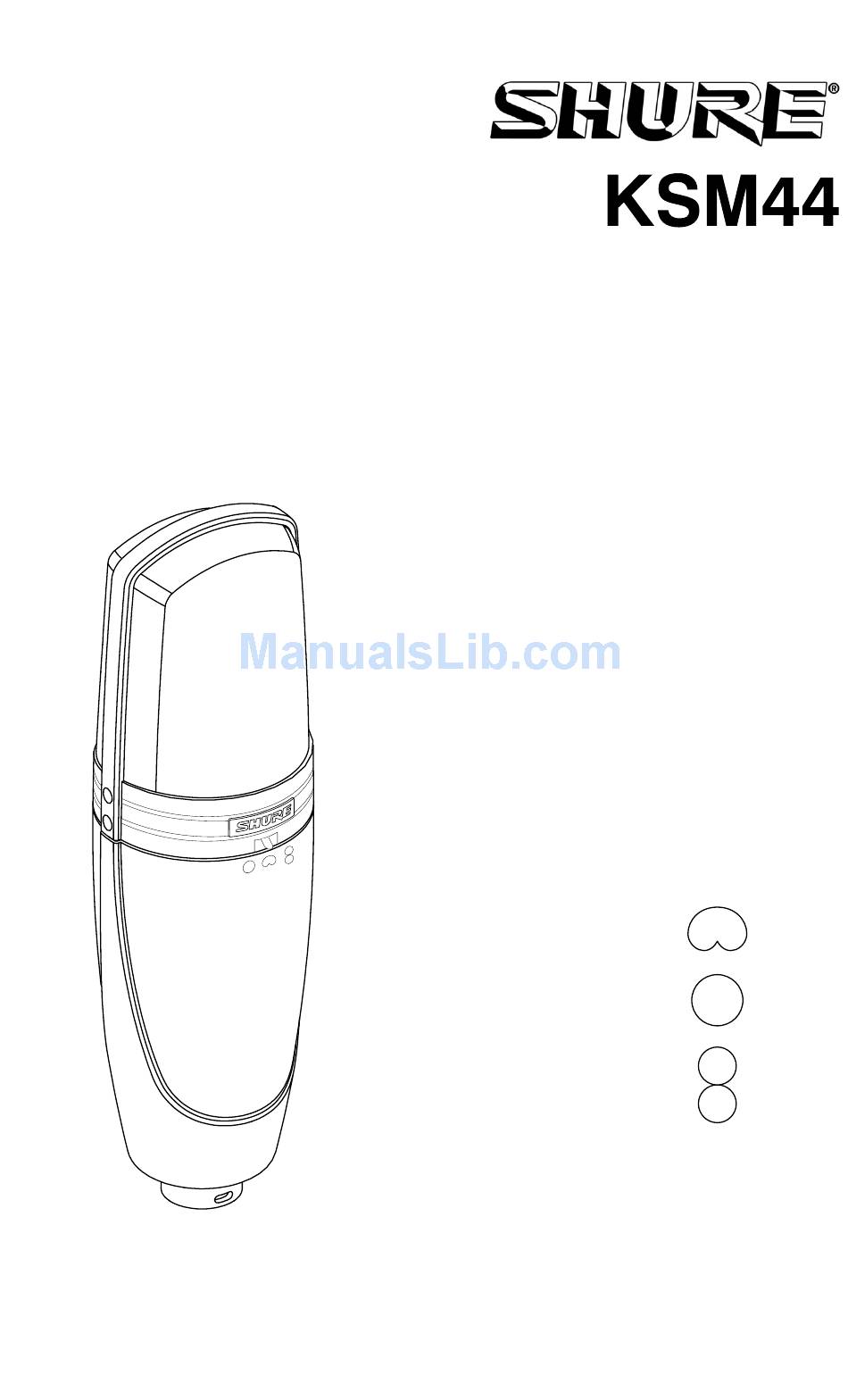

  • Page 1 User Guide...

  • Page 2: Declaration Of Conformity

    847–866–2200 declare under our sole responsibility that the following product, KSM44 Multiple Polar Pattern Condenser Microphone was tested and found to comply with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 3 KSM44 MULTIPLE POLAR PATTERN CONDENSER MICROPHONE Thank you for selecting the KSM44 Over 75 years of audio experience has contributed to making the KSM44 one of the finest microphones available. If you have any questions not answered in this booklet, please contact Shure Applications Engineering at 847-866–2525, Monday through Friday, from 8:00 am to...

  • Page 4: General Description

    KSM44 is a side-address condenser microphone with multiple polar patterns (cardioid, omnidirectional, bidirectional). Designed for studio use, the KSM44 has externally biased, dual 1-inch diaphragms, extremely low self-noise and an extended frequency response specially tailored for vocal tracking and instrument recording.

  • Page 5: Operation

    Use either the ShureLockt swivel mount or the elastic shock mount to secure the KSM44 to a floor or boom stand. When using the swivel mount, the internal shock mount provides good isolation from vibration. For even greater reduction of noise from external vibrations, use the elastic shock mount.
  • Page 6 15 dB attenuator FIGURE 1. KSM44 Front and Back Cardioid. Picks up sounds directly in front of the microphone and is least sensitive to those in back. Cardioid is the most commonly used pattern in studio recording and live-sound applications. See Figure 4.
  • Page 7 (rated at about 2500 the KSM44 provides higher maximum SPL capability and output clipping level. With the -15 dB pad engaged, the KSM44 can handle up to 156 dB SPL and output +15 dBV into a 5500 or greater load.

  • Page 8: Specifications

    SPECIFICATIONS Cartridge Type Externally biased condenser Frequency Response 20 to 20,000 Hz (See Figures 3, 5, 7) Output Impedance (actual) Attenuation Switch 0 or 15 dB attenuation Low Frequency Flat; -6 dB/octave below 115 Hz; -18 dB/octave below 80 Hz Response Switch 48 Vdc "...
  • Page 9 CARDIOID RESPONSE GRAPHS Ñ Ñ Ñ Ñ Ñ Ñ Ñ Ñ Ñ Ñ Ñ Ñ Ñ Ñ Ñ Ñ Ñ Ñ Ñ Ñ Ñ Ñ Ñ Ñ Ñ Ñ Ñ Ñ Ñ Ñ Ñ Ñ Ñ Ñ Ñ Ñ Ñ Ñ...
  • Page 10 –20 dB –20 dB –15 dB –15 dB –10 dB –10 dB –5 dB –5 dB +5 dB +5 dB 10000 2500 15000 1000 5000 FIGURE 6. TYPICAL POLAR PATTERNS BIDIRECTIONAL RESPONSE GRAPHS Ñ Ñ Ñ Ñ Ñ Ñ Ñ Ñ Ñ Ñ Ñ Ñ...

  • Page 11: Furnished Accessories

    Meets applicable tests and performance criteria found in European Professional Audio Products EMC Standard EN 55103 (1996); Part 1 (emissions) and part 2 (immunity). The KSM44 is intended for use in environments E1 (residential) and E2 (Light Industrial) as defined in European standard EN 55103. EMC conformance is based on the use of shielded interconnecting cable.
  • Page 12 Trademark Notices: The circular S logo, the stylized Shure logo, and the word “Shure” are registered trademarks of Shure Incorporated in the United States. “ShureLock” is a trademark of Shure Incorporated in the United States. “Mylar” is a registered trademark of E.I. duPont de Nemours and Company in the United States.
