MODEL UA505 REMOTE ANTENNA MOUNTING BRACKET KIT
The Shure UA505 Remote Antenna Mounting Bracket Kit lets
you mount a 1/2-wave antenna away from the receiver or
equipment rack. This kit includes one mounting bracket, a
bulkhead adapter, and bulkhead adapter nut.
Note: Antennas and bracket mounting hardware (screws,
washers and nuts) are not included in this kit.

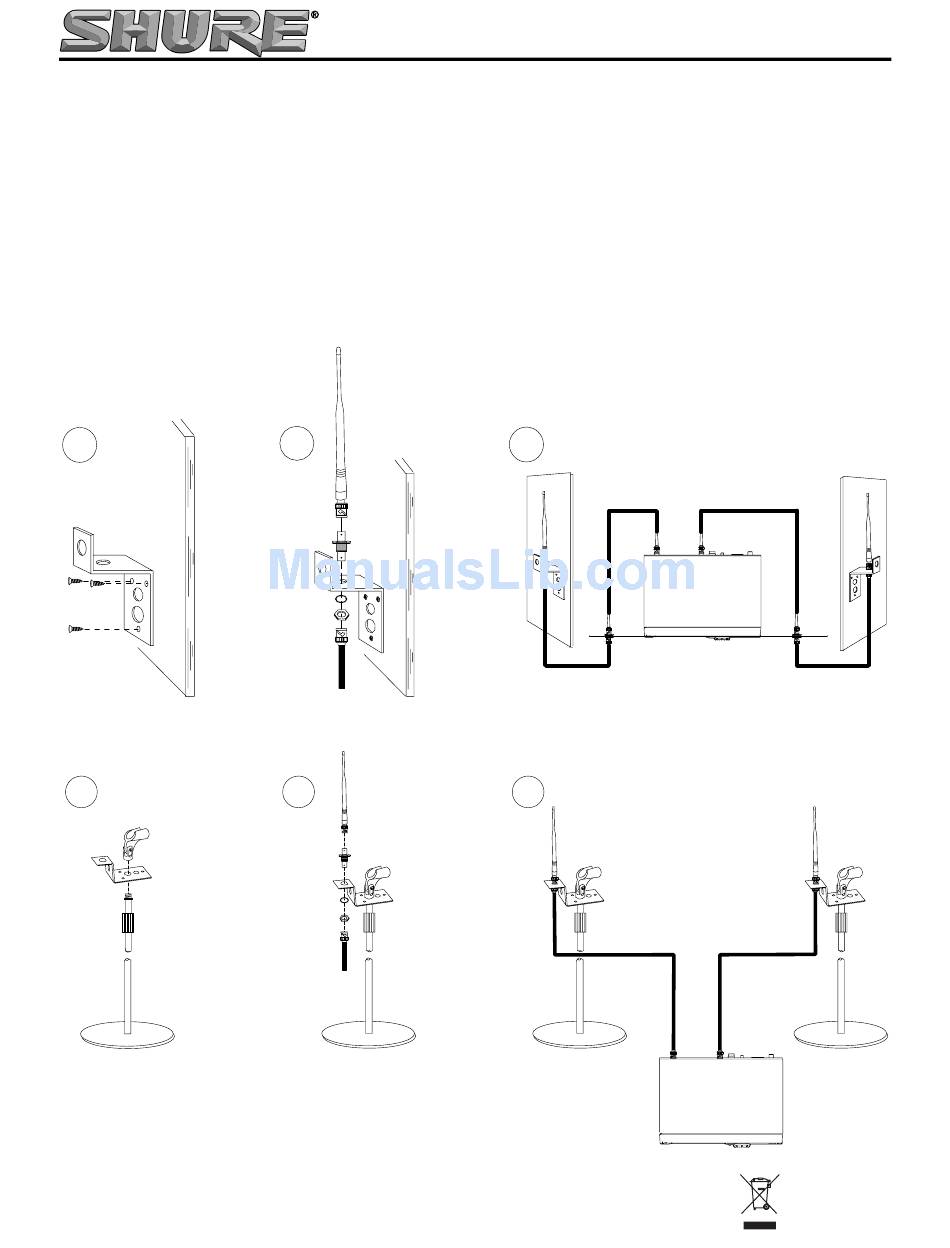

Wall Mount
1
Microphone Stand Mount
1
SHURE Incorporated http://www.shure.com
United States, Canada, Latin America, Caribbean:
5800 W. Touhy Avenue, Niles, IL 60714-4608, U.S.A.
Phone: 847-600-2000 U.S. Fax: 847-600-1212 Intl Fax: 847-600-6446
Europe, Middle East, Africa:
Shure Europe GmbH, Phone: 49-7131-72140 Fax: 49-7131-721414
Asia, Pacific:
Shure Asia Limited, Phone: 852-2893-4290 Fax: 852-2893-4055
© 2005, Shure Incorporated
27B8751 (2)
2
2
Model UA505 Remote Antenna Mounting Bracket
Antenna Placement
•
Place antennas as high as possible and away from
metal obstructions.
•
Placing the antenna behind non-metallic curtains or
stage flats is acceptable.
•
Keep antennas separated by at least one wave length.
•
Make sure the person using the transmitter can see the
receiver antenna at all the times.
•
Use RG-8U or equivalent 50 Ω low-loss cable such as a
Shure UA825 or UA850.
•
Do not use 1/4-wave antennas for remote mounting.
