Page 1
UA505-RSMA Remote Antenna Mounting Bracket Kit User guide for UA505-RSMA remote antenna mounting bracket kit. Version: 2.0 (2023-A)
Page 2
Shure Incorporated Table of Contents Included Components UA505-RSMA Remote Antenna Mounting Bracket Kit 3 Remote Antenna Placement General Mounting the Bracket...
Page 3

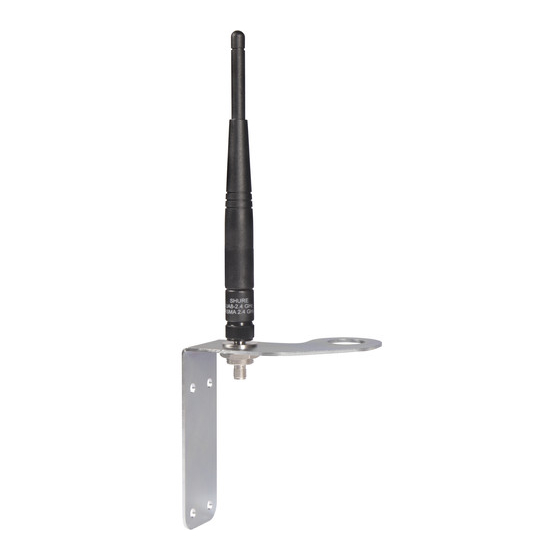

Shure Incorporated UA505-RSMA Remote Antenna Mounting Bracket Kit General The Shure UA505-RSMA Remote Antenna Mounting Bracket Kit lets you mount an antenna away from the receiver or equip- ment rack. NOTE: Antennas and bracket mounting hardware (screws, washers and nuts) are not included in this kit. Wall bracket dimensions: 84.52 x 63.5 x 77.02 mm (H x W x D)
Page 4
Shure Incorporated Wall Mount Microphone Stand Mount...
