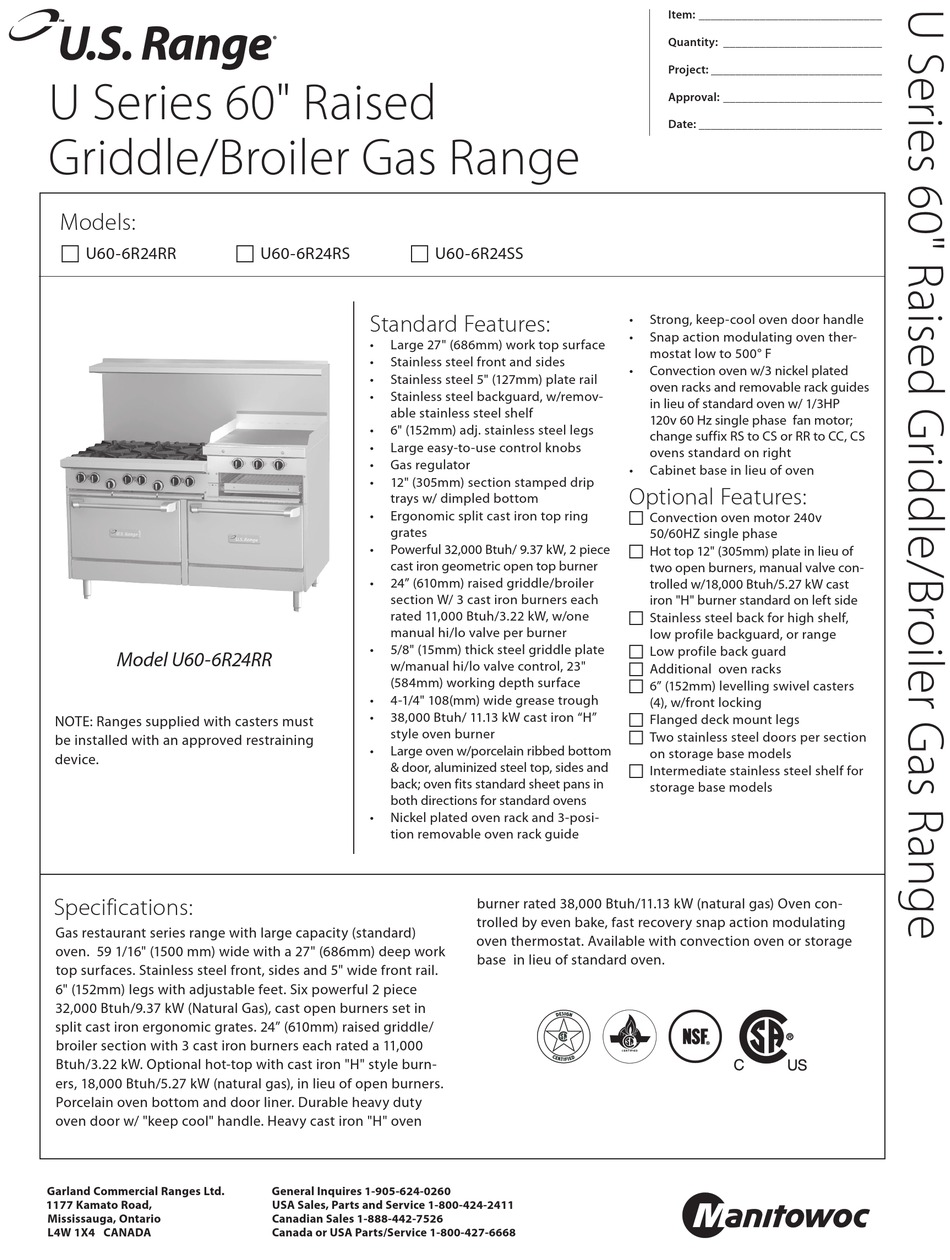

U.S. Range U60-6R24RR Instruction Manual

U Series 60" Raised
Griddle/Broiler Gas Range
Models:
 U60-6R24RR
Model U60-6R24RR
NOTE: Ranges supplied with casters must
be installed with an approved restraining
device.

Specifications:

Gas restaurant series range with large capacity (standard)
oven. 59 1/16" (1500 mm) wide with a 27" (686mm) deep work
top surfaces. Stainless steel front, sides and 5" wide front rail.
6" (152mm) legs with adjustable feet. Six powerful 2 piece
32,000 Btuh/9.37 kW (Natural Gas), cast open burners set in
split cast iron ergonomic grates. 24" (610mm) raised griddle/
broiler section with 3 cast iron burners each rated a 11,000
Btuh/3.22 kW. Optional hot-top with cast iron "H" style burn-
ers, 18,000 Btuh/5.27 kW (natural gas), in lieu of open burners.
Porcelain oven bottom and door liner. Durable heavy duty
oven door w/ "keep cool" handle. Heavy cast iron "H" oven
Garland Commercial Ranges Ltd.
1177 Kamato Road,
Mississauga, Ontario
L4W 1X4 CANADA
 U60-6R24RS  U60-6R24SS

Standard Features:

• Large 27" (686mm) work top surface
• Stainless steel front and sides
• Stainless steel 5" (127mm) plate rail
• Stainless steel backguard, w/remov-
able stainless steel shelf
• 6" (152mm) adj. stainless steel legs
• Large easy-to-use control knobs
• Gas regulator
• 12" (305mm) section stamped drip
trays w/ dimpled bottom
• Ergonomic split cast iron top ring
grates
• Powerful 32,000 Btuh/ 9.37 kW, 2 piece
cast iron geometric open top burner
• 24" (610mm) raised griddle/broiler
section W/ 3 cast iron burners each
rated 11,000 Btuh/3.22 kW, w/one
manual hi/lo valve per burner
• 5/8" (15mm) thick steel griddle plate
w/manual hi/lo valve control, 23"
(584mm) working depth surface
• 4-1/4" 108(mm) wide grease trough
• 38,000 Btuh/ 11.13 kW cast iron "H"
style oven burner
• Large oven w/porcelain ribbed bottom
& door, aluminized steel top, sides and
back; oven fits standard sheet pans in
both directions for standard ovens
• Nickel plated oven rack and 3-posi-
tion removable oven rack guide
General Inquires 1-905-624-0260
USA Sales, Parts and Service 1-800-424-2411
Canadian Sales 1-888-442-7526
Canada or USA Parts/Service 1-800-427-6668
• Strong, keep-cool oven door handle
• Snap action modulating oven ther-
mostat low to 500° F
• Convection oven w/3 nickel plated
oven racks and removable rack guides
in lieu of standard oven w/ 1/3HP
120v 60 Hz single phase fan motor;
change suffix RS to CS or RR to CC, CS
ovens standard on right
• Cabinet base in lieu of oven

Optional Features:

 Convection oven motor 240v
50/60HZ single phase
 Hot top 12" (305mm) plate in lieu of
two open burners, manual valve con-
trolled w/18,000 Btuh/5.27 kW cast
iron "H" burner standard on left side
 Stainless steel back for high shelf,
low profile backguard, or range
 Low profile back guard
 Additional oven racks
 6" (152mm) levelling swivel casters
(4), w/front locking
 Flanged deck mount legs
 Two stainless steel doors per section
on storage base models
 Intermediate stainless steel shelf for
storage base models
burner rated 38,000 Btuh/11.13 kW (natural gas) Oven con-
trolled by even bake, fast recovery snap action modulating
oven thermostat. Available with convection oven or storage
base in lieu of standard oven.
Item: ______________________________
Quantity: __________________________
Project: ____________________________
Approval: __________________________
Date: ______________________________
