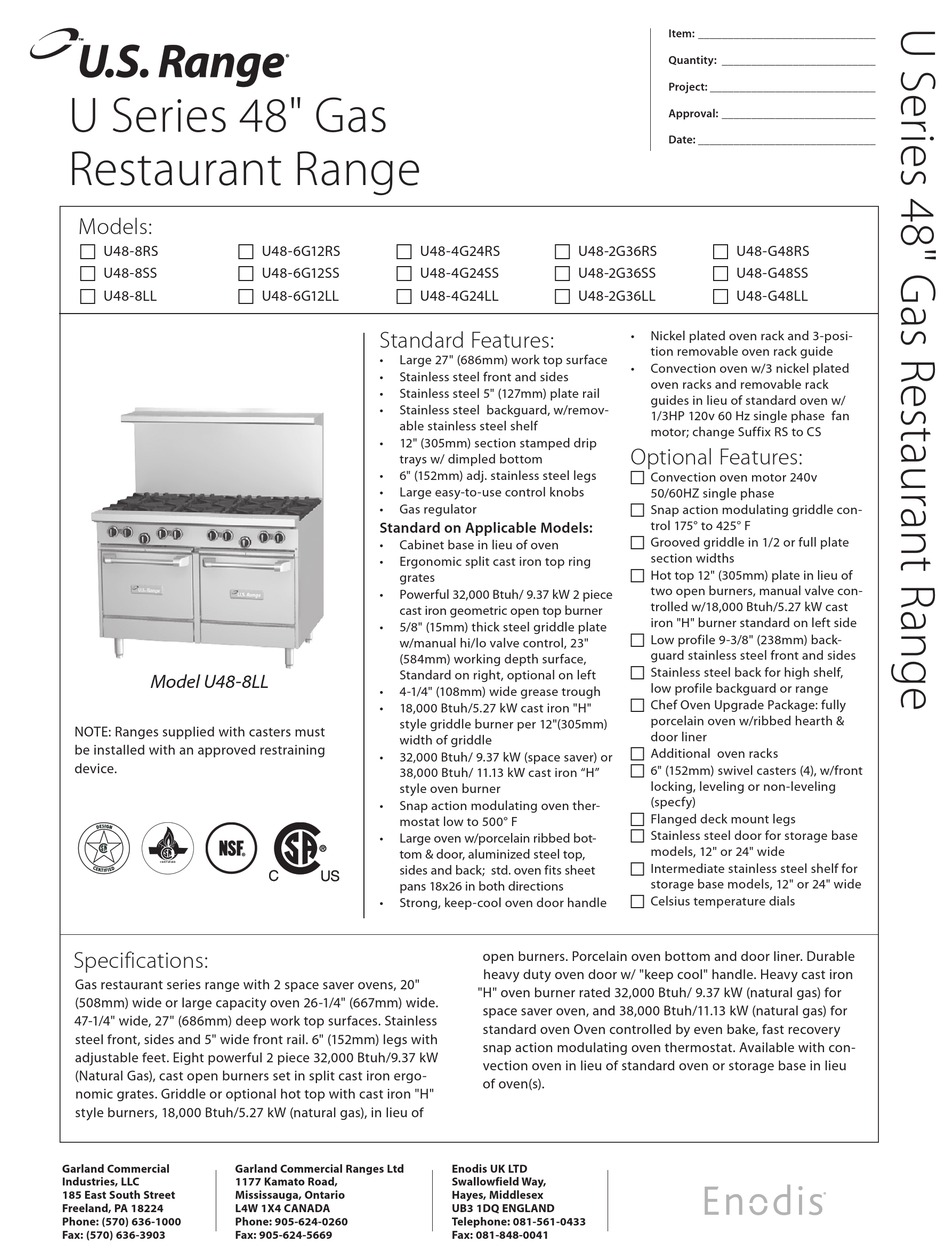

U.S. Range U48-2G36LL Specifications

U Series 48" Gas
Restaurant Range
Models:
 U48-8RS  U48-6G12RS
 U48-8SS  U48-6G12SS
 U48-8LL  U48-6G12LL
Model U48-8LL Model U48-8LL
NOTE: Ranges supplied with casters must
be installed with an approved restraining
device.

Specifications:

Gas restaurant series range with 2 space saver ovens, 20"
(508mm) wide or large capacity oven 26-1/4" (667mm) wide.
47-1/4" wide, 27" (686mm) deep work top surfaces. Stainless
steel front, sides and 5" wide front rail. 6" (152mm) legs with
adjustable feet. Eight powerful 2 piece 32,000 Btuh/9.37 kW
(Natural Gas), cast open burners set in split cast iron ergo-
nomic grates. Griddle or optional hot top with cast iron "H"
style burners, 18,000 Btuh/5.27 kW (natural gas), in lieu of
Garland Commercial Garland Commercial Ranges Ltd
Industries, LLC 1177 Kamato Road,
185 East South Street Mississauga, Ontario
Freeland, PA 18224 L4W 1X4 CANADA
Phone: (570) 636-1000 Phone: 905-624-0260
Fax: (570) 636-3903 Fax: 905-624-5669
 U48-4G24RS  U48-2G36RS
 U48-4G24SS  U48-2G36SS
 U48-4G24LL  U48-2G36LL

Standard Features:

• Large 27" (686mm) work top surface
• Stainless steel front and sides
• Stainless steel 5" (127mm) plate rail
• Stainless steel backguard, w/remov-
able stainless steel shelf
• 12" (305mm) section stamped drip
trays w/ dimpled bottom
• 6" (152mm) adj. stainless steel legs
• Large easy-to-use control knobs
• Gas regulator
Standard on Applicable Models:
• Cabinet base in lieu of oven
• Ergonomic split cast iron top ring
grates
• Powerful 32,000 Btuh/ 9.37 kW 2 piece
cast iron geometric open top burner
• 5/8" (15mm) thick steel griddle plate
w/manual hi/lo valve control, 23"
(584mm) working depth surface,
Standard on right, optional on left
• 4-1/4" (108mm) wide grease trough
• 18,000 Btuh/5.27 kW cast iron "H"
style griddle burner per 12"(305mm)
width of griddle
• 32,000 Btuh/ 9.37 kW (space saver) or
38,000 Btuh/ 11.13 kW cast iron "H"
style oven burner
• Snap action modulating oven ther-
mostat low to 500° F
• Large oven w/porcelain ribbed bot-
tom & door, aluminized steel top,
sides and back; std. oven fits sheet
pans 18x26 in both directions
• Strong, keep-cool oven door handle
open burners. Porcelain oven bottom and door liner. Durable
heavy duty oven door w/ "keep cool" handle. Heavy cast iron
"H" oven burner rated 32,000 Btuh/ 9.37 kW (natural gas) for
space saver oven, and 38,000 Btuh/11.13 kW (natural gas) for
standard oven Oven controlled by even bake, fast recovery
snap action modulating oven thermostat. Available with con-
vection oven in lieu of standard oven or storage base in lieu
of oven(s).
Enodis UK LTD
Swallowfield Way,
Hayes, Middlesex
UB3 1DQ ENGLAND
Telephone: 081-561-0433
Fax: 081-848-0041
Item: ______________________________
Quantity: __________________________
Project: ____________________________
Approval: __________________________
Date: ______________________________
 U48-G48RS
 U48-G48SS
 U48-G48LL
• Nickel plated oven rack and 3-posi-
tion removable oven rack guide
• Convection oven w/3 nickel plated
oven racks and removable rack
guides in lieu of standard oven w/
1/3HP 120v 60 Hz single phase fan
motor; change Suffix RS to CS

Optional Features:

 Convection oven motor 240v
50/60HZ single phase
 Snap action modulating griddle con-
trol 175° to 425° F
 Grooved griddle in 1/2 or full plate
section widths
 Hot top 12" (305mm) plate in lieu of
two open burners, manual valve con-
trolled w/18,000 Btuh/5.27 kW cast
iron "H" burner standard on left side
 Low profile 9-3/8" (238mm) back-
guard stainless steel front and sides
 Stainless steel back for high shelf,
low profile backguard or range
 Chef Oven Upgrade Package: fully
porcelain oven w/ribbed hearth &
door liner
 Additional oven racks
 6" (152mm) swivel casters (4), w/front
locking, leveling or non-leveling
(specfy)
 Flanged deck mount legs
 Stainless steel door for storage base
models, 12" or 24" wide
 Intermediate stainless steel shelf for
storage base models, 12" or 24" wide
 Celsius temperature dials
